Ever wished your Arduino robot could recognize you like something out of a sci-fi movie, and tell if it's looking at a real person or just a photo? Adding such intelligent vision used to mean wrestling with complex computer vision algorithms, expensive hardware, and endless debugging. Not anymore.
Today, we're unlocking a game-changing combo: pairing the powerful AI brain of the Hiwonder K230 Vision Module with the versatile control of Arduino. In just five minutes, you can give your robot project "eyes" and a "brain." We'll walk through implementing two core features: Face Recognition and the crucial Liveness Detection. The latter ensures your bot can't be tricked by a photo or screen, making its sight both smart and secure.
Why the K230? A Total Game-ChangerClassic microcontrollers like the Arduino Uno are fantastic for controlling motors and reading sensors, but their limited processing power falls short for running real-time AI models. The K230 was built to solve this exact problem.
This compact module packs a chip designed for edge AI, delivering up to 6TOPS of equivalent processing power. This means it can process camera images locally on the device—no cloud connection needed—and it does it fast. The best part? It comes pre-loaded with a suite of AI models and a user-friendly development environment. You don't need to train models from scratch or write complex recognition code. For our goals, the K230 already has optimized algorithms for face detection and liveness checks; we simply need to call them with simple commands.
Think of the K230 as your "vision specialist." The Arduino acts as the "command center, " managing the robot's movement and decisions, while the K230 serves as the "intelligence officer, " analyzing the camera feed and reporting clear results (like "User: John detected, " "Liveness: Confirmed") back to the Arduino. This division of labor makes developing sophisticated projects more efficient than ever.
Before we dive into the logic, let's get the physical connection set up. It's as straightforward as building with blocks.
What You'll Need:

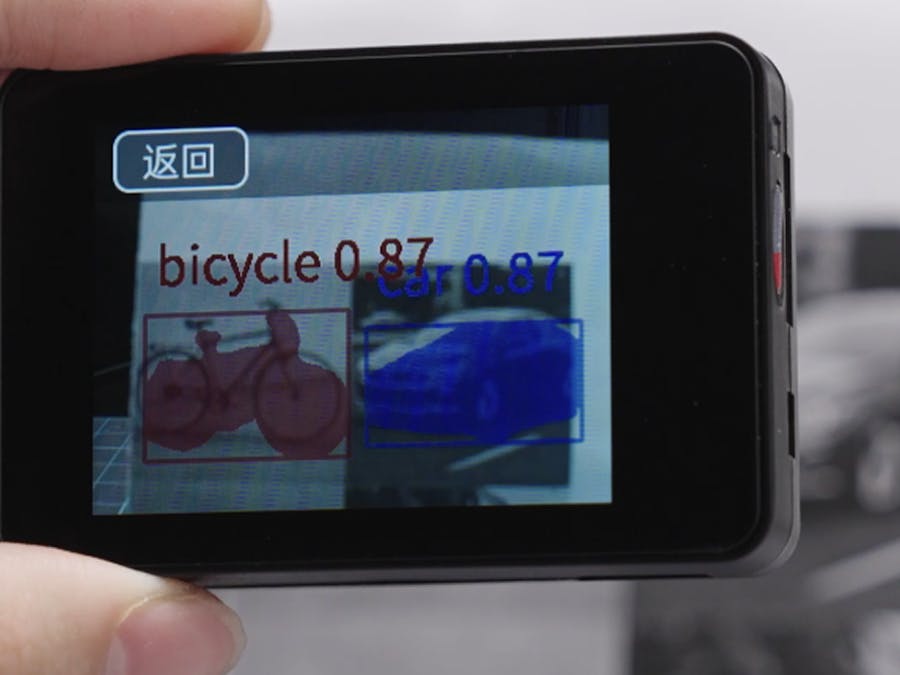

- Hiwonder K230 Vision Module (with built-in camera and screen)
- An Arduino board (like the ubiquitous Arduino Uno)
- A USB cable and some jumper wires
- Your robot's mobile platform (e.g., a car chassis or robotic arm base)
The goal is to let the Arduino and K230 "talk" to each other. We'll use a serial (UART) connection, the most common and reliable method for microcontroller communication.
- Connect the K230 module to your computer via its USB-C port for initial setup and power.
- Locate the serial communication pins (typically labeled TX and GND) on both the K230 and your Arduino.
- Make the connections: Link the K230's TX pin to the Arduino's RX pin. This allows the Arduino to "hear" what the K230 "says." Then, connect the GND (ground) pins of both boards together to establish a common electrical reference.
That's it for the hardware bridge. The K230's screen should light up, showing a live camera feed—a sign it's ready to go.
The software follows the elegant "Sense-Process-Act" paradigm of robotics.
Step 1: On the K230 Side – The "Seeing" and "Judging"
Forget writing lengthy code here. Thanks to the K230's ready-to-use ecosystem, we can quickly activate two core services, either through a built-in graphical tool or a short MicroPython script:
- Face Recognition Service: The module continuously scans the video feed. When it detects a face, it extracts features and compares them to a pre-registered face database (registration is simple—just look at the camera). On a match, it sends a clear message via serial, like: FACE_ID:John.
- Liveness Detection Service: This runs concurrently. It analyzes textures and micro-movements to determine if the face is real. It also sends a straightforward result, like: LIVENESS:REAL or LIVENESS:FAKE.
You can think of this as a simple API—a black box that outputs easy-to-read text results.
Step 2: Communication Protocol – Setting "Ground Rules"
To ensure the Arduino interprets the K230's reports correctly, we set a simple protocol. For example, we can define that each message starts with [ and ends with ].
So, when the K230 recognizes you and confirms liveness, it sends:
[FACE_ID:John, LIVENESS:REAL]
If it sees an unknown face or detects a spoof, it might send:
[FACE_ID:UNKNOWN, LIVENESS:FAKE]
This format is robust and easy for the Arduino to parse.
Step 3: On the Arduino Side – The "Decision" and "Action"
This is the main logic we write in the Arduino IDE, and it's refreshingly simple. Its job is to listen, interpret, and act.
- Listen: The Arduino continuously monitors the serial port, waiting for a complete data packet between [ and ].
- Parse: Upon receiving a packet, it extracts the values for the FACE_ID and LIVENESS fields.
- Decide: It triggers pre-defined actions based on the parsed data. For example:
If FACE_ID is "John" AND LIVENESS is "REAL" -> The robot plays a welcome sound and starts to follow.
If FACE_ID is "UNKNOWN" OR LIVENESS is "FAKE" -> The robot sounds an alarm and backs away.
- Act: It calls your existing robot movement functions (like moveForward(), turn()) or triggers lights and sounds, completing the interaction loop.
Congratulations! You've just built a robot with foundational visual intelligence. But this is just a glimpse of the K230's potential. Its real power lies in seamless extensibility.
Using this same framework, you can easily add more exciting features:
- Emotion Recognition: Make your robot react differently based on whether you're smiling or frowning.
- Gesture Control: Command your robot with specific hand gestures, like a wave or a peace sign.
- Object Tracking: Have your robot autonomously lock onto and follow a colored object or a specific toy.
The K230 module is like a toolbox filled with advanced vision AI blocks, and the Arduino is your creative stage. Together, they dramatically lower the barrier to entry for embedded AI, freeing you from heavy hardware debugging and algorithm tuning so you can focus on robot behavior and creative applications.
This "5-minute tutorial" demonstrates more than a technical guide—it showcases a new paradigm: democratizing professional-grade AI by making it modular and accessible. Whether you're an educator, a robotics hobbyist, or an innovator prototyping an idea, pairing the Hiwonder K230 with Arduino opens a direct path to building intelligent machines. Now, it's time for your projects to truly see and understand the world around them.
