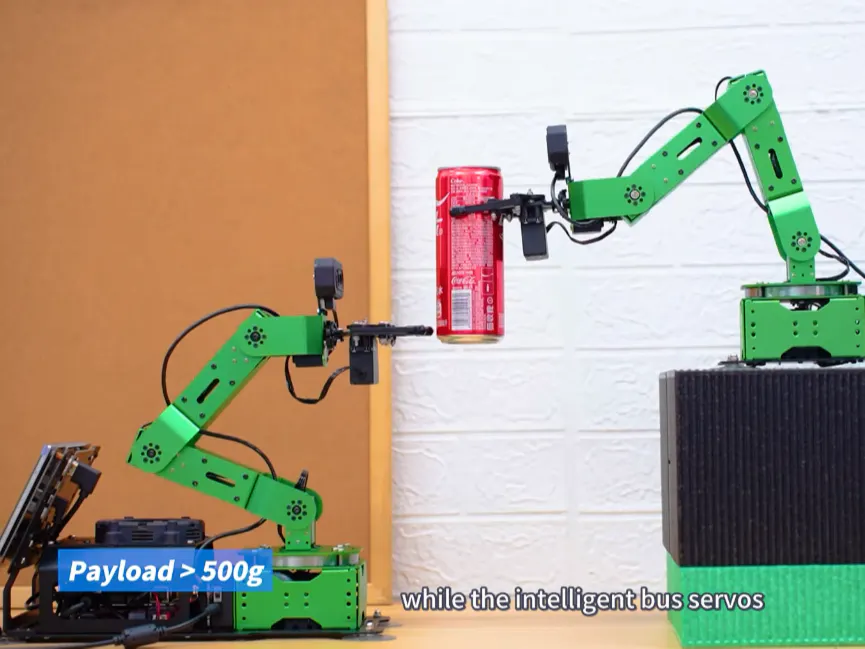

Robotics education thrives on platforms that grow with the learner's ambition. JetArm Pro serves as a core 6-DOF robotic manipulator designed for ROS 2, but its true potential is unlocked through a suite of modular hardware expansions. This project explores how these add-ons—a mobile base, linear rail, and conveyor belt—transform a stationary arm into a versatile platform for advanced projects in mobile manipulation and automated systems.
A stationary arm has a fixed workspace. JetArm Pro can be mounted on two types of mobile bases, turning it into a mobile manipulator.
- Mecanum Wheel Base: This base enables omnidirectional movement (sliding in any direction), ideal for navigating tight spaces. It features a swing-arm suspension to maintain ground contact on uneven surfaces.
- Tracked Base: Designed for better traction and obstacle negotiation, this base is suitable for tasks that might involve rougher terrain or precise line following.
Learning Application: This setup allows for projects in mobile pick-and-place, autonomous navigation with manipulation, and studying the coordination between base movement and arm control—a key challenge in real-world robotics.
2. Extended Reach: Adding a Linear AxisTo significantly expand its operational range along one dimension, the arm can be mounted on a motorized linear rail.
- Specs & Control: The rail provides 500mm of travel and is driven by a stepper motor for precise positioning, typically controlled via I2C communication.
- Practical Use: This is perfect for simulating assembly line tasks or automated storage/retrieval systems where the arm needs to service multiple workstations or a long shelf.
Learning Application: Implement coordinated motion where the arm and rail move simultaneously. Develop path-planning algorithms that account for the extended axis, creating efficient workflows for sorting or palletizing tasks.
3. Dynamic Interaction: Integrating a Conveyor BeltIntroducing a moving target adds a layer of real-world complexity. An electric conveyor belt module allows the system to interact with objects in motion.
- System Integration: The belt's speed and direction are controllable. The core challenge becomes using the arm's vision system to track, predict, and intercept objects on the moving belt.
- Project Potential: This enables classic "pick-and-place from a conveyor" applications, forming the basis for automated sorting systems (e.g., by color, shape, or using an AI model for object type).
These hardware expansions are integrated through a common software framework:
- ROS 2 Middleware: Each module (arm, base, rail) can be controlled via ROS nodes, making system integration and message passing manageable.
- Vision & AI: The arm's 3D camera provides perception. Object detection models (like YOLO) or color filtering can identify targets. For advanced tasks, cloud-based Large Language Models (LLMs) can be accessed via API for high-level instruction parsing.
- Control & Kinematics: The built-in inverse kinematics solver calculates joint angles for the arm, while ROS navigation stacks (like Nav2) can be adapted to control the mobile bases.
JetArm Pro is positioned as a platform to bridge theory and practice. By combining these modules, you can tackle projects that mirror industrial automation challenges:
- Mobile Fetch: Program the mobile base to navigate to a location, where the arm picks up an object and returns.
- Extended Workcell: Use the linear rail to create a multi-station inspection or assembly demo.
- Dynamic Sorting: Build a complete system that identifies objects on the conveyor and sorts them into different bins using the arm.
Project Resources: Success with such integrations relies on documentation. The platform is supported by open-source ROS packages, example code for controlling the expansion modules, and JetArm Pro tutorials that cover the fundamentals of sensor fusion and coordinated system control.
Conclusion:JetArm Pro and its expansion ecosystem demonstrate that a single robotic core can be the foundation for a wide array of experiments. For educators and developers, this modularity offers a cost-effective way to explore diverse subfields of robotics—from mobile manipulation to agile manufacturing—without investing in entirely separate, specialized systems. It encourages a systems-thinking approach, pushing learning beyond controlling a single device to orchestrating multiple, synchronized hardware components.
