Exploring the SO-ARM101: A Hardware-Optimized Platform

The intersection of accessible hardware and powerful, open-source AI frameworks is a driving force in robotics innovation. The SO-ARM101 robotic arm, developed by Hiwonder based on the Hugging Face LeRobot project, exemplifies this by providing a physical platform specifically engineered to leverage and expand upon modern imitation learning techniques. Beyond implementing the core LeRobot concepts, it introduces key hardware optimizations that address practical challenges in real-world experimentation.

Core Advantage 1: A Practical Workflow for End-to-End Imitation Learning

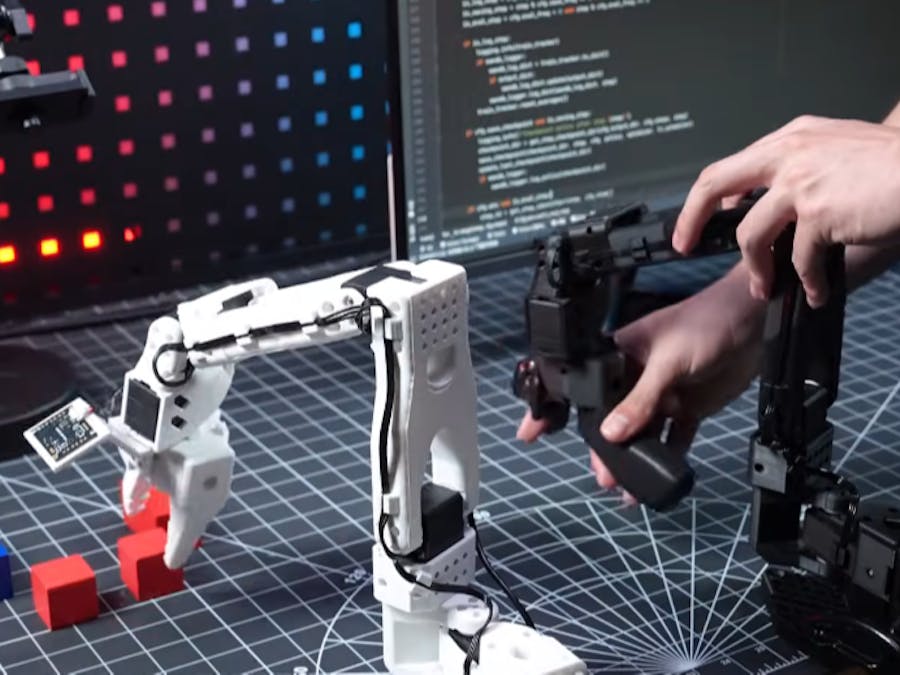

At its heart, the SO-ARM101 is built for Learning from Demonstration (LfD). It employs a leader-follower system architecture:

• Demonstration: You physically guide the Leader Arm to perform a task, like picking up a cup.
• Data Collection: The Follower Arm replicates the motion while the system automatically records synchronized data streams: joint angles from both arms and visual feeds from dual cameras. This creates a ready-to-use, multimodal dataset without manual labeling.
• Training & Execution: This data can be used with the Hugging Face ecosystem's tools to train a policy model. Once trained, the arm can attempt the task autonomously in new situations, closing the perception-action loop. This workflow shifts focus from low-level programming to high-level teaching.

💡What Is Imitation Learning?

Core Advantage 2: Dual-Camera Vision for Robust Perception

Vision is critical for LfD. The SO-ARM101's dual-camera setup is designed to provide comprehensive situational awareness:

• First-Person View (Wrist Camera): Mounted on the end-effector, this camera moves with the gripper, providing a close-up, detailed view of the target object for precise manipulation.
• Global Third-Person View: A fixed, wide-angle camera monitors the entire workspace. This helps with scene understanding, obstacle avoidance, and provides context that the wrist camera might miss, creating a more robust perceptual model for the AI.

For more repositories and codes, you can follow Hiwonder GitHub.

Core Advantage 3: Precision Actuation for Smooth, Reliable Motion

Successful imitation requires the physical arm to execute learned motions accurately and smoothly. The SO-ARM101 addresses this with:

• High-Torque Magnetic-Encoder Servos: Six custom 30kg-cm servos provide the strength for manipulation tasks.
• Precision Feedback: The 360-degree magnetic encoders offer high-resolution position feedback for accurate joint control.
• Optimized Motion Control: Integrated PID and acceleration/deceleration algorithms aim to produce fluid, "industrial-like" motion, minimizing jerk and vibration that could disrupt delicate tasks or reduce data quality during demonstrations.

Core Advantage 4: Direct Integration with the Hugging Face Ecosystem

The platform's primary value is its seamless connection to a vibrant open-source community:

• LeRobot Protocol Compatibility: It works natively with the LeRobot software stack, libraries, and examples.
• Access to Shared Resources: Developers can leverage community-shared pre-trained models, datasets, and configuration templates from Hugging Face, accelerating project starts.
• Focus on Application: This integration allows users to bypass much of the foundational hardware-software integration work and concentrate on implementing and testing specific tasks and algorithms.

Conclusion: A Platform for Hands-On Embodied AI

The SO-ARM101 is positioned as a practical experimenter's platform. Its design choices—the dual cameras, high-feedback servos, and LeRobot compatibility—are all geared towards making embodied AI and imitation learning more accessible for education, research, and prototyping. By providing detailed tutorials covering hardware assembly, software setup, and model training, it aims to lower the barrier for developers and students to move from theoretical concepts to tangible robotic skills learned through demonstration.
