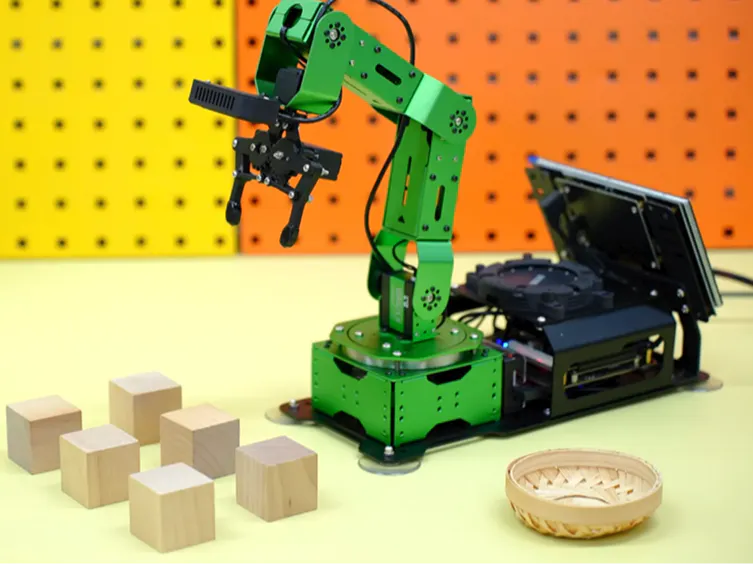

Building a Multimodal AI Brain for the JetArm Robot

Robotic arms are evolving beyond simple pre-programmed machines into systems capable of interpreting and responding to their environment. This project explores the implementation of a multimodal AI decision-making pipeline on a robotic manipulator, using a platform like JetArm as a practical testbed. We'll break down how integrating vision, speech, and large language models (LLMs) can enable more autonomous and interpretable task execution.

The Foundation: Multimodal Perception

The core of this advanced functionality is a system that fuses multiple sensory inputs, acting as the robot's "eyes, " "ears, " and "reasoning center."

• Visual Perception (The "Eyes"): A 3D depth camera provides crucial scene information. Beyond simple object detection, vision models (like YOLO or customized CNNs) can identify objects, classify them by type or color, and estimate their spatial pose. This transforms raw pixels into a structured understanding of the workspace.
• Auditory & Speech Perception (The "Ears" and "Voice"): An onboard audio module with speech recognition allows the robot to accept natural language commands. A text-to-speech (TTS) component enables it to provide verbal status updates or confirmations, creating a more natural interactive loop.
• Semantic Understanding (The "Reasoning Center"): This is powered by accessing large language models via an API. The LLM is responsible for parsing the intent behind complex or ambiguous commands, engaging in multi-turn dialogue for clarification, and performing high-level task reasoning.

💡Free Get JetArm tutorial: schematics, source codes, videos & experimental projects.

The Decision Pipeline: From Instruction to Action

The true innovation lies not in the individual components, but in their orchestration. Let's trace the decision pipeline through a concrete example: "Keep the item that is the color of the sky, and remove the others."

1. Intent Understanding & Semantic Grounding

The spoken command is converted to text via ASR and sent to the LLM. The model must interpret the natural language. It deduces that "the color of the sky" refers to "blue." The core intent is extracted: classify objects by color, retain blue ones, remove others. This step bridges human language and machine-actionable goals.

2. Task Planning & Scene Analysis

The system now correlates this intent with the visual scene. The vision model provides a list of detected objects with their properties (color, location). The planner:

• Matches visual data ("blue cube at coordinates X, Y") to the semantic filter ("blue").
• Plans an efficient sequence: perhaps removing non-blue objects first to clear space.
• Considers collision-free paths for the arm to approach, grasp, and place each item.

3. Motion Execution & Closed-Loop Control

The high-level plan is converted into low-level actions. For each target object:

• Inverse Kinematics (IK) calculates the precise joint angles needed for the arm's end-effector to reach the object's location.
• A grasp controller manages the gripper.
• PID control and potentially real-time sensor feedback ensure the motion is smooth and accurate, compensating for small errors.

This three-stage pipeline (Understand → Plan → Execute) allows the system to handle variations in object placement, phrasing of commands, and scene layout without being explicitly reprogrammed.

Technical Implementation & Learning Value

For developers and students, implementing such a pipeline on a platform like JetArm offers profound learning opportunities:

• System Integration: Learn to wire together disparate subsystems: ROS nodes for motor control, Python services for vision inference, and API calls to cloud-based LLMs.
• State Management: Design the logic that maintains context between perception, decision, and action phases.
• Real-World Challenges: Confront and solve issues like sensor noise, timing delays between modules, and error handling when plans fail.

This project moves beyond theoretical AI and into embodied AI, where intelligence is evaluated by its ability to generate physical action in an unstructured environment.

Conclusion

This multimodal architecture demonstrates a significant step toward more adaptable and intuitive robots. The JetArm serves as an ideal platform for prototyping these concepts due to its integrated sensors and ROS-based software framework.
