Build Smart Security with K230: OCR & 3D Face Mesh

Have you ever imagined building a smart security system for your warehouse or studio that can identify individuals and log vehicle information automatically, all for less than the cost of a mid-range smartphone? Traditional solutions often force a difficult choice between expensive cloud-based AI services with ongoing fees and privacy concerns, and limited, single-function local devices.

Today, we break this deadlock. Using the Hiwonder K230 module—a palm-sized vision module packing 6TOPS of equivalent AI performance—we can implement two critical capabilities locally on the device, simultaneously: OCR text recognition and 3D face mesh analysis. This guide will walk you through building a prototype system that not only "reads" text on IDs or license plates but also "sees" in 3D to determine if it's looking at a real person or a photograph, creating a high-reliability, high-privacy intelligent security checkpoint at the edge.

Part 1: Why Combine OCR with 3D Face?

Before we start building, it's crucial to understand why this specific combination of technologies is so powerful. Together, they address the core security challenges of "credential verification" and "biometric spoofing."

OCR gives the machine the ability to read. In a security context, this means it can automatically extract ID numbers, license plate information, or tracking numbers, turning visual data into searchable, verifiable structured data. This replaces error-prone and tedious manual entry and verification.

3D Face Mesh technology, on the other hand, represents an evolution in combating security threats. Traditional 2D facial recognition is easily fooled by high-resolution photos or screen replays. 3D face mesh technology counters this by reconstructing the three-dimensional geometry of a face, allowing it to perceive depth, contour, and subtle motions accurately. This enables the system to request actions like "blink" or "nod, " analyzing the uniqueness of these movements in 3D space to perform liveness detection—effectively determining if a live person is present and raising the bar for identity theft significantly.

The power of the K230 module lies in its built-in 6TOPS of processing power, which is sufficient to run these two complex AI tasks simultaneously and in real-time at the edge, without ever needing to send sensitive image data to the cloud. All processing happens locally—it's faster and completely eliminates the risk of private data leakage, forming the most trustworthy foundation for modern intelligent security.

Part 2: System Design: One Core, Two Scenarios

Our intelligent security node is built with the K230 module at its absolute core. Its integrated 2MP camera and touchscreen provide a complete sensing and interaction interface. The K230 communicates its recognition results via a universal serial port or Wi-Fi to a microcontroller (like an Arduino or ESP32) acting as the "executive officer, " which in turn controls actuators such as door lock relays, alarms, or barrier gates.

The system's workflow is intelligent and straightforward:

1. Trigger & Sense: The K230 is awakened—either by a person approaching or a sensor trigger—and begins capturing video.

2. Parallel Analysis: This is where the K230 shines. On a single frame, it runs two AI models simultaneously: one to locate and recognize all text regions, and another to detect faces and reconstruct their 3D mesh models in real time.

3. Intelligent Decision: The system makes a judgment based on the pre-defined scenario.

• 3.1 Scenario A: High-Security Access Control. A visitor is prompted to hold an ID card to the camera while also facing it. The system extracts the ID number via OCR and confirms liveness via 3D mesh analysis. A "grant access" signal is sent only if the OCR data matches an authorized list AND liveness is confirmed.
• 3.2 Scenario B: Unattended Checkpoint. The system monitors continuously. If OCR identifies a banned license plate, or if an unrecognized face is detected loitering, it immediately triggers a local audio-visual alarm and logs the event.

4. Action & Log: The "executive" microcontroller receives the command from the K230, drives the physical device, and saves all event logs to a local SD card.

Part 3: From Concept to Reality: Key Implementation Steps

Bringing this idea to life is straightforward thanks to the K230's developer-friendly ecosystem. We'll use MicroPython, its primary supported language, which allows efficient calls to the underlying, optimized AI models.

First, we activate the K230's foundational vision capabilities. Using the official library of pre-trained models, we can easily initialize text detection and basic face detection functions. This sets up a solid scaffold for our project.

Next, we move to customization. To make OCR more accurate for specific IDs or license plates, we can use the K230's "1-click AI training" feature. By collecting and labeling a few dozen images of the target object for fine-tuning, we obtain a dedicated recognition model for that scenario, significantly boosting accuracy.

The most critical step is integrating 3D liveness detection. We can leverage existing lightweight 3D facial landmark models. Once the K230 detects a face, it calls this model to estimate the 3D coordinates of hundreds of facial feature points, forming a mesh over the eyes, mouth, and nose contours. By calculating depth variations and the movement trajectories of specific point sets (e.g., the distance change around the eye socket to simulate a blink), we can design reliable liveness verification challenges, like "Please blink" or "Slowly shake your head."

Finally, we perform system integration. We define a simple serial communication protocol so the K230 can send formatted results (e.g., ID:PASS, LIVENESS:TRUE) to the Arduino. The code on the Arduino end is refreshingly simple—it just needs to parse these commands and control the corresponding pins to output high/low signals, driving the relays. The entire system operates without an internet connection and can be powered by a simple power bank, achieving true deployment autonomy and flexibility.

Part 4: Advantages and Boundless Potential

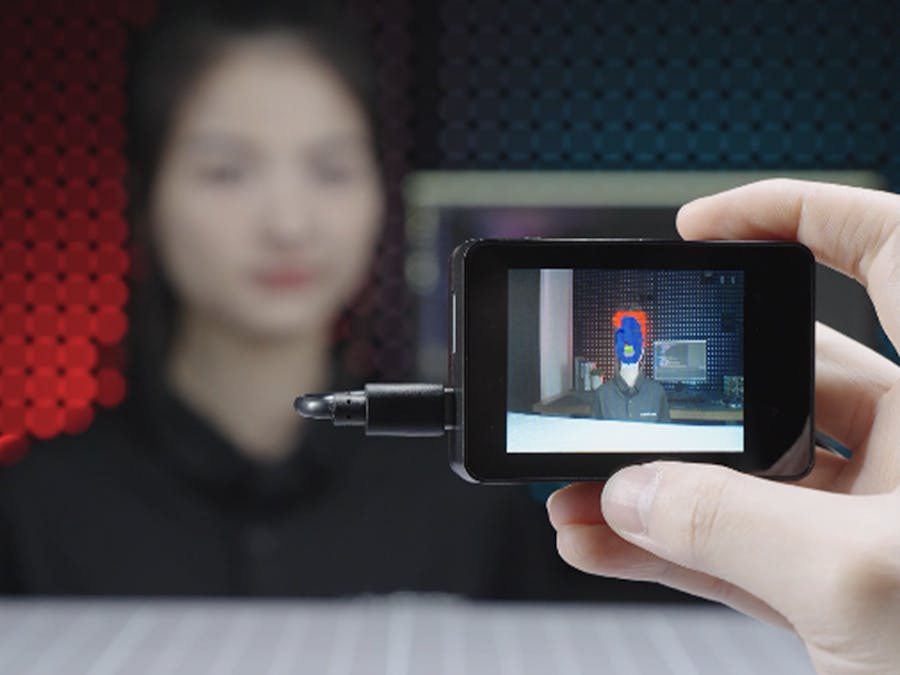

When the prototype runs, you'll see the K230's screen displaying the live feed, highlighted recognized text, and a responsive 3D wireframe model overlaid on any detected face. A successful verification happens seamlessly in an instant.

The core strength of this solution is its "Trinity" of advantages:

• Exceptional Cost-Efficiency: A single module replaces multiple components like an industrial computer, camera, and AI accelerator card, keeping total cost tightly controlled.
• Security and Privacy by Design: All sensitive data is processed in a local, closed loop, meeting the most stringent data protection requirements.
• High Flexibility: Rapid development with MicroPython and compatibility with mainstream controllers make it easy to add sensors (like temperature/humidity) or integrate with smart home platforms.

Its application potential also extends far beyond a simple door lock. You can adapt it into:

• A Smart Office Assistant for automated visitor registration and meeting check-ins.
• A Library Management Terminal that scans book spines to log borrowing information automatically.
• An Interactive Kiosk that recognizes viewers and displays personalized welcome messages and content.

Conclusion

Through this project, we see how edge AI modules like the Hiwonder K230 are dramatically reshaping the development paradigm for smart devices. They condense AI capabilities that once required hefty server support into a sub-$100 device, bringing advanced, proactive security from concept to reality—to the doorway of every home and workshop. More importantly, it shows us a future where intelligence doesn't have to come at the cost of privacy or a high price tag. By fusing OCR and 3D vision locally, we can create intelligent terminals that truly understand their environment, distinguish authenticity, and safeguard security. Now, the barrier to entry is lower, and the creative space is limitless. Why not start with this very module and cast the first beam of intelligent light for the space you care about?
