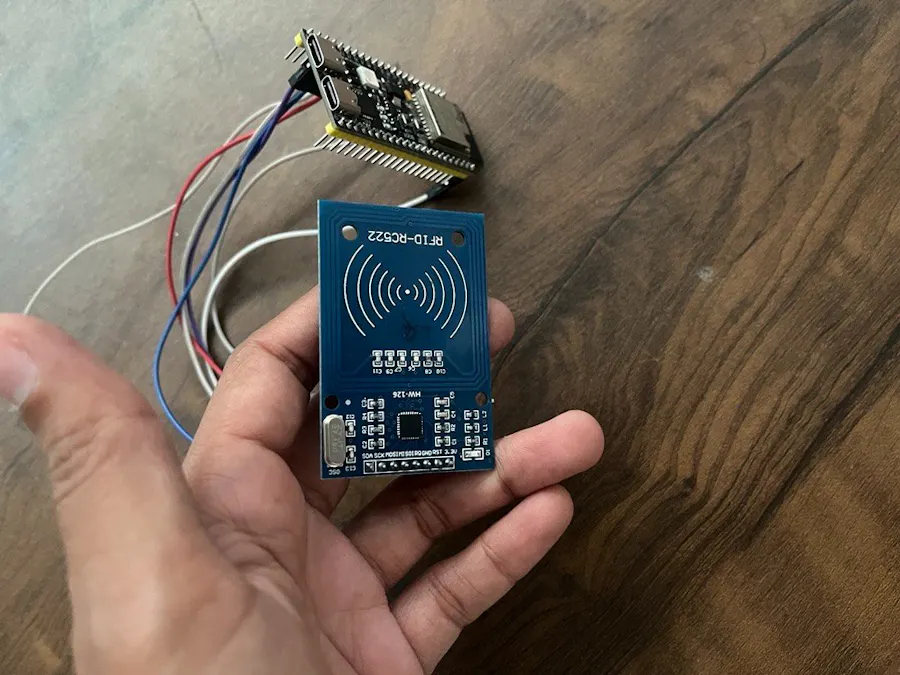

ESP32-S3 RFID Access Control System Using RC522

A smart RFID access control system using ESP32-S3 and RC522 for secure and contactless authentication.

ExpertProtip3 hours15

ESP32-S3 RFID Access Control System Using RC522

Things used in this project

Hardware components

ESP32-S3

M5Stack Mini RFID Unit RC522 Module Sensor

Jumper wires (generic)

Breadboard Mates Pi Adaptor

USB-A to Mini-USB Cable

SparkFun Breadboard Power Supply 5V/3.3V

Story

Short Description:

Build a smart RFID-based access control system using the ESP32-S3 and RC522 RFID reader. This project demonstrates secure, contactless authentication by detecting authorized RFID cards and can be used for smart locks, attendance systems, and IoT security applications.

Project Overview

The ESP32-S3 RFID Access Control System is a smart security solution that uses the RC522 RFID reader to authenticate users through RFID cards or tags. When a valid RFID card is scanned, the ESP32-S3 verifies the card's UID and grants access. This project demonstrates how RFID technology can be integrated with modern IoT hardware to create secure and efficient access control systems for homes, offices, labs, and industrial environments. This project is beneficial for real time security management techniques because it can't allow access to unauthorized users.

Let me explain this project in a real world example. Suppose the user wants to unlock a door, the user swipes the RFID card around the gate after that RC522 reader reads the information of the RFID card after that ESP32-S3 checks if the card is authorized or not. If the card is valid then the system unlocked the door if not the system will not unlock the door. This system proves smart technologies care about user security.

How It Works

The RC522 RFID reader continuously scans for nearby RFID cards. When a card is detected, the reader captures its unique identifier (UID) and sends it to the ESP32-S3. The microcontroller compares the UID with a list of authorized cards. If the UID matches an authorized user, access is granted. Otherwise, access is denied.

Build Instructions

Step 1: Gather Components

Collect all the required hardware components listed above.

Step 2: Connect the RC522 Module

Connect the RC522 RFID reader to the ESP32-S3 using SPI communication pins according to the wiring diagram provided in the project.

Step 3: Install Required Libraries

Install the necessary RFID and ESP32 libraries in the Arduino IDE.

Step 4: Upload the Code

Open the project code, select the correct ESP32-S3 board and COM port, then upload the firmware.

Step 5: Register RFID Cards

Scan RFID cards and note their UID values. Add authorized UIDs to the source code if required.

Step 6: Test the System

Power the ESP32-S3 and scan RFID cards near the RC522 reader. Verify that authorized cards are detected correctly.

Step 7: Deploy the Project

Mount the system inside an enclosure or integrate it into your security setup for real-world operation.

Key Features

Fast RFID card detection
Low power consumption
Compact hardware design
Real-time UID verification
Suitable for IoT-based access systems
Easy to customize and expand

Benefits

Enhanced Security

Only authorized RFID cards can gain access, reducing the risk of unauthorized entry. Only authorized users get the access of this system unauthorized users don't allowed. This system describes privacy about the user.

Contactless Operation

Users can authenticate quickly without physical contact, improving convenience and hygiene.

Cost Effective

Uses affordable hardware components while delivering reliable performance. With cost effectiveness the hardware components are easily available in online and offline stores.

Easy Integration

Can be connected with smart locks, attendance systems, vending machines, and other IoT applications.

Scalable Design

Supports additional features such as cloud monitoring, logging, and remote management.

Applications

School and College Access Control
Inventory Management
Industrial Security Systems
IoT-Based Authentication Solutions

Conclusion

The ESP32-S3 RFID Access Control System using the RC522 module is a practical and reliable solution for modern authentication and security requirements. Its low cost, ease of implementation, and scalability make it an excellent project for makers, students, and developers exploring RFID technology. Businesses looking to build advanced IoT and embedded security solutions often choose to hire raspberry pi developer professionals to accelerate development and create customized smart access systems.

rc522_testing.ino

#include <SPI.h>
#include <MFRC522.h>

#define SS_PIN   10
#define RST_PIN  9
#define SCK_PIN  12
#define MISO_PIN 13
#define MOSI_PIN 11

MFRC522 rfid(SS_PIN, RST_PIN);

void setup() {
  Serial.begin(115200);
  delay(1000);

  SPI.begin(SCK_PIN, MISO_PIN, MOSI_PIN, SS_PIN);
  rfid.PCD_Init();

  byte v = rfid.PCD_ReadRegister(MFRC522::VersionReg);
  Serial.printf("Version: 0x%02X\n", v);
  rfid.PCD_DumpVersionToSerial();
  Serial.println("Scan a tag...");
}

void loop() {
  if (!rfid.PICC_IsNewCardPresent()) return;
  if (!rfid.PICC_ReadCardSerial()) return;

  Serial.print("UID: ");
  for (byte i = 0; i < rfid.uid.size; i++) {
    Serial.printf("%02X ", rfid.uid.uidByte[i]);
  }
  Serial.println();

  rfid.PICC_HaltA();
  rfid.PCD_StopCrypto1();
  delay(500);
}

Credits

Himanshudada

9 projects • 2 followers

I am a Founder, Software Developer & Electronics Engineer building innovative IoT and embedded systems for real-world practical solutions.
