Bluetooth Servo Control with Arduino

Introduction

The Servo Controller Using Arduino Bluetooth Module project is a wireless embedded system designed to control servo motor movement remotely through Bluetooth communication. This project uses the Arduino® UNO R4 WiFi as the main controller and the HC-05 Bluetooth Module for wireless connectivity. The system allows users to send commands from a smartphone or Bluetooth-enabled device to control the position and movement of a servo motor in real time.

This project is designed for students, electronics enthusiasts, and beginners who want to explore embedded systems, wireless communication, robotics, and automation. The implementation is simple, cost-effective, and highly expandable for future robotics and IoT applications.

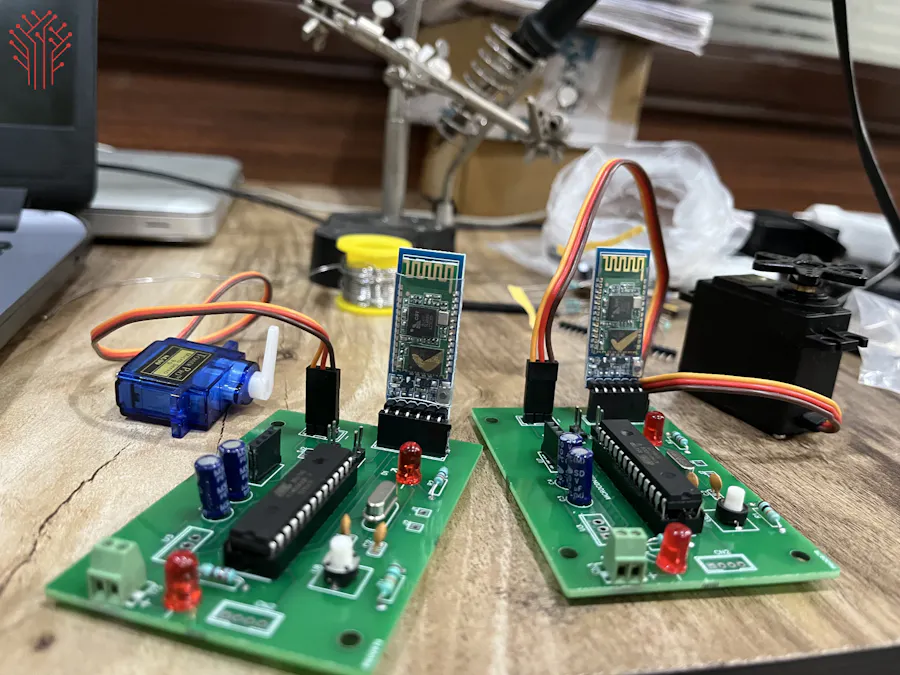

The project also demonstrates PCB-based hardware implementation for better reliability and professional design. The custom-designed circuit board integrates the controller section, Bluetooth communication module, servo interface, power supply components, LEDs, and supporting circuitry into a compact system.

This project demonstrates Embedded Software Development Services concepts through Bluetooth-based wireless servo motor control using Arduino® UNO R4 WiFi and the HC-05 module.

Project Objectives

(1) To control a servo motor wirelessly using Bluetooth communication.
(2) To interface the HC-05 Bluetooth module with Arduino® UNO R4 WiFi.
(3) To develop a simple and user-friendly embedded control system.
(4) To develop a simple and user-friendly embedded control system.
(5) To understand serial communication and PWM-based servo control.
(6) To create a compact hardware design using PCB implementation.

Features

(1) Wireless servo control using Bluetooth technology
(2) Real-time servo motor positioning
(3) Easy smartphone connectivity
(4) Compact PCB-based hardware design
(5) LED status indication for system activity
(6) Simple and beginner-friendly operation
(7) Expandable for robotics and automation systems
(8) Reliable serial communication using HC-05 module

Hardware Components Used

Main Components

1. Arduino® UNO R4 WiFi
2. HC-05 Bluetooth Module
3. Servo Motor
4. Custom PCB Board
5. LEDs
6. Capacitors
7. Resistors
8. Crystal Oscillator
9. Push Button
10. Jumper Wires
11. USB Cable
12. External Power Supply

Software Used

(1) Arduino IDE

Hardware Description

The hardware section consists of a servo motor connected to the controller through PWM pins. The HC-05 Bluetooth module is interfaced with the Arduino board using serial communication (TX and RX pins). A custom PCB is used to organize all electronic components efficiently and improve circuit stability.

The PCB includes:

>> Bluetooth communication section
>> Servo control interface
>> Power supply filtering components
>> Indicator LED
>> Microcontroller interfacing section
>> Supporting passive components

The hardware setup ensures stable communication and smooth servo operation.

Working Principle

(1) The HC-05 Bluetooth module establishes wireless communication between the smartphone and the Arduino® UNO R4 WiFi.
(2) A Bluetooth terminal application installed on the smartphone sends commands to the HC-05 module.
(3) The Arduino reads incoming serial data from the Bluetooth module.
Based on the received command, Arduino generates PWM signal
(4) The PWM signal controls the angle and rotation of the servo motor.
(5) The PWM signal controls the angle and rotation of the servo motor.
(6) The servo motor responds instantly according to the command received from the user.
(7) LEDs on the PCB indicate power and communication status.

Circuit Operation

The HC-05 Bluetooth module communicates with the Arduino controller using UART serial communication. The servo motor receives PWM control signals from the Arduino output pin. The power supply section provides stable voltage to the Bluetooth module and servo motor.

When a command is transmitted from the smartphone:

(i) The HC-05 receives the signal.
(ii) Arduino processes the command.
(iii) PWM duty cycle changes.
(iv) Servo motor rotates to the desired angle..
(v) This creates a fully wireless servo control system.

Applications

>> Wireless Robotic Arm Control
>> Smart Automation Systems
>> Camera Pan and Tilt Systems
>> DIY Robotics Projects
>> Educational Electronics Experiments
>> Home Automation Projects
>> Remote-Controlled Mechanical Systems
>>Embedded Systems Learning

Advantages

• .Wireless operation

• Simple circuit design

• Low power consumption

• Easy to program and modify

• Compact PCB implementation

• Low-cost development platform

• Suitable for beginners and students


Future Improvements

This project can be enhanced further by:

Adding multiple servo motor support
Developing a custom Android application
Integrating WiFi-based IoT control
Using sensors for automation
Adding voice command functionality
Implementing robotic arm mechanisms

Conclusion

The Servo Controller Using Arduino Bluetooth Module project successfully demonstrates wireless servo motor control using Bluetooth communication. By integrating the Arduino® UNO R4 WiFi with the HC-05 Bluetooth module, the system provides smooth and reliable remote operation of the servo motor.

The project helps users understand embedded programming, serial communication, PWM signal generation, PCB implementation, and wireless control systems. Due to its simple architecture and practical applications, this project serves as an excellent learning platform for students and electronics enthusiasts interested in robotics and automation.

Development Environment

Hardware Platform

• Arduino® UNO R4 WiFi
  HC-05 Bluetooth Module
  Servo MotorCustom PCB


Software Platform

• Arduino IDE


Project Highlights

(1) Bluetooth-based wireless communication
(2) Real-time servo motor control
(3) PCB-based embedded hardware design
(4) Beginner-friendly implementation
(5) Expandable for future IoT and robotics applications
