Head Mounted Display "Nirvana"

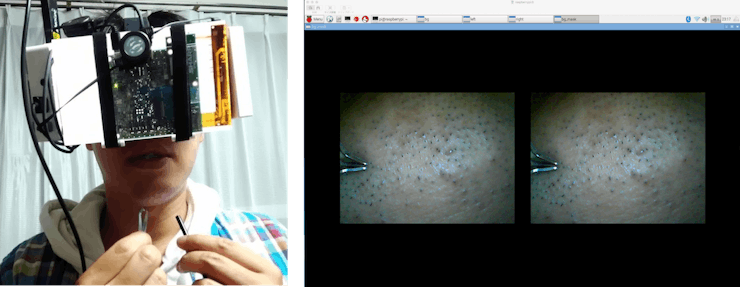

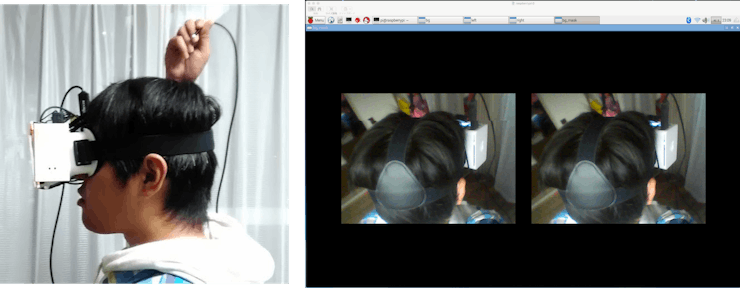

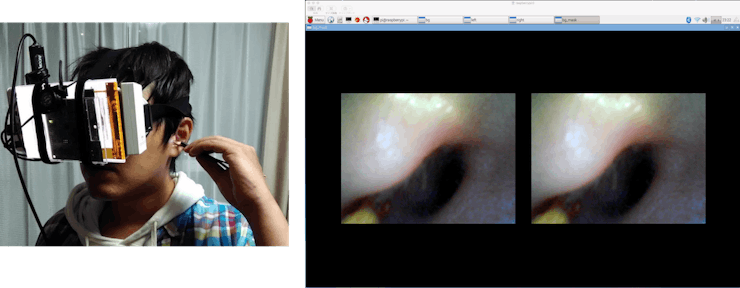

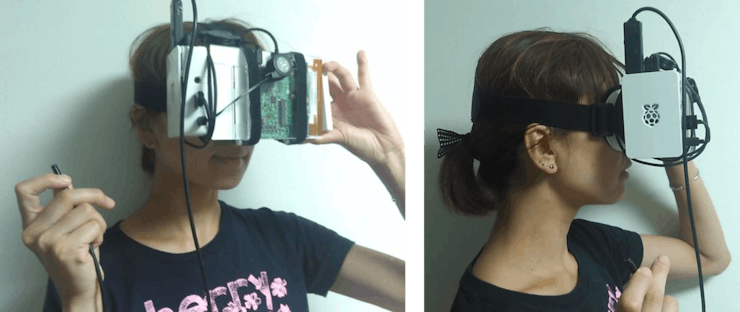

We made Head Mounted Display "Nirvana". "Nirvana" allows you to see the place you want to see anywhere using the endoscopic camera.

IntermediateFull instructions provided20 hours3,031
Head Mounted Display "Nirvana"

Things used in this project

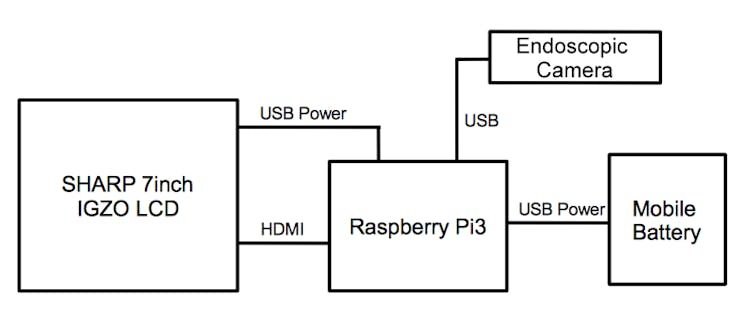

Hardware components

Raspberry Pi 3 Model B
Raspberry Pi 3 Model B
×1
SHARP 7inch IGZO LCD
×1
endoscopic camera sunflower-2000
×1
mobile battery cheero Canvas 3200mAh
×1

Story

Read more

Code

Python Code

Python

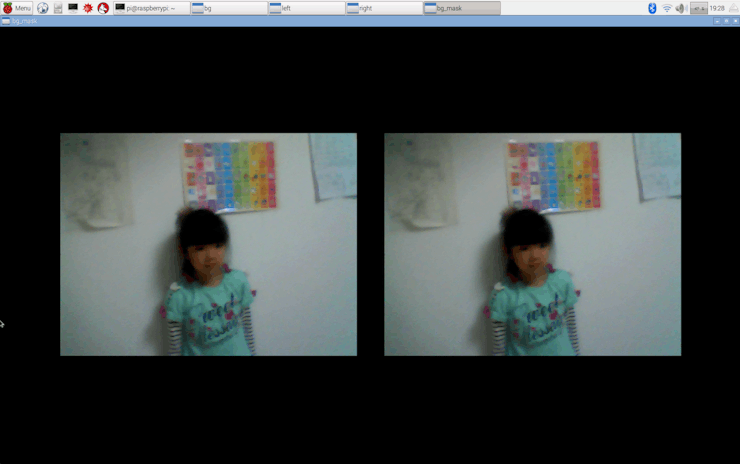

import cv2
import numpy as np

cv2.namedWindow("bg")
cv2.namedWindow("left")
cv2.namedWindow("right")
cv2.namedWindow("bg_mask")

img = np.empty((1200,1920,3))
img.fill(0)

img2 = np.empty((275,1920,3))
img2.fill(0)

cv2.moveWindow("bg",0,0)
cv2.moveWindow("left",156,312)
cv2.moveWindow("right",996,312)
cv2.moveWindow("bg_mask",0,0)

src = cv2.VideoCapture(0)

num = 1.2

height = int(480 * num)
width = int(640 * num)

cv2.imshow("bg",img)
cv2.imshow("bg_mask",img2)

while True:
	retval, frame = src.read()

        if frame is None:
                break

	resizedImg = cv2.resize(frame,(width,height))

	# show
	cv2.imshow("left",resizedImg)
        cv2.imshow("right",resizedImg)

	# quit esc key
	key = cv2.waitKey(33)
	if key == 27:
		break

cv2.destroyAllWindows()
src.release()
