Build a Mars Rover at Your Desk

Turn voice into autonomy. Your mini rover learns to bypass obstacles and run full missions — all from simple commands.

BeginnerProtip2 hours35

Things used in this project

Hardware components

Elecrow CrowBot BOLT-Open Source Programmable Smart Robot Car STEAM Robot Kit

Grovety VoxControl Kit

Software apps and online services

Arduino IDE

Story

The first time you watch a robot make its own decision feels like magic.

Most DIY robots respond to simple voice commands like “forward” or “turn left.” But real rovers — the ones exploring Mars — don’t follow one-step instructions. They execute missions: sequences of actions like “move forward, if there’s a rock, bypass it, then continue.”

This project recreates that idea at a classroom scale. Using VoxControl v2 and CrowBot, we turn short phrases into autonomous scenarios. Your robot learns to bypass obstacles, perform patrols, and replay recorded paths — all from a voice command.

It’s simple, visual, and reproducible. Perfect for schools, STEM labs, and anyone curious about how autonomy really begins.

Why it’s Awesome

Mission-based thinking. Students move from single commands to real behavior logic.
Visible autonomy. The robot senses, decides, and acts — no joystick, no remote.
Ready for lessons. Uses only one distance sensor and 90° turns — easy to explain and modify.
Community-driven. Add your own voice commands and share new “missions” with others.

Use Cases

STEM Lessons: Teach loops, states, and algorithms through robot motion.
Workshops and Hackathons: Let students prototype new missions and compete.
College Labs: Explore path learning, replay, and voice-triggered autonomy.
DIY Robotics: Experiment with intent-to-command logic on any small rover.

Turn your classroom into a Mars rover lab.Let students give the robot real “missions” instead of single moves — watch them learn planning, logic, and teamwork through play.

Download the code, try the demo, and then challenge your class to invent the next “Do it…” command.

How it Works

We prepared three sample commands that launch full “missions”:

1. “Pass on the right” — the rover drives around the obstacle on the right and returns to the line.

2. “Pass on the left” — same logic, mirrored.

Each command activates a macro on the CrowBot: the robot moves forward until the front sensor detects an obstacle, backs up slightly, turns 90°, skirts around the object, and resumes the route.

3. “Go Turning” — to replay the last learned trajectory.

Voice Interface

In this setup, VoxControl v2 handles the speech recognition (ASR) and sends a ready-made text command (e.g., “PASS ON THE RIGHT”, “GO TURNING”) to the rover over Bluetooth (BLE serial connection).

The CrowBot (MarsRover) itself does not recognize speech — it simply receives these commands and executes the corresponding behavior: learning, obstacle bypass, or replay.

Open Challenge

We invite educators and makers to join the experiment:

1. Download the code from GitHub.

2. Build your own rover or use CrowBot.

3. Try the three sample missions.

4. Extend the project — create a new command and its algorithm (for example, “Do a square around the obstacle” or “Do an exploration to the right”).

5. Share your video and code on Hackster.

Let’s build a shared gallery of rover behaviors, powered by simple voice commands.

What You’ll Need

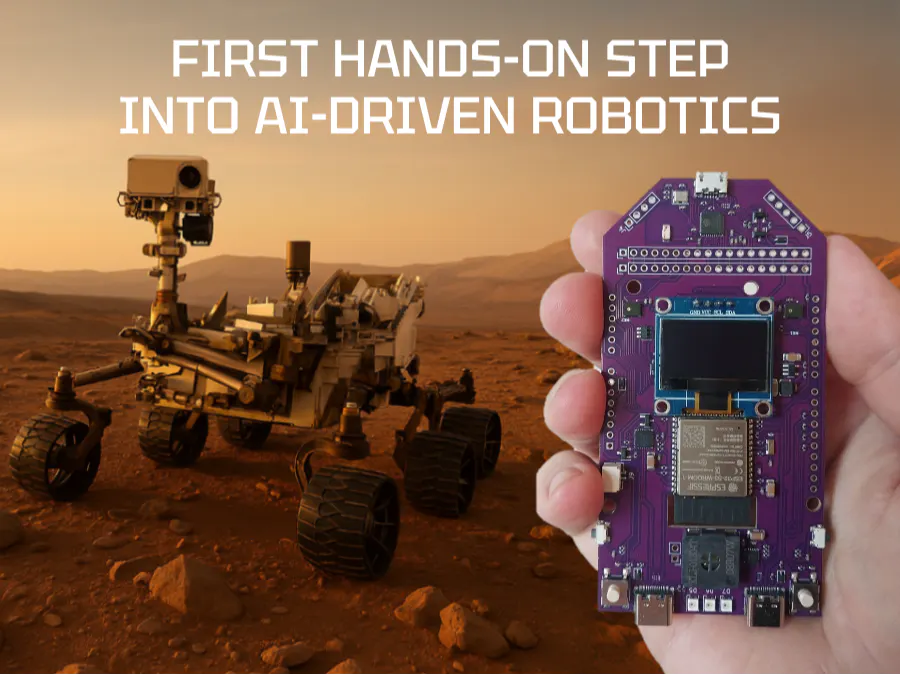

VoxControl v2— speech recognition module
CrowBot or any two-wheel platform with a front-facing distance sensor
Distance sensor (HC-SR04, VL53L0X, or similar)
USB adapter and power supply
Arduino IDE or ESP-IDF

Try it Yourself

1. Connect VoxControl v2 to your CrowBot.

2. Add three voice commands in the VoxControl app.

3. Upload the sample firmware.

4. Place an obstacle in front of the robot and say, “Pass on the right.”

5. Watch your rover act like it’s on Mars — bypassing, turning, and returning on its own.

What’s Next

Create new behaviors: “Do a square, ” “Do a zigzag, ” or “Follow the wall.”
Add more sensors — IMU, encoders, or a camera.
Turn it into a class challenge: whose rover completes its mission fastest?

Tried our rover prototype? Share your video or code!Invented a new “Do it…” command? Post it in the comments — we’ll feature the most creative ones.Let’s make this the world’s smallest Mars rover challenge — powered by curiosity, not budgets.

⚙️ Technical Appendix — For Advanced Users

This section condenses all core technical material from the Mars Rover project, so educators and advanced makers can reproduce and extend it.

Overview

The VoxControl module converts your speech into text commands, which the rover interprets as autonomous learning and replay tasks.

Once triggered, the rover “trains” itself to bypass an obstacle, records the sequence of moves, and later replays it.

Mission Flow

1. Receive command.

2. Enter learning mode.

3. Approach the obstacle and align parallel.

4. Move stepwise, detect corners, record FORWARD + TURN actions.

5. After four sides — mark trajectory as ready for replay.

Guide: Understanding the Rover Firmware

1. Where to Find the Logic

Open MarsRover.ino and search for these functions:

learn_bypass_right_task learn_bypass_left_task replay_learned_right_task replay_learned_left_task

These are the heart of the “missions” described in the article.

2. How Obstacle Bypass Works

Each learning function drives forward until the front distance sensor detects an obstacle. Then the rover backs up, turns, moves along the obstacle, and turns again to return to its path.

Example (simplified from learn_bypass_right_task):

while (!obstacleDetected()) moveForward();
stop();
backOff();
turnRight90();

for (int side = 0; side < 4; side++) {
  stepForward();
  turnLeft90();
}
saveTrajectory();

obstacleDetected() checks the ultrasonic sensor.
turnRight90() and turnLeft90() use timed turns (number of milliseconds = how long motors spin).
The loop records each forward and turn movement into a small list — this is the “learning” step.

The left bypass works the same way but mirrors the turns.

3. How the Rover “Remembers” and “Replays”

During learning, every action is stored in memory:

addLearnedForwardRight(ms); addLearnedTurnRight(deg);

Later, when the student says “GO TURNING”, the rover executes the replay task:

for (int i = 0; i < learned_right_cnt; i++) {
  if (a.type == ACT_FORWARD) driveForward(a.duration_ms);
  else turnBy(a.deg, a.dir);
}
stop();

This reuses the exact steps and durations learned earlier — just like “replaying a recording.”

4. Easy Parameters to Experiment With

You can easily adapt the rover’s behavior by changing a few numeric constants in the code.These values control how far and how sharply the robot moves. All of them are defined near the top of the file or marked inside the learning functions.

TURN_DEG — sets how many degrees the rover turns. The default value is around 46.If the robot rotates too much on a slippery surface, reduce this number;if it doesn’t complete the turn on a rough floor, increase it slightly.
FORWARD_STEP_MS — defines how long the motors run forward in one learning step (usually 400–800 ms).Larger values make each segment of the path longer.
BASE_TURN_POWER — controls motor power during turns (typical range 80–100).Raise it if turns feel too weak or uneven.
FORWARD_POWER — sets the drive speed when moving forward (usually 100–120).Adjust it for smoother or slower motion depending on the floor type.

5. Where the Voice Commands Come From

The rover itself doesn’t recognize speech — that’s done by VoxControl v2.It sends text commands such as "PASS ON THE RIGHT" or "GO TURNING" over Bluetooth (BLE serial connection).The firmware receives them and calls the matching task:

if (value == "PASS ON THE RIGHT")  xTaskCreate(learn_bypass_right_task, ...);
if (value == "PASS ON THE LEFT")   xTaskCreate(learn_bypass_left_task, ...);
if (value == "GO TURNING")         xTaskCreate(replay_learned_right_task, ...);

6. Teaching Tips

Let students observe how the robot behaves before and after changing TURN_DEG — it clearly shows how calibration works.
Demonstrate saving and replaying a route; explain that this is a primitive form of machine learning — storing and repeating behavior.
Encourage them to invent new missions by combining forward, turn, and delay blocks (e.g., “Do a square”).

Surface Calibration

Different surfaces affect how your rover turns and moves.If the floor is smooth or slippery, reduce the turn angle or shorten timed rotations — otherwise, the rover may over-rotate.If it’s rough or high-friction, increase the turn angle slightly to compensate for wheel slip.We recommend testing each mission with a small obstacle and fine-tuning the constants TURN_DEG and FORWARD_STEP_MS for stable and repeatable movement.

GitHub Repository

https://github.com/Grovety/CrowBot_GRC_program/blob/main/MarsRover.ino

Untitled file

#include "BLEDevice.h"
#include "BLEScan.h"
//#include <Wire.h>
//#include <LiquidCrystal.h>
//LiquidCrystal lcd(0);
#include <FastLED.h>
#include <IRremote.h>
#include <Ticker.h>  //Call the ticker. H Library
#include <U8g2lib.h>
#ifdef U8X8_HAVE_HW_I2C
#include <Wire.h>
#endif
#include <freertos/FreeRTOS.h>
#include <freertos/message_buffer.h>
#include <freertos/projdefs.h>
U8G2_SSD1306_128X32_UNIVISION_F_SW_I2C u8g2(U8G2_R0, /* clock=*/21, /* data=*/22, /* reset=*/U8X8_PIN_NONE);  // Adafruit Feather ESP8266/32u4 Boards + FeatherWing OLED
Ticker ticker;
Ticker ticker1;
#define RECV_PIN 19       //Infrared receiving pin
IRrecv irrecv(RECV_PIN);  //Definition of infrared remote control pin
decode_results results;   //Define infrared remote control function

CRGB leds[4];               //Bottom RGB light
CRGB RGBleds[6];            //Ultrasonic RGB lamp
CRGB myRGBcolor(0, 0, 0);   //Bottom RGB
CRGB myRGBcolor6(0, 0, 0);  //Ultrasonic RGB
BLEScan* pBLEScan = NULL;
// The remote service we wish to connect to.
static BLEUUID serviceUUID("FFE0");  //Host service UUID
static BLEUUID charUUID("FFE1");
static boolean doConnect = false;                        //Connection sign
static boolean connected = false;                        //Connection success flag
static boolean doSacn = true;                            //Scan flag
static BLERemoteCharacteristic* pRemoteCharacteristic;   //Characteristic value sent by handle
static BLEAdvertisedDevice* pServer;
//Arduino docs It is emphasized that volatile must be used in variable declaration in case of concurrent threads (such as interrupts)
volatile int pwm_value = 0;  //Low level duration --- interruption
volatile int prev_time = 0;  //Record ultrasonic time --- interruption
volatile int distance = 0;   //Ultrasonic distance
int Close_Flag = 0;          //Turn off task flag
int BLE_Close = 0;           //Bluetooth off flag
int Ce_shi_Flag = 0;         //Test program flag
static int IR_Flag = 88;     //Infrared remote control sign
int shock_Flag = 0;          //Vibration sign
char CloseData;              //Receive serial port data during test
static int L = 0;            //Number of switch light signs
int num_L = 0;               //Save the left light seeking value
int num_R = 0;               //Save the right light seeking value
int i = 0;
static int rgb = 0;   //Bottom RGB
static int rgb6 = 0;  //Ultrasonic RGB
const int leftgo_Pin = 12;
const int lefttrun_Pin = 13;
const int rightgo_Pin = 14;
const int righttrun_Pin = 15;
const int Photodiode_R = 34, Photodiode_L = 35;  //Light seeking pin
int Ultrasonic_Pin = 27, Button_pin = 18;        //Ultrasonic and switch key pins
int QTI_Max, QTI_L = 39, QTI_R = 36;             //Line patrol pin
static int state_L;
uint32_t state_N;                     //Infrared remote control data recording
char LU[10];                                     //Save ultrasonic distance data
std::string value;
BLEClient* pClient = NULL;
BLERemoteService* pRemoteService = NULL;
#define  G4 392
#define  A4 440
#define  B4 494
#define  C5 523
#define  D5 587
#define  E5 659
#define  F5 698
#define  G5 784
#define C4 262
#define D4 294
#define E4 330
#define F4 349
int Tone[] = {
             };
float Time[] = {
               };
int Tone_length = sizeof(Tone) / sizeof(Tone[0]);
SemaphoreHandle_t xPlayMusicSemaphore;
SemaphoreHandle_t xDisconnectedSemaphore;
MessageBufferHandle_t xGrcCmdBuffer;

typedef struct {
  const int* tones;
  const float* times;
  int length;
} Melody;


const int happy_tones[] = {
  G4, G4, A4, G4, C5, B4,
  G4, G4, A4, G4, D5, C5,
  G4, G4, G5, E5, C5, B4, A4,
  F5, F5, E5, C5, D5, C5
};

const float happy_times[] = {
  0.5,0.5,1.0,1.0,1.0,2.0,
  0.5,0.5,1.0,1.0,1.0,2.0,
  0.5,0.5,1.0,1.0,1.0,1.0,2.0,
  0.5,0.5,1.0,1.0,1.0,2.0
};


const int twinkle_tones[] = {
  C4,C4,G4,G4,A4,A4,G4,
  F4,F4,E4,E4,D4,D4,C4
};

const float twinkle_times[] = {
  0.5,0.5,0.5,0.5,0.5,0.5,1.0,
  0.5,0.5,0.5,0.5,0.5,0.5,1.0
};

const int main_tones[] = {
    B4, B4, B4, B4, B4, B4,
    B4, D5, G4, A4, B4, C5,
    C5, C5, C5, C5, B4, B4, B4, D5,
    D5, C5, A4, G4, G5
};

const float main_times[] = {
    0.25, 0.25, 0.5, 0.25, 0.25, 0.5,
    0.25, 0.25, 0.375, 0.125, 1, 0.25,
    0.25, 0.25, 0.25, 0.25, 0.25, 0.25, 0.25, 0.25,
    0.25, 0.25, 0.25, 0.5, 0.5
};
Melody melodies[] = {
  { happy_tones, happy_times, sizeof(happy_tones)/sizeof(happy_tones[0]) },
  { twinkle_tones, twinkle_times, sizeof(twinkle_tones)/sizeof(twinkle_tones[0]) },
  {main_tones, main_times, sizeof(main_tones)/sizeof(main_tones[0])}
};

// ====== music -> dance communication ======
typedef struct {
  int freq;
  int duration_ms;
} MusicNoteEvent;
const int melodyCount = sizeof(melodies) / sizeof(melodies[0]);
QueueHandle_t xMusicQueue;
#define MAX_GRC_MSG_LEN 20

#define MOTOR_MIN_VALUE 15
#define MOTOR_MAX_VALUE 255

// --------- Racing tuning API ----------
struct RaceParams {
  float max_speed_scale = 1.0f;
  float turn_scale = 1.0f;
  float accel_coeff = 1.0f;
};
RaceParams race;
// ---------- ADD AFTER RaceParams definition ----------
constexpr float MAX_SPEED_MIN = 0.5f;
constexpr float MAX_SPEED_MAX = 1.6f;

constexpr float TURN_MIN = 0.6f;
constexpr float TURN_MAX = 2.0f;

constexpr float ACCEL_MIN = 0.5f;
constexpr float ACCEL_MAX = 2.0f;

void presetSpeedDemon() {
  race.max_speed_scale = 1.4f;
  race.turn_scale = 1.05f;
  race.accel_coeff = 1.5f;
}

void presetDriftKing() {
  race.max_speed_scale = 1.1f;
  race.turn_scale = 1.6f;
  race.accel_coeff = 1.2f;
}

void presetSmoothRacer() {
  race.max_speed_scale = 0.9f;
  race.turn_scale = 0.9f;
  race.accel_coeff = 0.8f;
}

void presetEcoMode() {
  race.max_speed_scale = 0.7f;
  race.turn_scale = 1.0f;
  race.accel_coeff = 0.6f;
}

template<typename T>
T clampVal(T v, T lo, T hi) {
  return (v < lo) ? lo : (v > hi ? hi : v);
}

void initRaceDefaults() {
  race.max_speed_scale = 1.0f;
  race.turn_scale = 1.0f;
  race.accel_coeff = 1.0f;
}
SemaphoreHandle_t xSerialSemaphore;

void safePrint(const char* format, ...) {
  if (xSerialSemaphore != NULL) {
    if (xSemaphoreTake(xSerialSemaphore, portMAX_DELAY) == pdTRUE) {
      va_list args;
      va_start(args, format);
      vprintf(format, args);
      va_end(args);
      xSemaphoreGive(xSerialSemaphore);
    }
  }
}

void safePrintln(const char* message) {
  if (xSerialSemaphore != NULL) {
    if (xSemaphoreTake(xSerialSemaphore, portMAX_DELAY) == pdTRUE) {
      Serial.println(message);
      xSemaphoreGive(xSerialSemaphore);
    }
  }
}

static int target_lf=0, target_lb=0, target_rf=0, target_rb=0;
static int cur_lf=0, cur_lb=0, cur_rf=0, cur_rb=0;
static unsigned long last_ramp_ts = 0;
const int RAMP_INTERVAL_MS = 20;

void setTargetMotor(int lf, int lb, int rf, int rb) {
  target_lf = lf;
  target_lb = lb;
  target_rf = rf;
  target_rb = rb;
  last_ramp_ts = millis();
}

void updateMotorRamp() {
  unsigned long now = millis();
  if (now - last_ramp_ts >= RAMP_INTERVAL_MS) {
    float step = race.accel_coeff * (MOTOR_MAX_VALUE / 10.0f);
    cur_lf += (target_lf > cur_lf) ? step : -step;
    cur_lb += (target_lb > cur_lb) ? step : -step;
    cur_rf += (target_rf > cur_rf) ? step : -step;
    cur_rb += (target_rb > cur_rb) ? step : -step;

    cur_lf = clampVal(cur_lf, 0, MOTOR_MAX_VALUE);
    cur_lb = clampVal(cur_lb, 0, MOTOR_MAX_VALUE);
    cur_rf = clampVal(cur_rf, 0, MOTOR_MAX_VALUE);
    cur_rb = clampVal(cur_rb, 0, MOTOR_MAX_VALUE);

    Motor(cur_lf, cur_lb, cur_rf, cur_rb);
    last_ramp_ts = now;
  }
}

template<class T>
constexpr const T& clamp(const T& v, const T& lo, const T& hi)
{
    return std::less<T>{}(v, lo) ? lo : std::less<T>{}(hi, v) ? hi : v;
}

void poly_transform(const float params[12], float x, float y, float *_x, float *_y) {
  *_x = params[0] + params[1] * x + params[2] * y +
              params[3] * powf(x, 2) + params[4] * x * y +
              params[5] * powf(y, 2);
  *_y = params[6 + 0] + params[6 + 1] * x + params[6 + 2] * y +
              params[6 + 3] * powf(x, 2) + params[6 + 4] * x * y +
              params[6 + 5] * powf(y, 2);
}

void led_callback()  //Callback function
{
  FastLED.show();
}

static bool moving_backwards = false;
void buzzer_callback()  //Callback function
{
  if (moving_backwards) {
    ledcWriteTone(2, G4);  //Buzzer
    delay(150);
    ledcWrite(2, 0);
  }
}
void adjustRaceFloat(float &field, float delta, float lo, float hi, const char *name) {
  field = clampVal(field + delta, lo, hi);
  Serial.printf("%s -> %.3f\n", name, field);
}

void adjustRaceInt(int &field, int delta, int lo, int hi, const char *name) {
  field = clampVal(field + delta, lo, hi);
  Serial.printf("%s -> %d\n", name, field);
}


void play_music_task(void *pvParameters) {
  while (true) {
    if (xSemaphoreTake(xPlayMusicSemaphore, portMAX_DELAY) == pdTRUE) {
      int index = random(0, melodyCount);
      Melody m = melodies[index];

      for (int i = 0; i < m.length; i++) {
        int freq = m.tones[i];
        int dur_ms = int(m.times[i] * 1000.0f);

        MusicNoteEvent ev = { freq, dur_ms };
        if (xMusicQueue != NULL) {
          xQueueSend(xMusicQueue, &ev, pdMS_TO_TICKS(10));
        }

        ledcWriteTone(33, freq);
        vTaskDelay(pdMS_TO_TICKS(dur_ms));
      }
      ledcWriteTone(33, 0);
      if (xMusicQueue != NULL) {
        MusicNoteEvent evEnd = { 0, 0 };
        xQueueSend(xMusicQueue, &evEnd, pdMS_TO_TICKS(10));
      }
    }
  }
}
void distance_log_task(void *pvParameters) {
  (void) pvParameters;
  for (;;) {
    Get_Distance();
    vTaskDelay(pdMS_TO_TICKS(60));
    int d = distance;
    vTaskDelay(pdMS_TO_TICKS(940));
  }
}
// ------------------- TURN HELPERS & SIMPLE BOX-BYPASS ALGORITHM -------------------
// ---------- TUNABLE PARAMETERS ----------
int TURN_DEG = 46;                      // empirical "check" angle (adjust)
constexpr int TURN_LARGE_MS = 350;      // ms for ~90° (calibrate)
constexpr int BASE_TURN_POWER = 120;    // base turning power (0..MOTOR_MAX_VALUE)

constexpr int TURN_POST_MS = 200;
constexpr int TURN_MIN_MS = 40;

static portMUX_TYPE bypassMux = portMUX_INITIALIZER_UNLOCKED;
enum ActionType : uint8_t { ACT_FORWARD = 0, ACT_TURN = 1 };
enum TurnDir : int8_t { DIR_LEFT = -1, DIR_RIGHT = 1 };

struct LearnedAction {
  ActionType type;
  int duration_ms; // for ACT_FORWARD
  int deg;         // for ACT_TURN
  int8_t dir;      // DIR_LEFT / DIR_RIGHT
};

static constexpr int MAX_LEARNED_ACTIONS = 32;

static LearnedAction learnedActionsRight[MAX_LEARNED_ACTIONS];
static int learnedCountRight = 0;
static bool learnedAvailableRight = false;

static LearnedAction learnedActionsLeft[MAX_LEARNED_ACTIONS];
static int learnedCountLeft = 0;
static bool learnedAvailableLeft = false;

static TaskHandle_t learnRightTaskHandle = NULL;
static bool learnRightActive = false;

static TaskHandle_t learnLeftTaskHandle = NULL;
static bool learnLeftActive = false;

static TaskHandle_t replayRightTaskHandle = NULL;
static bool replayRightActive = false;

static TaskHandle_t replayLeftTaskHandle = NULL;
static bool replayLeftActive = false;

static void clearLearnedTrajectoryRight() {
  taskENTER_CRITICAL(&bypassMux);
  learnedCountRight = 0;
  learnedAvailableRight = false;
  taskEXIT_CRITICAL(&bypassMux);
}

static void clearLearnedTrajectoryLeft() {
  taskENTER_CRITICAL(&bypassMux);
  learnedCountLeft = 0;
  learnedAvailableLeft = false;
  taskEXIT_CRITICAL(&bypassMux);
}

static void addLearnedTurnRight(int8_t dir, int deg) {
  taskENTER_CRITICAL(&bypassMux);
  if (learnedCountRight < MAX_LEARNED_ACTIONS) {
    learnedActionsRight[learnedCountRight].type = ACT_TURN;
    learnedActionsRight[learnedCountRight].dir = dir;
    learnedActionsRight[learnedCountRight].deg = deg;
    learnedActionsRight[learnedCountRight].duration_ms = 0;
    learnedCountRight++;
  } else {
    safePrintln("[LEARN RIGHT] buffer full, can't add TURN");
  }
  taskEXIT_CRITICAL(&bypassMux);
}

static void addLearnedForwardRight(int ms) {
  taskENTER_CRITICAL(&bypassMux);
  if (learnedCountRight < MAX_LEARNED_ACTIONS) {
    learnedActionsRight[learnedCountRight].type = ACT_FORWARD;
    learnedActionsRight[learnedCountRight].duration_ms = ms;
    learnedActionsRight[learnedCountRight].deg = 0;
    learnedActionsRight[learnedCountRight].dir = 0;
    learnedCountRight++;
  } else {
    safePrintln("[LEARN RIGHT] buffer full, can't add FORWARD");
  }
  taskEXIT_CRITICAL(&bypassMux);
}

static void markLearnedAvailableRight() {
  taskENTER_CRITICAL(&bypassMux);
  learnedAvailableRight = (learnedCountRight > 0);
  taskEXIT_CRITICAL(&bypassMux);
}

static void addLearnedTurnLeft(int8_t dir, int deg) {
  taskENTER_CRITICAL(&bypassMux);
  if (learnedCountLeft < MAX_LEARNED_ACTIONS) {
    learnedActionsLeft[learnedCountLeft].type = ACT_TURN;
    learnedActionsLeft[learnedCountLeft].dir = dir;
    learnedActionsLeft[learnedCountLeft].deg = deg;
    learnedActionsLeft[learnedCountLeft].duration_ms = 0;
    learnedCountLeft++;
  } else {
    safePrintln("[LEARN LEFT] buffer full, can't add TURN");
  }
  taskEXIT_CRITICAL(&bypassMux);
}

static void addLearnedForwardLeft(int ms) {
  taskENTER_CRITICAL(&bypassMux);
  if (learnedCountLeft < MAX_LEARNED_ACTIONS) {
    learnedActionsLeft[learnedCountLeft].type = ACT_FORWARD;
    learnedActionsLeft[learnedCountLeft].duration_ms = ms;
    learnedActionsLeft[learnedCountLeft].deg = 0;
    learnedActionsLeft[learnedCountLeft].dir = 0;
    learnedCountLeft++;
  } else {
    safePrintln("[LEARN LEFT] buffer full, can't add FORWARD");
  }
  taskEXIT_CRITICAL(&bypassMux);
}

static void markLearnedAvailableLeft() {
  taskENTER_CRITICAL(&bypassMux);
  learnedAvailableLeft = (learnedCountLeft > 0);
  taskEXIT_CRITICAL(&bypassMux);
}

static int computeTurnPowerFromRace() {
  float ts = clampVal(race.turn_scale, TURN_MIN, TURN_MAX);
  int p = int(BASE_TURN_POWER * ts + 0.5f);
  if (p < 0) p = 0;
  if (p > MOTOR_MAX_VALUE) p = MOTOR_MAX_VALUE;
  return p;
}

void turnRightMs(int ms, int power) {
  if (ms <= 0) return;
  setTargetMotor(power, 0, 0, power);
  vTaskDelay(pdMS_TO_TICKS(ms));
  setTargetMotor(0,0,0,0);
  vTaskDelay(pdMS_TO_TICKS(TURN_POST_MS));
}

void turnLeftMs(int ms, int power) {
  if (ms <= 0) return;
  setTargetMotor(0, power, power, 0);
  vTaskDelay(pdMS_TO_TICKS(ms));
  setTargetMotor(0,0,0,0);
  vTaskDelay(pdMS_TO_TICKS(TURN_POST_MS));
}

void turnRightDeg(int deg) {
  if (deg <= 0) return;
  int ms = (deg * TURN_LARGE_MS) / 90;
  if (ms < TURN_MIN_MS) ms = TURN_MIN_MS;
  int power = computeTurnPowerFromRace();
  turnRightMs(ms, power);
}

void turnLeftDeg(int deg) {
  if (deg <= 0) return;
  int ms = (deg * TURN_LARGE_MS) / 90;
  if (ms < TURN_MIN_MS) ms = TURN_MIN_MS;
  int power = computeTurnPowerFromRace();
  turnLeftMs(ms, power);
}

// ------------------ LEARN BYPASS RIGHT (learning, uses front sensor) ------------------
void learn_bypass_right_task(void *pvParameters) {
  (void) pvParameters;

  taskENTER_CRITICAL(&bypassMux);
  if (learnRightActive) {
    safePrintln("LEARN RIGHT: start requested but already active -> exiting task");
    learnRightTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    vTaskDelete(NULL);
    return;
  }
  learnRightActive = true;
  learnRightTaskHandle = xTaskGetCurrentTaskHandle();
  taskEXIT_CRITICAL(&bypassMux);

  clearLearnedTrajectoryRight();

  const int STOP_THRESHOLD_CM = 13;
  const int SAFE_CLEAR_CM = 35;
  const int MOVE_SPEED = 60;
  const int FORWARD_STEP_MS = 700;
  const int FORWARD_AFTER_PASS_MS = 300;
  const int DIST_CHECK_DELAY_MS = 120;
  const float SAME_DISTANCE_MULT = 1.5f;
  const int MAX_TOTAL_ATTEMPTS = 200;

  safePrintln("LEARN RIGHT: simple box bypass learning started");

  int sides_passed = 0;
  bool obstacle_detected = false;

  // approach
  while (learnRightActive && !obstacle_detected) {
    Get_Distance();
    vTaskDelay(pdMS_TO_TICKS(DIST_CHECK_DELAY_MS));
    int front = distance;
    safePrint("[LEARN RIGHT] approaching: front=%d cm, sides_passed=%d\n", front, sides_passed);

    if (front > STOP_THRESHOLD_CM) {
      setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
      vTaskDelay(pdMS_TO_TICKS(80));
      continue;
    }

    obstacle_detected = true;
    safePrintln("[LEARN RIGHT] obstacle detected -> start bypassing");

    int initial_front = (front > 0) ? front : 1;

    setTargetMotor(0,0,0,0);
    vTaskDelay(pdMS_TO_TICKS(200));

    safePrint("[LEARN RIGHT] turning RIGHT (TURN_DEG=%d) to become parallel\n", TURN_DEG);
    turnRightDeg(TURN_DEG);
    vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));

    int attempts = 0;
    int acc_forward_ms = 0;
    while (learnRightActive && sides_passed < 4 && attempts < MAX_TOTAL_ATTEMPTS) {
      attempts++;
      safePrint("[LEARN RIGHT] bypass attempt %d\n", attempts);

      setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
      vTaskDelay(pdMS_TO_TICKS(FORWARD_STEP_MS));
      setTargetMotor(0,0,0,0);
      acc_forward_ms += FORWARD_STEP_MS;
      vTaskDelay(pdMS_TO_TICKS(100));

      safePrint("[LEARN RIGHT] turning LEFT (TURN_DEG=%d) to check forward distance\n", TURN_DEG);
      turnLeftDeg(TURN_DEG);
      vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));

      Get_Distance();
      vTaskDelay(pdMS_TO_TICKS(DIST_CHECK_DELAY_MS));
      int check = distance;
      safePrint("[LEARN RIGHT] check after left turn: %d cm (initial=%d)\n", check, initial_front);

      if ((float)check <= SAME_DISTANCE_MULT * (float)initial_front) {
        safePrintln("[LEARN RIGHT] still close -> return to parallel and continue");
        turnRightDeg(TURN_DEG);
        vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));
        continue;
      }

      if (check >= SAFE_CLEAR_CM || (float)check >= 2.0f * (float)initial_front) {
        safePrint("[LEARN RIGHT] side appears cleared (check=%d) -> passing corner\n", check);

        int total_forward_ms = acc_forward_ms + FORWARD_AFTER_PASS_MS;
        addLearnedForwardRight(total_forward_ms);
        addLearnedTurnRight(DIR_LEFT, TURN_DEG);

        acc_forward_ms = 0;
        sides_passed++;

        setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
        vTaskDelay(pdMS_TO_TICKS(FORWARD_AFTER_PASS_MS));
        setTargetMotor(0,0,0,0);
        vTaskDelay(pdMS_TO_TICKS(100));
        safePrint("[LEARN RIGHT] side cleared. total sides_passed=%d\n", sides_passed);
        continue;
      }

      safePrint("[LEARN RIGHT] ambiguous result (check=%d) -> return to parallel and try again\n", check);
      turnRightDeg(TURN_DEG);
      vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));
    }

    if (sides_passed < 4) {
      safePrint("[LEARN RIGHT] failed to clear all sides after %d attempts -> aborting\n", attempts);
      ledcWriteTone(2, 400);
      vTaskDelay(pdMS_TO_TICKS(600));
      ledcWrite(2, 0);
      taskENTER_CRITICAL(&bypassMux);
      learnRightActive = false;
      taskEXIT_CRITICAL(&bypassMux);
    } else {
      safePrintln("[LEARN RIGHT] learning complete - sides_passed == 4");
      markLearnedAvailableRight();
    }
  }

  setTargetMotor(0,0,0,0);
  safePrint("LEARN RIGHT: finished simple box bypass; sides_passed=%d\n", sides_passed);
  if (sides_passed >= 4) {
    ledcWriteTone(2, 900);
    vTaskDelay(pdMS_TO_TICKS(200));
    ledcWrite(2, 0);
  } else {
    ledcWriteTone(2, 400);
    vTaskDelay(pdMS_TO_TICKS(200));
    ledcWrite(2, 0);
  }

  taskENTER_CRITICAL(&bypassMux);
  learnRightActive = false;
  learnRightTaskHandle = NULL;
  taskEXIT_CRITICAL(&bypassMux);

  vTaskDelete(NULL);
}

// ------------------ LEARN BYPASS LEFT (mirror of right) ------------------
void learn_bypass_left_task(void *pvParameters) {
  (void) pvParameters;

  taskENTER_CRITICAL(&bypassMux);
  if (learnLeftActive) {
    safePrintln("LEARN LEFT: start requested but already active -> exiting task");
    learnLeftTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    vTaskDelete(NULL);
    return;
  }
  learnLeftActive = true;
  learnLeftTaskHandle = xTaskGetCurrentTaskHandle();
  taskEXIT_CRITICAL(&bypassMux);

  clearLearnedTrajectoryLeft();

  const int STOP_THRESHOLD_CM = 13;
  const int SAFE_CLEAR_CM = 35;
  const int MOVE_SPEED = 60;
  const int FORWARD_STEP_MS = 700;
  const int FORWARD_AFTER_PASS_MS = 300;
  const int DIST_CHECK_DELAY_MS = 120;
  const float SAME_DISTANCE_MULT = 1.5f;
  const int MAX_TOTAL_ATTEMPTS = 200;

  safePrintln("LEARN LEFT: simple box bypass learning started");

  int sides_passed = 0;
  bool obstacle_detected = false;

  while (learnLeftActive && !obstacle_detected) {
    Get_Distance();
    vTaskDelay(pdMS_TO_TICKS(DIST_CHECK_DELAY_MS));
    int front = distance;
    safePrint("[LEARN LEFT] approaching: front=%d cm, sides_passed=%d\n", front, sides_passed);

    if (front > STOP_THRESHOLD_CM) {
      setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
      vTaskDelay(pdMS_TO_TICKS(80));
      continue;
    }

    obstacle_detected = true;
    safePrintln("[LEARN LEFT] obstacle detected -> start bypassing");

    int initial_front = (front > 0) ? front : 1;

    setTargetMotor(0,0,0,0);
    vTaskDelay(pdMS_TO_TICKS(200));

    safePrint("[LEARN LEFT] turning LEFT (TURN_DEG=%d) to become parallel\n", TURN_DEG);
    turnLeftDeg(TURN_DEG);
    vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));
    int attempts = 0;
    int acc_forward_ms = 0;
    while (learnLeftActive && sides_passed < 4 && attempts < MAX_TOTAL_ATTEMPTS) {
      attempts++;
      safePrint("[LEARN LEFT] bypass attempt %d\n", attempts);

      setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
      vTaskDelay(pdMS_TO_TICKS(FORWARD_STEP_MS));
      setTargetMotor(0,0,0,0);
      acc_forward_ms += FORWARD_STEP_MS;
      vTaskDelay(pdMS_TO_TICKS(100));

      safePrint("[LEARN LEFT] turning RIGHT (TURN_DEG=%d) to check forward distance\n", TURN_DEG);
      turnRightDeg(TURN_DEG);
      vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));

      Get_Distance();
      vTaskDelay(pdMS_TO_TICKS(DIST_CHECK_DELAY_MS));
      int check = distance;
      safePrint("[LEARN LEFT] check after right turn: %d cm (initial=%d)\n", check, initial_front);

      if ((float)check <= SAME_DISTANCE_MULT * (float)initial_front) {
        safePrintln("[LEARN LEFT] still close -> return to parallel and continue");
        turnLeftDeg(TURN_DEG);
        vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));
        continue;
      }

      if (check >= SAFE_CLEAR_CM || (float)check >= 2.0f * (float)initial_front) {
        safePrint("[LEARN LEFT] side appears cleared (check=%d) -> passing corner\n", check);

        int total_forward_ms = acc_forward_ms + FORWARD_AFTER_PASS_MS;
        addLearnedForwardLeft(total_forward_ms);
        addLearnedTurnLeft(DIR_RIGHT, TURN_DEG);

        acc_forward_ms = 0;
        sides_passed++;

        setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
        vTaskDelay(pdMS_TO_TICKS(FORWARD_AFTER_PASS_MS));
        setTargetMotor(0,0,0,0);
        vTaskDelay(pdMS_TO_TICKS(100));
        safePrint("[LEARN LEFT] side cleared. total sides_passed=%d\n", sides_passed);
        continue;
      }

      safePrint("[LEARN LEFT] ambiguous result (check=%d) -> return to parallel and try again\n", check);
      turnLeftDeg(TURN_DEG);
      vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));
    }

    if (sides_passed < 4) {
      safePrint("[LEARN LEFT] failed to clear all sides after %d attempts -> aborting\n", attempts);
      ledcWriteTone(2, 400);
      vTaskDelay(pdMS_TO_TICKS(600));
      ledcWrite(2, 0);
      taskENTER_CRITICAL(&bypassMux);
      learnLeftActive = false;
      taskEXIT_CRITICAL(&bypassMux);
    } else {
      safePrintln("[LEARN LEFT] learning complete - sides_passed == 4");
      markLearnedAvailableLeft();
    }
  }

  setTargetMotor(0,0,0,0);
  safePrint("LEARN LEFT: finished simple box bypass; sides_passed=%d\n", sides_passed);
  if (sides_passed >= 4) {
    ledcWriteTone(2, 900);
    vTaskDelay(pdMS_TO_TICKS(200));
    ledcWrite(2, 0);
  } else {
    ledcWriteTone(2, 400);
    vTaskDelay(pdMS_TO_TICKS(200));
    ledcWrite(2, 0);
  }

  taskENTER_CRITICAL(&bypassMux);
  learnLeftActive = false;
  learnLeftTaskHandle = NULL;
  taskEXIT_CRITICAL(&bypassMux);

  vTaskDelete(NULL);
}

// ------------------ REPLAY RIGHT (replay learned right trajectory, no sensors) ------------------
void replay_learned_right_task(void *pvParameters) {
  (void) pvParameters;

  taskENTER_CRITICAL(&bypassMux);
  if (replayRightActive) {
    safePrintln("REPLAY RIGHT: already active -> exiting");
    replayRightTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    vTaskDelete(NULL);
    return;
  }
  if (!learnedAvailableRight || learnedCountRight == 0) {
    safePrintln("REPLAY RIGHT: no learned right trajectory available -> exiting");
    replayRightTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    vTaskDelete(NULL);
    return;
  }

  replayRightActive = true;
  replayRightTaskHandle = xTaskGetCurrentTaskHandle();
  taskEXIT_CRITICAL(&bypassMux);

  safePrintln("REPLAY RIGHT: replaying learned right trajectory (no sensor checks)");

  LearnedAction* localActions = nullptr;
  int localCount = 0;

  taskENTER_CRITICAL(&bypassMux);
  localCount = learnedCountRight;
  if (localCount > 0) {
    localActions = (LearnedAction*) pvPortMalloc(sizeof(LearnedAction) * localCount);
    if (localActions != nullptr) {
      for (int i = 0; i < localCount; ++i) localActions[i] = learnedActionsRight[i];
    }
  }
  taskEXIT_CRITICAL(&bypassMux);

  if (localActions == nullptr || localCount == 0) {
    safePrintln("REPLAY RIGHT: failed to allocate/copy learned trajectory -> aborting");
    taskENTER_CRITICAL(&bypassMux);
    replayRightActive = false;
    replayRightTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    if (localActions) vPortFree(localActions);
    vTaskDelete(NULL);
    return;
  }

  const int MOVE_SPEED = 60;

  for (int i = 0; i < localCount && replayRightActive; ++i) {
    LearnedAction a = localActions[i];
    if (a.type == ACT_FORWARD) {
      safePrint("[REPLAY RIGHT] FORWARD %d ms\n", a.duration_ms);
      setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
      vTaskDelay(pdMS_TO_TICKS(a.duration_ms));
      setTargetMotor(0,0,0,0);
      vTaskDelay(pdMS_TO_TICKS(100));
    } else if (a.type == ACT_TURN) {
      if (a.dir == DIR_LEFT) {
        safePrint("[REPLAY RIGHT] TURN LEFT %d deg\n", a.deg);
        turnLeftDeg(a.deg);
      } else {
        safePrint("[REPLAY RIGHT] TURN RIGHT %d deg\n", a.deg);
        turnRightDeg(a.deg);
      }
      vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));
    }
  }

  setTargetMotor(0,0,0,0);
  ledcWriteTone(2, 900);
  vTaskDelay(pdMS_TO_TICKS(200));
  ledcWrite(2, 0);

  vPortFree(localActions);

  taskENTER_CRITICAL(&bypassMux);
  replayRightActive = false;
  replayRightTaskHandle = NULL;
  taskEXIT_CRITICAL(&bypassMux);

  safePrintln("REPLAY RIGHT: finished replay");
  vTaskDelete(NULL);
}

// ------------------ REPLAY LEFT (replay learned left trajectory, no sensors) ------------------
void replay_learned_left_task(void *pvParameters) {
  (void) pvParameters;

  taskENTER_CRITICAL(&bypassMux);
  if (replayLeftActive) {
    safePrintln("REPLAY LEFT: already active -> exiting");
    replayLeftTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    vTaskDelete(NULL);
    return;
  }
  if (!learnedAvailableLeft || learnedCountLeft == 0) {
    safePrintln("REPLAY LEFT: no learned left trajectory available -> exiting");
    replayLeftTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    vTaskDelete(NULL);
    return;
  }

  replayLeftActive = true;
  replayLeftTaskHandle = xTaskGetCurrentTaskHandle();
  taskEXIT_CRITICAL(&bypassMux);

  safePrintln("REPLAY LEFT: replaying learned left trajectory (no sensor checks)");

  LearnedAction* localActions = nullptr;
  int localCount = 0;

  taskENTER_CRITICAL(&bypassMux);
  localCount = learnedCountLeft;
  if (localCount > 0) {
    localActions = (LearnedAction*) pvPortMalloc(sizeof(LearnedAction) * localCount);
    if (localActions != nullptr) {
      for (int i = 0; i < localCount; ++i) localActions[i] = learnedActionsLeft[i];
    }
  }
  taskEXIT_CRITICAL(&bypassMux);

  if (localActions == nullptr || localCount == 0) {
    safePrintln("REPLAY LEFT: failed to allocate/copy learned trajectory -> aborting");
    taskENTER_CRITICAL(&bypassMux);
    replayLeftActive = false;
    replayLeftTaskHandle = NULL;
    taskEXIT_CRITICAL(&bypassMux);
    if (localActions) vPortFree(localActions);
    vTaskDelete(NULL);
    return;
  }

  const int MOVE_SPEED = 60;

  for (int i = 0; i < localCount && replayLeftActive; ++i) {
    LearnedAction a = localActions[i];
    if (a.type == ACT_FORWARD) {
      safePrint("[REPLAY LEFT] FORWARD %d ms\n", a.duration_ms);
      setTargetMotor(MOVE_SPEED, 0, MOVE_SPEED, 0);
      vTaskDelay(pdMS_TO_TICKS(a.duration_ms));
      setTargetMotor(0,0,0,0);
      vTaskDelay(pdMS_TO_TICKS(100));
    } else if (a.type == ACT_TURN) {
      if (a.dir == DIR_LEFT) {
        safePrint("[REPLAY LEFT] TURN LEFT %d deg\n", a.deg);
        turnLeftDeg(a.deg);
      } else {
        safePrint("[REPLAY LEFT] TURN RIGHT %d deg\n", a.deg);
        turnRightDeg(a.deg);
      }
      vTaskDelay(pdMS_TO_TICKS(80 + TURN_POST_MS / 2));
    }
  }

  setTargetMotor(0,0,0,0);
  ledcWriteTone(2, 900);
  vTaskDelay(pdMS_TO_TICKS(200));
  ledcWrite(2, 0);

  vPortFree(localActions);

  taskENTER_CRITICAL(&bypassMux);
  replayLeftActive = false;
  replayLeftTaskHandle = NULL;
  taskEXIT_CRITICAL(&bypassMux);

  safePrintln("REPLAY LEFT: finished replay");
  vTaskDelete(NULL);
}



void grc_cmd_task(void*arg)
{
  const float d_speed = 0.5;
  float speed = 1;
  bool imu_control_mode = false;
  auto init_imu_control_state = [&imu_control_mode]() {
    Serial.printf("Enable imu control mode\n");
    imu_control_mode = true;
    ticker.attach_ms(300, led_callback);  //lighting task
    ticker1.attach_ms(900, buzzer_callback);  //buzzer task
  };
  auto release_imu_control_state = [&imu_control_mode, &moving_backwards]() {
    Serial.printf("Disable imu control mode\n");
    imu_control_mode = false;
    moving_backwards = false;
    Motor(0, 0, 0, 0);
    ledcWrite(2, 0);
    fill_solid(leds, 4, CRGB::Black);
    FastLED.show();
    ticker.detach();
    ticker1.detach();
  };
  auto front_lights_cmd = [](bool front_lights_en) {
    uint8_t val = 0;
    if (front_lights_en) {
      FastLED.setBrightness(255);  //RGB lamp brightness range: 0-255
      val = 255;
    }
    myRGBcolor6.r = val;
    myRGBcolor6.g = val;
    myRGBcolor6.b = val;
    fill_solid(RGBleds, 6, myRGBcolor6);
    FastLED.show();
  };
  char msg[MAX_GRC_MSG_LEN];
    for (;;) {
    size_t length = xMessageBufferReceive(xGrcCmdBuffer, &msg, MAX_GRC_MSG_LEN, portMAX_DELAY);
    std::string value(msg, length);
    const std::string::size_type coords_offset = value.find("XY");
    const bool recv_imu_coords = coords_offset != std::string::npos;
    if (recv_imu_coords && !imu_control_mode) {
      init_imu_control_state();
    }

    //********************************GRC voice command******************************************
    if (!imu_control_mode) {
      if (value == "GO FORWARD" || value == "xiang qian zou")  //forward
...

This file has been truncated, please download it to see its full contents.

Credits

Grovety

19 projects • 13 followers

AI devices development

Build a Mars Rover at Your Desk

Things used in this project

Hardware components

Software apps and online services

Story

Why it’s Awesome

Use Cases

How it Works

Voice Interface

Open Challenge

What You’ll Need

Try it Yourself

What’s Next

⚙️ Technical Appendix — For Advanced Users

Overview

Mission Flow

Guide: Understanding the Rover Firmware

3. How the Rover “Remembers” and “Replays”

4. Easy Parameters to Experiment With

5. Where the Voice Commands Come From

6. Teaching Tips

Surface Calibration

GitHub Repository

Code

Untitled file

Github file

Credits

Grovety

Comments

Embed the widget on your own site

Build a Mars Rover at Your Desk

Build a Mars Rover at Your Desk

Things used in this project

Hardware components

Software apps and online services

Story

Why it’s Awesome

Use Cases

How it Works

Voice Interface

Open Challenge

What You’ll Need

Try it Yourself

What’s Next

Share Your Feedback 🚀

⚙️ Technical Appendix — For Advanced Users

Overview

Mission Flow

Guide: Understanding the Rover Firmware

3. How the Rover “Remembers” and “Replays”

4. Easy Parameters to Experiment With

5. Where the Voice Commands Come From

6. Teaching Tips

Surface Calibration

GitHub Repository

Code

Untitled file

Github file

Credits

Grovety

Comments

Related channels and tags
