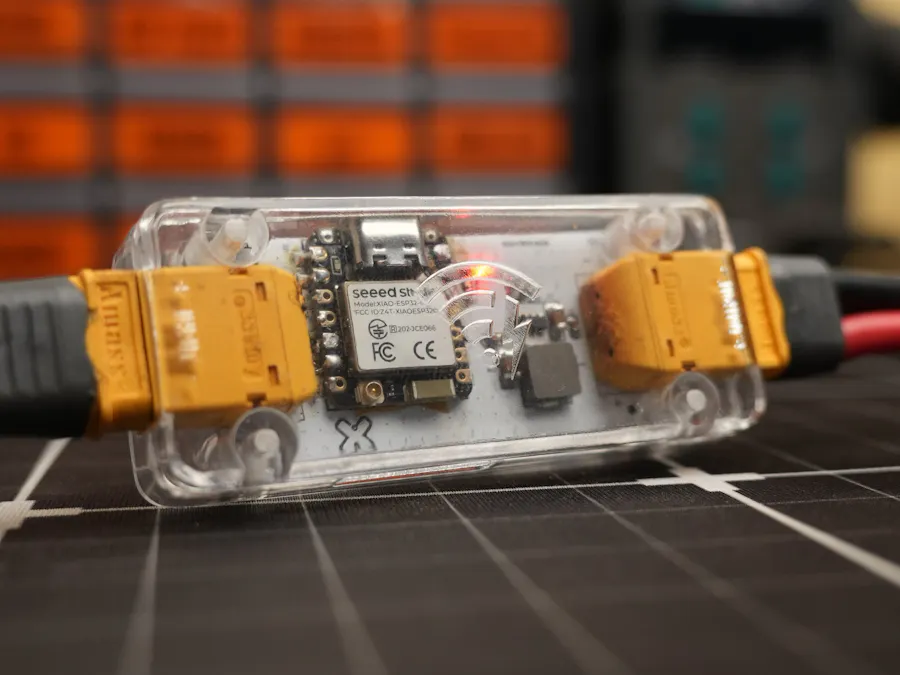

Wireless High Amp Power Meter With ESP32C6

DIY Wi-Fi Power Meter — Monitor Voltage, Current & Wattage Wirelessly!

IntermediateFull instructions provided2 hours590
Wireless High Amp Power Meter With ESP32C6

Things used in this project

Hardware components

Seeed Studio XIAO ESP32C6
Seeed Studio XIAO ESP32C6
×1

Story

Read more

Custom parts and enclosures

bottom__g9sG4niv8N.stl

top_7ooRDNENVA.stl

PCB files

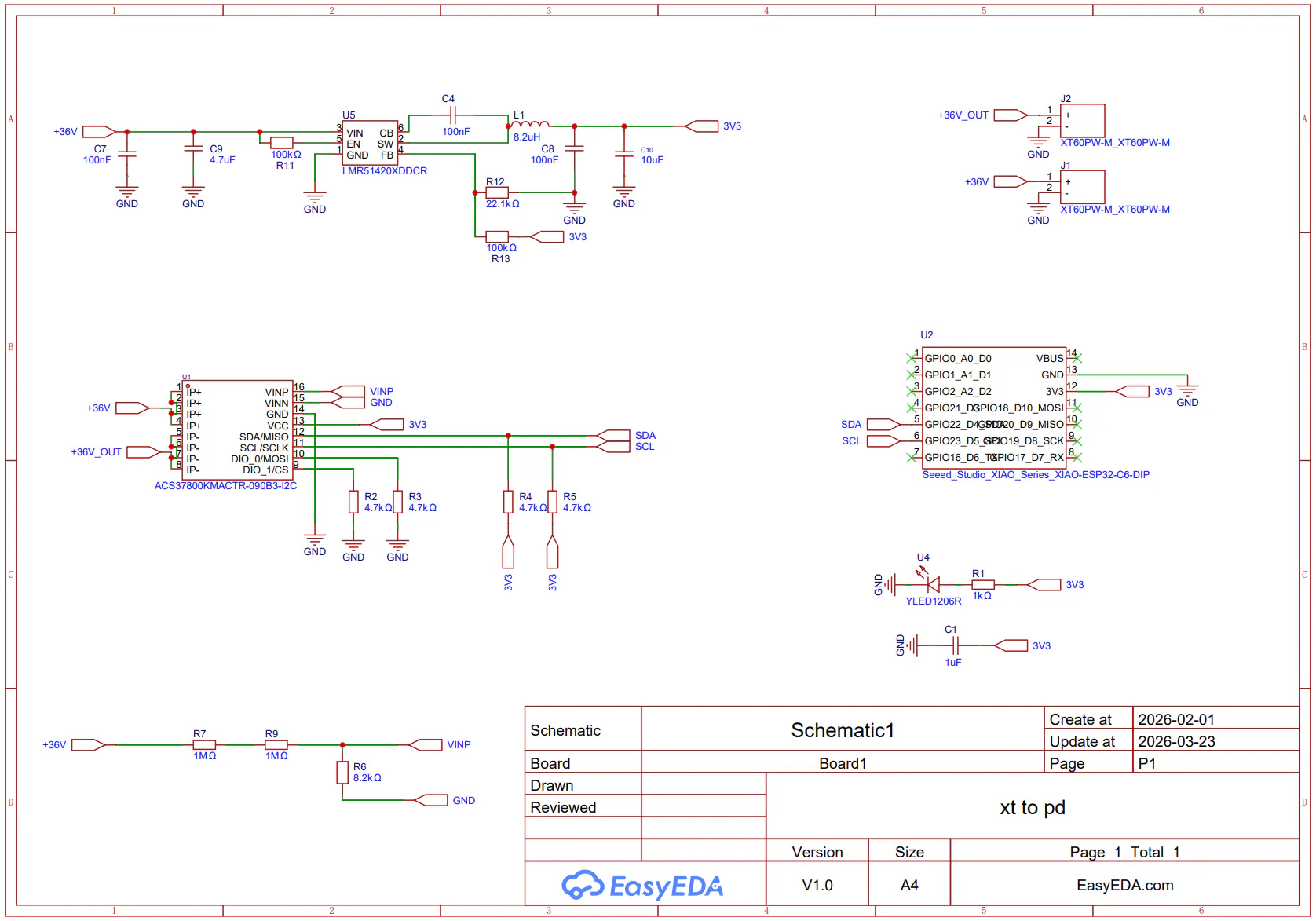

Schematics


Code

code

C/C++
/*
 ============================================================
  DC POWER MONITOR — XIAO ESP32-C6 + ACS37800
  Max rating: 36V DC / 30A
  Web dashboard served over home WiFi
 ============================================================
*/

#include <Arduino.h>
#include "SparkFun_ACS37800_Arduino_Library.h"
#include <Wire.h>
#include <WiFi.h>
#include <WebServer.h>
#include <ArduinoJson.h>

// ── WiFi credentials ─────────────────────────────────────
const char* WIFI_SSID     = "YOUR_WIFI_SSID";
const char* WIFI_PASSWORD = "YOUR_WIFI_PASSWORD";

// ── Hardware limits (ACS37800 30A variant, 36V DC max) ───
constexpr float MAX_VOLTAGE = 36.0f;
constexpr float MAX_CURRENT = 30.0f;

// ── Calibration ───────────────────────────────────────────
// CURRENT_SCALE: calibrated against a 2.000 A reference load (reads 1.916 A)
//   → new scale = old_scale × (true / read) = 2.882 × (2.000 / 1.916) = 3.008
//   To recalibrate: CURRENT_SCALE = true_amps / sensor_raw_amps_before_scaling
constexpr float CURRENT_SCALE  = 3.008f;

// CURRENT_OFFSET: zero-load current offset (amps), captured at startup.
// Auto-zeroed in setup() — keep load disconnected at boot.
float gAmpsOffset = 0.0f;

// VOLTAGE_SCALE: calibrated from 3-point measurement
//   10V→10.11, 20V→20.27, 30V→30.43  (pure gain error, not offset)
//   scale = true / read = 30.00 / 30.43 = 0.9859
//   Cross-check: 10.11*0.9859=9.97V  20.27*0.9859=19.99V  checkmark
//   To recalibrate: VOLTAGE_SCALE = true_volts / displayed_volts
constexpr float VOLTAGE_SCALE  = 0.9859f;

// ── Objects ───────────────────────────────────────────────
ACS37800   sensor;
WebServer  server(80);

// ── Live readings (updated in loop) ──────────────────────
volatile float gVolts = 0.0f;
volatile float gAmps  = 0.0f;
volatile float gWatts = 0.0f;

// ─────────────────────────────────────────────────────────
//  HTML dashboard (stored in flash with PROGMEM)
// ─────────────────────────────────────────────────────────
const char INDEX_HTML[] PROGMEM = R"rawhtml(
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Power Monitor</title>
<link rel="preconnect" href="https://fonts.googleapis.com">
<link rel="preconnect" href="https://fonts.gstatic.com" crossorigin>
<link href="https://fonts.googleapis.com/css2?family=Share+Tech+Mono&family=Barlow+Condensed:wght@300;600;800&display=swap" rel="stylesheet">
<style>
  :root {
    --bg:        #0a0c0f;
    --panel:     #0f1318;
    --border:    #1e2530;
    --accent:    #00e5ff;
    --accent2:   #ff6b35;
    --warn:      #ffcc00;
    --danger:    #ff2244;
    --text:      #c8d8e8;
    --dim:       #4a5a6a;
    --mono:      'Share Tech Mono', monospace;
    --sans:      'Barlow Condensed', sans-serif;
  }

  *, *::before, *::after { box-sizing: border-box; margin: 0; padding: 0; }

  html, body {
    height: 100%;
    background: var(--bg);
    color: var(--text);
    font-family: var(--sans);
    overflow-x: hidden;
  }

  /* subtle scanline texture */
  body::before {
    content: '';
    position: fixed; inset: 0;
    background: repeating-linear-gradient(
      0deg,
      transparent,
      transparent 2px,
      rgba(0,229,255,0.015) 2px,
      rgba(0,229,255,0.015) 4px
    );
    pointer-events: none;
    z-index: 999;
  }

  /* ── top bar ── */
  header {
    display: flex;
    align-items: center;
    justify-content: space-between;
    padding: 14px 24px;
    border-bottom: 1px solid var(--border);
    background: var(--panel);
  }
  .logo {
    font-family: var(--sans);
    font-weight: 800;
    font-size: 1.15rem;
    letter-spacing: 0.18em;
    text-transform: uppercase;
    color: var(--accent);
  }
  .logo span { color: var(--text); font-weight: 300; }
  .status-dot {
    width: 9px; height: 9px;
    border-radius: 50%;
    background: var(--accent);
    box-shadow: 0 0 8px var(--accent);
    animation: pulse 2s ease-in-out infinite;
  }
  @keyframes pulse {
    0%,100% { opacity: 1; }
    50%      { opacity: 0.35; }
  }

  /* ── main grid ── */
  main {
    padding: 28px 20px 40px;
    display: flex;
    flex-direction: column;
    gap: 18px;
    max-width: 540px;
    margin: 0 auto;
  }

  /* ── metric card ── */
  .card {
    background: var(--panel);
    border: 1px solid var(--border);
    border-radius: 4px;
    padding: 20px 24px 18px;
    position: relative;
    overflow: hidden;
    transition: border-color 0.3s;
  }
  .card::before {
    content: '';
    position: absolute;
    top: 0; left: 0;
    width: 3px; height: 100%;
    background: var(--card-accent, var(--accent));
  }
  .card-label {
    font-family: var(--sans);
    font-weight: 600;
    font-size: 0.7rem;
    letter-spacing: 0.22em;
    text-transform: uppercase;
    color: var(--dim);
    margin-bottom: 6px;
  }
  .card-value {
    font-family: var(--mono);
    font-size: 3.4rem;
    line-height: 1;
    color: var(--card-accent, var(--accent));
    transition: color 0.3s;
    letter-spacing: -0.02em;
  }
  .card-unit {
    font-family: var(--sans);
    font-weight: 300;
    font-size: 1rem;
    color: var(--dim);
    margin-left: 6px;
    vertical-align: baseline;
    letter-spacing: 0.08em;
  }

  /* accent colours per card */
  .card-v  { --card-accent: #00e5ff; }
  .card-a  { --card-accent: #ff6b35; }
  .card-w  { --card-accent: #b4ff6e; }

  /* ── bar gauge ── */
  .gauge-wrap {
    margin-top: 14px;
    height: 4px;
    background: var(--border);
    border-radius: 2px;
    overflow: hidden;
  }
  .gauge-fill {
    height: 100%;
    border-radius: 2px;
    background: var(--card-accent, var(--accent));
    transition: width 0.4s ease;
    box-shadow: 0 0 6px var(--card-accent, var(--accent));
  }

  /* ── warn state ── */
  .card.warn { border-color: var(--warn); }
  .card.warn .card-value { color: var(--warn) !important; }
  .card.warn .gauge-fill  { background: var(--warn) !important; box-shadow: 0 0 6px var(--warn) !important; }

  .card.danger { border-color: var(--danger); animation: blink-border 0.6s step-end infinite; }
  .card.danger .card-value { color: var(--danger) !important; }
  .card.danger .gauge-fill  { background: var(--danger) !important; box-shadow: 0 0 6px var(--danger) !important; }

  @keyframes blink-border {
    0%,100% { border-color: var(--danger); }
    50%      { border-color: transparent;  }
  }

  /* ── power factor strip ── */
  .pf-row {
    display: flex;
    align-items: center;
    justify-content: space-between;
    background: var(--panel);
    border: 1px solid var(--border);
    border-radius: 4px;
    padding: 14px 24px;
    font-family: var(--mono);
    font-size: 0.78rem;
    color: var(--dim);
    letter-spacing: 0.05em;
  }
  .pf-row strong { color: var(--text); font-family: var(--sans); font-weight: 600; font-size: 0.85rem; }

  /* ── timestamp ── */
  .ts {
    text-align: center;
    font-family: var(--mono);
    font-size: 0.65rem;
    color: var(--dim);
    letter-spacing: 0.08em;
  }

  @media (min-width: 500px) {
    .card-value { font-size: 4rem; }
  }
</style>
</head>
<body>

<header>
  <div class="logo">DC<span>meter</span></div>
  <div class="status-dot" id="dot"></div>
</header>

<main>
  <!-- Voltage -->
  <div class="card card-v" id="card-v">
    <div class="card-label">Voltage</div>
    <div class="card-value" id="val-v">--.--<span class="card-unit">V</span></div>
    <div class="gauge-wrap"><div class="gauge-fill" id="bar-v" style="width:0%"></div></div>
  </div>

  <!-- Current -->
  <div class="card card-a" id="card-a">
    <div class="card-label">Current</div>
    <div class="card-value" id="val-a">--.--<span class="card-unit">A</span></div>
    <div class="gauge-wrap"><div class="gauge-fill" id="bar-a" style="width:0%"></div></div>
  </div>

  <!-- Power -->
  <div class="card card-w" id="card-w">
    <div class="card-label">Power</div>
    <div class="card-value" id="val-w">---.--<span class="card-unit">W</span></div>
    <div class="gauge-wrap"><div class="gauge-fill" id="bar-w" style="width:0%"></div></div>
  </div>

  <!-- Quick stats row -->
  <div class="pf-row">
    <span>MAX&nbsp;36V&nbsp;/&nbsp;30A</span>
    <strong id="load-pct">LOAD — %</strong>
    <span id="ts-lbl">--:--:--</span>
  </div>

  <div class="ts" id="ts-full">waiting for data…</div>
</main>

<script>
  const MAX_V   = 36.0;
  const MAX_A   = 30.0;
  const MAX_W   = MAX_V * MAX_A;   // 1080 W theoretical max

  const elV     = document.getElementById('val-v');
  const elA     = document.getElementById('val-a');
  const elW     = document.getElementById('val-w');
  const barV    = document.getElementById('bar-v');
  const barA    = document.getElementById('bar-a');
  const barW    = document.getElementById('bar-w');
  const cardV   = document.getElementById('card-v');
  const cardA   = document.getElementById('card-a');
  const cardW   = document.getElementById('card-w');
  const dot     = document.getElementById('dot');
  const loadPct = document.getElementById('load-pct');
  const tsLbl   = document.getElementById('ts-lbl');
  const tsFull  = document.getElementById('ts-full');

  function fmt(v, dec) { return (v >= 0 ? v : 0).toFixed(dec); }

  function setCardState(card, pct, warnPct = 80, dangerPct = 95) {
    card.classList.remove('warn', 'danger');
    if      (pct >= dangerPct) card.classList.add('danger');
    else if (pct >= warnPct)   card.classList.add('warn');
  }

  async function fetchData() {
    try {
      const r = await fetch('/data', { cache: 'no-store' });
      if (!r.ok) throw new Error('bad response');
      const d = await r.json();

      const v   = parseFloat(d.volts);
      const a   = parseFloat(d.amps);
      const w   = parseFloat(d.watts);

      const pctV = Math.min((v / MAX_V) * 100, 100);
      const pctA = Math.min((a / MAX_A) * 100, 100);
      const pctW = Math.min((w / MAX_W) * 100, 100);

      elV.innerHTML  = fmt(v, 2) + '<span class="card-unit">V</span>';
      elA.innerHTML  = fmt(a, 2) + '<span class="card-unit">A</span>';
      elW.innerHTML  = fmt(w, 1) + '<span class="card-unit">W</span>';

      barV.style.width = pctV.toFixed(1) + '%';
      barA.style.width = pctA.toFixed(1) + '%';
      barW.style.width = pctW.toFixed(1) + '%';

      setCardState(cardV, pctV);
      setCardState(cardA, pctA);
      setCardState(cardW, pctW);

      loadPct.textContent = 'LOAD ' + pctW.toFixed(0) + '%';

      dot.style.background    = '#00e5ff';
      dot.style.boxShadow     = '0 0 8px #00e5ff';

      const now = new Date();
      const hms = now.toTimeString().split(' ')[0];
      tsLbl.textContent = hms;
      tsFull.textContent = 'Last update: ' + now.toLocaleString();

    } catch (e) {
      dot.style.background = '#ff2244';
      dot.style.boxShadow  = '0 0 8px #ff2244';
      tsFull.textContent   = 'Connection lost — retrying…';
    }
  }

  fetchData();
  setInterval(fetchData, 500);   // poll every 500 ms
</script>
</body>
</html>
)rawhtml";

// ─────────────────────────────────────────────────────────
//  Route handlers
// ─────────────────────────────────────────────────────────
void handleRoot() {
  server.send_P(200, "text/html", INDEX_HTML);
}

void handleData() {
  // Build a tiny JSON: {"volts":12.34,"amps":1.50,"watts":18.51}
  StaticJsonDocument<128> doc;
  doc["volts"] = serialized(String(gVolts, 3));
  doc["amps"]  = serialized(String(gAmps,  3));
  doc["watts"] = serialized(String(gWatts, 3));

  String out;
  serializeJson(doc, out);

  server.sendHeader("Access-Control-Allow-Origin", "*");
  server.sendHeader("Cache-Control", "no-cache");
  server.send(200, "application/json", out);
}

void handleNotFound() {
  server.send(404, "text/plain", "Not found");
}

// ─────────────────────────────────────────────────────────
//  setup()
// ─────────────────────────────────────────────────────────
void setup() {
  Serial.begin(115200);
  delay(500);
  Serial.println("\n=== DC Power Monitor — XIAO ESP32-C6 ===");

  // ── I2C + sensor init ──────────────────────────────────
  Wire.begin();

  if (!sensor.begin()) {
    Serial.println("[ERROR] ACS37800 not found. Check wiring / I2C address.");
    while (true) { delay(1000); }
  }
  Serial.println("[OK] ACS37800 detected.");

  // DC mode: fixed sample window (bypass zero-crossing detection)
  sensor.setNumberOfSamples(1023, true);   // max samples, write to EEPROM
  sensor.setBypassNenable(true,  true);    // bypass N, write to EEPROM

  // Explicitly set 30A current range (required — default may be wrong variant)
  sensor.setCurrentRange(30);

  // Give EEPROM writes time to settle before first read
  delay(100);

  // ── Auto zero-offset calibration ──────────────────────
  // Boot with NO load connected. Takes 20 averaged samples to find baseline.
  Serial.println("[CAL] Auto-zeroing current offset — disconnect load now...");
  delay(2000);   // 2 s window to disconnect load if needed
  float offsetAccum = 0.0f;
  const int CAL_SAMPLES = 20;
  for (int i = 0; i < CAL_SAMPLES; i++) {
    float cv = 0.0f, ca = 0.0f;
    sensor.readRMS(&cv, &ca);
    offsetAccum += ca;
    delay(50);
  }
  gAmpsOffset = offsetAccum / CAL_SAMPLES;
  Serial.printf("[CAL] Zero offset = %.4f A\n", gAmpsOffset);

  // ── WiFi ───────────────────────────────────────────────
  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  Serial.print("[WiFi] Connecting");

  uint8_t attempts = 0;
  while (WiFi.status() != WL_CONNECTED && attempts < 30) {
    delay(500);
    Serial.print('.');
    attempts++;
  }

  if (WiFi.status() == WL_CONNECTED) {
    Serial.println();
    Serial.print("[WiFi] Connected! IP: ");
    Serial.println(WiFi.localIP());
    Serial.println("[Web] Open http://" + WiFi.localIP().toString() + " in your browser");
  } else {
    Serial.println("\n[WiFi] Connection failed — check credentials.");
    // Device keeps running; WiFi will auto-reconnect
  }

  // ── Web server routes ──────────────────────────────────
  server.on("/",      handleRoot);
  server.on("/data",  handleData);
  server.onNotFound(handleNotFound);
  server.begin();
  Serial.println("[Web] HTTP server started on port 80");
}

// ─────────────────────────────────────────────────────────
//  loop()
// ─────────────────────────────────────────────────────────
void loop() {
  // Handle any incoming HTTP clients
  server.handleClient();

  // Read sensor (~every 250 ms)
  static unsigned long lastRead = 0;
  if (millis() - lastRead >= 250) {
    lastRead = millis();

    float v = 0.0f, a = 0.0f;

    // readRMS() averages over the full 1023-sample window — correct for DC.
    ACS37800ERR err = sensor.readRMS(&v, &a);
    if (err != ACS37800_SUCCESS) {
      Serial.printf("[WARN] readRMS error code: %d\n", (int)err);
    }

    // Apply calibration:
    //   1. Subtract zero-load offset captured at boot
    //   2. Multiply by scale factor (corrects for gain error)
    float aCal = (a - gAmpsOffset) * CURRENT_SCALE;
    float vCal = v * VOLTAGE_SCALE;

    // For DC: P = V x I
    float w = vCal * aCal;

    // Clamp negatives (DC — no negative current expected in normal use)
    gVolts = max(vCal, 0.0f);
    gAmps  = max(aCal, 0.0f);
    gWatts = max(w,    0.0f);

    // Safety: flag if limits are approached
    if (gVolts > MAX_VOLTAGE * 0.95f || gAmps > MAX_CURRENT * 0.95f) {
      Serial.printf("[WARN] Near limit — V:%.2f  A:%.2f  W:%.2f\n",
                    gVolts, gAmps, gWatts);
    }

    // Shows raw vs calibrated so you can fine-tune CURRENT_SCALE
    Serial.printf("V: %6.3f  A(raw): %+7.4f  A(cal): %6.3f  W: %7.3f\n",
                  v, a, gAmps, gWatts);
  }
}

Credits

Gokul
44 projects • 43 followers
⚡Electronics Engineer |🛠️Maker & Open-Source Enthusiast | 🚀 3D Printing & CAD Expert | 🏗️ Product Design |🔌Embedded Systems & PCB Design

Comments

Related channels and tags
  • Seeed Studio
