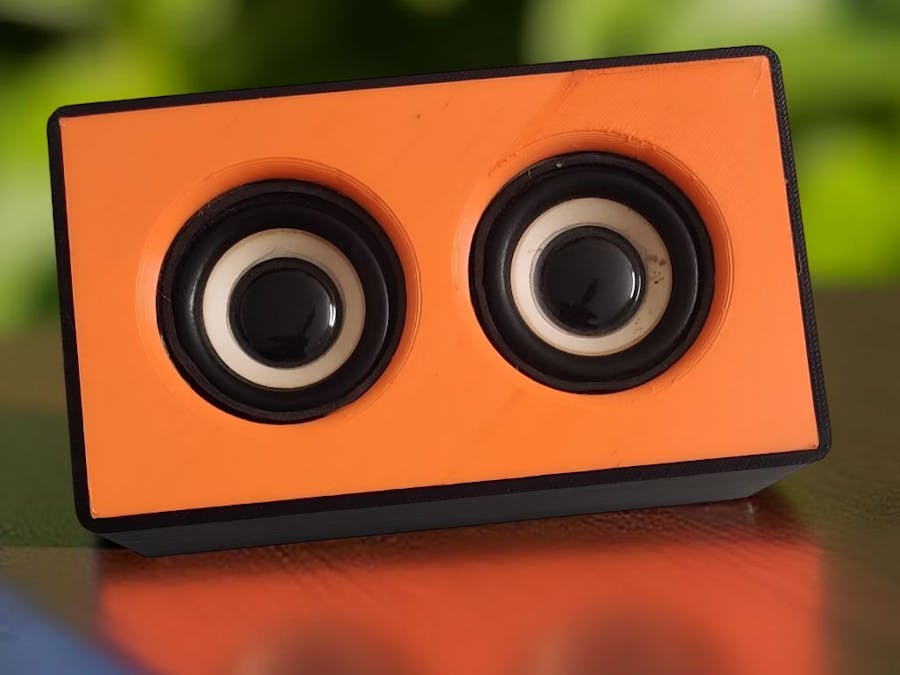

DIY 3D-Printed Bluetooth Speaker

If you love music and DIY projects, this one’s going to be your favorite!In this tutorial, we’ll build a 3D-printed Bluetooth speaker powered by a P15W amplifier with built-in Bluetooth, dual 3W speakers, and a rechargeable 18650 battery.Let’s make your own SoundBox — compact, loud, and stylish 😎🔊

🧰 Components Required:-

🧩 3D-Printed Parts (3 Layers)

• Lower Base – holds electronics, battery, and switch
• Middle Layer – speaker mounting section
• Top Cover – speaker grill or mesh

⚡ Electronics

• 🔈 2 × 3W 4Ω Speakers
• 🎛️ 1 × P15W Bluetooth Amplifier Module (15W with built-in Bluetooth)
• 🔋 1 × 18650 Li-ion Battery
• 🔌 1 × TP4056 Charging Module
• 🔘 1 × On/Off Switch
• 🧲 1 × Battery Holder (for 18650 cell)📷
• 🔩 4 × Nuts & Bolts

🪛 Step-by-Step Assembly Guide

Step 1: Mount the Speakers

Take the middle layer (speaker holder) of your 3D-printed case.Insert one 3W speaker into the provided slot and tighten it with nuts and bolts 🔩.Repeat the same for the second speaker.Make sure both are securely fixed — this will give your SoundBox great bass and clarity

⚙️ Step 2: Connect the Amplifier (P15W)

Now, take your P15W Bluetooth amplifier.Connect both speakers to the amplifier outputs:

• SPK+ → Speaker +
• SPK− → Speaker −

The P15W has built-in Bluetooth, so no external Bluetooth module is needed — just power it on later and it’ll automatically pair with your phone 📱🎧

Step 3: Prepare the Base Layer

Take the bottom base 3D-printed part.Insert the on/off switch into its slot and fix the battery holder in place.This layer will carry the main electronic components, so organize the wires neatly

Step 4: Wiring & Power Connections

Now, make the power connections carefully:

• Battery holder → BAT+ & BAT− of TP4056
• TP4056 output (OUT+ & OUT−) → Amplifier module power pins
• Switch → Connect in series with the positive wire to control power

Double-check all wiring for polarity and short circuits before powering up 🧠💡

Step 5: Mount the Circuit

Fix the P15W amplifier and TP4056 charger securely inside the base slot.Use double tape, hot glue, or screws to hold them firmly.Keep wires short and clean — this improves both airflow and looks 😍

Step 6: Final Assembly

Now, it’s time to assemble the full body:

• Place the middle layer (speaker mount) on the base and lock it in.
• Add the top grill cover and tighten with bolts or snap-fit locks.

Once complete, power ON your SoundBox — your phone should detect “P15W” via Bluetooth pairing.Play your favorite track and feel the beat! 🔊🎶

📦 Looking for the STL files?Drop me a quick DM and I’ll send you the download link right away! or click here

🧩 No access to a 3D printer?That’s totally fine — you can get your parts made through JUSTWAY, a trusted platform for professional 3D printing.

Justway offer comprehensive metal 3D printing services capable of producing parts in a wide range of metals. From lightweight aluminum to high-strength titanium, our technology supports complex geometries, large-scale builds, and precise functional components.

They offer metal 3D printing capabilities include:Stainless Steel 3D Printing (316L)

Justway provides advanced stainless steel 3D printing services using 316L stainless steel, a high-performance material known for its excellent corrosion resistance, heat resistance, and mechanical strength. This material maintains its superior physical properties even under high temperatures and harsh environments.

Material OverviewStainless Steel 316L is resistant to both weakly corrosive media such as air, steam, and water, and to chemically corrosive environments including acids, alkalis, and salts. Often referred to as acid-resistant steel, it offers an ideal combination of durability and processability for complex and demanding applications.

Material AdvantagesThe stainless steel surface is smooth, with high plasticity, toughness, and mechanical strength. It is resistant to corrosion from acids, alkaline gases, and various chemical solutions. As an alloy steel, it delivers long-term reliability and is inherently rust-resistant, making it suitable for both functional and aesthetic components.

Justway’s stainless steel 3D printing capability enables the production of strong, corrosion-resistant parts with excellent dimensional accuracy, ideal for applications that demand both durability and performance.

✨ Optional Customizations

• Add RGB LEDs for light effects 💡
• Paint or two-tone print for premium looks 🖤💛
• Add a handle or strap for portability 🎒

📸 Files & Photos

I’ve captured photos for every step — from mounting the speakers to final assembly.And remember — if you need custom 3D-printed parts or want to create your own designs, JUSTWAY is here to help.They’re your go-to partner for high-quality 3D printing and CNC machining with fast turnaround and a wide range of materials.

🚀 Keep building, keep experimenting, and keep glowing.Your next great idea is just a print away. 💫
