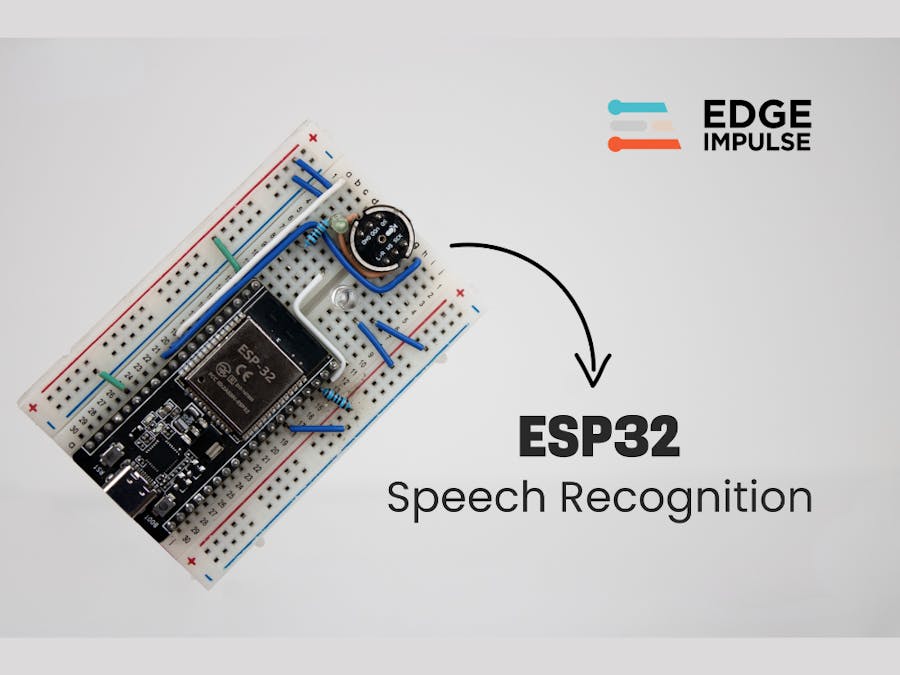

Offline ESP32 Voice Recognition with Edge Impulse

Voice interfaces have become one of the most intuitive ways to interact with electronics. Yet most speech-recognition systems depend on cloud services, internet access, and external APIs. This introduces latency, privacy issues, and ongoing service limitations. What if you could build a completely offline voice assistant that runs directly on a microcontroller?

In this project, we turn an ESP32 into a self-contained offline voice-recognition module powered entirely by Edge Impulse. Unlike internet-based platforms, this approach allows local inference on the ESP32’s dual-core 240 MHz processor. The result is a fully standalone voice-activated system capable of wake-word recognition and command classification without sending audio to the cloud.

You will build an embedded speech-recognition pipeline using the ESP32, an INMP441 I²S microphone, Edge Impulse for dataset training, and a lightweight neural network deployed directly through the Arduino IDE. By the end, you will have a complete voice assistant controlling LEDs through commands like “on”, “off”, and a wake word such as “marvin”.

This is a complete, engineering-grade guide for makers, embedded developers, and ML engineers who want a practical introduction to edge-based voice recognition.

Project Features

Based on the original documentation, this ESP32 speech-to-text system offers:

• Fully offline voice recognition
• Custom wake-word and command detection
• Real-time ML inference
• No cloud, no API calls, no network dependency
• Low latency (200–500 ms total)
• Low power operation
• Expandable architecture for more commands

The combination of embedded machine learning, digital audio capture, and ESP32 processing makes this a compact but powerful edge-computing demonstration.

The INMP441 is used due to its low noise, MEMS construction, and digital I²S interface, making it ideal for audio inference.

System Architecture Overview

The ESP32 voice-assistant system follows this workflow

• Audio Capture (INMP441 → ESP32 I²S)
• Preprocessing (MFCC or spectral features)
• Neural Network Inference (Edge Impulse model)
• Wake-Word Decision Logic
• Command Classification
• LED Output Execution

This hybrid pipeline allows the ESP32 to continuously listen for the wake word, then interpret subsequent commands.

Step 1: Dataset Collection

The project uses the Google Speech Commands V2 dataset for the words: The project uses the Google Speech Commands V2 dataset

• noise
• marvin (wake word)
• on
• off

You may also record custom clips or expand with multilingual data. As noted in the article, real-world accuracy improves with:

• Multiple speaker
• Different accents
• Various background conditions
• Different distances from the microphone

Edge Impulse accepts bulk uploads, folder-based imports, and labelling per sound category.

Step 2: Train the Voice-Recognition Model in Edge Impulse

This section is derived from the step-by-step interface instructions in the source document

Create Your Edge Impulse Project

• Sign in
• Create a new project
• Name it something like ESP32_STT_Recognition

Upload Audio Dataset

Use Data Acquisition → Add Data → Upload Data, choosing folders for each labelled class.Proper labelling is essential for accurate keyword classification.

Design the Impulse

Under Impulse Design:

• Add an Audio (MFCC) processing block
• Add a classification learning block
• Choose a 1-second window size

Train the Model

Set:

• Training cycles: 50–100
• Learning rate: default
• Validation split: automatic

Click “Save and Train”.

You'll receive training output charts, accuracy metrics, and confusion matrices.

Validate the Model

Use Classify All for testing with the reserved dataset.Aim for:

• 85%+ for prototyping
• 90%+ for production

Step 3: Deploying the Model to ESP32

From the deployment instructions in your source file

• Open Deployment
• Select theArduino Library and click Build
• Download the ZIP file
• Install via Sketch → Include Library → Add.ZIP Library

This adds the full neural-network inference engine to the Arduino IDE.

Step 4: Hardware Wiring

Wiring information is taken from the wiring table and pin maps in your file and the microphone pinout section. Wiring information is taken from the wiring table and pin maps in your file

Mic Wiring (INMP441)

INMP441 Pin

L/R

WS

SCK

SD

VDD

GND

LED Wiring

• Indicator LED → GPIO23 → 220 Ω → GND
• Command LED → GPIO22 → 220 Ω → GND

Step 5: Base Code and Full Modified Code

The original file includes the test example and the extended production-ready code.

I²S Audio Configuration

From your file’s code block

i2s_pin_config_t pin_config = {
.bck_io_num = 26, // IIS_SCLK
.ws_io_num = 32, // IIS_LCLK
.data_out_num = -1, // IIS_DSIN
.data_in_num = 33, // IIS_DOUT
};

i2s_pin_config_t pin_config = {
    .bck_io_num = 26,    // IIS_SCLK
    .ws_io_num = 32,     // IIS_LCLK
    .data_out_num = -1,  // IIS_DSIN
    .data_in_num = 33,   // IIS_DOUT
};

Core Data Buffer Structures

From the original code section

typedef struct {
int16_t *buffer;
uint8_t buf_ready;
uint32_t buf_count;
uint32_t n_samples;
} inference_t;

typedef struct {
   int16_t *buffer;
   uint8_t buf_ready;
   uint32_t buf_count;
   uint32_t n_samples;
} inference_t;

Confidence Thresholds

const float COMMAND_CONFIDENCE_THRESHOLD = 0.80;
const float RECOGNITION_CONFIDENCE_THRESHOLD = 0.50;

const float COMMAND_CONFIDENCE_THRESHOLD = 0.80;
const float RECOGNITION_CONFIDENCE_THRESHOLD = 0.50;

Step 6: Real-Time Testing

Open the Serial Monitor after uploading the code.

You will see output similar to:

Wake word detected: marvin (0.94)
Command: on (0.88)
LED turned ON

Wake word detected: marvin (0.94)
Command: on (0.88)
LED turned ON

This provides real-time classification confidence for each detected word.

Conclusion

You now have a complete offline ESP32 Voice Recognition using Edge Impulse, capable of detecting wake words and executing spoken commands entirely on-device. This project showcases the capabilities of embedded machine learning and serves as an ideal starting point for voice-controlled IoT systems, home automation, robotics, and accessibility devices.

The system is fully expandable: collect more voice samples, retrain, and redeploy new models to your ESP32.
