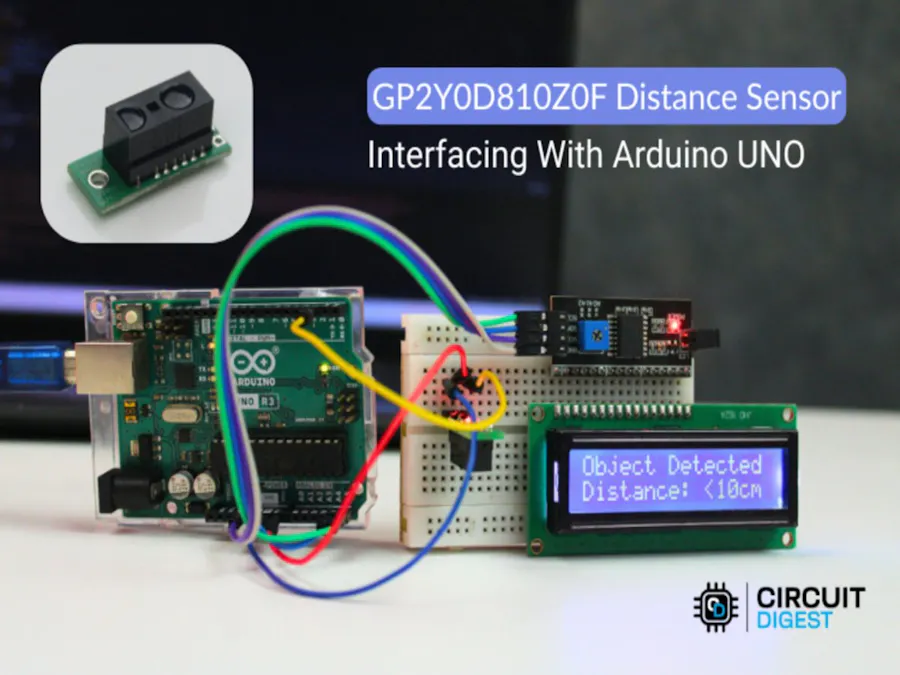

Arduino Proximity Alert Using GP2Y0D80Z0F Sensor

Project Overview

In this beginner-friendly project, you’ll learn how to interface the GP2Y0D80Z0F distance sensor with Arduino Unoto detect objects within ~10 cm and display status on a 16×2 I2C LCD and Serial Monitor. This is perfect for basic obstacle detection, presence sensing, or safety triggers.

What You’ll Build

You’ll wire the GP2Y0D80Z0F sensor to an Arduino, read its digital output to determine whether an object is detected in front of it, and then show real-time status on both the LCD and serial output.

How the Sensor Works

The GP2Y0D80Z0F uses infrared to detect nearby objects:• When an object is within ~10 cm, the sensor output goes LOW.• When no object is detected, the output stays HIGH.

This digital signal makes it very easy to use with Arduino — no complex voltage mapping or analog interpretation is needed.

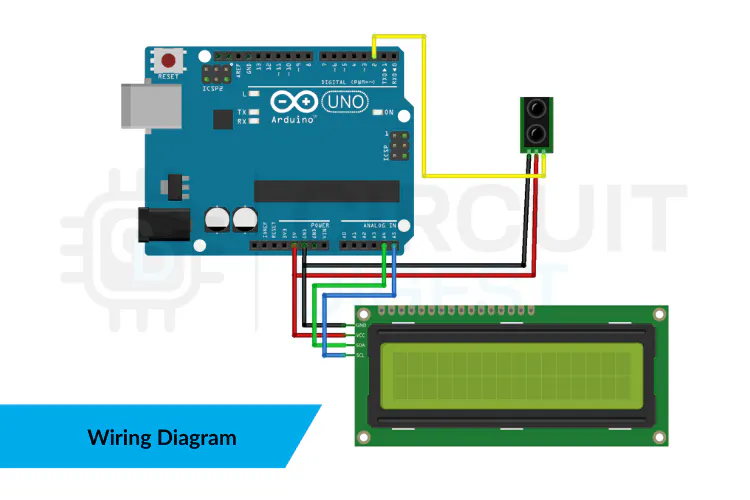

Wiring Guide

Connect your components like this:

GP2Y0D80Z0F → Arduino Uno

GND → GND

• GND → GND

VIN → 5V

• VIN → 5V

OUT → Digital Pin 2

• OUT → Digital Pin 2

I2C LCD → Arduino Uno

GND → GND

• GND → GND

VCC → 5V

• VCC → 5V

SDA → A4

• SDA → A4

SCL → A5

• SCL → A5

Tip: Use consistent wire colors (e.g., black for GND, red for 5V) to make your build easy to follow.

Tip: Use consistent wire colors (e.g., black for GND, red for 5V) to make your build easy to follow.

Arduino Sketch

This sketch reads the sensor and updates both the LCD and Serial Monitor:

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// GP2Y0D80Z0F sensor output pin
const int SENSOR_PIN = 2;

// Initialize LCD (I2C address 0x27, 16×2)
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  Serial.begin(9600);
  pinMode(SENSOR_PIN, INPUT);

  lcd.begin();
  lcd.backlight();

  lcd.setCursor(0, 0);
  lcd.print("Proximity Sensor");
  lcd.setCursor(0, 1);
  lcd.print("Initializing...");
  delay(2000);
  lcd.clear();
}

void loop() {
  int state = digitalRead(SENSOR_PIN);

  lcd.clear();
  if (state == LOW) {
    lcd.setCursor(0, 0);
    lcd.print("Object Detected");
    lcd.setCursor(0, 1);
    lcd.print("Distance < 10cm");
    Serial.println("Status: Object detected (<10cm)");
  } else {
    lcd.setCursor(0, 0);
    lcd.print("No Object");
    lcd.setCursor(0, 1);
    lcd.print("Distance > 10cm");
    Serial.println("Status: No object (>10cm)");
  }
  delay(200);
}

How It Works

The sensor continuously sends an infrared signal and monitors reflections.

• The sensor continuously sends an infrared signal and monitors reflections.

When a reflective object is close, the output goes LOW, which the Arduino reads as “detected.”

• When a reflective object is close, the output goes LOW, which the Arduino reads as “detected.”

The sketch updates the display with clear text and prints status to the Serial Monitor for debugging.

• The sketch updates the display with clear text and prints status to the Serial Monitor for debugging.

Practical Applications

✔ Obstacle detection for small robots✔ Touchless presence switches✔ Simple automation triggers✔ Safety proximity alerts

Troubleshooting Tips

Here are a few common issues and fixes:• Blank LCD: Check I2C address (try 0x27 or 0x3F).• Incorrect readings: Verify wiring — loose grounds and sensor output wiring can cause false detections.• Flickering display: Update the screen only when the sensor state changes.

Project Wrap-Up

This quick Arduino projects shows how easy it is to add digital proximity sensing to your build with the GP2Y0D80Z0F. Whether you’re starting with sensor interfacing or making interactive installations, this setup gives you reliable detection and a clean user interface.
