Accurate Timekeeping on Raspberry Pi Pico with DS3231 RTC

Introduction

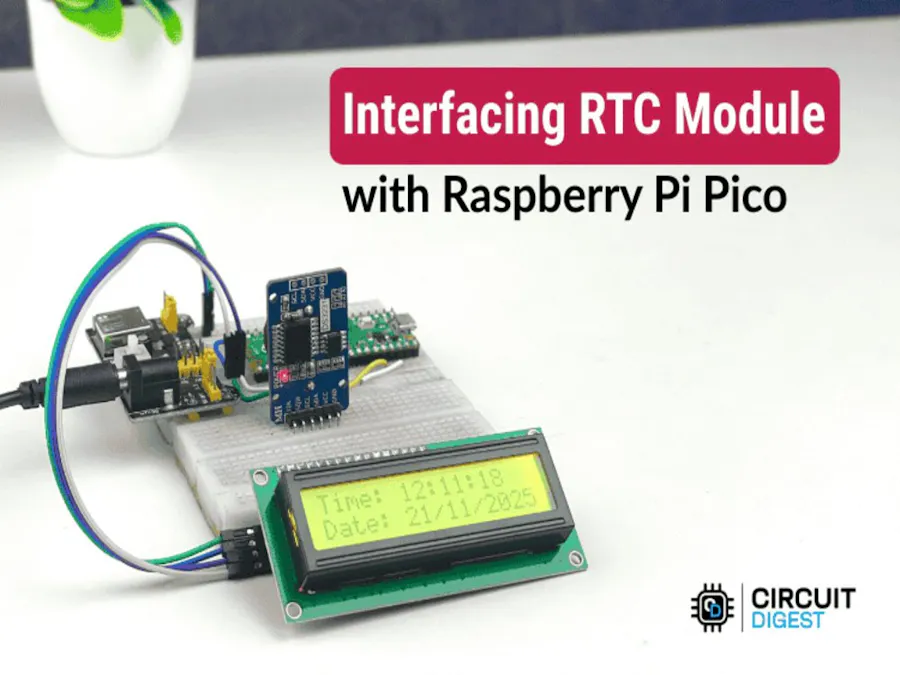

In this project, you’ll learn how to interface a Raspberry Pi Pico RTC DS3231 module with a Raspberry Pi Pico to build an accurate clock system using the Arduino IDE. The DS3231 keeps precise time even during power loss thanks to its battery backup, and you’ll display time, date, and temperature on a 16×2 I²C LCD.

What You’ll Learn

✔ How to connect the Pico and DS3231 using I²C✔ How to set and keep accurate time on the RTC✔ How to read and display time, date, and temperature on an LCD✔ How to handle initial time setup and power-loss-safe operation

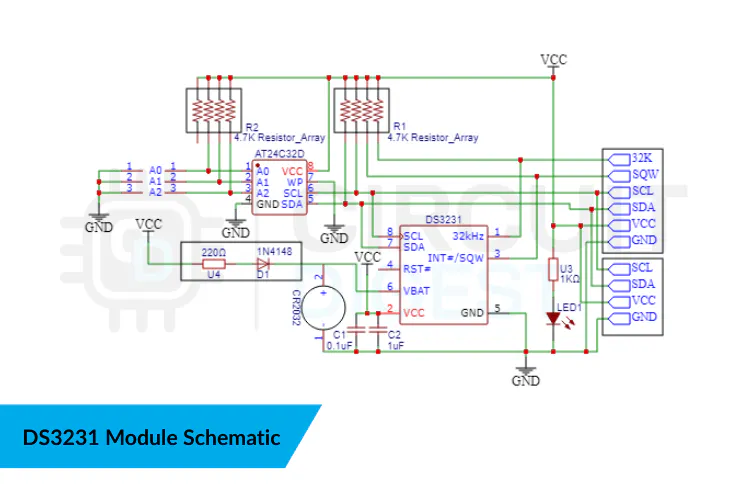

Why Use the DS3231 RTC

The DS3231 is far more accurate than older RTC chips like the DS1307 because it uses a temperature-compensated crystal oscillator (TCXO) that adjusts for temperature shifts. This ensures accuracy even in changing environments.

Key Specs:

• I²C interface, 400 kHz fast mode
• Built-in battery backup (CR2032)
• Tracks seconds, minutes, hours, day, date, month, year
• Integrated temperature sensor

Setting the Time

You only need to set the RTC time once.

Method 1: Auto Sync with Compile Time

Include this line once in your sketch to initialise the RTC with your computer’s current date/time:

rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));

rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));

Upload the sketch, then comment out this line and upload again — otherwise the clock will reset on every reboot

Method 2: Manual Time Set

To use a specific date/time:

rtc.adjust(DateTime(2025, 12, 31, 23, 59, 59));

rtc.adjust(DateTime(2025, 12, 31, 23, 59, 59));

This is useful when syncing multiple clocks or testing timed events.

Arduino Code (Overview)

Below is a simplified overview of the full project code. It initialises the RTC and LCD, reads time & temperature and prints them.

Include Libraries & Initials

#include <Wire.h>
#include "RTClib.h"
#include <LiquidCrystal_I2C.h>

#define DS3231_ADDR 0x68
#define LCD_ADDR 0x27

RTC_DS3231 rtc;
LiquidCrystal_I2C lcd(LCD_ADDR, 20, 4);

#include <Wire.h>
#include "RTClib.h"
#include <LiquidCrystal_I2C.h>

#define DS3231_ADDR 0x68
#define LCD_ADDR    0x27

RTC_DS3231 rtc;
LiquidCrystal_I2C lcd(LCD_ADDR, 20, 4);

Setup Function

void setup() {
Wire.begin();
lcd.begin();
lcd.backlight();

if (!rtc.begin()) {
lcd.print("RTC NOT FOUND");
while (1);
}

if (rtc.lostPower()) {
rtc.adjust(DateTime(F(__DATE__), F(__TIME__))); // Comment after first run
}
}

void setup() {
  Wire.begin();
  lcd.begin();
  lcd.backlight();

  if (!rtc.begin()) {
    lcd.print("RTC NOT FOUND");
    while (1);
  }

  if (rtc.lostPower()) {
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__))); // Comment after first run
  }
}

Main Loop

void loop() {
DateTime now = rtc.now();
float temp = rtc.getTemperature();

lcd.setCursor(0, 0);
lcd.printf("Date: %04u-%02u-%02u", now.year(), now.month(), now.day());
lcd.setCursor(0, 1);
lcd.printf("Time: %02u:%02u:%02u", now.hour(), now.minute(), now.second());
lcd.setCursor(0, 2);
lcd.printf("Temp: %.2f C", temp);

delay(1000);
}

void loop() {
  DateTime now = rtc.now();
  float temp = rtc.getTemperature();

  lcd.setCursor(0, 0);
  lcd.printf("Date: %04u-%02u-%02u", now.year(), now.month(), now.day());
  lcd.setCursor(0, 1);
  lcd.printf("Time: %02u:%02u:%02u", now.hour(), now.minute(), now.second());
  lcd.setCursor(0, 2);
  lcd.printf("Temp: %.2f C", temp);

  delay(1000);
}

This updates the display with time and temperature every second.

Troubleshooting Tips

• RTC not found: Check SDA & SCL wiring and that both devices share the same bus.
• LCD shows garbled text: Confirm correct I²C address (0x27 or 0x3F) and wiring.
• Time keeps resetting: Ensure you comment out the RTC adjustment line after the first set.
• RTC drifts: Verify the battery in the DS3231 module isn’t dead or missing.

Next Steps & Extensions

Once you’ve built this basic clock:

• Add data logging with timestamps (e.g., to an SD card)
• Use the DS3231 alarm pins to trigger events
• Integrate with a display other than LCD (OLED, e-ink) for low-power clocks
