4.3" DSI Touchscreen is a capacitive touch screen with a resolution of 800x480 and a wide 160° viewing angle. It supports multiple operating systems without the need for driver installation, meeting various application requirements.
2. Product parameters- Use an FFC cable to connect the 4.3-inch DSI LCD to the 15-pin DSI interface on the Raspberry Pi board.

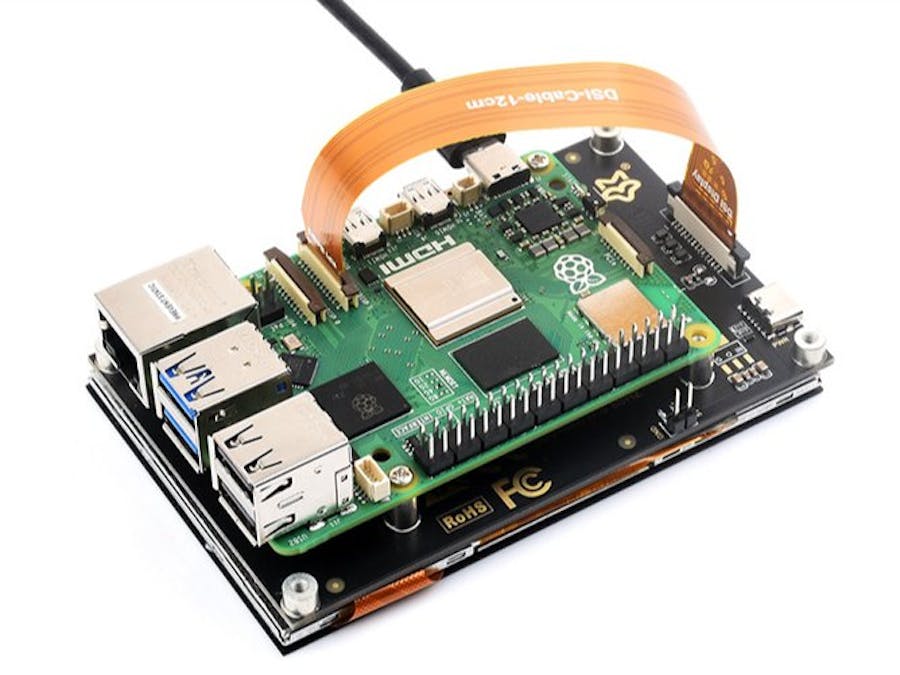

- For convenience, you can secure the Raspberry Pi board to the back of the 4.3inch DSI LCD using screws and assemble the standoffs, as shown in the image below:
Support Raspberry Pi OS/Ubuntu/Kali and Retropie systems.
- 1.Connect TF card to PC
- 2.Please click Raspberry Pi official website to download the newest image.
- 3.Open the Raspberry Pi Imager, select the TF card where the image will be written (Note: It is best to remove other USB devices to prevent accidental erasure of their files).
- 4.Pre-configure the system, hold down CTRL+SHIFT+X (or click the small gear icon in the bottom right corner), then click save after settings are completed
- 5.Click the burn button to write data to the TF card.
- 6.After burning is complete, open the 'config.txt' file under the '/boot/firmware/' directory, add the following statement to the end of the 'config.txt' file, then save and exit.
Note: Due to the Pi5/CM4/CM3+/CM3 having two MIPI DSI interfaces, please ensure to use the correct DSI interface and command. DSI1 is recommended by default.
dtoverlay=vc4-kms-v3d
#DSI1 Use
dtoverlay=vc4-kms-dsi-7inch
#DSI0 Use (Only Pi5/CM4)
#dtoverlay=vc4-kms-dsi-7inch,dsi0- 7.Insert the TF card into the Raspberry Pi, power it on, and after waiting for a few seconds, the screen should display normally.
You can input the following commands to control the backlight brightness:
echo X | sudo tee /sys/class/backlight/*/brightnessWhere X indicates any number from 0 to 255. 0 means the backlight is the darkest, and 255 means the backlight is the brightest.
For example:
echo 100 | sudo tee /sys/class/backlight/*/brightness
echo 0 | sudo tee /sys/class/backlight/*/brightness
echo 255 | sudo tee /sys/class/backlight/*/brightness1.Open "Screen Configuration" application:
2.Go to "Screen"->"DSI-1"->"Touchscreen", check "6-0038 generic ft5x06(79)"
3.Click “Apply” and close the current window. Reboot according to the pop-up prompts, then the touchscreen selection is complete.
4.Go to "Screen" -> "DSI-1" -> "Orientation, " check the direction you want to rotate, and finally click "Apply" to complete the synchronized rotation of the display and touch.
1.Open cmdline.txt file
sudo nano /boot/firmware/cmdline.txt2.To add the display rotation command at the beginning of the cmdline.txt file on a Raspberry Pi, simply add display_rotate=<angle>.（ Note that the command needs to be placed on the same line, with each command separated by a space.）
video=DSI-1:800x480M@60,rotate=90Modify the transform value (which can be changed to normal, 90, 180, or 270) to change the rotation angle.
3.Save and Reboot
sudo reboot1.Open "Screen Configuration" application:
2.Go to "Screen"->"DSI-1"->"Orientation", select the rotation direction, and then click on "Apply".
1.Open cmdline.txt file
sudo nano /boot/cmdline.txt2.At the beginning of the cmdline.txt file, add the command corresponding to the angle of “display rotation”（ Note that the command needs to be placed on the same line, with each command separated by a space.）
video=DSI-1:800x480M@60,rotate=90Change the angle of Display Rotation by changing the transform values to 90, 180, or 270.3.Save and reboot
sudo rebootFor some older systems, which do not use the vc4-kms-v3d or vc4-fkms-v3d driver modes, the display rotation method is as follows:
- 1.Add statements to the config.txt file (the config file is located in the root directory of the TF card, i.e. /boot)：
display_rotate=1 #1：90；2: 180； 3: 270- 2.Save and reboot
sudo rebootIf you use the graphical interface for rotation, you can check "Touchscreen" in the Screen Layout Editor window to synchronize the touch rotation. Refer to the earlier methods for display rotation. For the command-line rotation method, refer to the following text:
Create a new file named 99-waveshare-touch.rules
sudo nano /etc/udev/rules.d/99-waveshare-touch.rules2.Edit the file:
#90°：
ENV{ID_INPUT_TOUCHSCREEN}=="1", ENV{LIBINPUT_CALIBRATION_MATRIX}="0 -1 1 1 0 0"
#180°：
#ENV{ID_INPUT_TOUCHSCREEN}=="1", ENV{LIBINPUT_CALIBRATION_MATRIX}="-1 0 1 0 -1 1"
#270°：
#ENV{ID_INPUT_TOUCHSCREEN}=="1", ENV{LIBINPUT_CALIBRATION_MATRIX}="0 1 0 -1 0 1"3.Save and reboot
sudo rebootAfter display rotation in Bullseye/Buster and some other systems, the touch direction may not be consistent. You need to follow the steps below to rotate the touch accordingly:
1.Install libinput
sudo apt-get install xserver-xorg-input-libinputIf you are using an Ubuntu system or Jetson Nano, the installation command is:
sudo apt install xserver-xorg-input-synaptics2.Create the xorg.conf.d directory under /etc/X11/ (if the directory already exists, proceed directly to step 3).
sudo mkdir /etc/X11/xorg.conf.d3.Copy the 40-libinput.conf file to the directory you just created.
sudo cp /usr/share/X11/xorg.conf.d/40-libinput.conf /etc/X11/xorg.conf.d/4.Edit this file
sudo nano /etc/X11/xorg.conf.d/40-libinput.conf
#Locate the touchscreen section, add the corresponding rotation angle command inside, and then save it.
#90°Right touch rotation：
Option "CalibrationMatrix" "0 1 0 -1 0 1 0 0 1"
#180° Inverted touch rotation：
#Option "CalibrationMatrix" "-1 0 1 0 -1 1 0 0 1"
#270° Left touch rotation：
#Option "CalibrationMatrix" "0 -1 1 1 0 0 0 0 1"In a location similar to the one shown in the image:
5.Save and reboot
sudo rebootAfter completing the above steps, touch to rotate.
