Smart Room

Smart room based on IOT, which monitors and alerts the owner by sending the sms when intruder opens the door.

BeginnerFull instructions provided1 hour483
Smart Room

Things used in this project

Hardware components

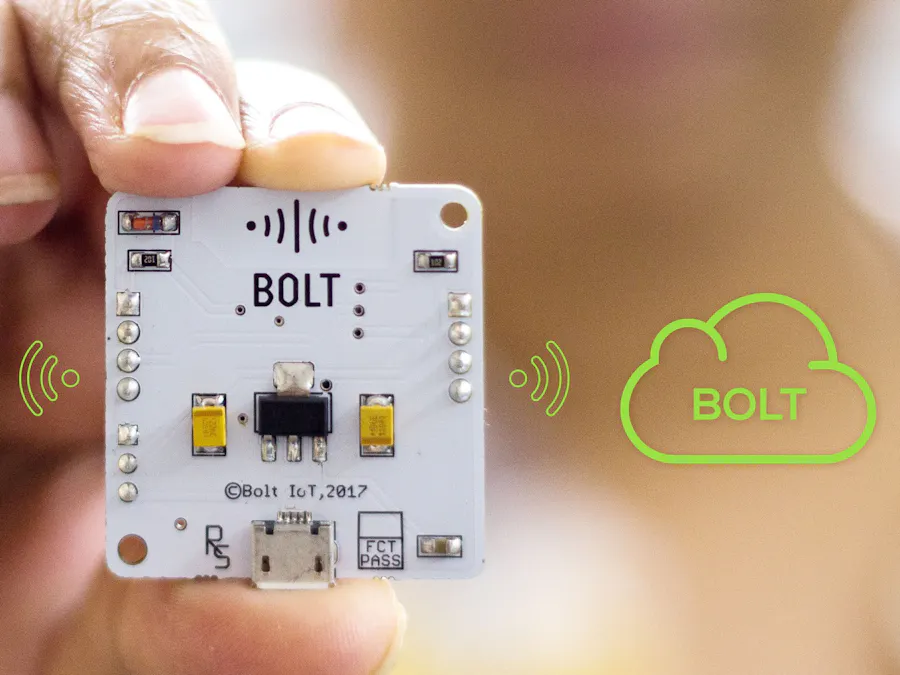

Bolt WiFi Module
Bolt IoT Bolt WiFi Module
×1
USB-A to Micro-USB Cable
USB-A to Micro-USB Cable
×1
LDR, 5 Mohm
LDR, 5 Mohm
×1
Resistor 10k ohm
Resistor 10k ohm
×1

Software apps and online services

Bolt IoT Android App
Bolt IoT Android App
Ubuntu Core
Ubuntu Core

Story

Read more

Schematics

Circuit Diagram

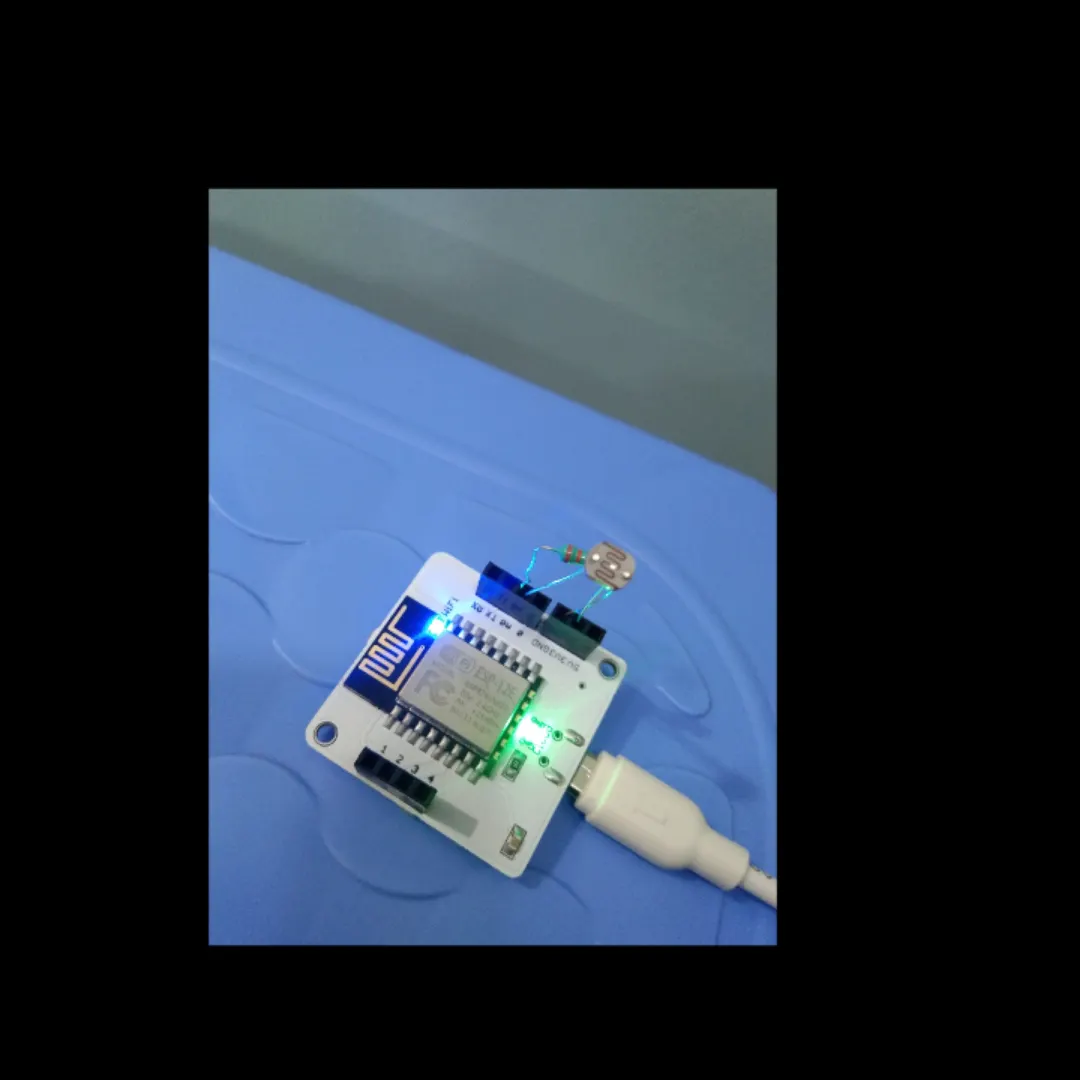

Final circuit diagram after all connections.

Code

Intruder_Detection

Python
This file will contain the main code.
import conf, json, time, math, statistics
from boltiot import Sms, Bolt
def compute_bounds(history_data,frame_size,factor):
    if len(history_data)<frame_size :
        return None

    if len(history_data)>frame_size :
        del history_data[0:len(history_data)-frame_size]
    Mn=statistics.mean(history_data)
    Variance=0
    for data in history_data :
        Variance += math.pow((data-Mn),2)
    Zn = factor * math.sqrt(Variance / frame_size)
    High_bound = history_data[frame_size-1]+Zn
    Low_bound = history_data[frame_size-1]-Zn
    return [High_bound,Low_bound]

mybolt = Bolt(conf.API_KEY, conf.DEVICE_ID)
sms = Sms(conf.SSID, conf.AUTH_TOKEN, conf.TO_NUMBER, conf.FROM_NUMBER)
history_data=[]

while True:
    response = mybolt.analogRead('A0')
    data = json.loads(response)
    if data['success'] != 1:
        print("There was an error while retriving the data.")
        print("This is the error:"+data['value'])
        time.sleep(10)
        continue

    print ("This is the value "+data['value'])
    sensor_value=0
    try:
        sensor_value = int(data['value'])
    except e:
        print("There was an error while parsing the response: ",e)
        continue

    bound = compute_bounds(history_data,conf.FRAME_SIZE,conf.MUL_FACTOR)
    if not bound:
        required_data_count=conf.FRAME_SIZE-len(history_data)
        print("Not enough data to compute Z-score. Need ",required_data_count," more data points")
        history_data.append(int(data['value']))
        time.sleep(10)
        continue

    try:
        if sensor_value > bound[0] :
            print ("The light level increased suddenly. Sending an SMS.")
            response = sms.send_sms("Someone Enter into the room")
            print("This is the response ",response)
        elif sensor_value < bound[1]:
            print ("The light level decreased suddenly. Sending an SMS.")
            response = sms.send_sms("Someone left from the room")
            print("This is the response ",response)
        history_data.append(sensor_value);
    except Exception as e:
        print ("Error",e)
    time.sleep(10)

Configuration File

Python
You have to replace all the above value with your credentials. You can find the first four values in Twilio dashboard and the last two in Bolt Cloud dashboard.
#file have to save as conf.py
SSID = 'You can find SSID in your Twilio Dashboard'
AUTH_TOKEN = 'You can find  on your Twilio Dashboard'
FROM_NUMBER = 'This is the no. generated by Twilio. You can find this on your Twilio Dashboard'
TO_NUMBER = 'This is your number. Make sure you are adding +91 in beginning'
API_KEY = 'This is your Bolt Cloud account API key'
DEVICE_ID = 'This is the ID of your Bolt device'
FRAME_SIZE = 10
MUL_FACTOR = 6
