Getting Started with the MAX32620FTHR and LoRa

With the MAX32620FTHR and LoRa Radios, these PingPong Server/Client examples will help you get started in both Arduino & mbed platforms!

IntermediateProtip1 hour424
Getting Started with the MAX32620FTHR and LoRa

Things used in this project

Hardware components

Adafruit lora rfm95
×1
MAX32630FTHR
Maxim Integrated MAX32630FTHR
×1

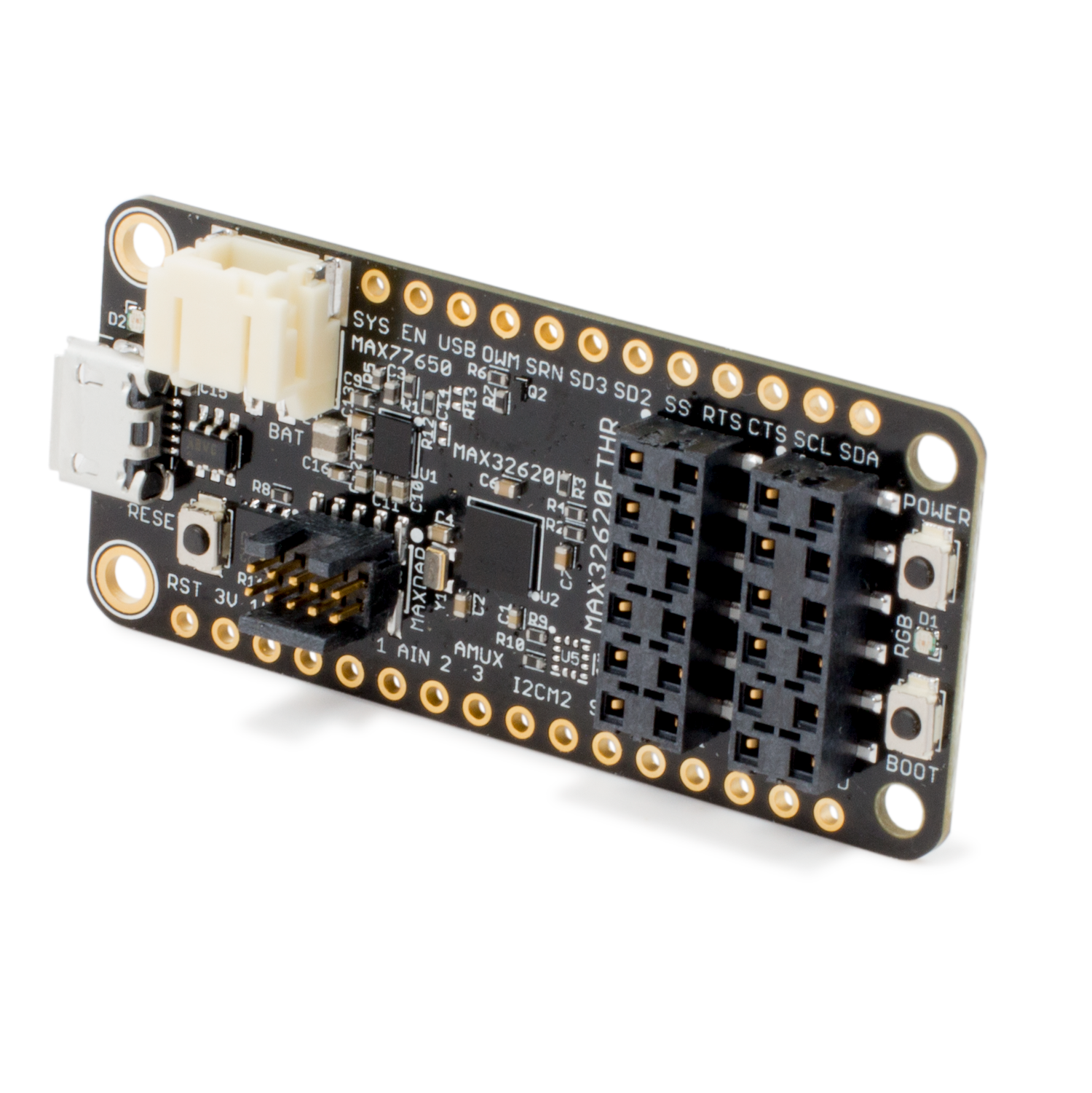

MAX32620FTHR
Maxim Integrated MAX32620FTHR
×1

Software apps and online services

Arduino IDE
Arduino IDE
arm MBED

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Adafruit RFM95 Breakout before wiring

Adafruit RFM95W LoRa Radio Transceiver Breakout - 868 or 915 MHz - RadioFruit

*Before the breakout is wired to the board*
Rfm95 breakout pinouts gsurzfwrni

Adafruit RFM95 Breakout after wiring

Adafruit RFM95W LoRa Radio Transceiver Breakout - 868 or 915 MHz - RadioFruit

*After the breakout is wired to the board*
Rfm95 breakout pinouts drawn in vdxyhgowz4

Adafruit RFM95 FeatherWing before Soldering

Adafruit LoRa Radio FeatherWing - RFM95W 900 MHz - RadioFruit

*Before soldering the jumpers to the board*
Feather pinouts ndml38pvh6

Adafruit RFM95 FeatherWing after Soldering

Adafruit LoRa Radio FeatherWing - RFM95W 900 MHz - RadioFruit

*After soldering the jumpers to the board*
Rfm95 feather pinouts drawn in lt9n6ltj7d

Code

ARDUINO - Ping Pong Example Program

This is a link that takes you to my personal Github account where you can download a modified version of the RadioHead library for arduino that I made compatible with the MAX32620FTHR and MAX32630FTHR. Here, you can download this library that included sample programs you can upload to get started working with either two MAX32620FTHR and/or MAX32630FTHR boards with RFM95 LoRa Radio Transceivers in an Arduino development environment.
