Weather Box

Small weather station that uploads to Weather Underground with a NeoPixel ring for visualization.

EasyFull instructions provided2 hours2,899

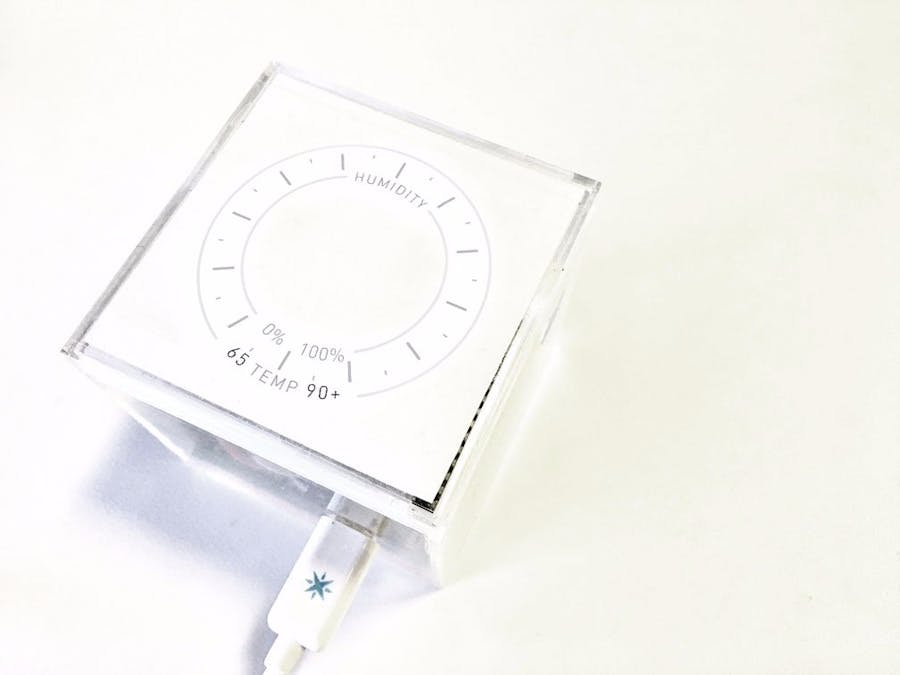

Weather Box

Things used in this project

Hardware components

Photon
Particle Photon
×1
SparkFun Atmospheric Sensor Breakout - BME280
SparkFun Atmospheric Sensor Breakout - BME280
×1
NeoPixel Ring: WS2812 5050 RGB LED
Adafruit NeoPixel Ring: WS2812 5050 RGB LED
×1
Capacitor 100 µF
Capacitor 100 µF
6v 100µF - Not necessary, but it helps buffer the neopixels (Adafruit recommends it) and smooth out the voltage on the power line (some sensors are voltage sensitive).
×1

Software apps and online services

Weather Underground

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Fritzing Diagram

The DC motor in the diagram is a stand-in for the 25mm fan I am using.
Screen shot 2017 03 07 at 12 33 50 pm k0wwfjuqgq

Code

Weather Box Code

Now on github, with extra deep cleaning powers.
