How To make Smart Two Wheeler Safety System

Components Used

ultra sonic sensorIn this setup ultra-sonic sensor is used to detect the person incoming.

AccelerometerIn this setup accelerometer is to measure the speed of the two-wheeler.

Buzzer 5 5VTo alert the user

gps module

SCOPE OF THE SYSTEM

• The obstacles can be easily detected.
• Vehicle collisions can be avoided..
• The speed of the vehicle can be measured and intimated..
• The location of a particular vehicle can also be tracked by the concerned person..

STEP 1

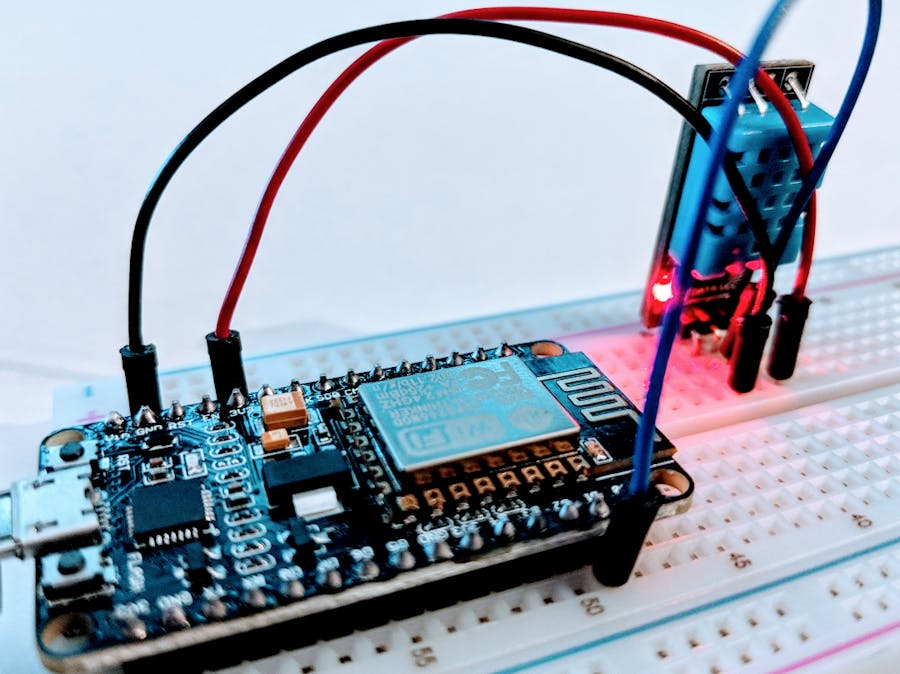

The controller used in this setup is "Node MCU / ESP8266".

REASON FOR PREFERENCE:

*The main reason is, ‘It is very much cost efficient’.

*The programming pert is also very simple when compared to all other Microcontrollers.

*It has integrated support for the WIFI network.

ODE MCU / ESP8266

STEP 2

Connect the ultrasonic sensor

NEED

In this setup ultra-sonic sensor is used to detect the obstacles i.e. potholes and bumps on roads. It also senses the vehicle under certain distance limits. When the vehicle approaches such an obstacle with closer distance thereby alert the driver through a horn/buzzer sound.

Ultra Sonic Sensor with NODE-MCU

STEP 3

Connect Accelerometer with the setup

NEED

In this setup, the accelerometer is to measure the speed of the two-wheeler. Once the speed exceeds a particular limit, it automatically intimates the registered service about the exceeded speed.

Accelerometer Connection with ESP 8266

STEP 4

Connection of Buzzer

NEED

In this setup, buzzer is used as an output device. It is used as an indicator

Buzzer Connection

STEP 5

Connection of GPS MODULE

NEED

In this module, GPS is used to track the location of the vehicle and to share the location to the concerned people.

GPS Module connection with NODE MCU

CLOUD

The cloud used in the implementation of the proposed system is IFTTT

REASON FOR USAGE

• Wide-ranging support – IFTTT supports some of the most popular services online.
• Ready-made applets – You might not have to use IFTTT to create a new applet.
• Free to use.
• Simplifies automation.

LISTS OF TOOLS/ SOFTWARE USED

1. Arduino IDE

Node MCU is an open-source development board and firmware based in the widely used ESP8266 -12E Wi-Fi module. It allows you to program the ESP8266 Wi-Fi module with the simple and powerful LUA programming language or Arduino IDE.

2. GPS MODULE

The software can be used on a laptop computer with an attached GPS receiver. Most commercial software runs on Windows, Mac OS X, and Linux. Some software like Waze and Google Maps can also be used on mobile phone operating systems.

PROJECT OUTCOMES

• The obstacles can be easily detected.
• Vehicle collisions can be avoided.
• The speed of the vehicle can be measured and intimated.
• The location of a particular vehicle can also be tracked by the concerned person.

APPLICATIONS

The system deserves a unique place in the market for its outstanding performance and finds its application as a default integrated system in future automobile manufacturing.

CONCLUSIONS

This safety system can widely reduce the probability of a two-wheeler accident and helps the mankind to have a safest and healthy drive.

Detection_code.

const int trigP = 2; //D4 Or GPIO-2 of nodemcuconst int echoP = 0; //D3 Or GPIO-0 of nodemcuconst int ledpin=5;//D1long duration;int distance;void setup() {pinMode(trigP, OUTPUT); // Sets the trigPin as an OutputpinMode(echoP, INPUT); // Sets the echoPin as an InputpinMode(ledpin, OUTPUT);Serial.begin(9600); // Open serial channel at 9600 baud rate}void loop() {digitalWrite(trigP, LOW); // Makes trigPin lowdelayMicroseconds(2); // 2 microsecond delaydigitalWrite(trigP, HIGH); // tigPin highdelayMicroseconds(10); // trigPin high for 10 micro secondsdigitalWrite(trigP, LOW); // trigPin lowduration = pulseIn(echoP, HIGH); //Read echo pin, time in microsecondsdistance= duration*0.034/2; //Calculating actual/real distanceSerial.print("Distance = "); //Output distance on arduino serial monitorSerial.println(distance);delay(3000); //Pause for 3 seconds and start measuring distance againif((distance<250)||(distance>270)){ digitalWrite(ledpin, HIGH); Serial.print("Obstacle\n");}else{ digitalWrite(ledpin, LOW);}}
