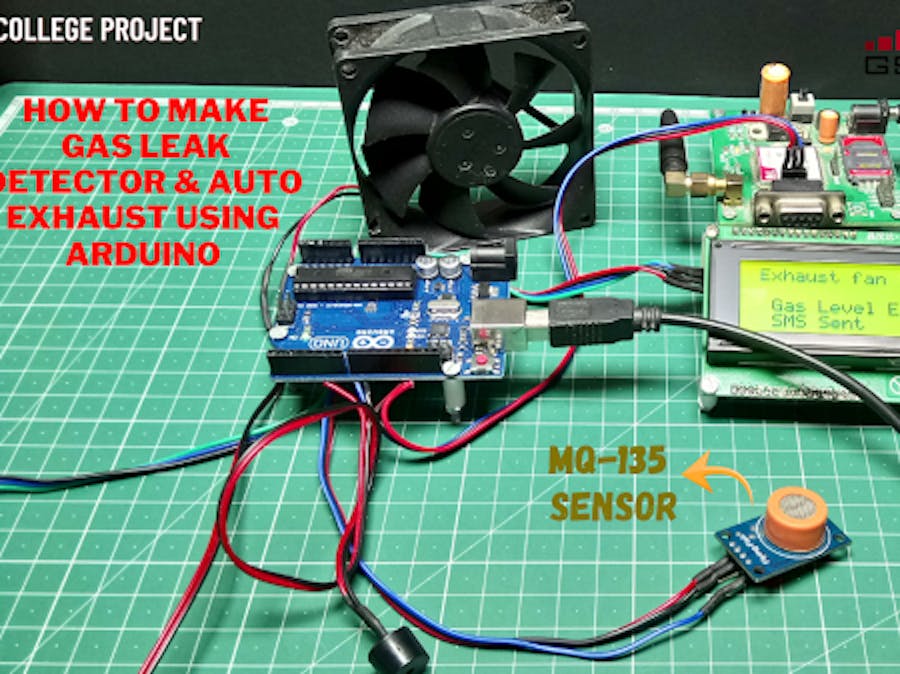

How to Make Gas Leak Detector & Auto Exhaust Fan

Hii welcome Back Friend I hope all of you will be fine

Here today I will make Gas Leak Detector & Auto Exhaust Fan Using Arduino

Objectives of the Project

• Detect Gas Leakage (like LPG leak, Butane leak, Methane leak) or any such petroleum based gaseous substance that can be detected using MQ5 Sensor.
• Setup an SMS based Alert Mechanism and send 3 SMS (3 alert messages) to 2 specified mobile numbers (input inside the arduino program)
• Produce a sound alarm upon gas leak and stop the alarm once gas leak is under control (gas presence in atmosphere is under normal range)
• Display status in an LCD using a 16×2 LCD module.

A gas sensor is a device which detects the presence or concentration of gases in the atmosphere. Based on the concentration of the gas the sensor produces a corresponding potential difference by changing the resistance of the material inside the sensor, which can be measured as output voltage.

#include <Wire.h>
#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27, 20, 4);
#include <SoftwareSerial.h>

SoftwareSerial mySerial(9,8);

int gasValue = A0;
int data = 0;
int relay = 6;
int pir_Status;
int buzzerPin = 7;

void setup()
{
randomSeed(analogRead(0));
mySerial.begin(9600);
Serial.begin(9600);
 lcd.init();
 lcd.backlight();
pinMode(gasValue, INPUT);
pinMode(relay, OUTPUT);
pinMode(buzzerPin, OUTPUT);
lcd.setCursor(2,0);
lcd.print ("WELCOME TO  ");
lcd.setCursor(2,1);
lcd.print ("JUSTDOELECTRONICS");
lcd.setCursor(6,2);
lcd.print ("DESIGN By :-");
lcd.setCursor(6,3);
lcd.print ("PRATEEK");
delay(3000);
lcd.clear();
}

void loop(){
data = analogRead(gasValue);

Serial.print("Gas Level: ");
Serial.println(data);
lcd.clear();
lcd.setCursor(1,0);
lcd.print ("Exhaust fan :- OFF");
lcd.setCursor(2,1);
lcd.print("Gas Level: ");
lcd.print(data);
delay(1000);

if ( data > 700)
{
SendMessage();
Serial.print("Gas detect alarm");
lcd.clear();
lcd.setCursor(1,0);
lcd.print ("Exhaust fan :- ON");
lcd.setCursor(2,2);
lcd.print("Gas Level Exceed");
lcd.setCursor(2,3);
lcd.print("SMS Sent");
delay(1000);
 digitalWrite(buzzerPin, HIGH);
 digitalWrite(relay, HIGH);

}
else
{

Serial.print("Gas Level Low");
lcd.clear();
lcd.setCursor(2,3);
lcd.print("Gas Level Normal");
delay(1000);
digitalWrite(buzzerPin, LOW);
 digitalWrite(relay, LOW);

}

//lcd.clear();
}

void SendMessage()
{

delay(1000);
}
