Want a DIY motion detector that’s plug-and-play, requires zero wiring, and doesn’t need any coding skills? Introducing the Carenuity Motion Peeper — your pocket-sized motion surveillance gadget powered by the Carenuity C3 Mini, a Wemos PIR motion sensor, and a Wemos buzzer — all connected via a Triple Adapter that makes traditional breadboarding look like ancient history.
Whether you're monitoring rodents in your pantry, motion at your front door, or just playing around with IoT, this is the fastest, smartest, and most satisfying 3-minute build you'll ever do.
Most DIY IoT projects come with strings attached — literally. Jumper wires, resistors, coding headaches, and long setup times.
But what if you could build a fully functional smart motion detector in 3 minutes?
Thanks to Carenuity’s plug-and-play ecosystem, the Motion Peeper is here to show you that IoT can be fun, fast, and frustration-free. Whether you're a student, hobbyist, or embedded pro like myself, this is the kind of project that redefines what “rapid prototyping” really means.
🔧 Components / Things UsedHere’s the core trio that makes up the Motion Peeper:
1. Wemos PIR Motion Sensor- Passive Infrared (PIR) sensor
- Detects human or animal movement via heat changes
- Digital output (plug it, no code logic needed)
- Low power consumption
- Active buzzer for audible feedback
- Loud enough to hear in a quiet room
- Triggered directly by the microcontroller
- Alerts you instantly when motion is detected
The game-changer in compact IoT microcontrollers.
Why is the Carenuity C3 Mini a rockstar?
🔁 OTA Firmware Flashing via browser (no IDEs needed)
🌐 Built-in Wi-Fi for seamless cloud/home integrations
🔐 Secure by default with OTA encryption & HTTPS
⚡️ Low-power, high-speed ESP32-C3 chip (RISC-V)
🧩 Home Assistant auto-discovery support
🔌 USB-C port and ultra-compact form factor
🔨 Designed for hassle-free plug-and-play setups
4. Carenuity Triple Adapter- No soldering
- No Dupont cables
- No breadboarding
- Just plug the PIR sensor, Buzzer, and C3 Mini — done in seconds

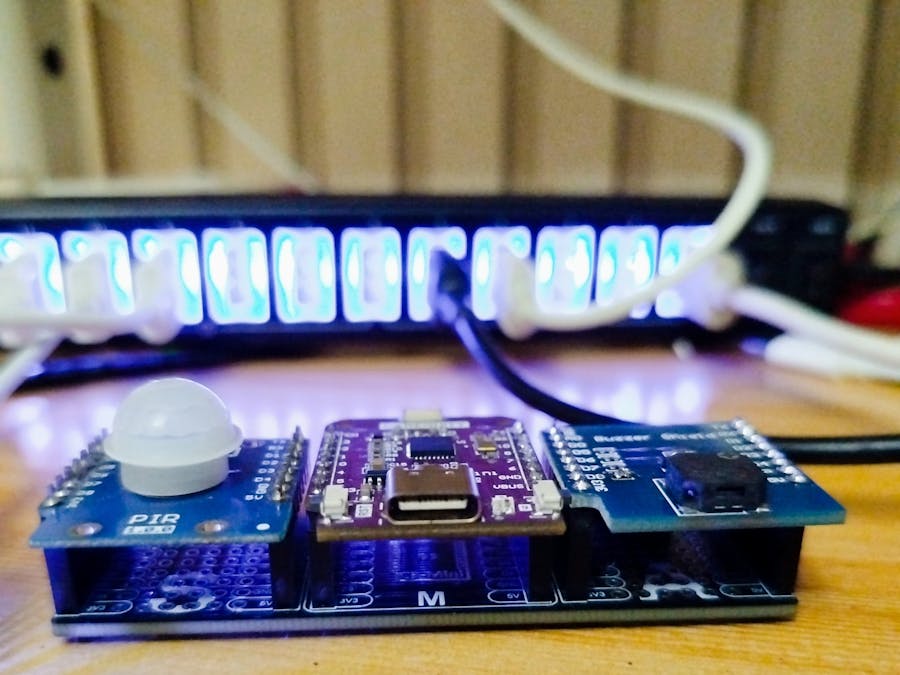

Insert the Carenuity C3 Mini into the center slot of the Triple Adapter
Plug in the Wemos PIR Sensor on one side
Plug in the Wemos Buzzer on the other side
Connect the USB-C cable to your power source (PC, power bank, or wall adapter)
Boom! Your hardware is done. No wires. No fuss.
No coding. No compiling. No USB drivers.
Step-by-step:- Connect the setup to your computer using a USB Data cable.
- Go to solutions.carenuity.comon Google Chrome or Edge (desktop browser)
- Find and click on the "Motion Peeper" solution
- Click “Install Firmware.”
- Select your C3 Mini device from the USB list
- Follow the prompt to install the firmware.
- Done. Firmware is now on your device
You now have a fully functional motion detection system!
The PIR sensor continuously scans for changes in infrared (IR) levels — i.e., movement..
On detection, it sends a HIGH signal to a digital input pin on the C3 Mini
The firmware reacts instantly, triggering the buzzer for audio feedback.
Simultaneously, it logs the motion detection and can publish it via MQTT or Home Assistant if configured. (Request for modification)
You can view motion activity in Home Assistant dashboards or on an OLED display in real-time(Optional).
This means you’ll know when and where something moves — without lifting a soldering iron or writing a single line of code.
🔋 Powering & Placing the Motion PeeperPower Options:
USB-C from PC or USB charger
5V portable power bank for portable deployments
UPS-powered for mission-critical zones
Best Places to Deploy:
- 🐭 Kitchen corners or pantries – track rodents
- 🚪 Entryways and windows – detect intruders
- 🏡 Garage or backyard – alert for movement
- 🎓 Classroom demo – show off plug-and-play IoT
- 🧪 Lab experiments – motion-based triggers
- You can literally tape it, stick it, or mount it anywhere.
🐀 Rodent and pest detection — hear when they’re active
👣 Intruder alerts — even before the door opens
🚨 Security alarms — with MQTT and Home Assistant integration (Enhancement needed)
📦 Package presence detection — trigger automations or alarms
👶 Nursery motion alerts — discreet and simple
🎯 STEM education — teach sensors, microcontrollers, and automation in one go
This is not just a toy — it's a powerful foundation for building awareness into physical spaces.
✅ ConclusionThe Motion Peeper is more than a DIY project — it's a revolution in accessibility and simplicity for smart home enthusiasts, students, educators, and makers.
In just 3 minutes, you’ll go from a collection of modules to a working motion detection system, powered by the Carenuity C3 Mini, one of the most exciting new microcontrollers in the IoT space.
So why wait? Plug it. Flash it. Catch some motion.
So why wait? Plug it. Flash it. Catch some motion.
Visit solutions.carenuity.comand start building smarter with less effort today.
