🌍 Imagine a camera like this...
No cables.No external power supply.No daily maintenance required.
It can be deployed silently in fields, forests, bridges, or construction sites—and operate for months or even years on end.
It’s powered by AI, yet consumes energy like a fitness tracker.This is the problem that NeoEyes NE101 is built to solve.
🚧 B ackground: Why Did We Build This Camera?Through extensive field research, we identified a growing number of real-world scenarios facing the following challenges:
1. No Power Supply / Wiring DifficultiesFrom agricultural plots and forest boundaries to landslide monitoring points, supplying power is extremely difficult. Traditional solutions require laying cables or setting up solar systems—both expensive and time-consuming.
2. Event-Driven, Not Continuous StreamingMost use cases don't require 24/7 live video feeds, but rather on-demand sensing: capture a photo when someone passes by, or upload a few images daily. However, existing devices consume too much power, have poor battery life, and generate excessive false alarms.
3. Difficult Inspections / Scattered LocationsInfrastructure such as power lines, rivers, or ecological patrol routes span numerous points. Frequent maintenance or battery replacements are not feasible due to high labor costs.
4. Weak Network / Costly Data PlansRemote areas often have weak 4G/5G signals and expensive data plans. Conventional cameras constantly online are unsuitable. What’s needed is short-burst connectivity with lightweight data uploads.
5. Harsh Environments / Extreme TemperaturesIntense sunlight, high temperatures, and heavy rain can easily cause overheating and crashes in standard equipment. Continuous high power draw only worsens the thermal load and increases failure rates.
6. Lightweight & Quick DeploymentMany scenarios—such as construction sites, field camps, or temporary research stations—are short-term. They demand equipment that’s easy to install, relocate, and redeploy.
In light of these challenges, we decided to develop the NeoEyes NE101 — an ultra-low-power, intelligent vision camera built specifically for outdoor and power-constrained environments.
If you’re facing any of the issues mentioned above, this camera is designed for you. With its power-efficient architecture, NeoEyes NE101 solves the critical pain points of traditional smart hardware: short battery life, frequent maintenance, and deployment complexity. It delivers a truly “deploy once, monitor for years” experience.
Next, we’ll walk you through NE101’s breakthrough battery performance and the core technologies that make it possible.
Breakthrough Long Battery LifeNeoEyes NE101 can be battery‑powered. Under typical usage of 5 snapshots per day (based on test data), the endurance is impressive:
- Wi‑Fi version: With the fill light off, battery supports up to 2.73 years of operation.
- Wi‑Fi‑HaLOW version: With the fill light off, endurance reaches 2.59 years.
- Cat‑1 version: With the fill light off, Up to 1.24 years of stable operation.
This means that in many application scenarios, once installed, users may only need to replace the battery once a year, which significantly reduces labor and time costs.
Below are selected detailed power-consumption data for the various versions of the NeoEyes NE101, broken down into sleep power consumption and operating power consumption (i.e., the power required during image acquisition)
Sleep power consumptionThis refers to the power consumption required by the device in sleep mode, meaning extremely low power consumption when not capturing images. Below are the specific power consumption data for the three versions:
The percentage of battery power consumed in standby and dormant mode on a daily, monthly, and yearly basis is shown in the following table:
Note: This is for theoretical reference only; in reality, it is almost impossible for devices to be in a completely standby or hibernation state.
Therefore, it can be seen that: the three communication modes have very little difference in standby power consumption; based on the calculation of four AA batteries with a total full charge of 2500mA,
if kept in standby mode for a year:
- The batteries will only consume about 8% of their capacity;
- Theoretically, it can standby for more than 12 years (2500 ÷ 195 ≈ 12.8).
This refers to the power consumption of the device during actual operation. Typically, when capturing an image, the calculation covers the energy consumption from the device waking up to the image capture and then uploading. This data is calculated based on average current. Below is a partial detailed data display:
Note: The above are test data for reference only.
From the above:
- Sleep power differences across versions are small (~22 µA).
- Turning on the fill light has a noticeable impact on energy consumption.
- Image capture and transfer time is ~30 s for Cat‑1; ≤20 s for other versions.
- ESP32‑S3 dual‑core heterogeneous design
240 MHz dual‑core Xtensa® LX7 main processor + RISC‑V ultra‑low‑power coprocessor. The coprocessor manages low‑power tasks such as RTC timers, GPIO wake, and power‑state switching. When the main cores enter deep sleep, the coprocessor keeps running, ensuring timely responses at extremely low power, achieving chip‑level efficiency.
- Smart sleep mechanism
NeoEyes NE101 does not run 24/7. It adopts an efficient "work on demand" mode. For the vast majority of time, the device stays in deep sleep consuming ~21 µA. It wakes on schedule or sensor input (e.g., PIR) to capture, process, and upload. The entire cycle takes 10–20 seconds, then it returns to sleep. This repeated cycle reduces communication overhead and eliminates energy waste outside working windows.
To capture rich detail under varying lighting conditions, the system performs auto-exposure (AE) convergence from an initial state to the optimal exposure. The default firmware allows 5 seconds for AE convergence, balancing image quality and energy efficiency.NeoEyes NE101 also supports timed capture and scheduled reporting so data upload timing is controllable. See the overall workflow diagram below.
Overall, NeoEyes NE101's outstanding performance stems from tightly integrated hardware/software design and its unique operating logic—defining its ultra‑low‑power characteristics.
Boundless Applications: Fits Diverse ScenariosNeoEyes NE101's ultra‑low‑power traits and IP67 protection make it suitable for many scenarios while offering a cost‑effective solution.
Typical Scenarios- Smart agriculture: Dispersed points, no mains, high sun exposure → Timed capture + event triggers, short online reporting to the agri platform; maintenance‑free or very low‑frequency maintenance year‑round.
- Wildlife protection: No wiring or light pollution; human presence disturbs animals → Long standby, disable fill light at night, event triggers for instant capture; reduced manual operations and disturbance.

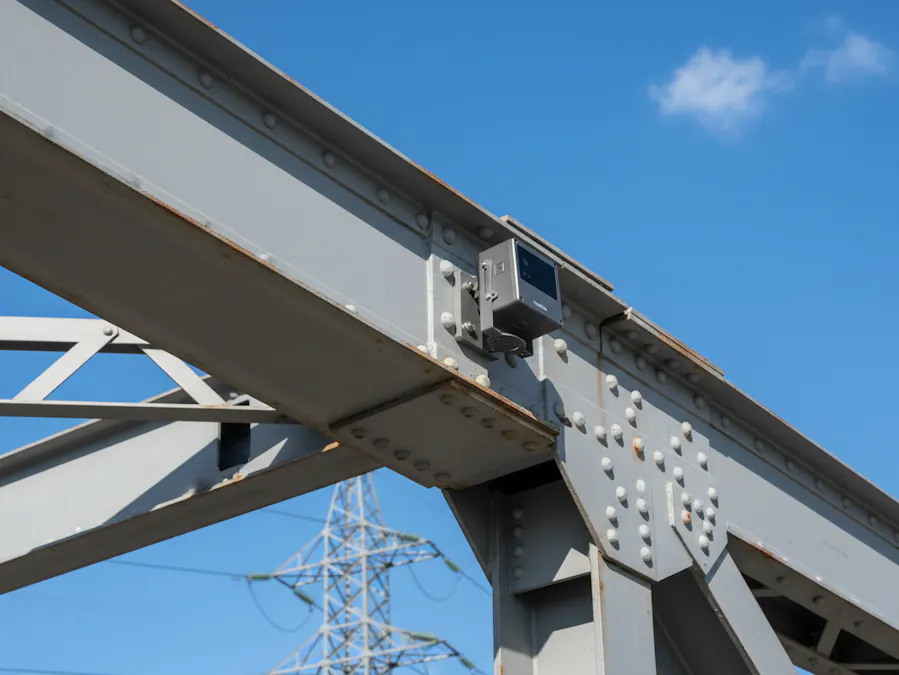

- Infrastructure inspection (bridges/towers/pipes): long‑term patrol; conventional plans require cabling or large power boxes → Small battery packs, unified scheduled reporting, lower inspection cost and risk.
- Temporary security & construction: project phases change; frequent site relocation → Lightweight device; low‑power, no cabling; fast deployment and migration; weekly or monthly maintenance.
In short, NeoEyes NE101's system‑level design—deep sleep + on‑demand wake + multiple network options—makes long endurance the default. In no‑power, weak‑network, harsh environments, and temporary deployments, it achieves lower total cost of ownership and higher O&M efficiency, addressing the core pain points of traditional high‑power solutions.
