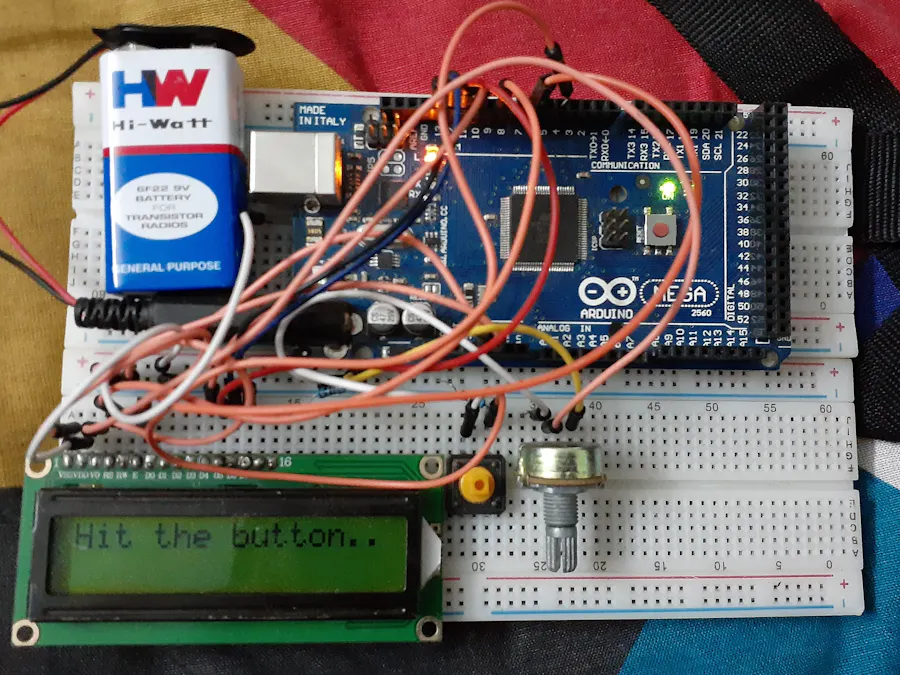

First hit the button!
Then start to play. When you press the button the man jumps. To escape the police man, you have to get very near him and press the button. As you pass they come very fast to catch you. Escape!!
Connect the schematics:
LCD:
- D7 - 13
- D6 - 12
- D5 - 11
- D4 - 10
- E - 6
- RS - 4
- VO - middle pin of POT
Button:
- First pin - GND
- Second pin - 8
You can use any board. Uno, Atmega, nano, etc..
To upload the code, it is best to use Arduino web editor as it contains pre-installed libraries which reduce the work by three fourth. If you want to know more about this, comment that you want to!!
Enjoy the game
#include <LiquidCrystal.h>
const int btn = 8; //button input pin
char* introText[]={"Police Run","Created on:", "Hit the button..."};
//variable declarations
int game=0;
int buttonPress = 0;
int buttonState = 0;
int obstaclePos;
int obsDelay;
int score=0;
unsigned long lastDebounceTime = 0; // the last time the output pin was toggled
unsigned long debounceDelay = 50;
int lastButtonState=LOW;
//GRAPHICS
byte runnin1[8] = {
0b01100,
0b01100,
0b00000,
0b11100,
0b01110,
0b01100,
0b11110,
0b00011
};
byte runnin2[8]={
0b00110,
0b00110,
0b00000,
0b00111,
0b01110,
0b00110,
0b01110,
0b00101
};
byte jump[8]={
0b00100,
0b01100,
0b11100,
0b01110,
0b01100,
0b11111,
0b00000,
0b00001
};
byte def1[8] = {
0b00100,
0b00110,
0b00111,
0b01110,
0b00110,
0b01111,
0b01000,
0b00000
};
byte def2[8]={
0b00100,
0b00110,
0b00111,
0b01110,
0b00110,
0b00110,
0b00110,
0b00010
};
byte slide[8]={
0b00000,
0b00000,
0b00011,
0b00011,
0b00000,
0b01111,
0b11111,
0b00000
};
LiquidCrystal lcd(4,6,10,11,12,13);
void setup() {
Serial.begin(9600);
pinMode(btn,INPUT);
lcd.begin(16,2);
lcd.createChar(0,runnin1);
lcd.createChar(1,runnin2);
lcd.createChar(2,jump);
lcd.createChar(3,def1);
lcd.createChar(4,def2);
lcd.createChar(5,slide);
buttonState=digitalRead(btn);
}
void loop()
{
intro();
while(game==1)
ballActive();
endGame();
}
void intro()
{
score=0;
lcd.clear();
lcd.print("Police Run");
lcd.print("Hit the button");
lcd.setCursor(7,1);
lcd.clear();
lcd.setCursor(0,1);
lcd.clear();
while(button()!=1)
{
lcd.setCursor(0,0);
lcd.print(introText[2]);
delay(100);
}
if(button()==1)
game=1;
}
void reset()
{
if(obstaclePos%2==0) //Changing the display of the player from one pose to another to show he is running, smartly using obstaclePos.
{
lcd.clear();
lcd.setCursor(0,1);
lcd.write(byte(0));
}
else
{
lcd.clear();
lcd.setCursor(0,1);
lcd.write(1);
}
}
void ballActive()
{
obsDelay=200; //initial delay for the defender
obstaclePos=15; //since it is a 16x2 lcd, and index starts from 0.
while(game==1)
{
reset();
if(button()==1) //if button is pressed.
{
lcd.clear();
lcd.setCursor(0,0);
lcd.write(2); //print the player jumping
obstacle(obstaclePos); //print the defender
delay(400); //This is to prevent the display disappearing fast, and going unnoticed.
lcd.clear();
lcd.setCursor(0,1);
lcd.write(1); //print the player back on ground
obstacle(obstaclePos); //print the defender
}
else
{
if(obstaclePos!=0) //if the defender has not approached the player, then continue.
{
reset();
obstacle(obstaclePos);
}
else if(obstaclePos==0) //if the defender is at 0 position,i.e. he has approached the player when he is on ground, then end the game.
{
game=0;
break;
}
}
obstaclePos--; //brings the defender closer to the player
if(obstaclePos<0) //if the player successfully dodged then,
{
obsDelay=obsDelay-20; //decrease the delay (increase speed),
obstaclePos=15; //bring the defender to starting position,
score++; //and increase the score by 1.
}
if(obsDelay==0) //if 10 players have been dodged (because 200/20=10), then end the game
game=0;
delay(obsDelay);
}
}
int button()
{
int reading = digitalRead(btn);
// If the switch changed, due to noise or pressing:
if (reading != lastButtonState) {
// reset the debouncing timer
lastDebounceTime = millis();
}
if ((millis() - lastDebounceTime) > debounceDelay) {
buttonState = reading;
if (buttonState == HIGH) {
lastButtonState = reading;
return 1;
}
}
lastButtonState = reading;
}
void obstacle(int i)
{
if(obstaclePos%2==0&& obstaclePos>2) //if defender is far away from the player, then show him running
{
lcd.setCursor(i,1);
lcd.write(3);
}
else if(obstaclePos%2!=0&& obstaclePos>2)
{
lcd.setCursor(i,1);
lcd.write(4);
}
else //if he is 2 steps close to the player, then show him sliding
{
lcd.setCursor(i,1);
lcd.write(5);
}
}
void endGame()
{
if(score==10)
{
lcd.clear();
lcd.print("Congratulations!");
lcd.setCursor(0,1);
lcd.print("You beat 'em all");
delay(3000);
}
else if(score<3)
{
lcd.clear();
lcd.print("You los");
lcd.setCursor(0,1);
lcd.print("Score: ");
lcd.print(score);
delay(3000);
}
else if(score<6)
{
lcd.clear();
lcd.print("Not bad!");
lcd.setCursor(0,1);
lcd.print("Score: ");
lcd.print(score);
delay(3000);
}
else
{
lcd.clear();
lcd.print("Great!");
lcd.setCursor(0,1);
lcd.print("Score: ");
lcd.print(score);
delay(3000);
}
}
