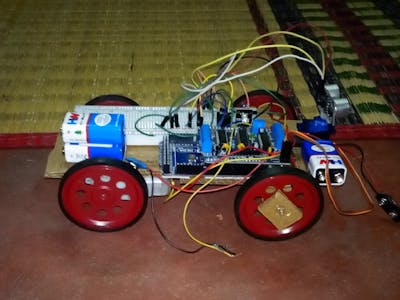

#include <AFMotor.h>
#include <Servo.h> // Add Servo Motor library.
#define BuzzPIN A0 // Assign PIN A0 as BuzzPIN (Connect Arduino UNO "A0" PIN with Buzzer "+" PIN).
#define TrigPIN A1 // PIN A1 as TrigPIN (Connect Arduino UNO "A1" PIN with Ultrasonic Sonar Sensor "Trig" PIN).
#define EchoPIN A2 // Assign PIN A2 as EchoPIN (Connect Arduino UNO "A2" PIN with Ultrasonic Sonar Sensor "Trig" PIN).
#define LEDBPIN A3 // Assign PIN A3 as LEDBPIN (Connect Arduino UNO "A3" PIN with RGB Diffused Common Cathode "LEDB" PIN).
#define LEDGPIN A4 // Assign PIN A4 as LEDGPIN (Connect Arduino UNO "A4" PIN with RGB Diffused Common Cathode "LEDG" PIN).
#define LEDRPIN A5 // Assign PIN A5 as LEDRPIN (Connect Arduino UNO "A5" PIN with RGB Diffused Common Cathode "LEDR" PIN).
#define DCMROFF 25 // This sets Offset to allow differences between the two DC traction Motors.
AF_DCMotor M1 (1, MOTOR12_64KHZ); // Create DCMotor #1 using M1 output, Set to 64kHz PWM frequency.
AF_DCMotor M2 (2, MOTOR12_64KHZ); // Create DCMotor #2 using M2 output, Set to 64kHz PWM frequency.
Servo SER1; // Create Servo object to control Servo.
int Search (void) { // Integer type variable declaration.
float Duration = 0.0; // Float type variable declaration.
float CM = 0.0; // Float type variable declaration.
digitalWrite (TrigPIN, LOW); // TrigPIN output as 0V (Logic low level).
delayMicroseconds (2); // Delay for 2us, Send 10 us high pulse to Ultrasonic Sonar Sensor "TrigPIN".
digitalWrite (TrigPIN, HIGH); // TrigPIN output as 5V (Logic high level).
delayMicroseconds (10); // Delay for 10us.
digitalWrite (TrigPIN, LOW); // TrigPIN output as 0V (Logic low level).
Duration = pulseIn (EchoPIN, HIGH); // Start counting time, Upto again EchoPIN back to logic "High Level" and puting the "Time" into variable called "Duration".
CM = (Duration / 58.8); // Convert Distance into CM.
return CM; // Return to CM.
}
int RightDistance, LeftDistance; // Distances on either side.
float Distance = 0.00; // Float type variable declaration.
void setup () { // Setup loop.
pinMode (BuzzPIN, OUTPUT); // Declare BuzzPIN as "Output PIN".
pinMode (TrigPIN, OUTPUT); // Declare TrigPIN as "Output PIN".
pinMode (EchoPIN, INPUT); // Declare EchoPIN as "Output PIN".
pinMode (LEDBPIN, OUTPUT); // Declare LEDBPIN as "Output PIN".
pinMode (LEDGPIN, OUTPUT); // Declare LEDGPIN as "Output PIN".
pinMode (LEDRPIN, OUTPUT); // Declare LEDRPIN as "Output PIN".
SER1.attach (10); // Attaches the Servo on pin 10 (SER1 on the Adafruit Motor Shield for Arduino kit to the Servo object).
}
void loop () { // Main loop.
SER1.write (80); // Tells the Servo to position at 80 degrees (Facing forward).
delay (100); // Delay for 0.1s.
Distance = Search (); // Measuring the Distance in CM.
if (Distance < 30) { // If obstacle found in 30cm.
digitalWrite (BuzzPIN, HIGH); // BuzzPIN output as 5V (Logic high level).
digitalWrite (LEDBPIN, LOW); // LEDBPIN output as 0V (Logic low level).
digitalWrite (LEDGPIN, LOW); // LEDGPIN output as 0V (Logic low level).
digitalWrite (LEDRPIN, HIGH); // LEDRPIN output as 5V (Logic high level).
M1.setSpeed (100); // Speed down.
M2.setSpeed (100); // Speed down.
ChangePath (); // If forward is blocked Change direction.
}
else if ((Distance >= 30) && (Distance < 60)) { // If obstacle found between 30cm to 60cm.
digitalWrite (BuzzPIN, LOW); // BuzzPIN output as 0V (Logic low level).
digitalWrite (LEDBPIN, HIGH); // LEDBPIN output as 5V (Logic high level).
digitalWrite (LEDGPIN, LOW); // LEDGPIN output as 0V (Logic low level).
digitalWrite (LEDRPIN, LOW); // LEDRPIN output as 0V (Logic low level).
M1.setSpeed (150); // Speed increase slightly.
M2.setSpeed (150); // Speed increase slightly.
Forward (); // Robot move to Forward direction.
}
else if ((Distance >= 60) && (Distance < 90)) { // If obstacle found between 60cm to 90cm.
digitalWrite (BuzzPIN, LOW); // BuzzPIN output as 0V (Logic low level).
digitalWrite (LEDBPIN, LOW); // LEDBPIN output as 0V (Logic low level).
digitalWrite (LEDGPIN, HIGH); // LEDGPIN output as 5V (Logic high level).
digitalWrite (LEDRPIN, LOW); // LEDRPIN output as 0V (Logic low level).
M1.setSpeed (200); // Speed up.
M2.setSpeed (200); // Speed up.
Forward (); // Robot move to Forward direction.
}
else { // If obstacle cannot be found in 90cm.
digitalWrite (BuzzPIN, LOW); // BuzzPIN output as 0V (Logic low level).
digitalWrite (LEDBPIN, HIGH); // LEDBPIN output as 5V (Logic high level).
digitalWrite (LEDGPIN, HIGH); // LEDGPIN output as 5V (Logic high level).
digitalWrite (LEDRPIN, HIGH); // LEDRPIN output as 5V (Logic high level).
M1.setSpeed (250); // Speed increase fully.
M2.setSpeed (250); // Speed increase fully.
Forward (); // Robot move to Forward direction.
}
}
void ChangePath () { // Path Change loop.
Stop (); // Robot Stop.
Backward (); // Robot run Backward direction.
Stop (); // Robot Stop.
SER1.write (12); // Check Distance to the Right.
delay (500); // Delay for 0.5s.
RightDistance = Search (); // Set Right Distance.
delay (500); // Delay for 0.5s.
SER1.write (160); // Check Distance to the Left.
delay (1000); // Delay for 1s.
LeftDistance = Search (); // Set Left Distance.
delay (500); // Delay for 0.5s.
SER1.write (80); // Return to center.
delay (500); // Delay for 0.5s.
CompareDistance (); // Find the longest distance.
}
void CompareDistance () { // Distance Compare loop.
if (RightDistance > LeftDistance) { // If Right is less obstructed.
TurnRight (); // Robot Turn into Right direction.
}
else if (LeftDistance > RightDistance) { // If Left is less obstructed.
TurnLeft (); // Robot Turn into Left direction.
}
else { // If both are equally obstructed.
TurnAround (); // Robot Turn Around.
}
}
void Forward () { // Forward loop.
M1.run (FORWARD); // Turn DCMotor #1 to Forward.
M2.run (FORWARD); // Turn DCMotor #1 to Forward.
}
void Backward () { // Backward loop.
M1.run (BACKWARD); // Turn DCMotor #1 to Backward.
M2.run (BACKWARD); // Turn DCMotor #2 to Backward.
delay (500); // Delay for 1s.
}
void TurnRight () { // Right Turn loop.
M1.run (BACKWARD); // Turn DCMotor #1 to Backward.
M2.run (FORWARD); // Turn DCMotor #2 to Forward.
M1.setSpeed (100 + DCMROFF); // Calibrate the Speed of DCMotor #1.
delay (300); // Delay for 0.7s.
}
void TurnLeft () { // Left Turn loop.
M1.run (FORWARD); // Turn DCMotor #1 to Forward.
M2.run (BACKWARD); // Turn DCMotor #2 to Backward.
M2.setSpeed (100 + DCMROFF); // Calibrate the Speed of DCMotor #2.
delay (300); // Delay for 0.7s.
}
void TurnAround () { // Trun Around loop.
M1.run (FORWARD); // Turn DCMotor #1 to Forward.
M2.run (BACKWARD); // Turn DCMotor #2 to Backward.
M2.setSpeed (100 + DCMROFF); // Calibrate the Speed of DCMotor #2.
delay (700); // Delay for 2.1s.
}
void Stop () { // Stop loop.
M1.run (RELEASE); // Release DCMotor #1.
M2.run (RELEASE); // Release DCMotor #2.
delay (100); // Delay for 0.1s.
}
