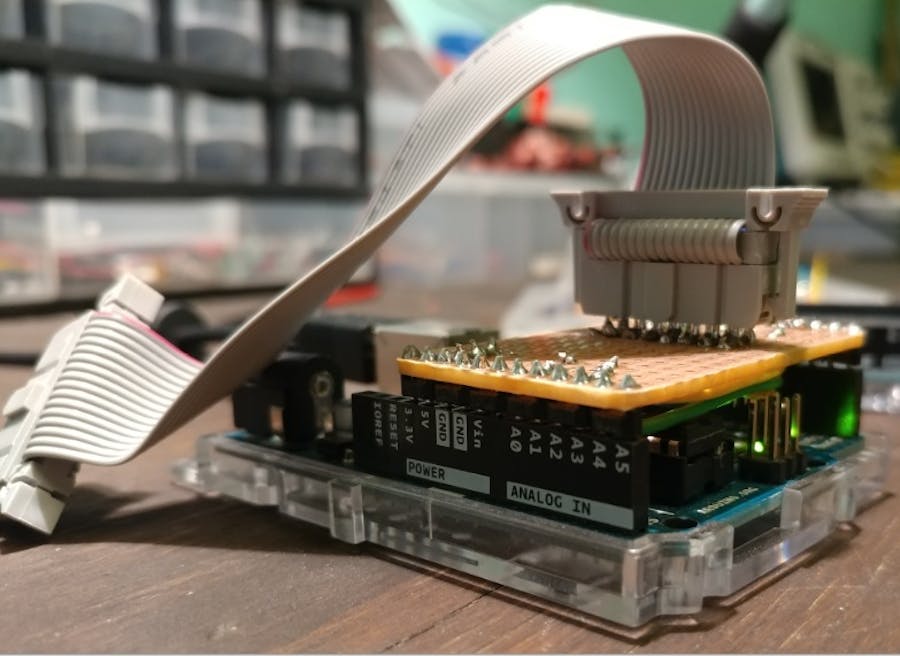

Homemade RGB LED Matrix Shield

This shield alleviates the garbled bird nest of wires that manifests from connecting to the Arduino Uno via jumpers!

IntermediateShowcase (no instructions)4,648
Homemade RGB LED Matrix Shield

Things used in this project

Hardware components

Adafruit 32x32 RGB LED Matrix Panel - 6mm pitch
Should come with the 16-pin ribbon cable.
×1
Arduino UNO
Arduino UNO
×1
Prototype Board
Might want to get some extra boards as a precautionary measure. Board has to be cut down to size.
×1
22 AWG Wire
very little wire was actually used for this project. approx 1-2 feet should get you there.
×1
Double-Row Header Pins, Break-Away: 20 pcs (40 pins in total)
Only need 16 individual pins for this project, but extra never hurts.
×1

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Solder
Dremel w/ Cutting Wheel
For cutting prototype board down to size.

Story

Read more

Code

RGB Matrix Library
