Master Chief Light Board

Greetings to everyone, and welcome back.

Here's something super cool: a Master Chief RGB Light Board made completely from scratch using custom PCBs and an XIAO ESP32S4 DEV Board.

Master Chief is a central character in the popular game series "Halo." He is a genetically enhanced super-soldier known formally as John-117. Master Chief serves as the protagonist throughout most of the series.

The goal was to create an RGB light that would be aesthetically pleasing enough to be installed inside a PC to enhance its appearance. This board is visible via the PC's side glass panel.

The device is powered by a USB Type C cable, which is connected to the back USB port of the motherboard.

24 WS2812B LEDs were used in this project, paired with an XIAO ESP32S4 Dev board.

This article is about the whole build process of this project, so let's get started with the build.

Materials Required

These were the materials required in this build.

• custom PCBs (Two Boards, top and bottom)
• WS2812B RGB LEDs
• XIAO ESP32S4
• Solder paste
• M3 Nuts
• M3 Bolts
• M3 PCB Standoffs

PCB Design

The PCB design for this project was split into two parts: the top layer board, or first board, which is just made up of solder mask opening layers, and a silkscreen that was themed after the helmet of the master chief.

The RGB LEDs and XIAO MCU are positioned on the second, or bottom, board. The RGB LEDs' glow is visible through the top PCB's solder mask opening.

We first looked for a black and white picture of Masterchief's helmet to use for the first layer, and we found one that will work perfectly.

We converted the image into BMP as we're using OrCad Cadence, which only imports logo files as BMP images.

After adding the basic image inside the CAD software, we added a top-etch layer by tracing out the helmet outlines. After that, we add a soldermask opening on top of the etch layer, which exposes the empty FR4 board along with the etch layer.

The etch layer, when exposed, will look silver or gold depending on the PCB surface finish, which in our case will be HASL or silver.

We added a soldermask opening on the bottom side as well, so light can easily transfer through the PCB.

For the second PCB, or bottom board, we first prepare a schematic consisting of 24 WS2812B LEDs connected together with the XIAO ESP32S4 DEV Board.

We then positioned the RGB LEDs on the second board's top face, and XIAO is positioned on the bottom face.

Seeed Studio Fusion Service

After finalizing both PCBs, we exported their gerber data and sent them to Seeed Studio Fusion for samples.

Two orders were placed, one for the front board and one for the back board; both orders were placed in a green soldermask and white silkscreen.

PCBs were received in a week, and their quality was super good considering the rate, which was also pretty low.

Seeed Fusion PCB Service offers one-stop prototyping for PCB manufacture and PCB assembly, and as a result, they produce superior-quality PCBs and fast turnkey PCBAs within 7 working days.

Seeed Studio Fusion PCB Assembly Servicetakes care of the entire fabrication process, from Seeed Studio Fusion Agile manufacturing and hardware customization to parts sourcing, assembly, and testing services, so you can be sure that they are getting a quality product.

After gauging market interest and verifying a working prototype, Seeed Propagate Service can help you bring the product to market with professional guidance and a strong network of connections.

Next is the PCB assembly process.

PCB Assembly

• Using a solder paste dispensing needle, we first add solder paste to each component pad, one by one. We're using standard 37/63 solder paste here.
• Next, we pick and place all the SMD components in their places on the PCB using an ESD tweezer.
• With extreme caution, we lifted the complete circuit board and placed it on the SMT hotplate, which increases the PCB's temperature to the point at which the solder paste melts and all of the components are connected to their pads

Adding XIAO on bottom side

The XIAO has to be installed on the bottom side using the surface mount method after the LEDs are added to the top side. One tiny problem: the led on the bottom of this prevents us from using a reflow hotplate.

An approach is to use solder paste on the pads of the component before picking and placing it in its proper location.

The PCB is then soldered in place after the connector pins on the component are heated using a soldering iron to melt the solder paste underneath the pads.

Main Code

We first check to see if the LEDs were soldered correctly after the PCB assembly process. We employ a straightforward test code that sequentially turns on each LED in the sequence.

#include <Adafruit_NeoPixel.h>
#ifdef __AVR__
 #include <avr/power.h> // Required for 16 MHz Adafruit Trinket
#endif

// Which pin on the Arduino is connected to the NeoPixels?
#define PIN       D1 // On Trinket or Gemma, suggest changing this to 1

// How many NeoPixels are attached to the Arduino?
#define NUMPIXELS 25 // Popular NeoPixel ring size

// When setting up the NeoPixel library, we tell it how many pixels,
// and which pin to use to send signals. Note that for older NeoPixel
// strips you might need to change the third parameter -- see the
// strandtest example for more information on possible values.
Adafruit_NeoPixel pixels(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);

#define DELAYVAL 100 // Time (in milliseconds) to pause between pixels

void setup() {
  // These lines are specifically to support the Adafruit Trinket 5V 16 MHz.
  // Any other board, you can remove this part (but no harm leaving it):
#if defined(__AVR_ATtiny85__) && (F_CPU == 16000000)
  clock_prescale_set(clock_div_1);
#endif
  // END of Trinket-specific code.

  pixels.begin(); // INITIALIZE NeoPixel strip object (REQUIRED)
}

void loop() {
  pixels.clear(); // Set all pixel colors to 'off'

  // The first NeoPixel in a strand is #0, second is 1, all the way up
  // to the count of pixels minus one.
  for(int i=0; i<NUMPIXELS; i++) { // For each pixel...

    // pixels.Color() takes RGB values, from 0,0,0 up to 255,255,255
    // Here we're using a moderately bright green color:
    pixels.setPixelColor(i, pixels.Color(0, 150, 0));

    pixels.show();   // Send the updated pixel colors to the hardware.

    delay(DELAYVAL); // Pause before next pass through loop
  }
}

After testing the LEDs, we uploaded the main code into the XIAO MCU.

#include <Adafruit_NeoPixel.h>

#define GREEN_LED_PIN D0
#define PURPLE_LED_PIN D1
#define NUM_LEDS 15 // Number of LEDs in each strip

Adafruit_NeoPixel greenLED = Adafruit_NeoPixel(NUM_LEDS, GREEN_LED_PIN, NEO_GRB + NEO_KHZ800);
Adafruit_NeoPixel purpleLED = Adafruit_NeoPixel(NUM_LEDS, PURPLE_LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  greenLED.begin();
  purpleLED.begin();
}

void loop() {
  // Set green LED to green color (RGB: 0, 255, 0)
  greenLED.setPixelColor(0, greenLED.Color(0, 255, 0));
  greenLED.show();

  // Set purple LED to purple color (RGB: 128, 0, 128)
  purpleLED.setPixelColor(0, purpleLED.Color(128, 0, 128));
  purpleLED.show();

  delay(1000); // Delay for 1 second
}

Final Assembly

The final assembly was quite simple; four M3 PCB standoffs are needed to put the two PCBs together. The gap between the two PCBs, which is essential for the diffusion of LED light, will be maintained by these standoffs.

In order to secure the M3 standoffs with M3 nuts, we first attach four of them to the bottom PCB and turn the board over. The front PCB is then permanently mounted with the standoffs by inserting four M3 bolts from the front PCB.

Assembly is now complete.

Putting the Device inside PC

For the last step, we have to mount this LED board inside the PC.

Two 3mm-diameter mounting holes were added to the bottom PCB during the PCB design process. The PC's M3 standoffs, which are provided for installing ATX size motherboards, will be used to fasten the LED board with the PC.

We open the side pane of the PC first.

The USB cable is then connected to the XIAO and plugged into the motherboard's rear side USB port.

We then use an M3 bolt to secure the LED board on the ATX PCB standoff.

RESULT

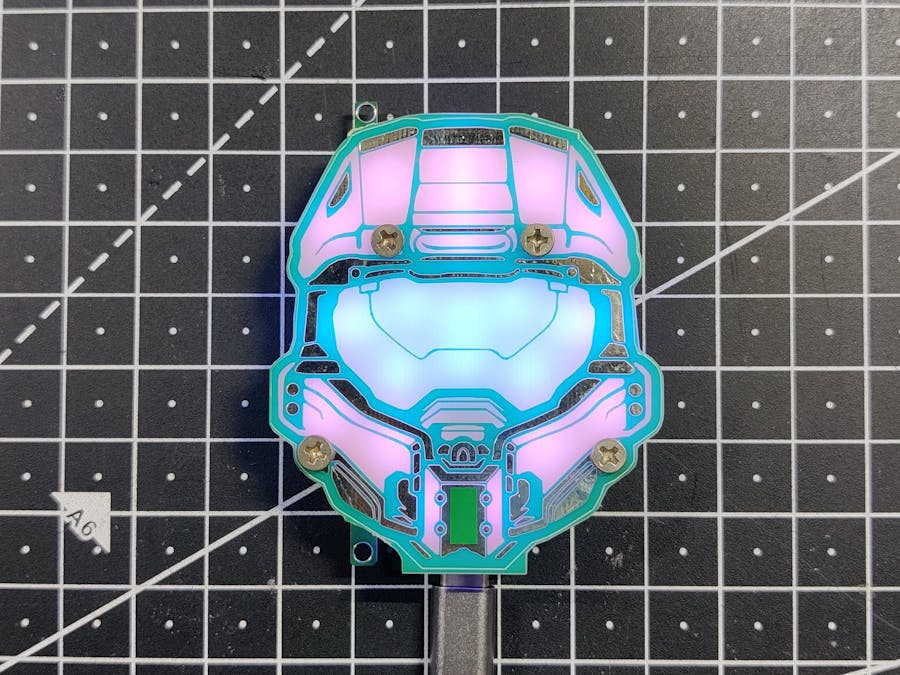

Here's the result of this small build, Master Chief Glowing gloriously inside the PC.

Although I dislike RGB lights inside computers, this one seems quite lovely. I am going to build a couple more Character LED Boards and install them inside a desktop.

I have been creating art-based PCBs for some time now; you may find some of the links below interesting.

https://www.hackster.io/Arnov_Sharma_makes/gomu-gomu-no-mi-with-xiao-rp2040-560601

https://www.hackster.io/Arnov_Sharma_makes/christmas-bell-that-sings-fe0468

https://www.hackster.io/Arnov_Sharma_makes/pcb-diya-because-diwali-is-coming-f2947b

https://www.hackster.io/Arnov_Sharma_makes/gengar-pcb-art-f391a1

Overall, this project was functioning pretty well and needed no further revision.

Leave a comment if you need any help regarding this project. This is it for today, folks.

Thanks to Seeed Studio for supporting this project.

You guys can check them out if you need great PCB and stencil service for less cost and great quality.

And I'll be back with a new project pretty soon!
