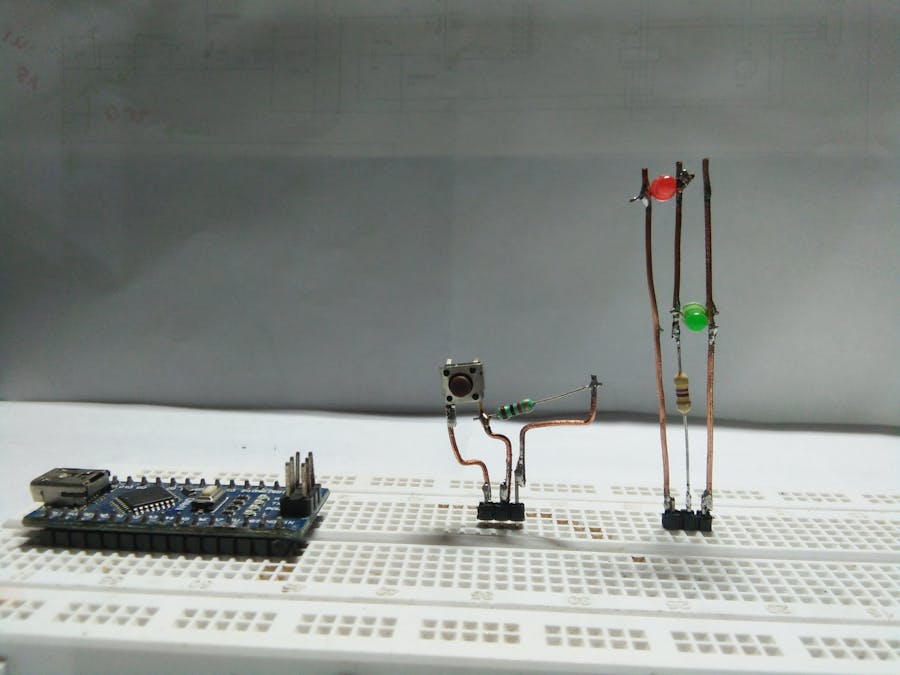

Freeform Button and LED ON OFF tutorial

It's a tutorial but with freeform circuitry components.

BeginnerFull instructions provided3 minutes844
Freeform Button and LED ON OFF tutorial

Things used in this project

Story

Read more

Schematics


Code

Untitled file

C/C++
const int buttonPin = 4;
const int GREEN =  3;
const int RED =  2;

int buttonState = 0;

void setup() {
  pinMode(GREEN, OUTPUT);
  pinMode(RED, OUTPUT);
  pinMode(buttonPin, INPUT);
}


void loop() {
   buttonState = digitalRead(buttonPin);
    if (buttonState == HIGH) {
      digitalWrite(GREEN,HIGH);
      digitalWrite(RED,LOW);

    } else {

    digitalWrite(RED, HIGH);
    digitalWrite(GREEN, LOW);
}
}
