DIY Flight Instruments for Horizon and Compass

Today we'll make our very own customized Flight Simulator using an  MPU-6050 Motion Sensor !!!

What is an MPU-6050 sensor? The MPU-6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die, together with an onboard Digital Motion Processor (DMP), which processes complex 6-axisMotionFusion algorithms. So, now you will be able to decipher the meaning of 6DOF- 6 degrees of freedom.

"These MotionTracking devices are designed for the low power,low cost, and high-performance requirements of smartphones,tablets and wearable sensors."

Stuff that we require...

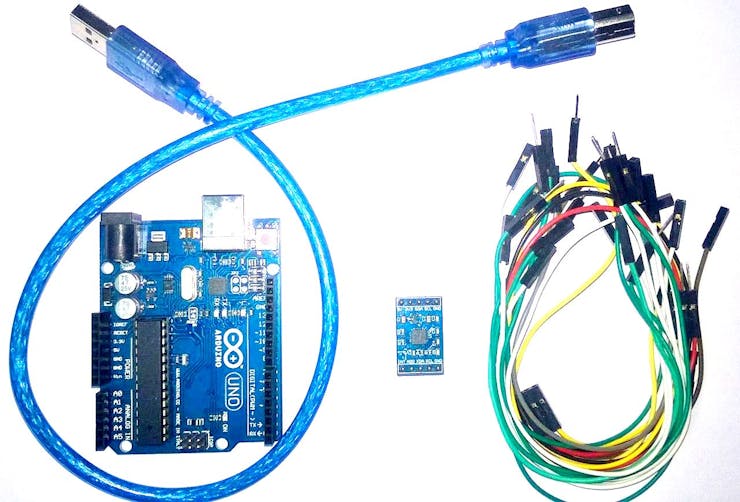

Hardware Components:

• 1) Arduino/Genuino UNO (Any Arduino board will serve the purpose)
• 2) MPU-6050 IMU (Inertial Measurement Unit) sensor with 6 degress-of-freedom
• 3) Jumper Wires

Softwares:

• Arduino
• Processing

Before diving into the coding part, let's assemble our hardware kits .

For the details about the connection schematic and hardware setup, kindly refer to my previous blog. I have also attached the connection diagram in this project, for your quick guidance.

After having setup the components as per the connection diagram,let's come to the processing software, which will facilitate the 3D visualization of this motion sensor.

"Processing IDE"

Considering that you already have installed ArduinoIDE, involving two separate IDEs in one project might make you feel a bit confused. Well, there's no need to panic. Follow the steps below and all your doubts will be cleared up!

Processing is quite similar to ArduinoIDE except for a few specialized functions. So, you'll see an influence/similarity in ProcessingIDE.

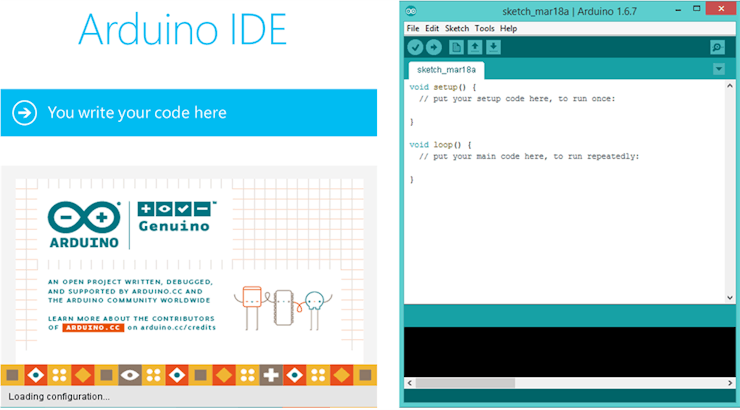

Figure 2 and Figure 3  will make my statements clear.

So, we see that there's a stunning visual similarity in both these IDEs.

Here, we will  read three dimensional degrees which are Phi, Theta, Psi on MPU6050 using serial monitor of Processing IDE.

Upload the Arduino code, attached at the end of this tutorial.

If there is a problem with compiling the code, check if you have installed MPU and i2c library.You can find in here: http://playground.arduino.cc/Main/MPU-6050

After having carried out these steps, its time to upload the "Processing" code. The code has been attached after several testings and modifications, and thus, you don't have to modify anything in the code.

Demonstration:

In case any queries, kindly comment below.
