Published March 11, 2018 © GPL3+

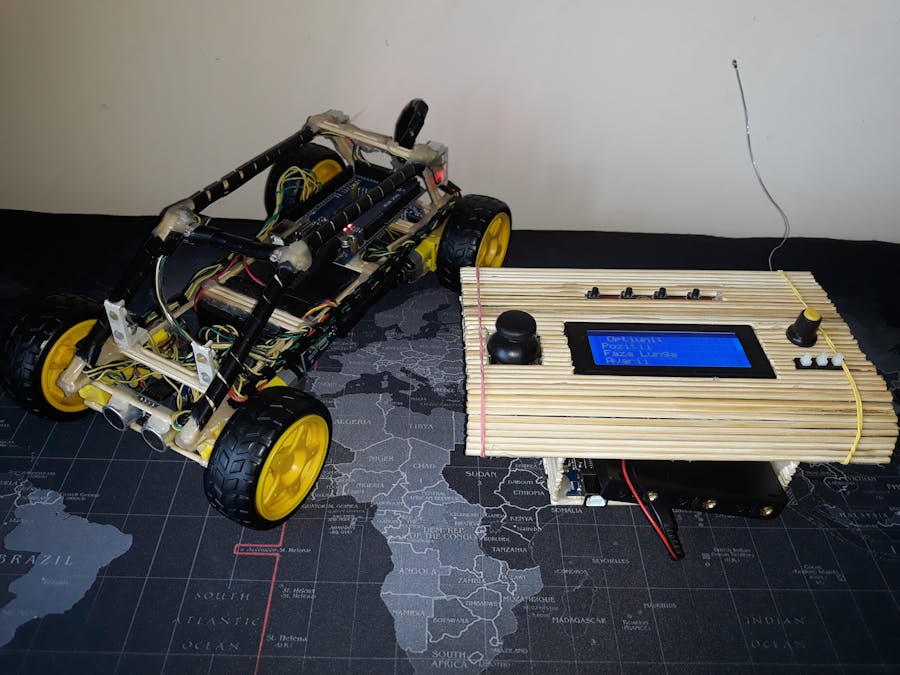

Car with Radio - LCD Remote Control

Arduino Car with Sonic sensor and Radio control Remote Control with LCD

IntermediateWork in progress1,791

Things used in this project

Hardware components

Arduino Mega

Emitator si receptor Radio 433mhz

DC motor (generic)

LEDs

9V Battery Clip

9V battery (generic)

6xAA Battery

LCD 2004 20x4

Modulo Joystick

Rotary potentiometer (generic)

SparkFun Electronics Pushbutton switch 12mm

Ultrasonic Sensor - HC-SR04 (Generic)

H Bridge L9110S

Buzzer

Story

This car have 2 sensor in front and back for check obstacle. If the car has obstacles less than 20 centimeters, it stops automatically. The light system is similar to a real car.

The car is controlled by the Radio signal.

The remote has LCD for easier use.

Code

Credits

Aninu

0 projects • 1 follower
