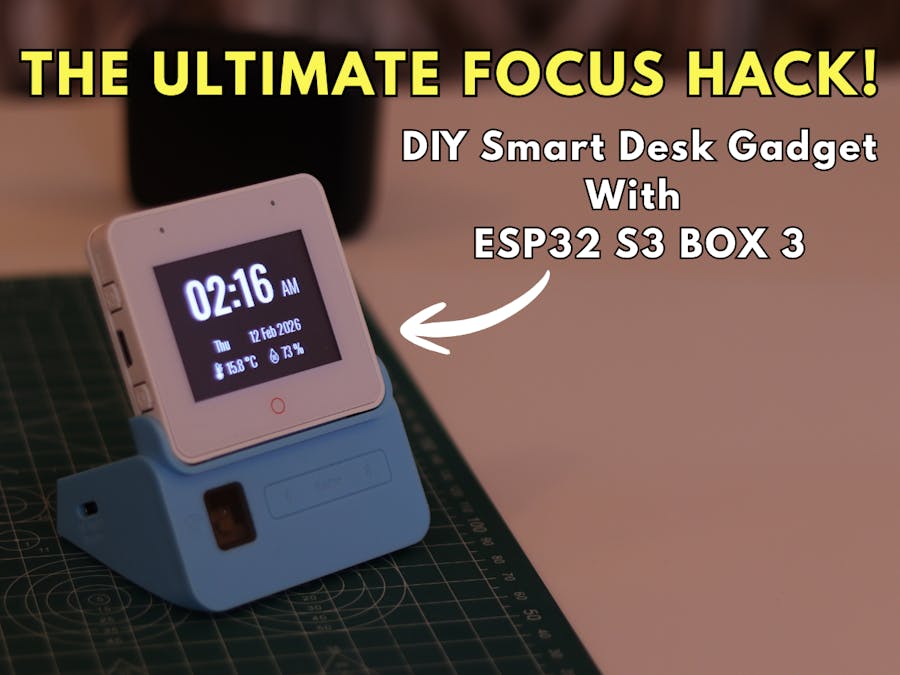

Desk32: The Ultimate DIY Smart Desk Hub for Deep Work

A dedicated "Focus Anchor" designed to reclaim your productivity from the distractions of the digital age. Powered by the ESP32-S3-BOX-3.

IntermediateFull instructions provided2 hours2,491
Desk32: The Ultimate DIY Smart Desk Hub for Deep Work

Things used in this project

Hardware components

Espressif ESP32 S3 BOX 3
×1
3000mAh 18650 Li-on Battery
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

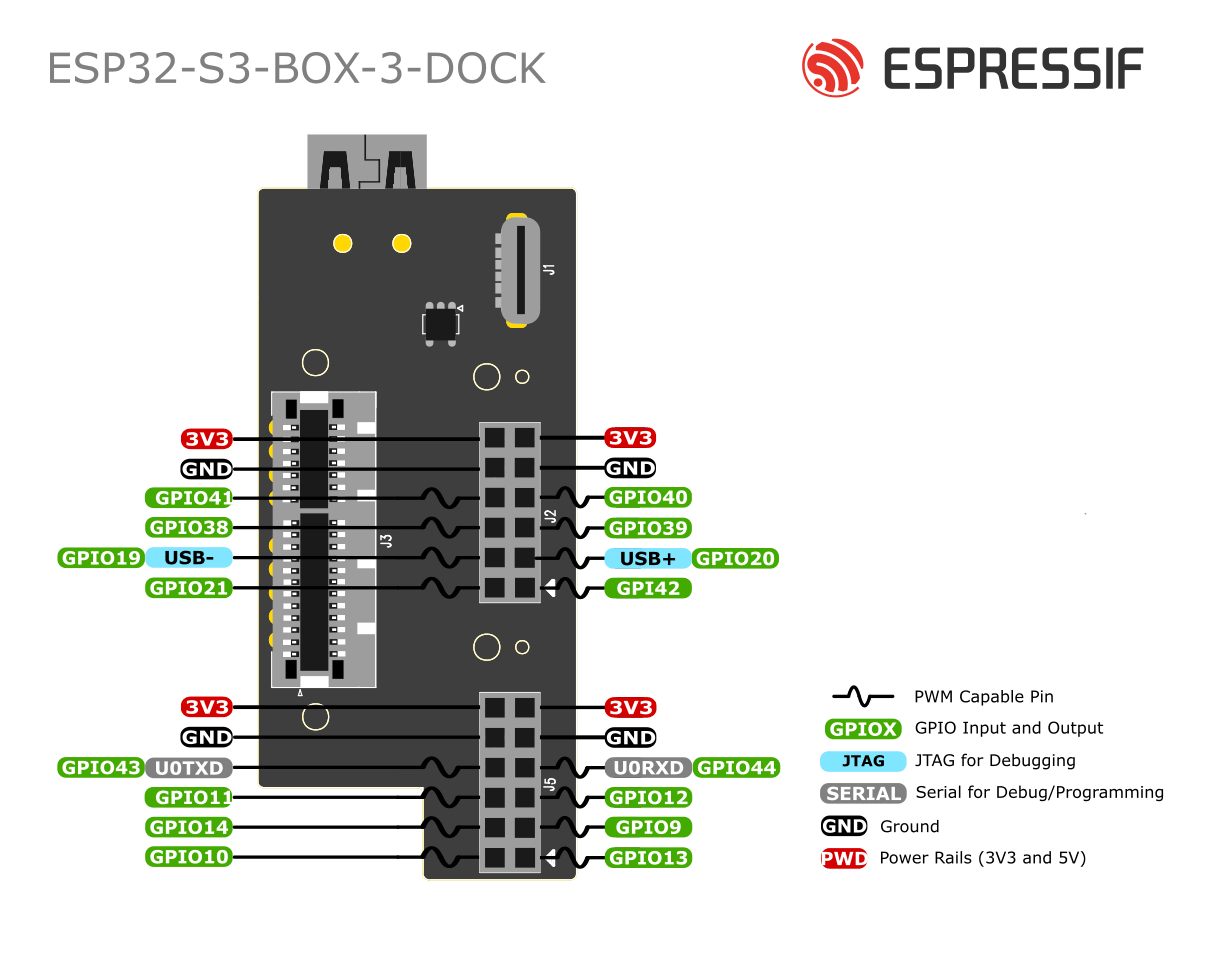

Internal Circuit Diagram

Just for reference

Code

Desk32

Arduino
Complete Project Code
/*
 * Project Name: Desk32
 * Designed For: ESP32 S3 BOX 3
 *
 *
 * License: GPL3+
 * This project is licensed under the GNU General Public License v3.0 or later.
 * You are free to use, modify, and distribute this software under the terms
 * of the GPL, as long as you preserve the original license and credit the original
 * author. For more details, see <https://www.gnu.org/licenses/gpl-3.0.en.html>.
 *
 * Copyright (C) 2026  Ameya Angadi
 *
 * Code Created And Maintained By: Ameya Angadi
 * Last Modified On: February 10, 2026
 * Version: 1.0.0
 *
 */


#include <Arduino.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>
#include <time.h>
#include <esp_display_panel.hpp>
#include <lvgl.h>
#include <ui.h>
#include "lvgl_v8_port.h"

using namespace esp_panel::drivers;
using namespace esp_panel::board;

// --- USER CONFIGURATION (Update These) ---
const char* ssid = "Excitel_SAP 2.4G";                      // Update: Your WiFi SSID
const char* password = "Sap180125";                         // Update: Your WiFi Password
const char* apiKey = "c1cdd20a0c278f22fd0e3c5c07e704cb";    // Update: OpenWeatherMap API Key
const char* city = "Bengaluru";                             // Update: Your City
const char* country = "IN";                                 // Update: Your Country Code

// Timezone Settings (India)
const long gmtOffset_sec = 19800;
const int daylightOffset_sec = 0;

// Global Timers and State
Board* board = nullptr;
unsigned long lastWeatherTime = 0;
const unsigned long weatherInterval = 900000; // 15 Minutes

// Weather Variables
String temperature = "--";
String humidity = "--";

// Pomodoro Globals
bool pomoRunning = false;
bool pomoPaused = false;
bool isBreakMode = false;
int totalTime = 1500;
int timeLeft = 1500;
unsigned long lastPomoTick = 0;
const char* breakMessages[] = { "Good Job!", "Take a Walk", "Drink Water", "Meditate", "Stretch Now" };

// Keyboard and UI State Trackers
bool isKeyboardActive = false;
int prevDay = -1;
bool isWaterReminderEnabled = true; // Default to ON
unsigned long lastWaterAlertTime = 0;
const unsigned long waterAlertInterval = 1800000; // 30 Minutes
unsigned long lastWifiCheckTime = 0;

// Brightness Tracker (Default 100)
int currentBrightness = 100;

// --- EVENT HANDLERS ---

// Updates backlight level based on settings slider
void onBrightnessChange(lv_event_t * e) {
    lv_obj_t * slider = lv_event_get_target(e);
    int val = lv_slider_get_value(slider);

    // Ensure we don't go below 10 or above 100
    if (val < 10) val = 10;
    if (val > 100) val = 100;

    currentBrightness = val;
    board->getBacklight()->setBrightness(currentBrightness);
}

// Toggles the hydration alert system
void onWaterSwitchToggle(lv_event_t * e) {
    lv_obj_t * sw = lv_event_get_target(e);
    if (lv_obj_has_state(sw, LV_STATE_CHECKED)) {
        isWaterReminderEnabled = true;
        lastWaterAlertTime = millis();
        Serial.println("Water Reminder: ON");
    } else {
        isWaterReminderEnabled = false;
        Serial.println("Water Reminder: OFF");
    }
}

// Triggers a manual weather API fetch
void onUpdateWeatherClick(lv_event_t * e) {
    lv_obj_t * btn = lv_event_get_target(e);
    lv_obj_t * label = lv_obj_get_child(btn, 0);
    fetchWeather();
}

// Forces a resync with NTP time servers
void onSyncTimeClick(lv_event_t * e) {
    lv_obj_t * btn = lv_event_get_target(e);
    lv_obj_t * label = lv_obj_get_child(btn, 0);
    configTime(gmtOffset_sec, daylightOffset_sec, "pool.ntp.org");
    delay(300);
}

// Throttled UI update for WiFi signal/status
void updateSettingsScreenUI() {
    if (lv_scr_act() != ui_SettingScreen) return;

    if (millis() - lastWifiCheckTime > 2000) {
        lastWifiCheckTime = millis();

        String ssidStr = WiFi.SSID();
        if(ssidStr.isEmpty()) ssidStr = "No Network";
        lv_label_set_text(ui_LabelWifiSSID, ("SSID: " + ssidStr).c_str());

        if (WiFi.status() == WL_CONNECTED) {
            lv_label_set_text(ui_LabelWifiStatus, "Status: Connected");
            lv_obj_set_style_text_color(ui_LabelWifiStatus, lv_color_hex(0x00FF00), LV_PART_MAIN);
        } else {
            lv_label_set_text(ui_LabelWifiStatus, "Status: Disconnected");
            lv_obj_set_style_text_color(ui_LabelWifiStatus, lv_color_hex(0xFF0000), LV_PART_MAIN);
        }
    }
}

// Dismisses health alert and returns to Home
void onHydrateCloseClick(lv_event_t * e) {
    lv_scr_load_anim(ui_HomeScreen, LV_SCR_LOAD_ANIM_FADE_ON, 500, 0, false);
}

// Task Manager Handlers
static void textAreaFocusHandler(lv_event_t * e) {
    lv_event_code_t code = lv_event_get_code(e);
    if(code == LV_EVENT_FOCUSED || code == LV_EVENT_CLICKED) {
        isKeyboardActive = true;
        lv_obj_clear_flag(ui_Keyboard1, LV_OBJ_FLAG_HIDDEN);
    }
}

// Manages keyboard visibility
static void dismissKeyboardHandler(lv_event_t * e) {
    lv_event_code_t code = lv_event_get_code(e);
    if(code == LV_EVENT_CLICKED) {
        lv_obj_add_flag(ui_Keyboard1, LV_OBJ_FLAG_HIDDEN);
        lv_obj_clear_state(ui_TextAreaTaskInput, LV_STATE_FOCUSED);
        isKeyboardActive = false;
    }
}

// Handles task completion styling and keyboard conflict
static void taskToggleHandler(lv_event_t * e) {
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * cb = lv_event_get_target(e);

    if(code == LV_EVENT_VALUE_CHANGED) {
        if (isKeyboardActive) {
            lv_obj_add_flag(ui_Keyboard1, LV_OBJ_FLAG_HIDDEN);
            lv_obj_clear_state(ui_TextAreaTaskInput, LV_STATE_FOCUSED);
            isKeyboardActive = false;
            // Undo click
            if(lv_obj_has_state(cb, LV_STATE_CHECKED)) lv_obj_clear_state(cb, LV_STATE_CHECKED);
            else lv_obj_add_state(cb, LV_STATE_CHECKED);
            return;
        }
        // Normal toggle style
        if(lv_obj_has_state(cb, LV_STATE_CHECKED)) {
             lv_obj_set_style_text_color(cb, lv_color_hex(0x4c4d52), LV_PART_MAIN);
             lv_obj_set_style_text_decor(cb, LV_TEXT_DECOR_STRIKETHROUGH, LV_PART_MAIN);
        } else {
             lv_obj_set_style_text_color(cb, lv_color_hex(0xFFFFFF), LV_PART_MAIN);
             lv_obj_set_style_text_decor(cb, LV_TEXT_DECOR_NONE, LV_PART_MAIN);
        }
    }
}

// Deletes a task row from the list
static void deleteTaskHandler(lv_event_t * e) {
    lv_event_code_t code = lv_event_get_code(e);
    if(code == LV_EVENT_CLICKED) {
        if (isKeyboardActive) {
             lv_obj_add_flag(ui_Keyboard1, LV_OBJ_FLAG_HIDDEN);
             lv_obj_clear_state(ui_TextAreaTaskInput, LV_STATE_FOCUSED);
             isKeyboardActive = false;
        }
        lv_obj_t* row_container = (lv_obj_t*)lv_event_get_user_data(e);
        if(row_container) lv_obj_del(row_container);
    }
}

// Dynamically creates a new task entry in the UI
void addTaskToUI(const char* text) {
    if (strlen(text) == 0) return;
    lvgl_port_lock(-1);

    lv_obj_t* row = lv_obj_create(ui_ContainerTaskList);
    lv_obj_set_width(row, LV_PCT(100));
    lv_obj_set_height(row, LV_SIZE_CONTENT);
    lv_obj_set_style_pad_all(row, 2, 0);
    lv_obj_set_style_border_width(row, 0, 0);
    lv_obj_set_style_bg_opa(row, LV_OPA_TRANSP, 0);
    lv_obj_set_flex_flow(row, LV_FLEX_FLOW_ROW);
    lv_obj_set_flex_align(row, LV_FLEX_ALIGN_SPACE_BETWEEN, LV_FLEX_ALIGN_CENTER, LV_FLEX_ALIGN_CENTER);

    lv_obj_add_flag(row, LV_OBJ_FLAG_CLICKABLE);
    lv_obj_add_event_cb(row, dismissKeyboardHandler, LV_EVENT_CLICKED, NULL);

    lv_obj_t* cb = lv_checkbox_create(row);
    lv_checkbox_set_text(cb, text);
    lv_obj_set_flex_grow(cb, 1);
    lv_obj_set_style_text_font(cb, &ui_font_OswaldLight20, LV_PART_MAIN);
    lv_obj_set_style_width(cb, 20, LV_PART_INDICATOR);
    lv_obj_set_style_height(cb, 20, LV_PART_INDICATOR);
    lv_obj_set_style_text_font(cb, &lv_font_montserrat_14, LV_PART_INDICATOR);
    lv_obj_set_style_pad_column(cb, 5, LV_PART_MAIN);
    lv_obj_set_style_pad_top(cb, 0, LV_PART_MAIN);
    lv_obj_set_style_pad_bottom(cb, 0, LV_PART_MAIN);
    lv_obj_add_event_cb(cb, taskToggleHandler, LV_EVENT_VALUE_CHANGED, NULL);

    lv_obj_t* btn_del = lv_btn_create(row);
    lv_obj_set_size(btn_del, 35, 35);
    lv_obj_set_style_bg_opa(btn_del, LV_OPA_TRANSP, 0);
    lv_obj_set_style_shadow_width(btn_del, 0, 0);
    lv_obj_t* lbl = lv_label_create(btn_del);
    lv_label_set_text(lbl, "X");
    lv_obj_center(lbl);
    lv_obj_set_style_text_font(lbl, &lv_font_montserrat_14, 0);
    lv_obj_set_style_text_color(lbl, lv_color_hex(0xFF0000), 0);
    lv_obj_add_event_cb(btn_del, deleteTaskHandler, LV_EVENT_CLICKED, row);

    lvgl_port_unlock();
}

// Processes "Enter" key from the task keyboard
void onKeyboardReady(lv_event_t* e) {
    lv_obj_t* kb = lv_event_get_target(e);
    uint32_t code = lv_event_get_code(e);

    if (code == LV_EVENT_READY) {
        const char* txt = lv_textarea_get_text(ui_TextAreaTaskInput);
        addTaskToUI(txt);
        lv_textarea_set_text(ui_TextAreaTaskInput, "");
        lv_obj_add_flag(ui_Keyboard1, LV_OBJ_FLAG_HIDDEN);
        lv_obj_clear_state(ui_TextAreaTaskInput, LV_STATE_FOCUSED);
        isKeyboardActive = false;
    }
}

// --- POMODORO AND WEATHER CORE ---

// Updates Pomodoro countdown and progress arc
void updatePomoUI() {
    lvgl_port_lock(-1);
    char buf[10];
    sprintf(buf, "%02d:%02d", timeLeft / 60, timeLeft % 60);
    lv_label_set_text(ui_LabelPomoTime, buf);
    if (totalTime > 0) {
        int progress = (timeLeft * 100) / totalTime;
        lv_arc_set_value(ui_ArcPomo, progress);
    }
    lvgl_port_unlock();
}

// Handles Pomodoro Start/Pause/Resume states
void startPomodoro(lv_event_t * e) {
    if (!pomoRunning) {
        pomoRunning = true;
        pomoPaused = false;
        lv_label_set_text(ui_LabelStart, "PAUSE");
        if (!isBreakMode) lv_label_set_text(ui_LabelPomoStatus, "Focus Mode");
    } else {
        pomoPaused = !pomoPaused;
        if (pomoPaused) {
            lv_label_set_text(ui_LabelStart, "RESUME");
            lv_label_set_text(ui_LabelPomoStatus, "Paused");
        } else {
            lv_label_set_text(ui_LabelStart, "PAUSE");
            lv_label_set_text(ui_LabelPomoStatus, isBreakMode ? "Relaxing..." : "Focus Mode");
        }
    }
}

// Resets Pomodoro to initial state
void stopPomodoro(lv_event_t * e) {
    pomoRunning = false;
    pomoPaused = false;
    isBreakMode = false;
    totalTime = 1500;
    timeLeft = 1500;
    lv_label_set_text(ui_LabelStart, "START");
    lv_label_set_text(ui_LabelPomoStatus, "Focus Mode");
    updatePomoUI();
}

// Fetches real-time JSON weather data from OpenWeatherMap
void fetchWeather() {
  if (WiFi.status() == WL_CONNECTED) {
    HTTPClient http;
    String url = "http://api.openweathermap.org/data/2.5/weather?q=" + String(city) + "," + String(country) + "&units=metric&appid=" + String(apiKey);
    http.begin(url);
    int httpResponseCode = http.GET();
    if (httpResponseCode == 200) {
      String payload = http.getString();
      DynamicJsonDocument doc(1024);
      DeserializationError error = deserializeJson(doc, payload);
      if (!error) {
        float temp_val = doc["main"]["temp"];
        int hum_val = doc["main"]["humidity"];
        char temp_buf[16];
        sprintf(temp_buf, "%.1f °C", temp_val);
        temperature = String(temp_buf);
        humidity = String(hum_val) + " %";
        Serial.println("Weather Updated: " + temperature);
      }
    }
    http.end();
  }
}

// --- SYSTEM SETUP ---

void setup() {
  Serial.begin(115200);

  // Initialize Hardware
  board = new Board();
  board->init();
  assert(board->begin());
  lvgl_port_init(board->getLCD(), board->getTouch());
  lvgl_port_lock(-1);
  ui_init();

  // Dynamic Event Attachments
  lv_obj_add_event_cb(ui_Keyboard1, onKeyboardReady, LV_EVENT_READY, NULL);
  lv_obj_add_event_cb(ui_TextAreaTaskInput, textAreaFocusHandler, LV_EVENT_FOCUSED, NULL);
  lv_obj_add_event_cb(ui_TextAreaTaskInput, textAreaFocusHandler, LV_EVENT_CLICKED, NULL);
  lv_obj_add_flag(ui_ContainerTaskList, LV_OBJ_FLAG_CLICKABLE);
  lv_obj_add_event_cb(ui_ContainerTaskList, dismissKeyboardHandler, LV_EVENT_CLICKED, NULL);
  lv_obj_add_event_cb(lv_scr_act(), dismissKeyboardHandler, LV_EVENT_CLICKED, NULL);


  if (ui_SwitchWater) {
      lv_obj_add_state(ui_SwitchWater, LV_STATE_CHECKED);
      isWaterReminderEnabled = true;
  }
  if (ui_SliderBrightness) {
      lv_slider_set_range(ui_SliderBrightness, 10, 100);
      lv_slider_set_value(ui_SliderBrightness, 100, LV_ANIM_OFF);
      lv_obj_clear_flag(ui_SliderBrightness, LV_OBJ_FLAG_SCROLL_CHAIN);
      lv_obj_clear_flag(ui_SliderBrightness, LV_OBJ_FLAG_GESTURE_BUBBLE);
  }

  lv_task_handler();
  lvgl_port_unlock();

// Initialization: WiFi and Time
  WiFi.begin(ssid, password);
  Serial.print("Connecting");
  int retry = 0;
  while (WiFi.status() != WL_CONNECTED && retry < 10) {
      delay(400);
      Serial.print(".");
      retry++;
  }
  Serial.println("\nConnected!");

  configTime(gmtOffset_sec, daylightOffset_sec, "pool.ntp.org");

  fetchWeather();
  lastWeatherTime = millis();
  lastWaterAlertTime = millis();
}

// --- MAIN LOOP ---

void loop() {
  struct tm timeinfo;

  // Pomodoro Tick Logic
  if (pomoRunning && !pomoPaused) {
      if (millis() - lastPomoTick > 1000) {
          lastPomoTick = millis();
          if (timeLeft > 0) {
              timeLeft--;
              updatePomoUI();
          } else {
              if (!isBreakMode) {
                  isBreakMode = true;
                  totalTime = 300;
                  timeLeft = 300;
                  int r = random(0, 5);
                  lvgl_port_lock(-1);
                  lv_label_set_text(ui_LabelPomoStatus, breakMessages[r]);
                  lvgl_port_unlock();
              } else {
                  stopPomodoro(NULL);
                  lvgl_port_lock(-1);
                  lv_label_set_text(ui_LabelPomoStatus, "Break Over!");
                  lvgl_port_unlock();
              }
          }
      }
  }

  // Background Weather and Time Updation Every 15 Minutes
  if (millis() - lastWeatherTime > weatherInterval) {
    if (WiFi.status() == WL_CONNECTED) {
       configTime(gmtOffset_sec, daylightOffset_sec, "pool.ntp.org");
       fetchWeather();
    }
    lastWeatherTime = millis();
  }

  // Water Reminder Logic
  if (isWaterReminderEnabled) {
      if (millis() - lastWaterAlertTime > waterAlertInterval) {
          lvgl_port_lock(-1);
          if (lv_scr_act() != ui_HydrateScreen) {
              lv_scr_load_anim(ui_HydrateScreen, LV_SCR_LOAD_ANIM_FADE_ON, 500, 0, false);
          }
          lvgl_port_unlock();
          lastWaterAlertTime = millis();
      }
  }

  // Settings Screen UI Updates
  if (lv_scr_act() == ui_SettingScreen) {
      lvgl_port_lock(-1);
      updateSettingsScreenUI();
      lvgl_port_unlock();
  }

  // Update Time
  if (getLocalTime(&timeinfo)) {
    char buf_time[6], buf_ampm[3], buf_day[4], buf_date[12];
    strftime(buf_time, sizeof(buf_time), "%I:%M", &timeinfo);
    strftime(buf_ampm, sizeof(buf_ampm), "%p", &timeinfo);
    strftime(buf_day, sizeof(buf_day), "%a", &timeinfo);
    strftime(buf_date, sizeof(buf_date), "%d %b %Y", &timeinfo);

    lvgl_port_lock(-1);
    lv_label_set_text(ui_LabelTime, buf_time);
    lv_label_set_text(ui_LabelDay, buf_day);
    lv_label_set_text(ui_LabelAMPM, buf_ampm);
    lv_label_set_text(ui_LabelDate, buf_date);

    if (timeinfo.tm_mday != prevDay) {
        prevDay = timeinfo.tm_mday;
        lv_calendar_set_today_date(ui_Calendar1, timeinfo.tm_year + 1900, timeinfo.tm_mon + 1, timeinfo.tm_mday);
        lv_calendar_set_showed_date(ui_Calendar1, timeinfo.tm_year + 1900, timeinfo.tm_mon + 1);
    }

    lv_label_set_text(ui_LabelTemp, temperature.c_str());
    lv_label_set_text(ui_LabelHum, humidity.c_str());
    lvgl_port_unlock();
  }

  delay(200);
}

Desk32 Github Repository

Check this repository for detailled instructions

Credits

Ameya Angadi
12 projects • 10 followers
Robotics & IoT enthusiast sharing open-source DIY tech, Arduino, ESP32 & automation projects. Learn, build & innovate together!

Comments

Related channels and tags
  • Astronomy
  • Astronomy
  • Clocks
  • Clocks
  • Espressif
  • Internet of Things
  • Internet of Things
  • Productivity
  • Productivity
  • Weather
  • Weather
