Portable Hacking Station RPI Zero W (Like Watch Dogs)

Station to perform WiFi network audits, using Raspberry Pi Zero W and Raspberry Pi 3, with connection from the BT or mobile data cell phone.

AdvancedFull instructions provided2 hours3,238
Portable Hacking Station RPI Zero W (Like Watch Dogs)

Things used in this project

Hardware components

Raspberry Pi Zero Wireless
Raspberry Pi Zero Wireless
It is possible to use a Raspberry Pi 3.
×1
MicroSD Card
Min 8Gb
×1
HC-06 Bluetooth Module
Or Similars
×1
USB OTG Cable
×1
PCB Breadboard
×1
Female Header 20 Position 2 Row (0.1")
Female Header 20 Position 2 Row (0.1")
×1
USB-A to Micro-USB Cable
USB-A to Micro-USB Cable
×1
SparkFun USB to Serial Breakout - FT232RL
SparkFun USB to Serial Breakout - FT232RL
Any USB to Serial TTL. module or Arduino. How to use an Arduino as a USB to TTL converter || Arduino tutorial https://www.youtube.com/watch?v=qqSLwK1DP8Q (this is not my tutorial)
×1
Android device
Android device
Any Android.
×1
iPhone
Apple iPhone
Any iPhone.
×1
Power Bank 5V
It is preferable that it has a good performance of mAh, so that the raspberry works correctly. (At least 2000 mAh as a personal opinion) If using a Raspberry Pi 3, try using a power bank that can supply at least 2.5 A of output current, otherwise the raspberry will not turn on or off at any time.
×1
Any external network card
I use an AirLink101 (AWLL3028). (check if it is compatible with the Arimon-ng library of Aircrack-ng) https://www.aircrack-ng.org/doku.php?id=en:compatible_cards Note: Check compatibility of your network card so that it is able to enter monitor mode, if it is not possible you can not continue with the tutorial.
×1

Software apps and online services

Bluetooth Terminal (Android)
Mobile SSH (Android)
WebSSH (iPhone)
Putty
Etcher
Sd card formatter
Advanced IP Scanner
Angry IP Scanner

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Drill Taps
OpenBuilds Drill Taps
Metal Lime

Story

Read more

Schematics

Bluetooth

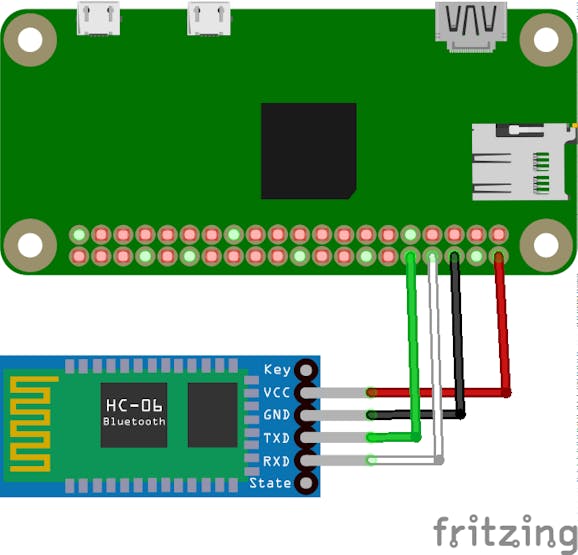

Hc-06 Connection Diagram

Code

Github

https://github.com/altaga/Portable-Hacking-Station-RPI
