In this project we will create a room-monitoring device using Microchip's AVR-IoT WG development board and Google Cloud. The AVR-IoT WG board is convenient because it has the capability of publishing data directly to Google Cloud/Firebase, simplifying the data collection process. Firebase also makes it easy to access the data through mobile and web applications.

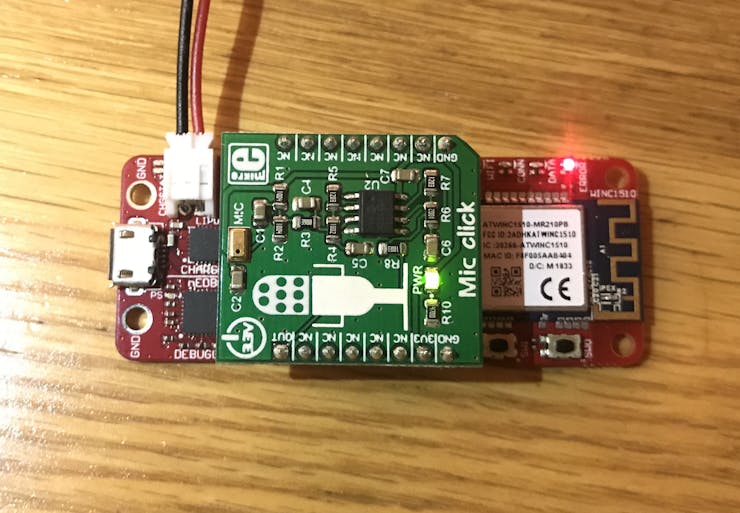

Step 1 - AssemblyCrafting the hardware for this project is super simple. All you need to do is solder female headers to the AVR-IoT board and insert the MikroElektronika Mic Click. Orientation is important; ensure that the text of both boards is oriented the same way.
You can also charge your lipoly battery through the board. Simply connect the lipoly through the JST connector, connect a USB cable to the board, and the lipoly will begin to charge.
Step 2 - Board SetupMicrochip published an excellent document detailing how you can go about getting your board up and running, which you can find here. Read this to get a better understanding of how the board works and how you can go about getting it connected to WiFi. I had trouble getting my board to connect, so here are some tips:
- If you can't get the board to connect by dragging and dropping the WiFi config file then try the Serial method shown in this video
- You may not be able to connect the board to large public networks, so try this at home first or with a mobile hotspot
- Sometimes the device will lose the provided WiFi credentials, so you may need to re-add the credentials to the board
Out of the box the board is capable of publishing data to a special sandbox in Google Cloud. In order to connect it to your own cloud project you need to do a few things in Google Cloud. The entire process is detailed in this document on GitHub. Setup can be a little tricky, so ensure that you closely follow all the instructions.

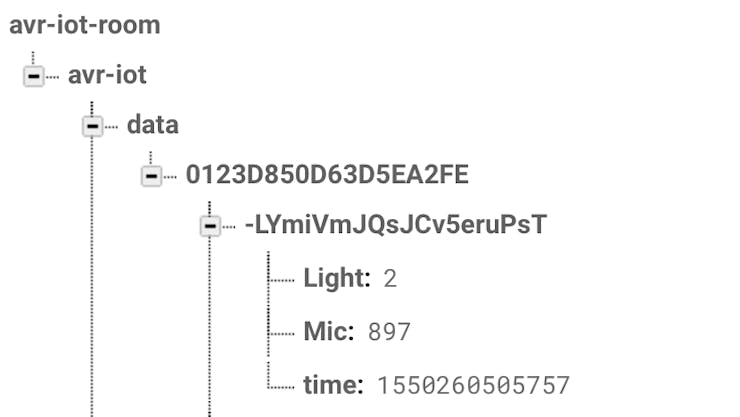

Firebase sensor entries
To actually see the data from your device you can go to Firebase and select "Database" in the project dashboard. This will bring up a folder structure where all of your sensor logs are stored.
Step 3 - ProgrammingIn order to modify the the source code for this project you'll need to be running Windows with Atmel Studio installed. The software ecosystem around this board is quite a bit more complicated than Arduino-compatible devices. If you're familiar with Arduino-style C++, however, you should have no trouble modifying this code to suit your needs.
If you just want to use my code you can find the.hex file in the attachments section. All that's required for programming is just dragging and dropping the file onto the drive that appears when you plug the device into your computer (this can be done on any operating system). You may need to re-enter the WiFi credentials
Modifying the code is a little more tricky, but still doable. You can view my instructions on how to go about doing this in this separate tutorial.

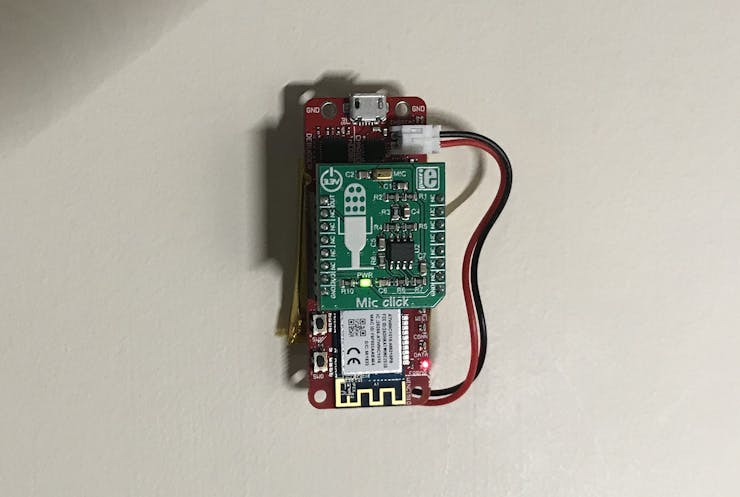

Step 4 - PlacementI decided to place my device in some common spaces around my dorm to monitor their usage. All I did to mount the entire thing was place some double-sided sticky tape on the back and stick it to the wall. I used the same tape to attach the battery to the back of the board.
If I get around to it I'm going to 3D-print a case that disguises the project a little bit, but it works fine without one. A 500mAH battery will power the project for a few hours. This is with a 1-second publishing interval; with sleep mode and less-frequent publishing this can be extended much further. For more long-term projects you can utilize a wall outlet to provide power.

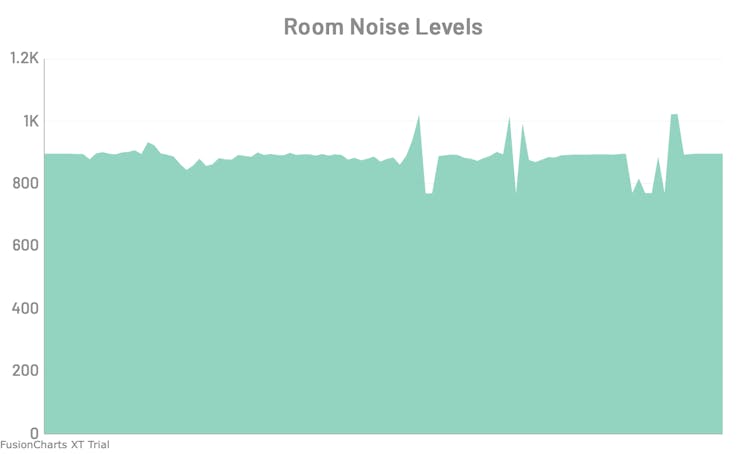

Step 5 - DisplaySince all your sensor packets are in Firebase it's very easy to access them from any platform. I constructed a simple web app that queries my Firebase database and plots the data on a chart. You can access the demo here: www.AlexWulff.com/files/avr-iot
I attached the code for the web application in the attachments section. You will need to modify your Firebase permission settings in order for this demo to work. Select the "Database" tab in Firebase, then navigate to the "Rules" sub-tab. Change the read permission to "true".
You will also need to modify the code with the ID of your device. The data displayed on my demo is static sample data. To modify this for your use case, change this line
var ref = firebase.database().ref("sample/-LYtJ7HLqsJAUut4j3PZ");
to the following:
var ref = firebase.database().ref("avr-iot/data/<DEVICE ID>");
Change <DEVICE ID> to the name of the folder shown in your database underneath the "data" subfolder.

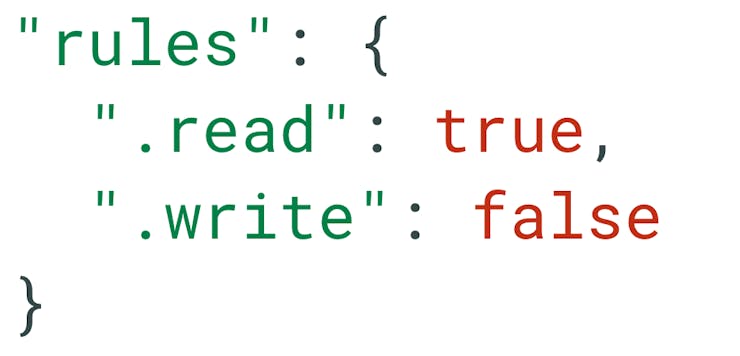

Lastly, you will need to modify the app.js file under assets/scripts. On the project overview page of your Firebase project click the "Add App" button at the top and select the </> icon. Copy the text inside of the two <script></script> tags and paste it into app.js. This allows your web app to properly connect with Firebase.
Step 6 - Going FurtherThis is just a small demo; through the power of Firebase you can easily extend this project to different platforms. Adding other hardware to your AVR-IoT development board is easy through as well! MikroElektronika has a ton of different Click boards on their website.
That's all! If you have any questions, don't hesitate to comment them below. To see more of my projects check out my website and my profile.
