Logic Gate Learning Kit Project

The Project

In this project you will learn how to build your own logic gate learning kit and learn all about the different logic gates.

NOT

A NOT gate is used to invert a signal. Below is a truth table and drawing of the logic gate.

AND

An AND gate is used to take 2 or more signals and only turn on the output when all the inputs are on. Below is a truth table and drawing of the logic gate.

OR

An OR gate is used to take 2 or more signals and only turn on the output when all 1 or all of the inputs are on. Below is a truth table and drawing of the logic gate.

NAND

An NAND gate is used to take 2 or more signals and only turn on the output when all the inputs are off. Below is a truth table and drawing of the logic gate.

NOR

An NOR gate is used to take 2 or more signals and only turn on the output when all of the inputs are off. Below is a truth table and drawing of the logic gate.

XOR

An XOR gate is used to take 2 or more signals and only turn on the output when 1 of the inputs are on only. Below is a truth table and drawing of the logic gate.

XNOR

An XNOR gate is used to take 2 or more signals and only turn on the output when all none are off only. Below is a truth table and drawing of the logic gate.

Learning kit

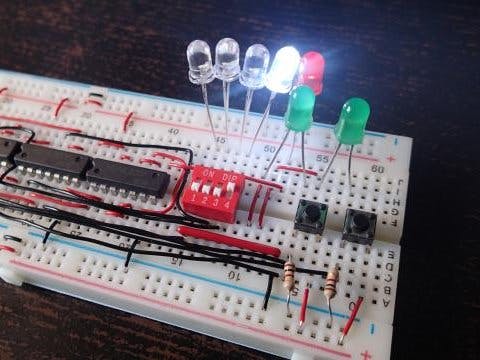

This learning kit will allow the user to learn how logic gates work hands on so great for beginners. The kit has all the logic gates on and allows the user to experiments with the different logic gates. Figure 1 is the schematic for the kit. (sorry the schematic is badly done)

Figure 2 is a picture of the PCB that can be manufactured at PCBWay. PCBWay is a cheap reliable service where you can get your PCBs manufactured. All the engineers are very helpful and will resolve any problems you may have quickly. Sign up today and get a $5 welcome bonus.

I have included all of the Gerber files that will allow you to get your own PCB manufactured. Once you have received your PCB you will need to solder all the parts into place.(you can use the silk screen on the PCB and the schematic to help you)
