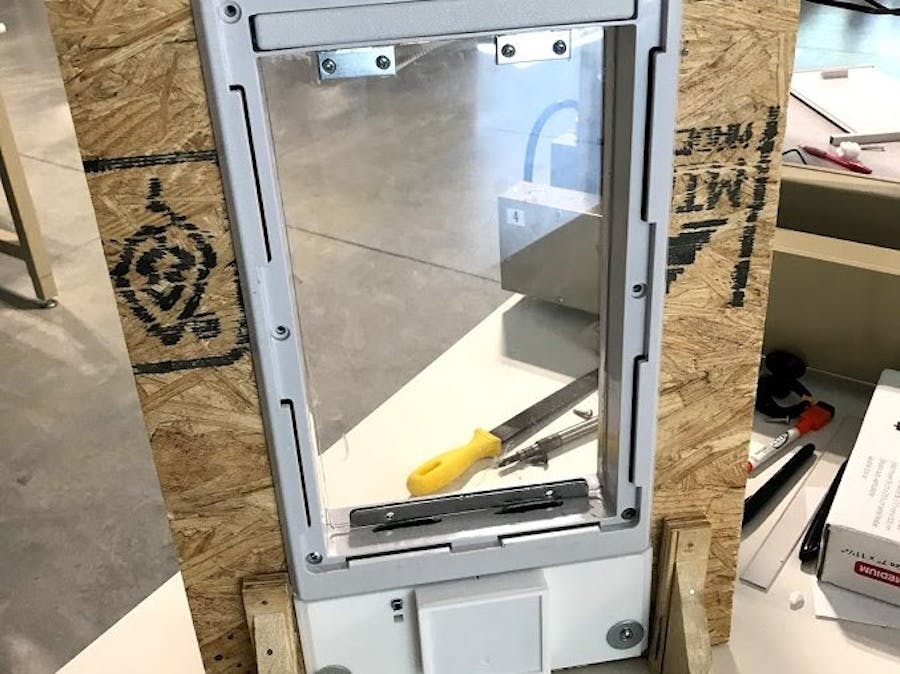

Based on Neil Kolban example for IDF: https://github.com/nkolban/esp32-snippets/blob/master/cpp_utils/tests/BLE%20Tests/SampleScan.cpp
Ported to Arduino ESP32 by Evandro Copercini
Adapted by Wilfredo Abudeye
*/
//Includes for beacon + app
#include <BLEDevice.h>
#include <BLEUtils.h>
//Includes only for BEACONSCAN
#include <BLEScan.h>
#include <BLEUUID.h>
#include <BLEAdvertisedDevice.h>
#include "BLEBeacon.h"
//Includes for only APP
#include <BLEServer.h>
#include <BLE2902.h>
//Includes for only RTC
#include <DS3231.h>
#include <Wire.h>
//Includes for External Wakeup
#define BUTTON_PIN_BITMASK 0x300000000
//define for BEACONSCAN
#define uS_TO_S_FACTOR 1000000 /* Conversion factor for micro seconds to seconds */
#define TIME_TO_SLEEP 1 /* Time ESP32 will go to sleep (in seconds) */
//define for APP
#define SERVICE_UUID "6E400001-B5A3-F393-E0A9-E50E24DCCA9E" // UART service UUID
#define CHARACTERISTIC_UUID_RX "6E400002-B5A3-F393-E0A9-E50E24DCCA9E"
#define CHARACTERISTIC_UUID_TX "6E400003-B5A3-F393-E0A9-E50E24DCCA9E"
//Variables for BEACONSCAN
//Blink data below
const int CUTOFF = 69; //dB of signal intensity
//Blink Data above
BLEScan* pBLEScan;
int scanTime = 2; //In seconds
int scanCounter = 0; //Count the amount of comparisons and scans done
uint16_t SCANS =10 ;
int loop1 = 0; //For delayed turnoff
//static BLEUUID aa;
std::string strServiceUUID = "0000fefd-0000-1000-8000-00805f9b34fb";
//Variables for APP
BLECharacteristic *pCharacteristic;
bool deviceConnected = false;
bool searchPhone = false;
float txValue = 0;
const int readPin = 0; // Use GPIO number. See ESP32 board pinouts
const int LED = 25; // Could be different depending on the dev board. I used the DOIT ESP32 dev board.
uint16_t button; //Temporal variable to be replaced by the button readings
uint16_t button_sleep; //Temporal variable to be replaced by the button readings
RTC_DATA_ATTR uint16_t flag = 0;//To count the amount of times that the APP setup is performed
std::string rxValue; // Could also make this a global var to access it in loop()
int APP_connected_once = 0;
int minutes_waiting_app_response = 2;
//Variables for RTC
DS3231 Clock;
byte Year;
byte Month;
byte Date;
byte DoW;
byte Hour;
byte Minute;
byte Second;
bool h12;
bool PM;
//Variables for External Wakeup
RTC_DATA_ATTR int bootCount = 0;
RTC_DATA_ATTR byte Hour_Wake;
RTC_DATA_ATTR byte Minute_Wake;
RTC_DATA_ATTR byte Second_Wake;
RTC_DATA_ATTR byte Hour_Sleep;
RTC_DATA_ATTR byte Minute_Sleep;
RTC_DATA_ATTR byte Second_Sleep;
//Class MyServerCallbacks for APP
class MyServerCallbacks: public BLEServerCallbacks {
void onConnect(BLEServer* pServer) {
deviceConnected = true;
};
void onDisconnect(BLEServer* pServer) {
deviceConnected = false;
}
};
//Class MyCallbacks for APP
class MyCallbacks: public BLECharacteristicCallbacks {
void onWrite(BLECharacteristic *pCharacteristic) {
rxValue = pCharacteristic->getValue();
if (rxValue.length() > 0) {
Serial.println("*********");
Serial.print("Received Value: ");
for (int i = 0; i < rxValue.length(); i++) {
Serial.print(rxValue[i]);
}
Serial.println();
// Do stuff based on the command received from the app
if (rxValue.find("A") != -1) {
Serial.print("Turning ON!");
digitalWrite(LED, HIGH);
}
else if (rxValue.find("B") != -1) {
Serial.print("Turning OFF!");
digitalWrite(LED, LOW);
}
else if (rxValue.find("x") != -1)
{//System time has been found
Serial.print("Found the x -- Found the date");
GetDateStuff(Year, Month, Date, DoW, Hour, Minute, Second,rxValue); //Discover System time to information
set_Date();//Will set date and time to RTC
}
else if (rxValue.find("TON") != -1)
{//System time has been found
Serial.print("Found the TON -- Time to wake up\n");
GetTimeStuffAlarms(Hour_Wake, Minute_Wake, Second_Wake, rxValue);
}
else if (rxValue.find("TOFF") != -1)
{//System time has been found
Serial.print("Found the TOFF -- Time to SLEEP\n");
GetTimeStuffAlarms(Hour_Sleep, Minute_Sleep, Second_Sleep, rxValue) ;
set_Alarm1(Hour_Sleep, Minute_Sleep, Second_Sleep );//Sleep 2 minutes
}
Serial.println();
Serial.println("*********");
}
}
};
//Class MyAdvertisedDeviceCallbacks for BEACONSCAN
class MyAdvertisedDeviceCallbacks: public BLEAdvertisedDeviceCallbacks
{
void onResult(BLEAdvertisedDevice advertisedDevice)
{
scanCounter++;
int int_device_RSSI = advertisedDevice.getRSSI();
if(abs(int_device_RSSI)<CUTOFF)
{
Serial.printf("\nA BLE device signal strength is close enough");
if(advertisedDevice.haveServiceUUID()&&(advertisedDevice.getServiceUUID().toString()==strServiceUUID))
{
Serial.printf("\nYou have found the Doggomatic Collar Tag");
//ADD THIRD LAYER for manufacturer number if not changing with time
Serial.printf("\nThe RSSI of this device is:%d****\n", int_device_RSSI);
Serial.printf(" Advertised Device: %s \n\n", advertisedDevice.toString().c_str());
digitalWrite(LED, HIGH);
loop1=0;
}
}
else if(scanCounter==SCANS)
{
Serial.printf("Device not found anywhere, waiting...");
loop1++;
if((loop1>1) && digitalRead(LED)==HIGH)
{
digitalWrite(LED, LOW);
Serial.printf("Device not found, Turn OFF");
loop1=0;
}
}
Serial.printf("*");
// else
// {
// Serial.printf("Device not close enough, scan #: %d\n", scanCounter);
// }
}
};
void SCAN_TAG()
{
BLEScanResults foundDevices = pBLEScan->start(scanTime);
SCANS=foundDevices.getCount();
//digitalWrite(PIN, LOW);
scanCounter = 0;
Serial.printf("\nScan done! Devices found: %d\n",foundDevices.getCount());
//Code for deep sleep
if(digitalRead(LED)==LOW)
{
//delay(50);
esp_sleep_enable_timer_wakeup(TIME_TO_SLEEP * uS_TO_S_FACTOR);
//esp_deep_sleep_start();//Activate after presentation
Serial.println("Here is where deep sleep will be");
}
else
{
delay(700);
}
esp_sleep_enable_timer_wakeup(TIME_TO_SLEEP * uS_TO_S_FACTOR);
}
void SCAN_APP()
{
delay (1000);
if (deviceConnected)
{
APP_connected_once = 1; // Rise flag to show one connection has been at least established.
// Fabricate some arbitrary junk for now...
txValue = analogRead(readPin) / 3.456; // This could be an actual sensor reading!
// Let's convert the value to a char array:
char txString[8]; // make sure this is big enuffz
dtostrf(txValue, 1, 2, txString); // float_val, min_width, digits_after_decimal, char_buffer
// pCharacteristic->setValue(&txValue, 1); // To send the integer value
// pCharacteristic->setValue("Hello!"); // Sending a test message
pCharacteristic->setValue(txString);
pCharacteristic->notify(); // Send the value to the app!
Serial.print("*** Sent Value: ");
Serial.print(txString);
Serial.println(" ***");
// You can add the rxValue checks down here instead
// if you set "rxValue" as a global var at the top!
// Note you will have to delete "std::string" declaration
// of "rxValue" in the callback function.
if (rxValue.find("A") != -1) {
Serial.println("Turning ON!");
digitalWrite(LED, HIGH);
}
else if (rxValue.find("B") != -1)
{
Serial.println("Turning OFF!");
digitalWrite(LED, LOW);
}
Clock.checkIfAlarm(2);//To clear the byte
}
else if ((!deviceConnected)&&(APP_connected_once==1))
{
APP_connected_once=0; //lower flag for future connections
//flag =0; //Reset flag to go back
searchPhone=false;//Change a value to stop looking for the phone on main loop.
button=0;//Temporal code while button is being placed
Serial.println("PHONE HAS DISCONNECTED, searching for Dog Collar");
Clock.checkIfAlarm(2);//To clear the byte
//we can reuse alarm1 to new value of when the dog tag should wake up or go back to sleep
}
else if ((!deviceConnected)&&(Clock.checkIfAlarm(2)))//The two represents the minutes to wait
{
//flag =0;
searchPhone=false;//Change a value to stop looking for the phone on main loop.
button=0;//Temporal code while button is being placed
Serial.println("No Phone connection established, searching for Dog Collar");
}
delay(1000);
}
void SCAN_APP_SETUP()
{
//Serial.begin(115200);
pinMode(LED, OUTPUT);
// Create the BLE Device
BLEDevice::init("ESP32 UART Test"); // Give it a name
// Create the BLE Server
BLEServer *pServer = BLEDevice::createServer();
pServer->setCallbacks(new MyServerCallbacks());
// Create the BLE Service
BLEService *pService = pServer->createService(SERVICE_UUID);
// Create a BLE Characteristic
pCharacteristic = pService->createCharacteristic(
CHARACTERISTIC_UUID_TX,
BLECharacteristic::PROPERTY_NOTIFY
);
pCharacteristic->addDescriptor(new BLE2902());
BLECharacteristic *pCharacteristic = pService->createCharacteristic(
CHARACTERISTIC_UUID_RX,
BLECharacteristic::PROPERTY_WRITE
);
pCharacteristic->setCallbacks(new MyCallbacks());
// Start the service
pService->start();
// Start advertising
pServer->getAdvertising()->start();
Serial.println("Waiting a client connection to notify (Connecting to Mobile Application)...");
Clock.checkIfAlarm(2);//To clear the byte
set_Alarm2(1);//Wait one minutes, if no connection found then search for dog tag ++ CODE TO COUNT
}
void GetTimeStuffAlarms(byte& Hour, byte& Minute, byte& Second, std::string rxValue)
{
// Call this if you notice something coming in on
// the serial port. The stuff coming in should be in
// the order YYMMDDwHHMMSS, with an 'x' at the end.
boolean GotString = false;
char InChar;
byte Temp1, Temp2;
char InString[20];
byte j=0;
// now Hour
Temp1 = (byte)rxValue[0] -48;
Temp2 = (byte)rxValue[1] -48;
Hour = Temp1*10 + Temp2;
Serial.println(Hour);
// now Minute
Temp1 = (byte)rxValue[3] -48;
Temp2 = (byte)rxValue[4] -48;
Minute = Temp1*10 + Temp2;
Serial.println(Minute);
// now Second
Temp1 = (byte)rxValue[6] -48;
Temp2 = (byte)rxValue[7] -48;
Second = Temp1*10 + Temp2;
Serial.println(Second);
}
//Void for RTC GET DATE
void GetDateStuff(byte& Year, byte& Month, byte& Day, byte& DoW,
byte& Hour, byte& Minute, byte& Second, std::string rxValue) {
// Call this if you notice something coming in on
// the serial port. The stuff coming in should be in
// the order YYMMDDwHHMMSS, with an 'x' at the end.
//*******MAY NEED TO ERAESE SOME VARIABLES ON CLEANUP
boolean GotString = false;
char InChar;
byte Temp1, Temp2;
char InString[20];
byte j=0;
// Read Year first
Temp1 = (byte)rxValue[0] -48;
Temp2 = (byte)rxValue[1] -48;
Year = Temp1*10 + Temp2;
Serial.println(Year);
// now month
Temp1 = (byte)rxValue[2] -48;
Temp2 = (byte)rxValue[3] -48;
Month = Temp1*10 + Temp2;
Serial.println(Month);
// now date
Temp1 = (byte)rxValue[4] -48;
Temp2 = (byte)rxValue[5] -48;
Day = Temp1*10 + Temp2;
Serial.println(Day);
// now Day of Week
DoW = (byte)rxValue[6] - 48;
// now Hour
Temp1 = (byte)rxValue[7] -48;
Temp2 = (byte)rxValue[8] -48;
Hour = Temp1*10 + Temp2;
Serial.println(Hour);
// now Minute
Temp1 = (byte)rxValue[9] -48;
Temp2 = (byte)rxValue[10] -48;
Minute = Temp1*10 + Temp2;
Serial.println(Minute);
// now Second
Temp1 = (byte)rxValue[11] -48;
Temp2 = (byte)rxValue[12] -48;
Second = Temp1*10 + Temp2;
Serial.println(Second);
}
void set_Date()
{
//GetDateStuff(Year, Month, Date, DoW, Hour, Minute, Second, rxValue);//Already done in line checkup
Clock.setClockMode(false); // set to 24h
//setClockMode(true); // set to 12h
Clock.setYear(Year);
Clock.setMonth(Month);
Clock.setDate(Date);
Clock.setDoW(DoW);
Clock.setHour(Hour);
Clock.setMinute(Minute);
Clock.setSecond(Second);
}
void set_Alarm1(byte Hour_Temp, byte Minute_Temp, byte Second_Temp )
//"a" represents the amount of minutes to wait before ending connection and look for collar tag
{//This will give the user 2 minutes in which the phone will be scanned
// set A2 to two minutes past, on current day of month.
Clock.setA1Time(Clock.getDoW(), Hour_Temp, Minute_Temp, Second_Temp, 0x0, true,
false, false);
Serial.println("Alarm 1 has been set! It will also turn on");
// Turn on alarms, with external interrupt
Clock.turnOnAlarm(1); //SQW on DS3231 will provide the queue
}
void set_Alarm2(int minutes_to_wait)//"a" represents the amount of minutes to wait before ending connection and look for collar tag
{//This will give the user 2 minutes in which the phone will be scanned
// set A2 to two minutes past, on current day of month.
Clock.setA2Time(Clock.getDate(), Clock.getHour(h12,PM), Clock.getMinute()+minutes_to_wait, 0x0, false,
false, false);
Serial.println("Alarm 2 has been set! It will not turn on");
// Turn on alarms, with external interrupt
//Clock.turnOnAlarm(2); //SQW on DS3231 will provide the queue NOT NECESSARY
}
void Check_Alarms()
{
if (Clock.checkIfAlarm(1)) //This alarm will give the indication to go back to sleep
{
Serial.println(" A1! WE are setting alarm to wake up---Inside Check Alarms");
Serial.println(digitalRead(4));
set_wake_and_sleep();
}
}
void set_wake_and_sleep(){
set_Alarm1(Hour_Wake, Minute_Wake, Second_Wake);//Sleep 2 minutes //This is a wakeup alarm
//Set new value for the alarm to know when to wake up
if(digitalRead(32))
{
esp_sleep_enable_ext0_wakeup(GPIO_NUM_4,0); //1 = High, 0 = Low
Serial.println(" Found 1, wake on 0---Inside Check Alarms");
}
else if(digitalRead(32)==0)
{
esp_sleep_enable_ext0_wakeup(GPIO_NUM_4,1); //1 = High, 0 = Low
Serial.println(" Found 0, wake on 1---Inside Check Alarms");
}
delay(3000);
esp_deep_sleep_start();//Puasing momentarily
}
void print_wakeup_reason(){
esp_sleep_wakeup_cause_t wakeup_reason;
wakeup_reason = esp_sleep_get_wakeup_cause();
switch(wakeup_reason)
{
case ESP_SLEEP_WAKEUP_EXT0 : Serial.println("Wakeup caused by external signal using RTC_IO"); break;
case ESP_SLEEP_WAKEUP_EXT1 : Serial.println("Wakeup caused by external signal using RTC_CNTL"); break;
case ESP_SLEEP_WAKEUP_TIMER : Serial.println("Wakeup caused by timer"); break;
case ESP_SLEEP_WAKEUP_TOUCHPAD : Serial.println("Wakeup caused by touchpad"); break;
case ESP_SLEEP_WAKEUP_ULP : Serial.println("Wakeup caused by ULP program"); break;
default : Serial.printf("Wakeup was not caused by deep sleep: %d\n",wakeup_reason); break;
}
}
void setup()
{
Serial.begin(115200);
Serial.println("Scanning...");
delay(500);
pinMode(LED, OUTPUT);
// Create the BLE Device for APP
BLEDevice::init("ESP32 UART Test"); // Give it a name
pBLEScan = BLEDevice::getScan(); //create new scan
pBLEScan->setAdvertisedDeviceCallbacks(new MyAdvertisedDeviceCallbacks());
pBLEScan->setActiveScan(true); //active scan uses more power, but get results faster
//Now the code is set to allow deep sleep and time set to the Alarms
if(esp_sleep_get_wakeup_cause()==ESP_SLEEP_WAKEUP_EXT0)//CHECK WHICH ONE IS CAUSED BY ALARM
{
Serial.println(" A1! We are setting time to sleep--Inside Setup");
Clock.checkIfAlarm(1);//Clear Flag
if((Clock.getHour(h12,PM)<= Hour_Wake)&&(Clock.getMinute()< Minute_Wake))
{//Check what to do if the deep sleep is interrupted by button in the middle of the sleep to connect to phone and then the connection ends,
Serial.println(" I was not supposed to wake up yet, I am going back to sleep in 5 minutes until it is time to wake up");
set_Alarm1(Clock.getHour(h12,PM), Clock.getMinute()+5, Clock.getSecond());
}
else
{//It was time to wake up, the time to go back to sleep has been set.
Serial.println(" /It was time to wake up, the time to go back to sleep has been set.---Inside setup");
set_Alarm1(Hour_Sleep, Minute_Sleep, Second_Sleep);//Sleep 2 minutes //This is a wakeup alarm
}
}
//Set Deep sleep (INTERRUPT) wakeup from pushbuttons
esp_sleep_enable_ext1_wakeup(BUTTON_PIN_BITMASK,ESP_EXT1_WAKEUP_ANY_HIGH);
//Declarations for the buttons (with double functionality as external wakeups
pinMode(34, INPUT);
pinMode(32, INPUT);
pinMode(4, INPUT);//To synchronize PHone Application
pinMode(33, INPUT);//To synchronize PHone Application
//Set the RTC
Wire.begin();
}
void loop()
{
Check_Alarms();
Serial.println(digitalRead(4));
button = digitalRead(32);
button_sleep = digitalRead(34);
if(button_sleep) //Button is pressed
{
set_wake_and_sleep();
}
if(button==1||searchPhone) //Button is pressed
{
searchPhone=true;
if(flag == 0)//Make sure to setup only once // Make flag=0 both after timer no connection and connection done.
{
SCAN_APP_SETUP();
flag++;
//Make sure to flag=0 after the clock sets alarm after 2 minutes of pressing the button or after the connection with BLE is lost.
}
SCAN_APP();
}
else if((button==0)&&(!searchPhone)) //Button Not pressed
{
SCAN_TAG();
}
}
Comments
