Hello Everyone.
Today I will introduce you one new and elegant product called Hubor case.
Let's see how to assemble the Hubor Modular Raspberry pi case product.
Product Features:* Compatible with Raspberry pi model B+/2B/3B/3B+
* Side cover to prevent dust or GPIO short circuit
* LED Membrane switch - 5 LEDs and 3 Buttons
* Magnetic connector to connect expansion module

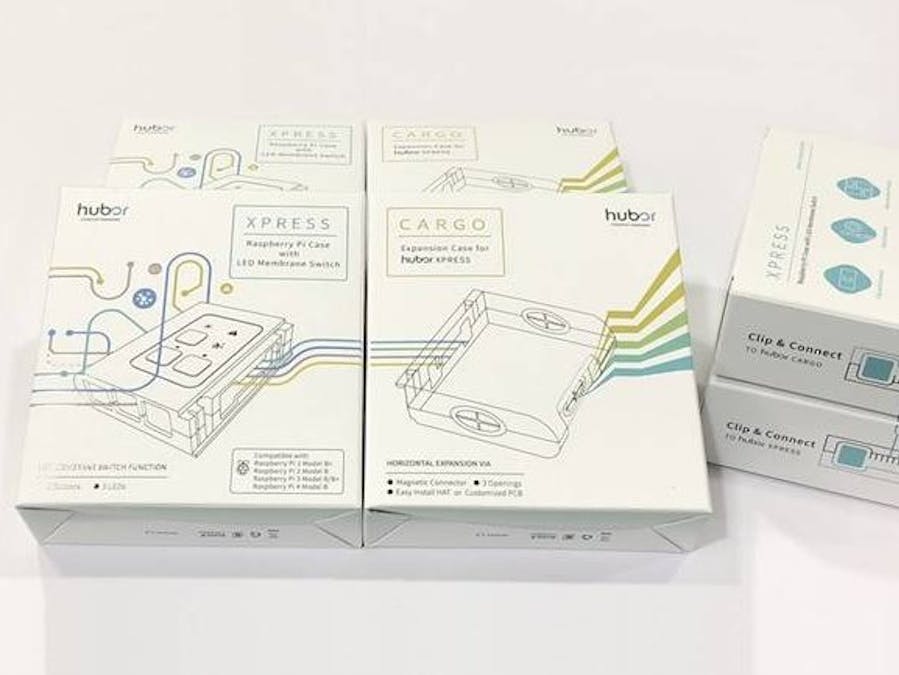

Step 1: Open up your Hubor (XPRESS – CASE – 4Bx) and Separate all the Components.
Step 2: Take your 1x LED Membrane Switch and remove the sticker and Fix it to your 1x Glass Cover Perfectly.
Step 3: Take 1x Letter Plate to remove the sticker and Paste it Perfectly to your 1x Glass Cover.
Step 4: After Fix it Means Take down your 1x Glass Cover.
Step 5: Take your Magnetic Connector
Step 6: Fix that Magnetic Connector in Black Base Cover and Take 3x M1.7*4 Self-Tapping TP3 Phillip Head Screws for the Magnetic Connector.
Step 7: Take Your Raspberry Pi 4B Model.
Step 8: Fix your Raspberry Pi 4B in your 1x Black Base Cover.
Step 9: Press that 1x Magnetic Connector strip to Raspberry Pi GPIO Pins
Step 10: Take 1x Glass Cover and Press the 1x LED Membrane Switch to GPIO Pins on your Raspberry Pi.
Step 11: Then Fix 1x Side Cover Perfectly to your Case.
Step 13: Then Take 4x M2.6*8 Self-Tapping Screws and Rotate Tightly to Bottom Cover and Fix your 4x Magnets in Bottom Cover.
Step 14: Then Final Assembly will be Completed Successfully.
High quality Raspberry Pi case let your project be more professional, convenient and attractive!
It is easy to use. Highly portable and reliable product.
Thanks for reading.
