Leesounghoongledel
Published

Arduino (FabLab)

I learned arduino at school how to use analogWrite code and disitalWrite code to control the LED

BeginnerProtip15 minutes760
Arduino (FabLab)

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
LilyPad LED Blue (5pcs)
SparkFun LilyPad LED Blue (5pcs)
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

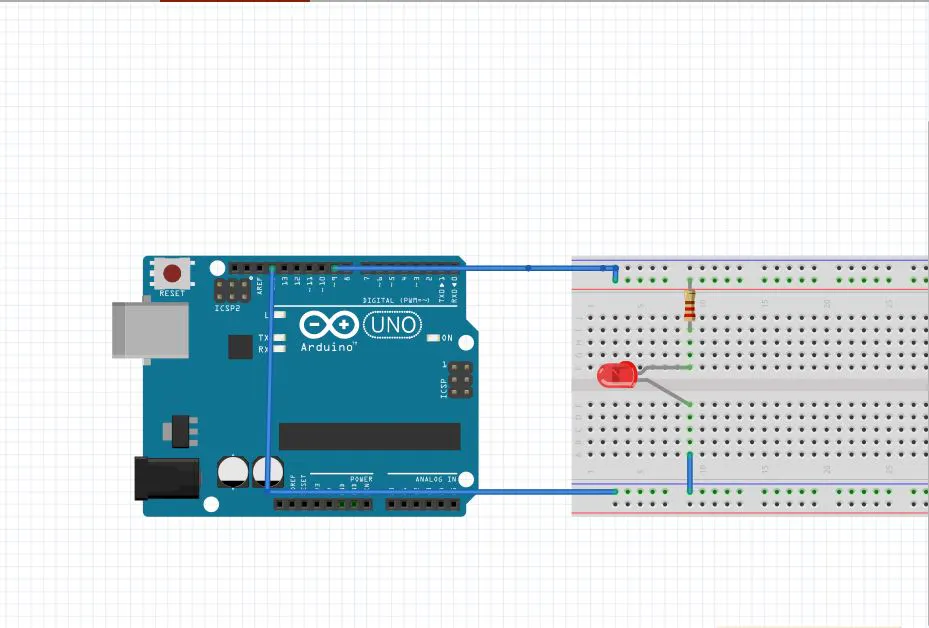

Schematic

It is a circuit that is executed by arduino code

Code

control LED

Arduino
It was turn on LED and It is controlling to Brightness of LED
int i = 9;
void setup(){
pinMode(9, OUTPUT);

}
void loop() {

 analogWrite(i, 10);
delay(100);
analogWrite(i, 20);
delay(100);
analogWrite(i, 30);
delay(100);
analogWrite(i, 40);
delay(100);
analogWrite(i, 60);
delay(100);
analogWrite(i, 60);
delay(100);
analogWrite(i, 70);
delay(100);
analogWrite(i, 80);
delay(100);
analogWrite(i, 90);
delay(100);
 analogWrite(i, 100);
 delay(100);
analogWrite(i, 90);
delay(100);
analogWrite(i, 80);
delay(100);
analogWrite(i, 70);
delay(100);
analogWrite(i, 60);
delay(100);
analogWrite(i, 50);
delay(100);
analogWrite(i, 40);
delay(100);
analogWrite(i, 30);
delay(100);
analogWrite(i, 20);
delay(100);
 }
