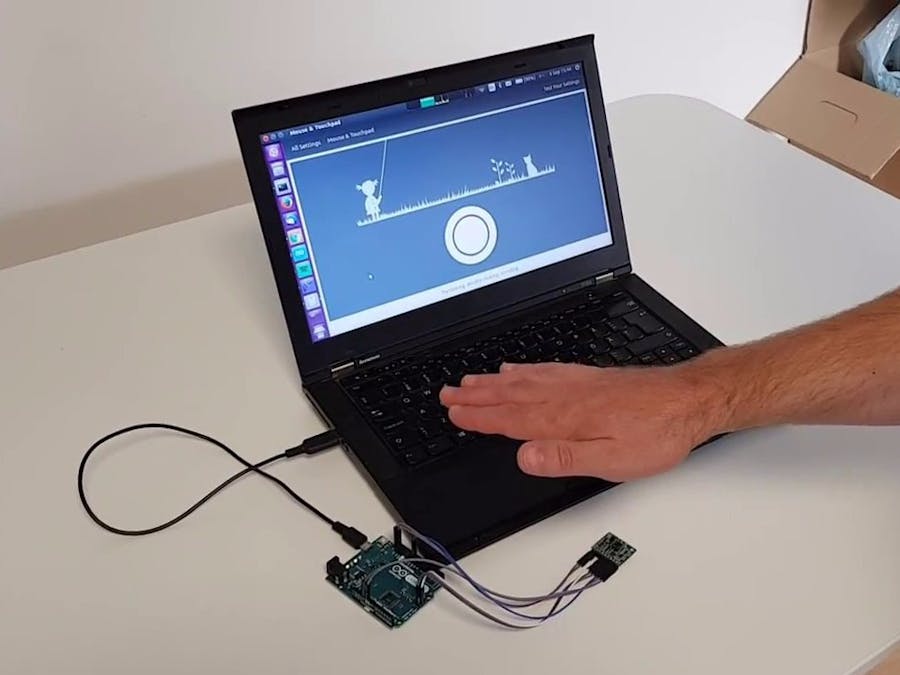

Touchless Mouse

Using an optical flow sensor to turn gestures in the air into mouse movements.

EasyFull instructions provided30 minutes4,390
Touchless Mouse

Things used in this project

Story

Read more

Schematics

Touchless mouse schematic

Touchfree mouse schematic i3c2fomggq

Code

Touchless mouse

Arduino
Works on Arduino that has USB device capabilitie. Tested on Arduino Leonardo.
#include "Bitcraze_PMW3901.h"
#include <Wire.h>
#include <VL53L0X.h>
#include <Mouse.h>

VL53L0X rangeSensor;

// Using digital pin 10 for chip select
Bitcraze_PMW3901 flow(10);

void setup() {
 Serial.begin(9600);
 // Initialize flow sensor
 if (!flow.begin()) {
   Serial.println("Initialization of the flow sensor failed");
   while(1) { }
 }
 // Initialize range sensor
 Wire.begin();
 rangeSensor.init();
 rangeSensor.setTimeout(500);
 // Initialize Mouse
 Mouse.begin();
}

int16_t deltaX,deltaY;

void loop() {
 // Get motion count since last call
 flow.readMotionCount(&deltaX, &deltaY);
 // Get single range measurement
 float range = rangeSensor.readRangeSingleMillimeters();

 // Send motion as mouse movement when the hand is between 80 and 200mm
 if (range < 200 && range > 80) {
   Mouse.move(deltaX, -deltaY, 0);
 }

 // Press the left mouse button when the hand is bellow 50mm
 if (range < 50) {
   Mouse.press();
 } else {
   Mouse.release();
 }
}
