Innovation Lab #11: PIR Motion Sensor with LED

A Bongilcheon High School Innovation Lab project.

BeginnerShowcase (no instructions)10 minutes21,349

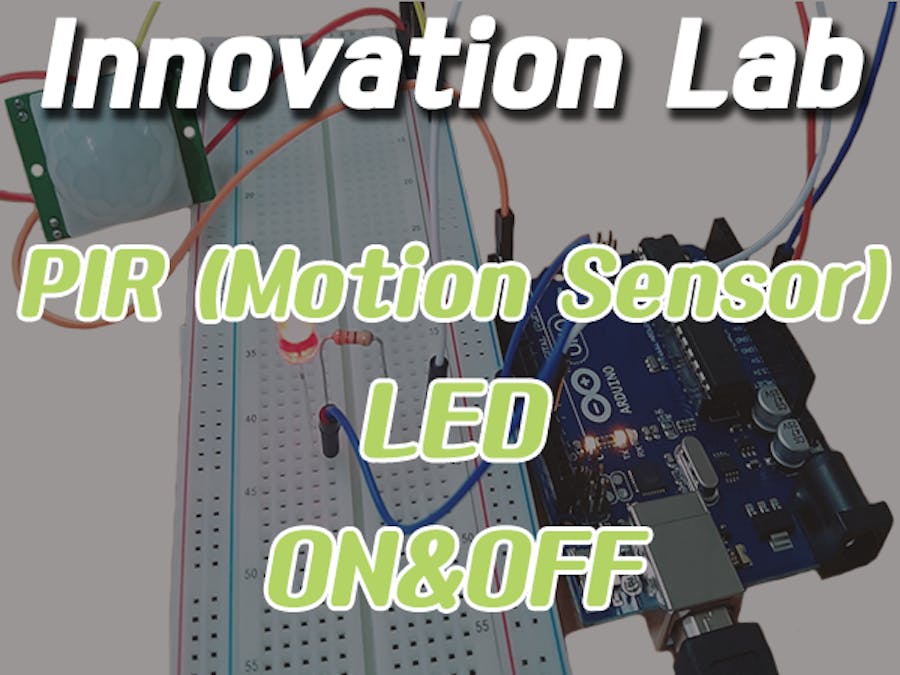

Innovation Lab #11: PIR Motion Sensor with LED

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Breadboard (generic)
Breadboard (generic)
×1
Arduino PIR Module
×1
LED (generic)
LED (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

PIR (Motion Sensor)

PIR (Motion Sensor)

Code

PIR (Motion Sensor)

Arduino
PIR (Motion Sensor) LED turn on or turn off.
int led = 13;
int sensor = 2;

void setup() {
  pinMode(led, OUTPUT);
  pinMode(sensor, INPUT);
  Serial.begin(9600);
}

void loop() {
  int sensorval = digitalRead(sensor);
  Serial.println(sensorval);

  if (sensorval == HIGH) {
    digitalWrite(led, HIGH);
  }
  else {
    digitalWrite(led, LOW);
  }
}
