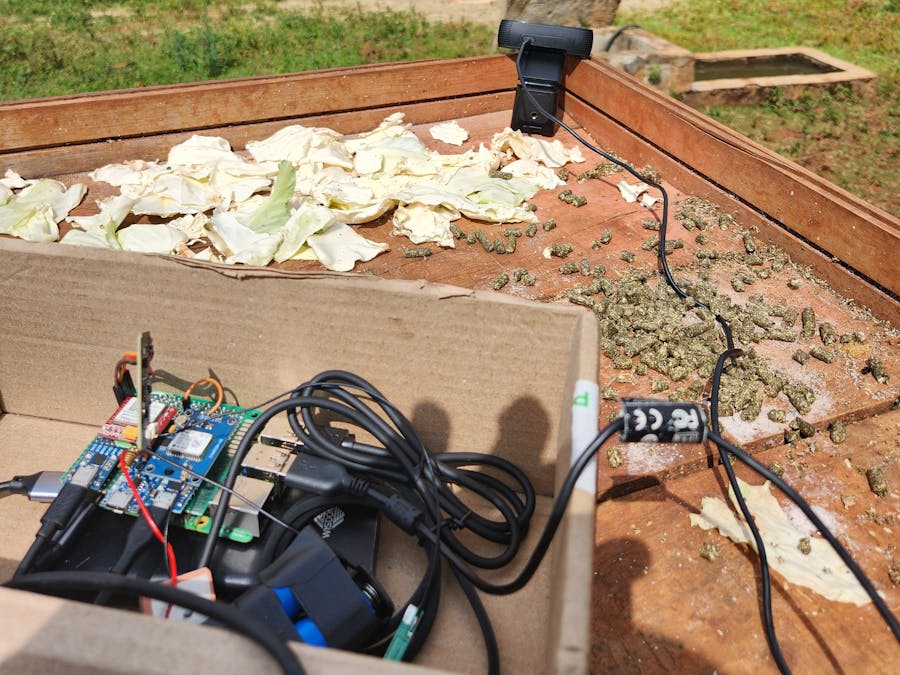

Virtual Fencing for Mitigating Human Wildlife Conflict

#!/usr/bin/env python3

import serial
import time
import math
import pynmea2
import cv2
import threading
import glob
from ultralytics import YOLO
from datetime import datetime

# -------------------------------------------------
# CONFIGURATION
# -------------------------------------------------
RADAR_PORT = "/dev/ttyAMA0"
RADAR_BAUDRATE = 256000

GPS_port="/dev/ttyUSB1"
GPS_BAUDRATE = 9600

GSM_PORT = "/dev/ttyUSB0"
GSM_BAUDRATE = 9600

PHONE = "+254745524878"
SMS_COOLDOWN = 15
DETECTION_RANGE_MM = 8000

YOLO_MODEL_PATH = "best.pt"
FRAME_SKIP = 2

# -------------------------------------------------
# AUTO GPS PORT DETECTION
# -------------------------------------------------
def find_gps_port():
    ports = glob.glob("/dev/ttyUSB*")
    return ports[0] if ports else None

GPS_PORT = find_gps_port()
if not GPS_PORT:
    print(" No GPS USB device found!")
else:
    print(f" GPS detected on {GPS_PORT}")

# -------------------------------------------------
# GPS LOCKING THREAD
# -------------------------------------------------
class GPSReader(threading.Thread):
    def __init__(self):
        super().__init__(daemon=True)

        self.latitude = None
        self.longitude = None
        self.fix_acquired = False

        self.lock = threading.Lock()

        try:
            self.ser = serial.Serial(GPS_PORT, GPS_BAUDRATE, timeout=1)
            print(f" GPS connected ({GPS_PORT})")
        except Exception as e:
            print(f" GPS error: {e}")
            self.ser = None

        self.start()

    def run(self):
        while True:
            if not self.ser:
                time.sleep(1)
                continue

            try:
                line = self.ser.readline().decode("ascii", errors="ignore").strip()
                if not line.startswith(("$GPGGA", "$GPRMC")):
                    continue

                msg = pynmea2.parse(line)

                if msg.latitude and msg.longitude:
                    with self.lock:
                        self.latitude = msg.latitude
                        self.longitude = msg.longitude
                        self.fix_acquired = True

            except Exception:
                pass

            time.sleep(0.1)

    def get_coords(self):
        with self.lock:
            if self.fix_acquired:
                return f"{self.latitude:.6f}, {self.longitude:.6f}"
            return "GPS NO FIX"


# -------------------------------------------------
# RD03D RADAR
# -------------------------------------------------
class Target:
    def __init__(self, x, y):
        self.distance = math.sqrt(x**2 + y**2)

class RD03D:
    MULTI_TARGET_CMD = bytes([0xFD,0xFC,0xFB,0xFA,0x02,0x00,0x90,0x00,0x04,0x03,0x02,0x01])

    def __init__(self):
        try:
            self.ser = serial.Serial(RADAR_PORT, RADAR_BAUDRATE, timeout=0.1)
            self.buffer = b""
            self.targets = []
            time.sleep(3)
            self.ser.write(self.MULTI_TARGET_CMD)
            self.ser.flush()
            print(" Radar Initialized")
        except Exception as e:
            print(f" Radar Error: {e}")

    def update(self):
        if self.ser.in_waiting > 100:
            self.ser.reset_input_buffer()
            self.buffer = b""

        if self.ser.in_waiting:
            self.buffer += self.ser.read(self.ser.in_waiting)

        if len(self.buffer) > 400:
            self.buffer = self.buffer[-200:]

        start = self.buffer.rfind(b'\xAA\xFF')
        if start != -1 and len(self.buffer) >= start + 30:
            frame = self.buffer[start:start+30]
            if frame[-2:] == b'\x55\xCC':
                x = int.from_bytes(frame[5:7], "little", signed=True)
                y = int.from_bytes(frame[7:9], "little", signed=True)
                self.targets = [Target(x, y)]
                self.buffer = b""
                return True
        return False

    def get_target(self):
        return self.targets[0] if self.targets else None

# -------------------------------------------------
# SIM800L SMS
# -------------------------------------------------
def send_sms(text):
    try:
        ser = serial.Serial(GSM_PORT, GSM_BAUDRATE, timeout=1)
        ser.write(b"AT\r\n")
        time.sleep(0.3)
        ser.write(b"AT+CMGF=1\r\n")
        time.sleep(0.3)
        ser.write(f'AT+CMGS="{PHONE}"\r\n'.encode())
        time.sleep(0.3)
        ser.write((text + "\r\n").encode())
        ser.write(bytes([26]))
        time.sleep(3)
        ser.close()
        return True
    except Exception:
        return False

# -------------------------------------------------
# MAIN
# -------------------------------------------------
def main():
    print("[SYSTEM] Booting...")
    gps = GPSReader()
    radar = RD03D()

    cam = None
    for i in [0, 1]:
        c = cv2.VideoCapture(i)
        if c.isOpened():
            cam = c
            print(f" Camera found on index {i}")
            break

    print("[SYSTEM] Loading YOLO...")
    model = YOLO(YOLO_MODEL_PATH)

    last_sms = 0
    frame_count = 0

    print("[SYSTEM] SECURITY ACTIVE")

    try:
        while True:
            now = time.time()
            tstamp = datetime.now().strftime("%H:%M:%S")
            alert_sent = False

            # YOLO
            if cam:
                ret, frame = cam.read()
                if ret:
                    frame_count += 1
                    if frame_count % FRAME_SKIP == 0:
                        results = model(frame, verbose=False)
                        for r in results:
                            if r.boxes:
                                label = model.names[int(r.boxes.cls[0])]
                                if now - last_sms > SMS_COOLDOWN:
                                    coords = gps.get_coords()
                                    msg = f"[{tstamp}] AI ALERT: {label.upper()} @ {coords}"
                                    send_sms(msg)
                                    last_sms = now
                                    alert_sent = True
                                    print(f"[{tstamp}] YOLO: {label}")
                                break

            # RADAR
            if not alert_sent and radar.update():
                t = radar.get_target()
                if t and 0 < t.distance < DETECTION_RANGE_MM:
                    if now - last_sms > SMS_COOLDOWN:
                        dist_m = t.distance / 1000.0
                        coords = gps.get_coords()
                        msg = f"[{tstamp}] RADAR: HUMAN @ {dist_m:.2f}m, GPS: {coords}"
                        send_sms(msg)
                        last_sms = now
                        print(f"[{tstamp}] RADAR: {dist_m:.2f}m")

            time.sleep(0.05)

    except KeyboardInterrupt:
        print("\n[SYSTEM] Stopping...")
    finally:
        if cam:
            cam.release()

if __name__ == "__main__":
    main()
