Getting Started with PSoC™ 6 AI Kit on Arduino IDE

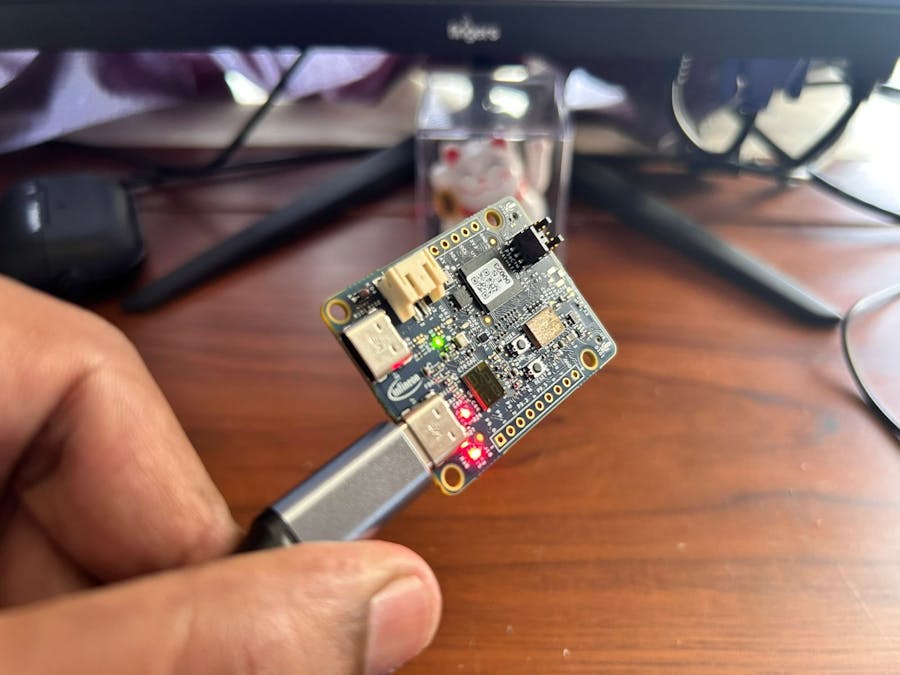

The PSoC™ 6 AI Evaluation Kit (CY8CKIT-062S2-AI) is Infineon’s flagship development board for AI at the edge. It combines a dual-core ARM Cortex-M4/M0+ MCU, integrated Wi-Fi/Bluetooth, and sensor expansion options. With recent support for the Arduino IDE, developers can now use familiar Arduino libraries to quickly prototype projects without diving into complex toolchains
