TimberGuard - System for Illegal Logging Detection

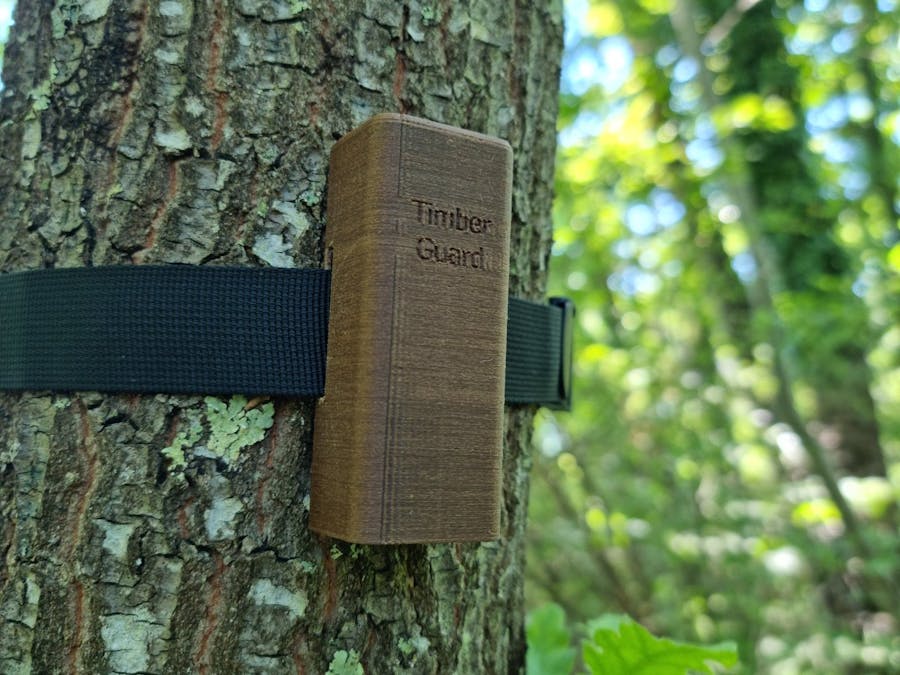

TimberGuard is a smart IoT system for real-time detection of illegal logging using sound recognition

IntermediateFull instructions providedOver 2 days294
TimberGuard - System for Illegal Logging Detection

Things used in this project

Hardware components

Seeed XIAO nRF52 Sense
×1

Software apps and online services

Arduino IDE
Arduino IDE
Edge Impulse Studio
Edge Impulse Studio
supabase
The things network

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

Stl file of the housing model

Sketchfab still processing.

Code

TimberGuardCode

C/C++
Code that runs on XIAO nRF52 Sense with LoRa module
#include <ML_arduino3_inferencing.h>
#include <PDM.h>

// --------- LoRaWAN OTAA Keys (replace with your real ones) ---------
#define LORA_POWER_PIN 5
const char* DEVEUI = "YOUR_DEVEUI";
const char* APPEUI = "YOUR_APPEUI";
const char* APPKEY = "YOUR_APPKEY";

// --------- Detector Configuration ---------
const char* TARGET_LABEL = "motorka";
const float MIN_CONFIDENCE = 0.9f; // 90%

// --------- Audio + Inference Buffers ---------
typedef struct {
    int16_t *buffer;
    uint8_t buf_ready;
    uint32_t buf_count;
    uint32_t n_samples;
} inference_t;
static inference_t inference;
static signed short sampleBuffer[2048];
static bool debug_nn = false;

// --------- Forward Declarations ---------
static void pdm_data_ready_inference_callback(void);
static bool microphone_inference_start(uint32_t n_samples);
static bool microphone_inference_record(void);
static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr);
static void microphone_inference_end(void);

String readLoRaResponse(unsigned long timeout = 1000) {
  String response;
  unsigned long start = millis();
  while (millis() - start < timeout) {
    while (Serial1.available()) {
      char c = Serial1.read();
      response += c;
    }
    // If we got a complete response (ends with \r\n), return early
    if (response.endsWith("\r\n")) {
      break;
    }
  }
  return response;
}

bool sendATCommand(const char* cmd, const char* param = nullptr, const char* expected = nullptr, unsigned long timeout = 1000) {
  char fullCmd[64];
  if (param) {
    snprintf(fullCmd, sizeof(fullCmd), cmd, param);
  } else {
    snprintf(fullCmd, sizeof(fullCmd), cmd);
  }

  Serial.print("Sending: "); Serial.print(fullCmd);
  Serial1.write(fullCmd, strlen(fullCmd));

  String response = readLoRaResponse(timeout);
  response.trim(); // Remove extra whitespace
  Serial.print("Response: "); Serial.println(response);

  // If no expected response specified, assume command succeeded if we got any response
  if (expected == nullptr) {
    return response.length() > 0;
  }

  // Special case for ID commands
  if (strstr(cmd, "AT+ID") != nullptr) {
    return response.indexOf("+ID:") >= 0;
  }

  return response.indexOf(expected) >= 0;
}

bool joinLoRaNetwork(int maxRetries = 3) {
  for (int attempt = 1; attempt <= maxRetries; attempt++) {
    Serial.print("Join attempt "); Serial.println(attempt);

    if (!sendATCommand("AT+JOIN\r\n", nullptr, "+JOIN: Network joined", 30000)) {
      delay(5000);
      continue;
    }
    return true;
  }
  return false;
}

void setup() {
  //  1) Power & init LoRa module
  pinMode(LORA_POWER_PIN, OUTPUT);
  digitalWrite(LORA_POWER_PIN, HIGH); // Turn on LoRa power
  delay(2000); // Increased delay for module power-up

  // Initialize serial ports
  Serial.begin(115200);
  Serial1.begin(9600);
  while (!Serial); // Wait only for Serial (debug), not Serial1

  Serial.println("Initializing LoRaWAN...");

  // Verify module communication
  if (!sendATCommand("AT\r\n", nullptr, "OK", 500)) {
    Serial.println("LoRa module not responding!");
    while(1);
  }

  // Configure OTAA parameters - now accepts "+ID:" in response
  if (!sendATCommand("AT+ID=DevEui,\"%s\"\r\n", DEVEUI)) {
    Serial.println("DevEui setup failed!");
    while(1);
  }

  if (!sendATCommand("AT+ID=APPEUI,\"%s\"\r\n", APPEUI)) {
    Serial.println("AppEui setup failed!");
    while(1);
  }

  if (!sendATCommand("AT+KEY=APPKEY,\"%s\"\r\n", APPKEY)) {
    Serial.println("APPKEY setup failed!");
    while(1);
  }

  if (!sendATCommand("AT+MODE=LWOTAA\r\n")) {
    Serial.println("Mode setup failed!");
    while(1);
  }

  // Join network with retries
  if (!joinLoRaNetwork(5)) { // Increased to 5 retries
    Serial.println("Failed to join network after retries!");
    while(1);
  }

  Serial.println("Successfully joined LoRaWAN network!");

  //  2) Setup Audio Inference
  Serial.println("=== Edge Impulse Audio Classifier ===");
  ei_printf("Inferencing settings:\n");
  ei_printf("\tInterval: %.2f ms\n", (float)EI_CLASSIFIER_INTERVAL_MS);
  ei_printf("\tFrame size: %d\n", EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);
  ei_printf("\tSample length: %d ms\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT / 16);

  // Start microphone inference
  if (!microphone_inference_start(EI_CLASSIFIER_RAW_SAMPLE_COUNT)) {
    ei_printf("ERROR: Failed to start microphone inference!\n");
    while (1);
  }
}

void loop() {
  ei_printf("\nStarting audio recording...\n");
  if (!microphone_inference_record()) {
    ei_printf("ERROR: Failed to record audio.\n");
    return;
  }

  // Run the classifier
  signal_t signal;
  signal.total_length = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
  signal.get_data = &microphone_audio_signal_get_data;
  ei_impulse_result_t result = { 0 };

  if (run_classifier(&signal, &result, debug_nn) != EI_IMPULSE_OK) {
    ei_printf("ERROR: Classifier failed!\n");
    return;
  }

  // Find top prediction
  size_t best_i = 0;
  float best_v = result.classification[0].value;
  for (size_t i = 1; i < EI_CLASSIFIER_LABEL_COUNT; i++) {
    if (result.classification[i].value > best_v) {
      best_v = result.classification[i].value;
      best_i = i;
    }
  }

  const char* best_label = result.classification[best_i].label;
  ei_printf("Top Prediction: %s (%.2f)\n", best_label, best_v);

// Replace the message sending section in your loop() function
if (strcmp(best_label, TARGET_LABEL) == 0 && best_v >= MIN_CONFIDENCE) {
    // Create compact payload (no hex conversion needed)
    char payload[32];
    snprintf(payload, sizeof(payload), "xiao001|%.2f|%.3f|%.3f",
             best_v, 46.051, 14.505); // Replace with actual GPS coords

    // Send raw bytes directly
    char loraCmd[64];
    snprintf(loraCmd, sizeof(loraCmd), "AT+MSG=\"%s\"\r\n", payload);

    if (sendATCommand(loraCmd, nullptr, "OK", 5000)) {
        Serial.println("Message sent successfully!");
    } else {
        Serial.println("Failed to send message!");
    }
}

  delay(500); // Short delay between classifications
}

//  PDM / Inference Support Functions
static void pdm_data_ready_inference_callback(void) {
  int avail = PDM.available();
  int r = PDM.read((char*)sampleBuffer, avail);
  if (!inference.buf_ready) {
    for (int i = 0; i < (r >> 1); i++) {
      inference.buffer[inference.buf_count++] = sampleBuffer[i];
      if (inference.buf_count >= inference.n_samples) {
        inference.buf_ready = 1;
        inference.buf_count = 0;
        break;
      }
    }
  }
}

static bool microphone_inference_start(uint32_t n_samples) {
  inference.buffer = (int16_t*)malloc(n_samples * sizeof(int16_t));
  if (!inference.buffer) return false;
  inference.n_samples = n_samples;
  inference.buf_ready = 0;
  inference.buf_count = 0;

  PDM.onReceive(&pdm_data_ready_inference_callback);
  PDM.setBufferSize(4096);
  if (!PDM.begin(1, EI_CLASSIFIER_FREQUENCY)) {
    ei_printf("ERROR: Failed to start PDM microphone!\n");
    microphone_inference_end();
    return false;
  }
  PDM.setGain(40);
  return true;
}

static bool microphone_inference_record(void) {
  inference.buf_ready = 0;
  inference.buf_count = 0;
  while (!inference.buf_ready) {
    delay(10);
  }
  return true;
}

static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr) {
  numpy::int16_to_float(&inference.buffer[offset], out_ptr, length);
  return 0;
}

static void microphone_inference_end(void) {
  PDM.end();
  free(inference.buffer);
}

#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid model for current sensor."
#endif

ReactApp

JSX
No preview (download only).
