IOT Project Group 30: Temperature, Humidity, and Moisture

A cool introductory project to expose the user into the world of IOT and electrical/mechanical engineering

IntermediateFull instructions provided5 hours103

IOT Project Group 30: Temperature, Humidity, and Moisture

Things used in this project

Hardware components

DHT11 Temperature & Humidity Sensor (3 pins)

Particle Photon 2

USB-A to Mini-USB Cable

DFRobot Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant

LED (generic)

Software apps and online services

ThingSpeak API

Particle Build Web IDE

Arduino IDE

Hand tools and fabrication machines

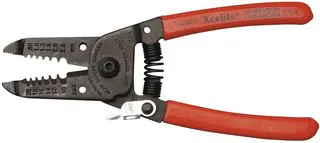

Wire Stripper & Cutter, 22-10 AWG Capacity Copper & Aluminium Wires

Premium Female/Male Extension Jumper Wires, 40 x 6" (150mm)

Story

Introduction

Have you ever wanted to dive into the world of electronics and get a taste of electrical/mechanical engineering? I know that word "engineering" may sound scary at first but do not fret. Every engineering student has all been in a place where they have no idea what is going on around them at one point or another. Fortunately this page will give a brief introductory of the world of IOTs, Sensors, and touch up on the electrical/mechanical side of things.

IOT Project

To begin let me give you a little bit of information about the project you are about to embark on. This is a beginner to intermediate project that was completed for one of our classes called MEGR 3171 Introduction To Instrumentations. Some of the requirements for this project were that it needed to have two sensors and be able to use the publish and subscribe feature. For one of the Photons we will be using two sensors and two LEDs to track live data. This live data will then be posted on a website called ThingSpeak to visualize what is going on. We will also be using another Photon to subscribe to the data that was published on the console from the first Photon and demonstrate the live data. If everything goes according to plan the second Photon will communicate back to the first that the data has been received but if it fails to detect this it will display an error message on the first Photon's console screen. There will also be a Fritzing diagram below to help the user follow along the wiring process.

Purpose

The Purpose of this project is to get anyone curious in electrical things and to guide them without having fear of not knowing what to do. It is a cool weather station monitor that anyone can set up with a couple of sensors and 2 Photon Particles. It is also a great tool to help the user understand the webhooks integration tool that is within Particle's website. Not only can this be done with the two sensors that we used but this schematic can be used with almost any sensor anyone wants.

Figure 1: IOT Project Circuit

Figure 2: Moisture Sensor Data and Graph

Figure 3: Temperature Sensor Data and Graph

Figure 4: Humidity Sensor Data and Graph

Figure 5: YouTube Video Explaining The Process

Figure 6: IOT Flowchart

Code

// This #include statement was automatically added by the Particle IDE.
#include <I2CSoilMoistureSensor.h>
// This #include statement was automatically added by the Particle IDE.
#include <Adafruit_DHT_Particle.h>
#define DHTPIN D2       // Pin where the DHT11 is connected
#define DHTTYPE DHT11   // DHT 11
DHT dht(DHTPIN, DHTTYPE);
// Double-Switch with Par()ticle Photon - works without Libaries - tested with v0.7.0-rc.3
// Ingo Lohs, v1.1 v. 15.12.2018
// Projekt, um eine Flüssigkeit in einem Rohr bzw. Becken zu detektieren und eine Signalisierung via IFTTT abzugeben
// Einsatz bei Peter Ens

    /*
             -----[    ]-----
     2xVCC  -|VIN        3V3|-
     2xGND  -|GND        RST|-
            -|TX        VBAT|-
            -|RX         GND|-
            -|WKP         D7|-
            -|DAC         D6|-
            -|A5          D5|-
            -|A4          D4|- SwitchSensor_Rohr DIGITAL-PIN > Becken
            -|A3          D3|-
            -|A2          D2|-
            -|A1          D1|- SCL
            -|A0          D0|- SDA = SwitchSensor_Rohr DIGITAL-PIN > Rohr
              \____________/

    */

// **************

const int SwitchSensor_Rohr = D3;   // Sensor mit VCC/GND/DIGITAL-PIN an PIN D0 vom Photon
//const int SwitchSensor_Becken = D4; // Sensor mit VCC/GND/DIGITAL-PIN an PIN D4 vom Photon
const int internalLED1 = D0;
const int internalLED2 = D1;
bool firstfire_switch_Rohr = true;
bool firstfire_switch_Becken = true;
unsigned long lastmillis = 0; // time for interation the loop

void setup() {
  Serial.begin(9600);
  dht.begin();
 pinMode(SwitchSensor_Rohr,INPUT);
 //pinMode(SwitchSensor_Becken,INPUT);
 pinMode(internalLED1,OUTPUT);
 pinMode(internalLED2,OUTPUT);

 Particle.subscribe("photon_connection_status", connectionStatusHandler);
}

void loop()
{

    if ((millis() - lastmillis) > 1000) {
        lastmillis = millis();
        readData_Switch_Rohr();
        //   readData_Switch_Becken();
        // Wait a few seconds between measurements.
        //	delay(2000);

        // Reading temperature or humidity takes about 250 milliseconds!
        // Sensor readings may also be up to 2 seconds 'old' (its a
        // very slow sensor)
        float h = dht.getHumidity();
        // Read temperature as Celsius
        float t = dht.getTempCelcius();
        // Read temperature as Farenheit
        float f = dht.getTempFarenheit();

	  // Format the data as a query string for ThingSpeak
	String data = String(h);
	String data3 = String(f);

  Particle.publish("Temperature ", data, PRIVATE);
  Particle.publish("Humidity ", data3, PRIVATE);

  //Particle.publish("Humidity", data3, PRIVATE);

  // Wait for 5 seconds before the next update
  delay(5000);
  }
}

void connectionStatusHandler(const char *event, const char *data)
    {
  Serial.printlnf("Particle B is connected and will be displaying data shortly %s", data);
  delay(5000);
    }

void readData_Switch_Rohr() {

    	float l = internalLED1;
    	float x = internalLED2;

  String data1 = String(x);
  String data2 = String(l);
  int proximity_Rohr = digitalRead(SwitchSensor_Rohr);

    if (proximity_Rohr == 1)
    {
    Serial.println("All is ok - am Rohr");
    digitalWrite(internalLED1, LOW);
    digitalWrite(internalLED2, HIGH);
    firstfire_switch_Rohr = true;
    // Format the data as a query string for ThingSpeak


  // Trigger the integration (webhook) to send data to ThingSpeak
    Particle.publish("readings", String::format("{\"No Moisture Detected}", x));
   //Particle.publish("moisture", data1, PUBLIC);
   Particle.publish("Moisture Sensor", data2, PUBLIC);
    }
    else
    {
    Serial.println("Switch ERROR Reading Value - am Rohr");
    digitalWrite(internalLED1, HIGH);
    delay(500);
    digitalWrite(internalLED2, LOW);
 Particle.publish("readings", String::format("{\"Moisture Detected}", l));

 Particle.publish("Moisture Sensor", data1, PUBLIC);

    }

}

// This #include statement was automatically added by the Particle IDE.
#include <ArduinoJson.h>
#include "Particle.h"

// Function declarations
void setup();
void myHandler(const char *event, const char *data);

void setup() {
  // Start Serial communication
  Serial.begin(9600);
// Put initialization code here
  Particle.function("sendConnectionStatus", sendConnectionStatusHandler);
  // Subscribe to the integration response events
  Particle.subscribe("hook-response/Moisture Sensor", myHandler, MY_DEVICES);
  Particle.subscribe("hook-response/Temperature", myHandler, MY_DEVICES);
  Particle.subscribe("hook-response/Humidity", myHandler, MY_DEVICES);


}
void loop() {
  //main loop code here

  // Check if the Photon is connected to the Particle Cloud
  if (Particle.connected()) {
    // Send a connection status message to the other Photon
    Particle.publish("photon_connection_status", "Photon is connected");
  }
  // Example: publish data to the Particle console
  float moistureValue = 0;
  float temperatureValue = 60.7;
  float humidityValue = 40.8;

  char data[128];
  snprintf(data, sizeof(data), "{\"moisture\":%.2f,\"temperature\":%.2f,\"humidity\":%.2f}", moistureValue, temperatureValue, humidityValue);

  // Publish the data to the Particle console
  Particle.publish("SensorData", data, PUBLIC);

  delay(5000);
}

int sendConnectionStatusHandler(String command) {
  // Send a connection status message to the other Photon
  Particle.publish("photon_connection_status", "Photon is connected");
  return 1; // Acknowledge the function call
}

// integration response
void myHandler(const char *event, const char *data) {
  // Print the received data to Serial
  Serial.println("Received response from webhook:");
  Serial.println(data);


  // Create a JSON object
  StaticJsonDocument<256> doc;

  // Deserialize the JSON data
  DeserializationError error = deserializeJson(doc, data);

  // Check for errors
  if (error) {
    Serial.print("Failed to parse JSON: ");
    Serial.println(error.c_str());
    return;
  }

  // Extract the result value
  const char *result = doc["result"];

  Serial.print("Result: ");
  Serial.println(result);
}
