Published January 10, 2024 © MIT

IoT-Enabled Electric Scooter Using Hexabitz Module

Revamp an electric scooter’s control system to be controllable and monitorable via an Android app and web server using HEXABITZ modules.

ExpertWork in progress2 days938

IoT-Enabled Electric Scooter Using Hexabitz Module

Things used in this project

Hardware components

Hexabitz SPST 12V/20A MOSFET Switch (H0FR7)

Hexabitz 3.3V/1A DC-DC Power Supply Module (H03R00)

Hexabitz ESP32-C3 WiFi+BLE Module (H21R2x)

Hexabitz SAM-M10Q GNSS (H1FR5x)

Hexabitz 3-axis IMU and 3-axis Compass Module (H0BR40)

Hexabitz 100-mil PTH Proto Board (H00R4x)

Hexabitz STLINK-V3MODS Programmer (H40Rx)

Hexabitz Mounting Hole Module (T00R10)

Hexabitz Vertical Extension (T00R2x)

Hexabitz 4-Pin USB-Serial Prototype Cable

Hexabitz BitzClamp

USB 2.0 A Male to Micro B Male Cable

G30 Ninebot Max Motor

Ninebot MAX G30 Control Board

Thumb Brake Gas Speed Regulator for MAX G30D

Data Control Cable Power Connection for Max G30 Ninebot

G30D BMS Board

Max G30 Li-Ion Battery Charger (external) YZ4205000

Max G30 Li-Ion Battery Charger (Built-in) SKT-Max0052

3.7 Volt 3500mAh 18650 Lithium Battery (2Pack)

XT60 Connectors

0.1x8mm Pure Zinc Strip

103mm Battery Wrap

LM2596HV DC-DC Adjustable Step Down Buck Converter Power Module

2.54 mm Male Female Dupont Wire Jumper with Pin Header Connector Housing Kit

1x4 male pin header

smd 0603 100ohm resistor

100u 15v dip electrolytic capacitor

smd 0603 200kohm resistor

smd 0603 10k ohm resistor

TVS DIODE 3,3V 10,9V SOD323

smd 0603 100n capacitor

Software apps and online services

Microsoft VS Code

STMicroelectronics STM32CUBEPROG

STMicroelectronics STM32CubeIDE

Android Studio

Microsoft visual studio 2022

Microsoft SQL Server

Hand tools and fabrication machines

Soldering iron (generic)

Solder Wire, Lead Free

3D Printer (generic)

Drill / Driver, Cordless

Grinder Welder

Saleae 8-Channel Logic Analyzer

Story

Introduction:

Electric scooters are a common sight with a variety of models available in the market.

The Hexabitz Platform plays a pivotal role in customizing your E-Scooter’s control system without requiring hardware modifications.

Our team has developed a custom control system for managing an electric scooter and incorporated an IoT feature using Hexabitz Modules.

We procured the essential parts of the electric scooter, replaced the dashboard with our modules, and constructed the scooter’s iron body.

We then developed the firmware for the control system by dividing the work among the networked MCUs within the module array.

Following this, we created the software component, which includes an Android app and a web server app, to enable IoT-based control and monitoring.

Steps to implement the project :

This guide provides step-by-step instructions for implementing the project, from conception to execution:

1 ) Preparing the E-Scooter Body and the Hardware Parts:

Design and assemble the iron parts of the scooter body.

We designed some parts and edited some pre-made parts, then assembled them all to make the final body.

We placed all the power and control components inside an attachable deck case that we designed for this purpose, which had an attachable metal grid to install the parts on it.

We made a slot through the handlebar to install the throttle and the brake, and we also installed a mobile holder on it.

We designed the stem and the folding bars to be able to pass a cable through them from the handle bar to the deck case.

1 / 5

Preparing the battery:

First, we made the scooter battery. The battery must be 10S to be compatible with the BMS, and the capacity of the complete battery should be 15300 mAh to be compatible with the BMS original firmware. But we brought cells which have the 3500 mAh capacity rate, thus the complete battery for a 10S4P formation would be 14000 mAh.

We connected the cells using spot welding and the zinc strip, with the placement of the spacers on the cells. Then we connected the cells’ voltage sensing lines and connected the battery poles with the BMS using wide cables. We activated the BMS by holding the only button on the board and covered the whole battery with the protection wrap, with the distribution of the temperature sensors on the battery sides.

Finally, we made a BMS output power cable (with an XT60 connector). We also made two charging cables to connect one of them with the 3A charger, which we installed inside the deck box, and the other one to connect it with the external 5A charger.

1 / 5

Installing the components and doing the connections:

We first installed the motor, then the BLDC driver and the battery into the deck box grid, and made the connections between them.

We connected the three-phase lines of the motor with the driver and its hall sensor cable with the connector on the driver board.

We also connected the BMS communicating cable between it and the driver board, and made a power cable (with an XT60 connector) to connect it with the driver supply cable connector.

1 / 2

2) Discovering the original E-scooter control system :

Discovering the hardware parts functions:

The original control system of the E-Scooter is essentially based on three devices that communicate with each other and distribute the work among them.

The dashboard takes readings from the throttle and the brake, and accordingly gives orders to the BLDC driver. It also contacts the Android app and plays the interface role between it and the hardware parts (BLDC driver, BMS) to receive orders and send back data.

The BLDC driver controls the motor, with many speed modes and brake levels. It also senses the speed by the hall sensors, motor current, voltage, and temperature, and calculates the total and single values of the riding and running times as well as the riding mileage.

The BMS works as a general BMS, providing us with much information about the cells voltages, battery current, temperature sensors readings. It counts the cycle, charge and over discharge times, and calculates the remaining capacity in the battery and its health.

These 3 parts (BMS, BLDC driver, dashboard) communicate with each other by the UART serial protocol.

Discovering the communication protocol:

The discovery of the protocol was done using the resources that we will attach below. In addition, our team performed a lot of reverse engineering operations by analyzing the messages that are sent between those three boards using the logic analyzer.

The serial bus packet format that all messages must be constructed using consists of:

1.Frame header: This is a fixed 2 bytes frame header.

2.Packet length: This represents the number of bytes in the data segment (N).

3.Source and Target ID bytes: These are the sender and the target IDs, so the target device will only catch that message through the UART network.

4.Command word: This represents the command type, such as reading, writing, etc.

5.Data index: This represents the target register address to read from or write to.

6.Data segment: This consists of (N) bytes and can represent the length of the data to be read or the write data content or anything else, it depends on the command type.

7.Checksum: These are 2 bytes for the little-endian checksum 16-bit.

1 / 3

Exploring the Messages Format Needed to Build the System

We will now explore the messages format that we need to build our custom control system.

The default Dashboard message should be like this:

uint8_t DashBoardMessage[14] = {0x5A,0xA5,0x05,0x21,0x20,0x65,0x00,0x04,0x27,0x23,0x02,0x00,0xF1,0xFE};

As you notice, we’ve added the 2 header bytes(0x5A, 0xA5), then we specify the number of data segment bytes(0x05), then we specify the source and target ID (0x21, 0x20), the command word for sending the updated values of the throttle and brake without asking for response from the BLDC driver should be (0x65), and the data index with that command can be any value (0x00).

The data segment for that command should consist of five bytes:

bDataLen, bThrottle, bBrake, bIsUptatingBLEFw, bIsBeeping

Where:

bDataLen: is the number of bytes in the data segment (except this byte).
bThrottle, bBrake: throttle and brake bytes values and can be calculated by scaling the output voltage range (0.85-2.65) volt on the byte value range for the throttle ( 0x27 - 0xC3) and for the brake is (0x23 - 0xCD).
bIsUptatingBLEFw: this byte should be kept as it is in the default message, because it’s related to updating firmware process of the original dashboard.
bIsBeeping: this byte also should be kept as it is in the default message, because it’s related to the beeping function in the original dashboard.

The last two bytes of the dashboard message (0xF1, 0xFE) are the little-endian checksum 16-bit, and is generated using a function in the firmware as we will see.

The default message for reading or writing registers should be like this:

uint8_t MasterControlMessage[11] = {0x5A,0xA5,0x02,0x3E,(target_ID),CMD,datInd,0x02,0x00,CHKSUM_L,CHKSUM_H}

Once again, you will notice that we added the headers, the packet length byte (0x02) which is the number of data segment, and the source ID

The target ID will be either the BLDC driver ID or the BMS ID to read the registers of one of them in every time.

The CMD byte must be (0x01) for riding and (0x02) for writing.

The datInd byte should contain the address of the register that we want to read or write.

The two data segment bytes should represent the total number of the read bytes, where the size of every single register that we deal with in our firmware is 2 bytes, thus for reading 1 register, the data segment bytes should be (0x02, 0x00), and for reading 91 registers (0xB6, 0x00) and so on.

In the result, the target device will respond by sending the values of all the registers that their addresses in that range.

Of course, it will send a message that is constructed with the same form of the protocol. You can see below the response message of the BLDC driver for the request to read 90 registers value.

0x5A·0xA5·0xB4·0x20·0x3E·0x04·0x1B
·0x00·0x00·0x00·0x00·0x00·0x08·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x5E·0x00·0x00·0x00·0x18·0x13·0xDE·0x17·0x00·0x00·0x00·0x00·0x00·0x00·0x35·0x2A·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x07·0x00·0x00·0x00·0x00·0x00·0xD4·0x26·0x03·0x00·0x75·0x0D·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0xF3·0x10·0x17·0x00·0x00·0x00·0x00·0x00·0x36·0x01·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0xA7·0x0F·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x6D·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x00·0x0F·0x00·0x20·0x00·0x14·0x00·0xAC·0xF8

You can notice that the packet length byte value is equal to the total number of the data segment in this message and equal to the total number of the requested registers to read bytes.

Also, notice that the values of these registers are listed consecutively after the data index byte (0x1B) which represents the address of the first register in the requested range. Of course, the last two bytes are the checksum bytes and we used them for checking the safety of the received messages.

As we have just learned that every 2 bytes represent the value of a register, we should know that to convert this value to readable data the order of those 2 bytes should be swapped and then multiply that value with the responsible factor depending on what it represents.

For example, from the last message, if we want to get the value of the scooter temperature, we know from the registers table that the (NB_INF_BODY_TEMP) register address is 0x3E, then to find its value in that message we find how many registers between them by subtracting the address of the desirable register from the address of the address of the first register (0x1B - 0X3E), then we multiply the result by 2 (every 2 bytes represent a register value), then add (7) because the values of the register as we’ve just seen are listed after the byte number 7, finally we convert the result to decimal.

Thus, the number of the 2 bytes of the scooter temperature are (77th = 36) and (78th = 01), and if we swap between them then convert the result to decimal we will get (310), that means the temperature value is 31.0 because according to the registers table that the temperature unit is 0.1℃.

Let’s take an example about writing this time:

0x5A·0xA5·0x02·0x3E·0x20·0x02·0x70·0x01·0x00·0x2C·0xFF

You will notice that we used the write command (0x02), and we write (1), at the (NB_CTL_LOCK) register for locking it so the BLDC driver will hold the motor if you try to move it.

3) Building the Alternative Control System with Hexabitz Platform :

Planning and Assembling the Hexabitz modules array.

First, we had to decide what were the needed modules to build the hardware part of our custom control system.

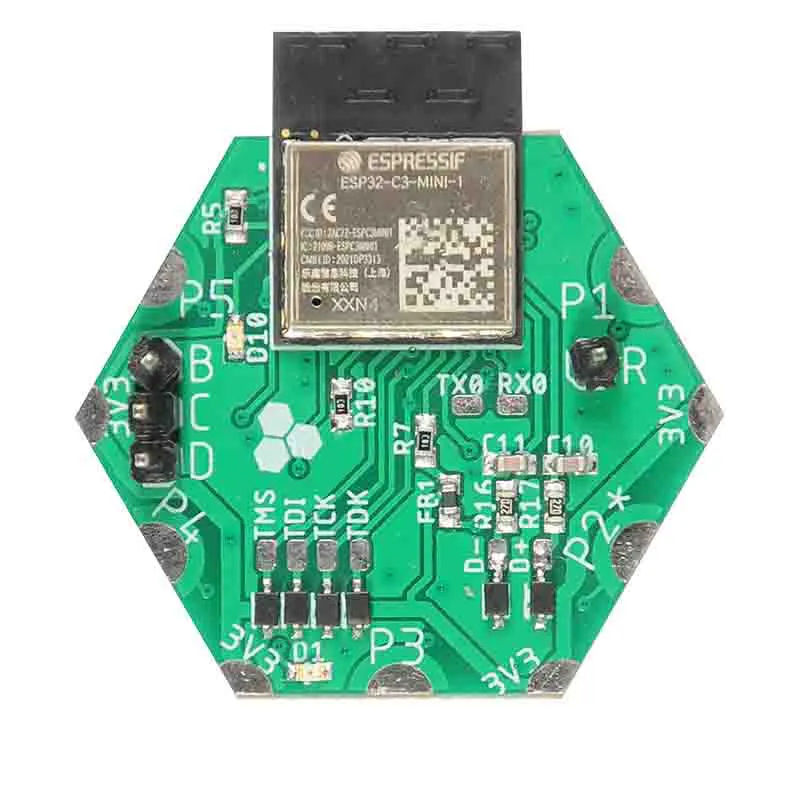

Because we needed a Bluetooth module to implement the communication between the hardware and an Android app, we chose H21R2, which is based on ESP32-C3 that can work as a Wi-Fi or a BLE Module.

1 / 2

To control the front and the brake lights, we had to use two of H0FR7 module, which is a MOSFET switch module that can handle up to 18V/20A, work on high PWM frequency (up to 20kHz), and can measure precisely the passed current through it.

1 / 2

Additionally, to supply our array with a stable supply, we had to use H03R0 module, which is a compact DC-DC buck power supply module, with a 3.3V/1A DC output, and 5-40V DC input.

1 / 2

We’ve added the attitude estimation feature to our system, By using H0BR4 module, which is a 3-axis inertial measurement unit (IMU) combined with a 3-axis digital compass module, based on STM32G0 MCU, LSM6DS3 IMU and LSM303AGR compass.

1 / 2

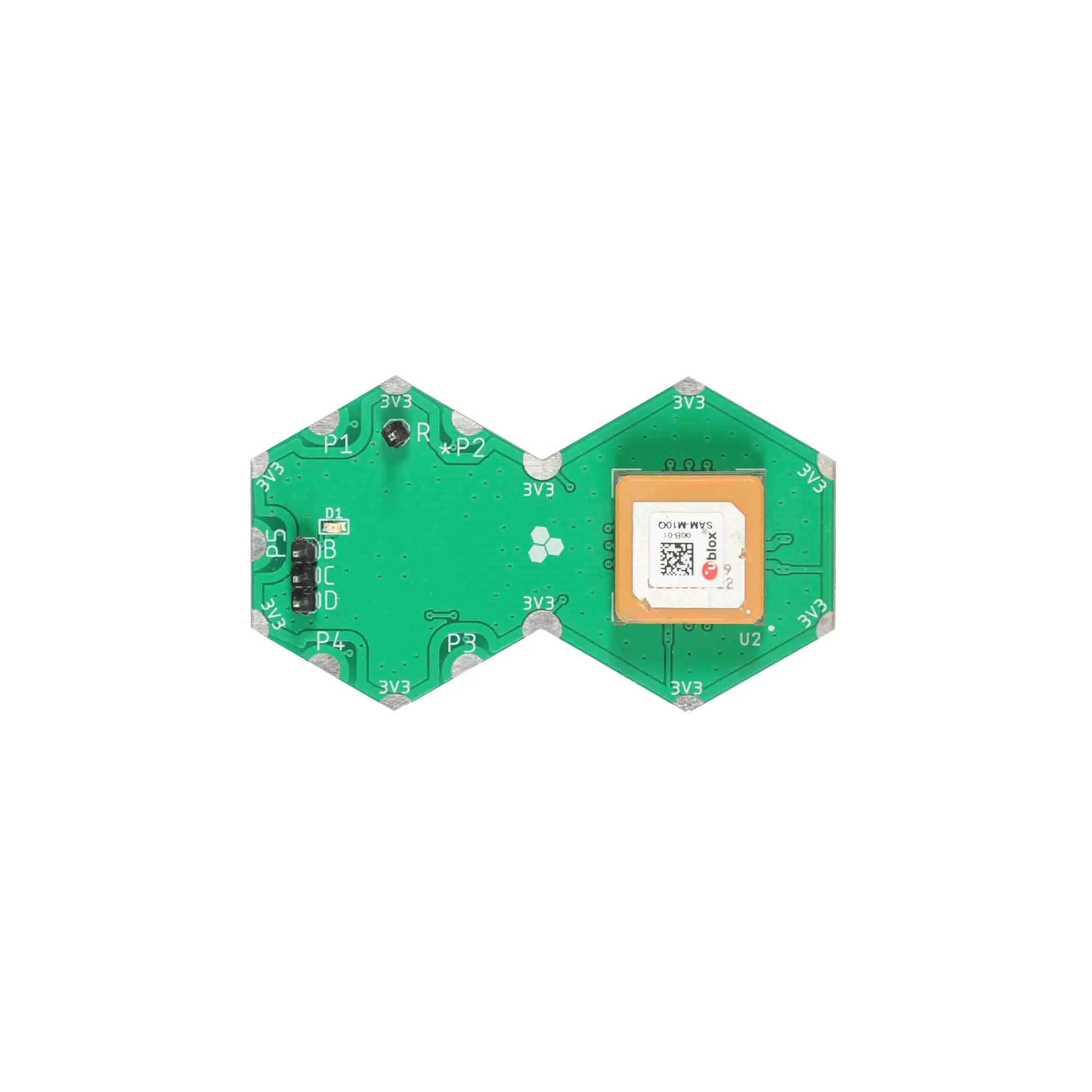

Furthermore, for future work, we’ve added H1FR5 module, which is a compact and high-performance Global Navigation Satellite System (GNSS) receiver module, and has the ability to provide accurate positioning, navigation, and timing information.

1 / 2

Moreover, to build some necessary custom circuits and adding it to our Hexabitz collection, we had to add H00R4 module, which is a through-hole proto board module, with 100-mil plated hole pattern.

1 / 2

Also, to add mounting holes and attachment mechanisms to our Hexabitz array, we used 4 modules of T00R1, which is a triangle mounting hole module, that supports M2 and M2.5 screw sizes.

1 / 2

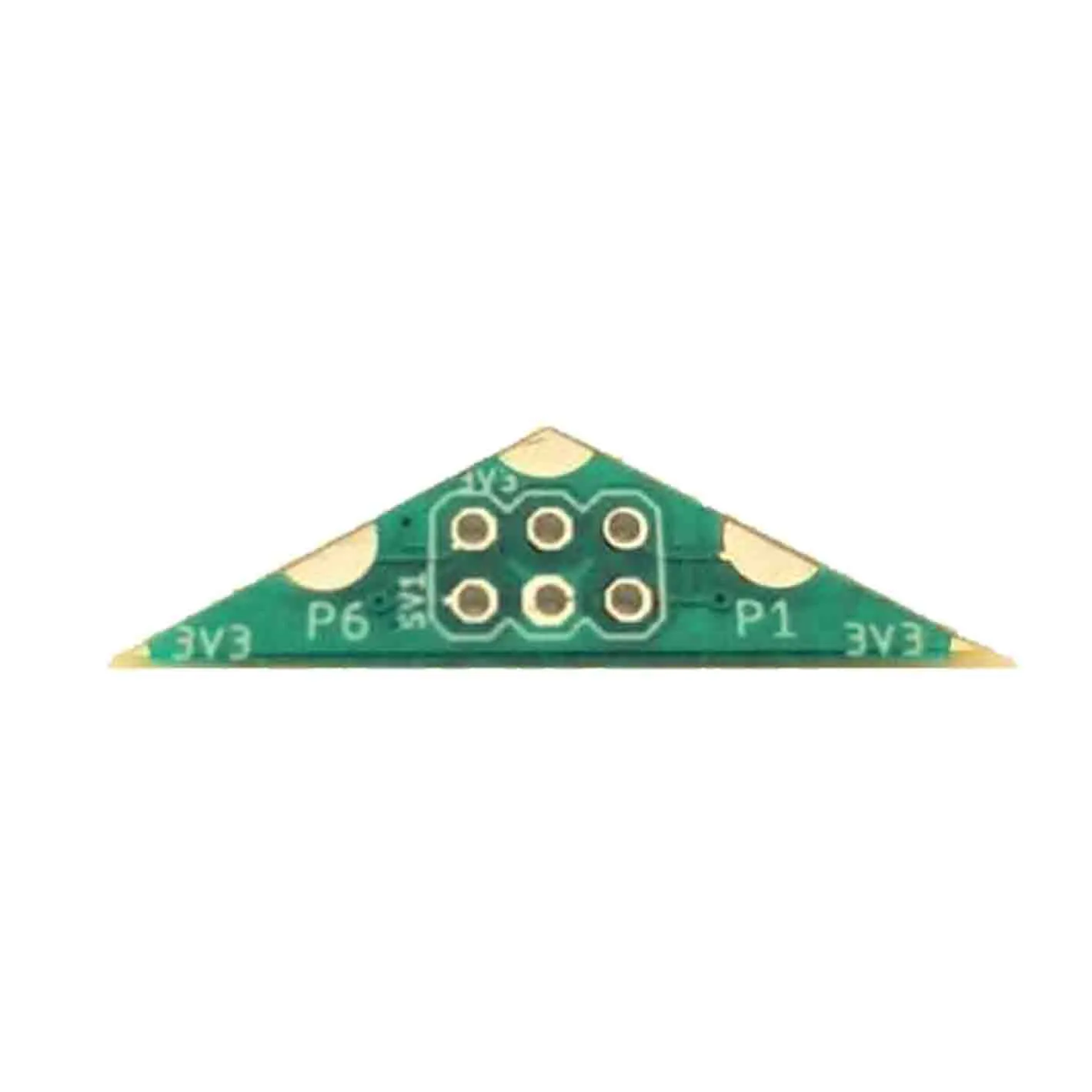

Last but not least, for future additions, we add T00R2 module which is a triangle module that has a single 2x3, 2.54 mm through-hole connector, so we have the ability to connect other Hexabitz modules to our array.

Finally, we assemble and soldered these modules together to build our Hexabitz array.

After that, we’ve designed an enclosure for this array board for protecting it and installing it at the attachable grid inside the deck.

Building the Interfacing Circuits and Cables:

Our team built interface circuits for connecting Hexabitz modules array with the other E-Scooter hardware parts, and those interface circuits are included in the through-hole proto board module (H00R4).

Firstly, for communicating with the BLDC driver, we made an interface circuit for connecting the UART of the BLDC driver with the UART of the GPS Module (H1FR5) through port number 5. It consists of two 100 ohm resistors in series with TVS in between at the two UART lines for protecting pins of the two communicating MCUs from any sudden spikes.

Secondly, replacing the dashboard button with an electronic switch, we added an interface circuit for the BLDC driver activate line where the ESP Module (H21R2) controls that line by an NPN transistor through its bottom pad of port number 5, and senses through its top pad of port number 5 the BLDC driver turn-on line.

Thirdly, for interfacing the throttle and brake sensors, we added coupling capacitors across their power lines for the stability of their power and thus the output signals of them which is connected to the port 3 of the IMU Module (H0BR4) to the top and bottom pads accordingly.

In addition, we modified the original control cable for doing the connections from these two interface circuits UART and BLDC Activate to the BLDC pins.Also, we made use of an Ethernet network cable for doing the connections from the throttle and the brake sensors to the interface circuit, and that was for isolating the sensors supply and output signals from the EMI that is generated throughout the whole scooter body especially when the motor works. Thanks to the twisted pair feature and the cable shield, we managed to transfer these analog signals safely by isolating them with the GND. Also, the front LED supply line is included in that cable.

Also, we made use an Ethernet network cable for doing the connections from the throttle and the brake sensors to the interface circuit, and that was for isolate the sensors supply and out signals from the EMI that is generated throw the whole scooter body especially when the motor works, so thanks for the twisted pair feature and the cable shield we managed to transfer these analog signals safely by isolating them with the GND, also the front led supply line included in that cable.

Finally, the modules array looks like this photo:

Building Firmware Drivers for Implementing the Protocol:

For implementing this protocol in our modules firmware, we made custom firmware drivers.

MaxG30_DashBoard driver is responsible for implementing some of the original dashboard functions, such as building the dashboard message, where it calculates the byte value of throttle and the brake by converting the analog voltage of the brake and the throttle as we’ve seen before.

MaxG30_Master control driver is for communicating with the BLDC driver as a mobile phone linked through Bluetooth, that’s mean the using of the (0x3E) id as a source id in transmitted message. Also, it is responsible for using the available orders for controlling the BLDC driver such as lock, unlock, shutdown, restart, etc, by writing on the appropriate register as we’ve seen. In addition, it is responsible for reading most of the BLDC driver and the BMS registers values, then converting them to readable data.

Building the Application Layer for Implementing Our Custom Control System Algorithm:

Thanks to the distributed system in Hexabitz Platform we distribute the tasks of our custom control system between all these connected MCUs where every firmware of these modules has an application layer for doing some tasks.

GPS Module is basically responsible for the communication with the BLDC driver, where it uses the APIs from the last two firmware drivers (that implement the protocol) to play the role of the original dashboard, where it sends an active message every 10m sec, then it repeatedly collects the data from reading the BLDC driver and the BMS by reading the registers and write to some other registers for applying some commands.

IMU Module reads the throttle and brake sensors output analog voltages through its pads, also reading the accelerometer sensor value for the X axis and Y axis, finally transmit them to the GPS module.

MOSFET Modules are responsible for controlling the operation of the front and brake lights, where the front light is controlled by the user through the Android app, and the brake lights turned on when the user pushes the brake.

ESP32 Module’s first function is the responsibility of redirecting the buffer received from GPS module to the Android app through the Bluetooth and redirecting the orders from the last to the GPS module, where that buffer contains all the collected data from the BLDC driver and BMS, and the second function is the responsibility of activating the BLDC driver by turning the NPN transistor ON, sensing the turn-on line and finally send a notification message to the GPS module about the status.

4 ) Android Application:

The mobile application and web application were developed using Flutter. Connection between the mobile application and the scooter is established through Bluetooth Low Energy (BLE), leveraging the Flutter Blue Plus library. Additionally, SignalR is utilized to process real-time data received from the scooter.

The application communicates with the backend server through API calls, facilitated by the Dio library. This method is also employed for web communication.

The application is equipped with a variety of features, including the ability to switch languages and modify themes. it also presents an interactive map for location viewing, and provides comprehensive, detailed data about the scooter's condition. Additionally, it includes a configuration panel that allows users to adjust various settings, such as the scooter's maximum speed and operational mode.

1 / 4

5 ) Web Application:

The web application provides real-time tracking capabilities for a fleet of scooters, utilizing a 3-second refresh interval to ensure data accuracy. The system employs color-coding to visually signify the operational status of each scooter, such as whether they are active, locked, or low on battery.

Moreover, the application incorporates CRUD operations, enabling users to effectively manage both the scooter and user datasets. This involves the creation of new entries, reading or retrieving existing data, updating details, and the removal of entries from the system.

The application also features an analytical component, providing granular statistics on individual scooters, such as ride count within a specified timeframe and various performance indicators. It also offers aggregated data on all scooters, including the total ride count for a certain period.

1 / 3

6 ) Backend Server:

The backend server is built using ASP.NET Core 6 and SQL Server for the database. The server handles the processing and storage of data, and communicates with the mobile and web applications through APIs. This server-centric architecture allows for efficient data management and ensures that all connected clients have access to the most up-to-date information.

Results:

Here are some live experiments of our project. Have fun looking at them! More interesting projects will be presented in Hexabitz Channel.

References:

[1]: hexabitz.com

[2]: scooterhacking.org

[3]: github.com/etransport

/*
 BitzOS (BOS) V0.2.9 - Copyright (C) 2017-2023 Hexabitz
 All rights reserved

 File Name     : main.c
 Description   : Main program body.
 */
/* Includes ------------------------------------------------------------------*/
#include "BOS.h"

/* Private variables ---------------------------------------------------------*/
float ax,ay,az;
uint8_t IMU_Buffer [30] = {1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21};
uint8_t ready_msg = (uint8_t)'a';
uint8_t Mosfet2_msg;
uint8_t i=0,j=0;
uint8_t seconds1;
uint8_t* ptr = NULL;
uint32_t D_throttle_s,D_break_s,Tickstart1,Timeout1=100;
float D_throttle,D_break,A_throttle_val,A_break_val;
#define MOSFET1_UART &huart4

extern ADC_HandleTypeDef hadc;
/* Private function prototypes -----------------------------------------------*/

/* Main function ------------------------------------------------------------*/

int main(void){

	Module_Init();		//Initialize Module &  BitzOS



	//Don't place your code here.
	for(;;){}
}

/*-----------------------------------------------------------*/

/* User Task */
void UserTask(void *argument){


//		Bridge(P2, P4);
		ADCSelectChannel(3,"top");//3
		ADCSelectChannel(3,"bottom");//3
		HAL_ADCEx_Calibration_Start(&hadc);
		Tickstart1 = HAL_GetTick();


	// put your code here, to run repeatedly.
	while(1){

	if ((HAL_GetTick() - Tickstart1) > Timeout1){

		ReadADCChannel(3, "top", &D_throttle);
		ReadADCChannel(3, "bottom",&D_break);

		A_break_val = D_break*3.27/4095;
		A_throttle_val=D_throttle*3.27/4095;
		SampleAccG(&ax, &ay, &az);
		i=0;
		ptr = (uint8_t*)&ax;
		IMU_Buffer[i] =(uint8_t)'x';i++;//0
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;i++;

		ptr = (uint8_t*)&ay;
		IMU_Buffer[i] = (uint8_t)'y';i++;//5
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;i++;

	//	fill the throttle and brake values

		ptr = (uint8_t*)&A_throttle_val;
		IMU_Buffer[i] = (uint8_t)'t';i++;//10
		IMU_Buffer[i] = *ptr;ptr++;i++;//11
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;i++;

		ptr = (uint8_t*)&A_break_val;
		IMU_Buffer[i] = (uint8_t)'b';i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;ptr++;i++;
		IMU_Buffer[i] = *ptr;i++;
		IMU_Buffer[i] = (uint8_t)'e';i++;
//		j=0;
		HAL_UART_Transmit(MOSFET1_UART, IMU_Buffer, 21, 0xffff);
//		}
		Tickstart1 = HAL_GetTick();
	}
}
}
/*-----------------------------------------------------------*/

/*
 * DashBoard.c
 *
 *  Created on: Jul 22, 2023
 *      Author: Ibrahim
 */

#include "MaxG30_DashBoard.h"
#include "GPS_Hardware.h"
#include "MaxG30_Common.h"
#include <string.h>

/*Private Macros */

#define DashBoardIndex 0x00 //fixed
#define ThroVolt_ConvRatio 73.58 // (195/2.65) where Speed[(21k/h)] >>> throttle hal_sensor voltage (2.55V) >>> Speed_Reg = 195 (decimal)//vdd = 3.28 V
#define Brake_ConvRatio 77.36 // (205/2.65)
#define Standby_AnalogVolt 0.9
#define AnalogVolt_Error 0.05
#define IMU_Buffer_N 49
#define ThrottleByte_N	8
#define BrakeByte_N 	9
/*************************/

/*************************/

/*Private Variables */

uint8_t DashBoardMessage[14] = {0x5A,0xA5,0x05,0x21,0x20,0x65,0x00     ,0x04,0x27,0x23,0x02,0x00,0xF1,0xFE};
float A_throttle_val=0.85,A_brake_val;
extern uint8_t IMU_BufferCpy[50];
extern uint8_t IMU_Buffer[50];
int i;
uint8_t *t_ptr=NULL;
uint8_t Speed_Reg,Brake_Reg;
uint8_t BrakeFlag;
extern DashBoard_Status DashBoard_state;

/*************************/

/*Private Functions Definitions*/

void CalcSpeedandBrakeRegValues();
void Update_throttle_and_brake_values();

/*************************/


void DashBoardRun(){

	Update_throttle_and_brake_values();
	CalcSpeedandBrakeRegValues();
	addCRC(DashBoardMessage, 14);
	SendFullDublexMessage(DashBoardMessage,14);
}

void Update_throttle_and_brake_values(){

	for(i=0;i<(IMU_Buffer_N);i++)
	{
		IMU_BufferCpy[i]=IMU_Buffer[i];
	}


	//search for throttle value
	for(i=0;i<(IMU_Buffer_N-5);i++)
	{
		if(IMU_BufferCpy[i]=='t'&&IMU_BufferCpy[i+5]=='b'){
			t_ptr = (uint8_t*)&A_throttle_val;
			*t_ptr=IMU_BufferCpy[i+1];t_ptr++;
			*t_ptr=IMU_BufferCpy[i+2];t_ptr++;
			*t_ptr=IMU_BufferCpy[i+3];t_ptr++;
			*t_ptr=IMU_BufferCpy[i+4];
			break;
		}
	}


	//search for brake value********************
	for(i=0;i<(IMU_Buffer_N-5);i++)
	{
		if(IMU_Buffer[i]=='b'&&IMU_Buffer[i+5]=='e'){
			t_ptr = (uint8_t*)&A_brake_val;
			*t_ptr=IMU_Buffer[i+1];t_ptr++;
			*t_ptr=IMU_Buffer[i+2];t_ptr++;
			*t_ptr=IMU_Buffer[i+3];t_ptr++;
			*t_ptr=IMU_Buffer[i+4];
			break;
		}
	}

}

void CalcSpeedandBrakeRegValues()
{

if(A_throttle_val<Standby_AnalogVolt)
	Speed_Reg = Zero_Speed_RegValue;
else
	Speed_Reg = A_throttle_val*ThroVolt_ConvRatio;

DashBoardMessage[ThrottleByte_N]=Speed_Reg;

if(A_brake_val<Standby_AnalogVolt)
	{Brake_Reg = Zero_brake_RegValue;BrakeFlag=0;}
else
	{Brake_Reg = A_brake_val*Brake_ConvRatio;BrakeFlag=1;}


DashBoardMessage[BrakeByte_N] = Brake_Reg;

}

/*
 * MaxG30_Master control.c
 *
 *  Created on: Jul 25, 2023
 *      Author: Ibrahim
 */

#include "MaxG30_Master control.h"
#include "GPS_Hardware.h"
#include "MaxG30_Common.h"
#include <string.h>
/*Private Macros */


/*************************/

typedef struct{
	uint16_t CNB_INF_ERROR_REG;
	uint16_t NB_INF_BOOL_REG;
	uint16_t NB_INF_WORKMODE_REG;
	uint16_t NB_INF_BTC_REG;
	uint16_t NB_INF_ACTUAL_MIL_REG;
	uint16_t NB_INF_PRD_RID_MIL_REG;
	uint16_t NB_INF_SPEED_REG;
	uint16_t NB_INF_RID_MIL_L_REG;
	uint16_t NB_INF_RID_MIL_H_REG;
	uint16_t NB_INF_RID_MIL_SIG_REG;
	uint16_t NB_INF_RUN_TIM_L_REG;
	uint16_t NB_INF_RUN_TIM_H_REG;
	uint16_t NB_INF_RID_TIM_L_REG;
	uint16_t NB_INF_RID_TIM_H_REG;
	uint16_t NB_INF_RUN_TIM_SIG_REG;
	uint16_t NB_INF_RID_TIM_SIG_REG;
	uint16_t NB_INF_BODY_TEMP_REG;
	uint16_t NB_INF_BAT1_TEMP_REG;
	uint16_t NB_INF_BAT2_TEMP_REG;
	uint16_t NB_INF_MOS_TEMP_REG;
	uint16_t NB_INF_DRV_VOLT_REG;
	uint16_t NB_INF_MOT11_CURT_P_REG;
	uint16_t NB_INF_AVRSPEED_REG;
	uint16_t NB_CTL_LIMIT_SPD_REG;
	uint16_t NB_CTL_NOMALSPEED_REG;
	uint16_t NB_CTL_LITSPEED_REG;
	uint16_t NB_CTL_WORKMODE_REG;
	uint16_t NB_QUK_CRT_LIMIT_SPEED_REG;
	uint16_t NB_QUK_SYS_POWER_REG;
	uint16_t BAT_CAPACITY_REG;
	uint16_t BAT_TOTAL_CAPACITY_REG;
	uint16_t BAT_DESIGN_VOLTAGE_REG;
	uint16_t BAT_CYCLE_TIMES_REG;
	uint16_t BAT_CHARGE_TIMES_REG;
	uint16_t BAT_CHARGE_CAP_L_REG;
	uint16_t BAT_CHARGE_CAP_H_REG;
	uint16_t BAT_OVER_DISCHARGE_TIMES_REG;
	uint16_t BAT_FUN_BOOLEAN_REG;
	uint16_t BAT_REMAINING_CAP_REG;
	uint16_t BAT_REMAINING_CAP_PERCENT_REG;
	int16_t BAT_CURRENT_CUR_REG;
	uint16_t BAT_VOLTAGE_CUR_REG;
	uint16_t BAT_TEMP_CUR_REG;
	uint16_t BAT_BALANCE_STATU_REG;
	uint16_t BAT_ODIS_STATE_REG;
	uint16_t BAT_OCHG_STATE_REG;
	uint16_t BAT_CAP_COULO_REG;
	uint16_t BAT_CAP_VOL_REG;
	uint16_t BAT_HEALTHY_REG;
	uint16_t BAT_CORE_VOLT_1_REG;
	uint16_t BAT_CORE_VOLT_2_REG;
	uint16_t BAT_CORE_VOLT_3_REG;
	uint16_t BAT_CORE_VOLT_4_REG;
	uint16_t BAT_CORE_VOLT_5_REG;
	uint16_t BAT_CORE_VOLT_6_REG;
	uint16_t BAT_CORE_VOLT_7_REG;
	uint16_t BAT_CORE_VOLT_8_REG;
	uint16_t BAT_CORE_VOLT_9_REG;
	uint16_t BAT_CORE_VOLT_10_REG;
	}MaxG30_Master_Control_Registers;

/*Private enums */

typedef enum MasterControlMemoryRegisters {
	CNB_INF_ERROR = 0x1B, //Error code
	NB_INF_BOOL = 0x1d, // Boolean state word [4]
	NB_INF_WORKMODE = 0x1F, //Current operation mode, 0 NORMAL;1 ECO; 2 SPORT
	NB_INF_BTC = 0x22, //Battery percentage of the scooter , 0-100
	NB_INF_ACTUAL_MIL = 0x24, //Actual remaining mileage, unit: 10m
	NB_INF_PRD_RID_MIL = 0x25, //Predicted remaining mileage, 10m
	NB_INF_SPEED = 0x26, //Current speed, 0.1km/h
	NB_INF_RID_MIL_L = 0x29, //Lower 16 bits of the total mileage, m
	NB_INF_RID_MIL_H = 0x2A, //Higher 16 bits of the total mileage, m
	NB_INF_RID_MIL_SIG = 0x2f,//NB_INF_RID_MIL_SIG
	NB_INF_RUN_TIM_L = 0x32, //Lower 16 bits of the total operation time, Sec
	NB_INF_RUN_TIM_H = 0x33, //Higher 16 bits of the total operation time, sec
	NB_INF_RID_TIM_L = 0x34, //Lower 16 bits of the total riding time, sec
	NB_INF_RID_TIM_H = 0x35, //Higher 16 bits of the total riding time, sec
	NB_INF_RUN_TIM_SIG = 0x3a,//Single operation time, sec
	NB_INF_RID_TIM_SIG = 0x3b,//Single riding time, sec
	NB_INF_BODY_TEMP = 0x3E, // Scooter temperature, 0.1
	NB_INF_BAT1_TEMP = 0x3f, //Battery 1 temperature, 0.1
	NB_INF_BAT2_TEMP = 0x40, //Battery 2 temperature, 0.1
	NB_INF_MOS_TEMP = 0x41, //MOS pipe temperature
	NB_INF_DRV_VOLT = 0x47, //System driving voltage, 0.01V, also supply voltage of the central control
	NB_INF_MOT11_CURT_P = 0x53, // Motor  phase current, 0.01A
	NB_INF_AVRSPEED = 0x65, // Average speed, 0.1km/h
	NB_CTL_LOCK = 0x70, // Lock [5], send 1 for locking, scooter reset automatically
	NB_CTL_UNLOCK = 0x71, //Unlock [5], send 1 for unlocking, scooter reset automatically
	NB_CTL_LIMIT_SPD = 0x72, //Speed limit or speed limit release
	NB_CTL_NOMALSPEED = 0x73, //Speed limit value in normal mode, 0.1km/h
	NB_CTL_LITSPEED = 0x74, //Speed limit value in speed limit mode, 0.1km/h
	NB_CTL_WORKMODE = 0x75, //Operating mode: 0, NORMAL; 1,ECO; 2, SPORT
	NB_CTL_ENGINE = 0x77, //Start or shut down the engine
	NB_CTL_REBOOT = 0x78, //Restart system [6], write 1 for restart
	NB_CTL_POWEROFF = 0x79, //Shutdown [6], write 1 for shutdown
	NB_QUK_CRT_LIMIT_SPEED = 0XBC,//Current speed limit value, with the lower 8 bits for current speed limit	value and higher 8 bits for the full range value, unit: 0.1km/h
	NB_QUK_SYS_POWER = 0XBD,// Scooter Power, unit: W
	BAT_CAPACITY = 0X18,//Design capacity of the battery, mAh
	BAT_TOTAL_CAPACITY = 0X19,//Full charge capacity of the battery,mAh
	BAT_DESIGN_VOLTAGE = 0X1A,//Design voltage of the battery, 10mV
	BAT_CYCLE_TIMES = 0X1B,//Cycle times of the battery
	BAT_CHARGE_TIMES = 0X1C,//Battery charging times
	BAT_CHARGE_CAP_L = 0X1D,//Lower 16 bits of the accumulative charge capacity of the battery,10mAh
	BAT_CHARGE_CAP_H = 0X1E,//Higher 16 bits of the accumulative charge capacity of the battery,10mAh
	BAT_OVER_DISCHARGE_TIMES = 0x1f,//Battery overflowing and over-discharging times, with the lower 8bits indicating the overflowing times and higher 8 bits indicating over-discharging times
	BAT_FUN_BOOLEAN = 0x30, //Boolean variable
	BAT_REMAINING_CAP = 0x31,//Current residual capacity, mAh
	BAT_REMAINING_CAP_PERCENT = 0x32,//Current residual capacity percentage,0-100
	BAT_CURRENT_CUR = 0x33, //Current current, 10mA
	BAT_VOLTAGE_CUR = 0x34, //Current voltage, 10mV
	BAT_TEMP_CUR = 0x35, //Temperature, with the higher 8 bits and lower 8 bits indicating temperatures of two temperature sensors respectively, 0-119 corresponding to -20 - 99
	BAT_BALANCE_STATU = 0x36 , //Balanced open status of the protective plate
	BAT_ODIS_STATE = 0x37 , // Unde-rvoltage condition of battery cell
	BAT_OCHG_STATE = 0x38 , // Over-voltage condition of battery cell
	BAT_CAP_COULO = 0x39 , // Coulomb-meter capacity
	BAT_CAP_VOL = 0x3a , //Volt-meter capacity
	BAT_HEALTHY = 0x3b , // Health degree
	BAT_CORE_VOLT_1 = 0x40, //Single cell voltage (N.1)
	BAT_CORE_VOLT_2 = 0x41, //Single cell voltage (N.2)
	BAT_CORE_VOLT_3 = 0x42, //Single cell voltage (N.3)
	BAT_CORE_VOLT_4 = 0x43, //Single cell voltage (N.4)
	BAT_CORE_VOLT_5 = 0x44, //Single cell voltage (N.5)
	BAT_CORE_VOLT_6 = 0x45, //Single cell voltage (N.6)
	BAT_CORE_VOLT_7 = 0x46, //Single cell voltage (N.7)
	BAT_CORE_VOLT_8 = 0x47, //Single cell voltage (N.8)
	BAT_CORE_VOLT_9 = 0x48, //Single cell voltage (N.9)
	BAT_CORE_VOLT_10 = 0x49, //Single cell voltage (N.10)
}mas_control_memory_reg;

/*************************/

/*Private Variables */

uint8_t MasterControlMessage[11] = 	 {header1,header2,0x02, Mobile_ID,ESC_ID,	  0	   ,	 0x1B		 ,0x02	  ,0x00     ,0		  ,0};
MaxG30_Master_Control_Registers EscooterRegs;
BufStat BufferStatus = empty;
device_type device = DRV;
int i=0,k=0,k1=0;
/*************************/

/*Private Functions Definitions*/

void WriteParam (mas_control_memory_reg RegAdd , uint16_t value);
void WriteCustomParam (mas_control_memory_reg RegAdd , uint16_t value);


/*************************/

/***************************public functions declarations***********************/
uint16_t GetErrorCode(){
	return EscooterRegs.CNB_INF_ERROR_REG;
}

uint16_t GetState(){
	return EscooterRegs.NB_INF_BOOL_REG;
}

uint16_t GetBatPerce(){
	return EscooterRegs.NB_INF_BTC_REG;
}

uint16_t GetActualMil(){
	return EscooterRegs.NB_INF_ACTUAL_MIL_REG;
}

uint16_t GetPrdMil(){
	return EscooterRegs.NB_INF_PRD_RID_MIL_REG;
}

float GetCurSpeed (){
	return EscooterRegs.NB_INF_SPEED_REG/10.0;
}

uint16_t GetRidMil(){
	return EscooterRegs.NB_INF_RID_MIL_SIG_REG;
}

uint16_t GetRunTim(){
	return EscooterRegs.NB_INF_RUN_TIM_SIG_REG;
}

uint16_t GetRidTim(){
	return EscooterRegs.NB_INF_RID_TIM_SIG_REG;
}

uint32_t GetTotalRidMil(){
	return ((uint32_t)(EscooterRegs.NB_INF_RID_MIL_L_REG)|(uint32_t)(EscooterRegs.NB_INF_RID_MIL_H_REG<<16));
}

uint32_t GetTotalRunTim(){
	return ((uint32_t)(EscooterRegs.NB_INF_RUN_TIM_L_REG)|(uint32_t)(EscooterRegs.NB_INF_RUN_TIM_H_REG<<16));
}

uint32_t GetTotalRidTim(){
	return ((uint32_t)(EscooterRegs.NB_INF_RID_TIM_L_REG)|(uint32_t)(EscooterRegs.NB_INF_RID_TIM_H_REG<<16));
}

float GetScooterTemp (){
	return EscooterRegs.NB_INF_BODY_TEMP_REG/10.0;
}

float GetMosTemp(){
	return EscooterRegs.NB_INF_MOS_TEMP_REG/10.0;
}

float GetDriverVolt(){
	return EscooterRegs.NB_INF_DRV_VOLT_REG/100.0;
}

float GetMotorCurrrent(){
	return EscooterRegs.NB_INF_MOT11_CURT_P_REG/100.0;
}

float GetAvrSpeed (){
	return EscooterRegs.NB_INF_AVRSPEED_REG/10.0;
}

uint16_t GetLockStatus(){
if((EscooterRegs.NB_INF_BOOL_REG&2)==2)
	return 1;
else return 0;
}

WRKMOD GetWorkMode(){
	switch(EscooterRegs.NB_CTL_WORKMODE_REG){
	case 0 : return NORMAL;
	case 1 : return ECO;
	case 2 : return SPORT;
	default : return NONE;
	}
	}
uint8_t GetNormalSpeed(){
	return (uint8_t)EscooterRegs.NB_CTL_NOMALSPEED_REG;
}
uint8_t GetLimitSpeed(){
	return (uint8_t)EscooterRegs.NB_CTL_LIMIT_SPD_REG;
}
uint8_t GetLiteSpeed(){
	return (uint8_t)EscooterRegs.NB_CTL_LITSPEED_REG;
}
float GetFullSpeed (){
	return ((uint8_t)(EscooterRegs.NB_QUK_CRT_LIMIT_SPEED_REG>>8)/10.0);
}

uint16_t GetScooterPower(){
	return EscooterRegs.NB_QUK_SYS_POWER_REG;
}

uint16_t GetBatCapcity(){
	return EscooterRegs.BAT_CAPACITY_REG;
}

uint16_t GetBatTotalCapcity(){
	return EscooterRegs.BAT_TOTAL_CAPACITY_REG;
}

float GetBatDesignVoltage(){
	return EscooterRegs.BAT_DESIGN_VOLTAGE_REG/100.0;
}

uint16_t GetBatCycleTimes(){
	return EscooterRegs.BAT_CYCLE_TIMES_REG;
}

uint16_t GetBatChargeTimes(){
	return EscooterRegs.BAT_CHARGE_TIMES_REG;
}

uint32_t GetBatChargeCap(){
	return ((uint32_t)(EscooterRegs.BAT_CHARGE_CAP_L_REG)|(uint32_t)(EscooterRegs.BAT_CHARGE_CAP_H_REG<<16))*10;
}

uint8_t GetBatOverDisChargeTimes(){
	return (uint8_t)(EscooterRegs.BAT_OVER_DISCHARGE_TIMES_REG);
}

uint8_t GetBatOverFlowingTimes(){
	return (uint8_t)(EscooterRegs.BAT_OVER_DISCHARGE_TIMES_REG>>8);
}

uint16_t GetBatRemainCap(){
	return EscooterRegs.BAT_REMAINING_CAP_REG;//BAT_FUN_BOOLEAN_REG
}

uint16_t GetBatRemainCapPerc(){
	return EscooterRegs.BAT_REMAINING_CAP_PERCENT_REG;
}

float GetBatCurrent(){
	return EscooterRegs.BAT_CURRENT_CUR_REG/100.0;
}

int16_t GetBatCurrent_mA(){
	return EscooterRegs.BAT_CURRENT_CUR_REG*10;
}

float GetBatVoltage(){
	return EscooterRegs.BAT_VOLTAGE_CUR_REG/100.0;
}

float GetBatTemp_S1(){
	return ((uint8_t)EscooterRegs.BAT_TEMP_CUR_REG)-20.0;
}

float GetBatTemp_S2(){
	return ((uint8_t)(EscooterRegs.BAT_TEMP_CUR_REG>>8))-20.0;
}

uint16_t GetBatCapCulo(){
	return EscooterRegs.BAT_CAP_COULO_REG;
}

uint16_t GetBatCapVol(){
	return EscooterRegs.BAT_CAP_VOL_REG;
}

uint16_t GetBatHealthy(){
	return EscooterRegs.BAT_HEALTHY_REG;
}

float GetBatCoreVolt_1(){
	return EscooterRegs.BAT_CORE_VOLT_1_REG/1000.0;
}

float GetBatCoreVolt_2(){
	return EscooterRegs.BAT_CORE_VOLT_2_REG/1000.0;
}

float GetBatCoreVolt_3(){
	return EscooterRegs.BAT_CORE_VOLT_3_REG/1000.0;
}

float GetBatCoreVolt_4(){
	return EscooterRegs.BAT_CORE_VOLT_4_REG/1000.0;
}

float GetBatCoreVolt_5(){
	return EscooterRegs.BAT_CORE_VOLT_5_REG/1000.0;
}

float GetBatCoreVolt_6(){
	return EscooterRegs.BAT_CORE_VOLT_6_REG/1000.0;
}

float GetBatCoreVolt_7(){
	return EscooterRegs.BAT_CORE_VOLT_7_REG/1000.0;
}

float GetBatCoreVolt_8(){
	return EscooterRegs.BAT_CORE_VOLT_8_REG/1000.0;
}

float GetBatCoreVolt_9(){
	return EscooterRegs.BAT_CORE_VOLT_9_REG/1000.0;
}

float GetBatCoreVolt_10(){
	return EscooterRegs.BAT_CORE_VOLT_10_REG/1000.0;
}

//*****************Commands*********************/

void Lock(){
	WriteParam(NB_CTL_LOCK,1);
}

void Unlock(){
	WriteParam(NB_CTL_UNLOCK,1);
}

void Reboot(){
	WriteParam(NB_CTL_REBOOT,1);
	EscooterRegs = (MaxG30_Master_Control_Registers) {0};
}
void Shutdown(){
	WriteParam(NB_CTL_POWEROFF,1);
}
void SetSpeedLimit(uint8_t speed,SPDTyp type){// 0.1(Kmeter/h)
//	WriteParam(NB_CTL_ENGINE,0);

	switch(type){
	case normal : WriteParam(NB_CTL_NOMALSPEED,speed);break;//WriteParam(NB_CTL_NOMALSPEED,speed*10);break;
	case LITE :  WriteParam(NB_CTL_LITSPEED,speed);break;
	case LIMIT :  WriteParam(NB_CTL_LIMIT_SPD,speed);break;
	}
	WriteParam(NB_CTL_REBOOT,1);
//	WriteParam(NB_CTL_ENGINE,1);
}
void ChangeCap(uint16_t newcap){
	WriteCustomParam(k1,newcap);k1++;//22 BATERY ID
}
void ChangeWorkMode(WRKMOD mode){
	WriteParam(NB_CTL_ENGINE,0);
	WriteParam(NB_CTL_WORKMODE,mode);
	WriteParam(NB_CTL_REBOOT,1);
	WriteParam(NB_CTL_ENGINE,1);
}

void ReleaseSpeed(){
//	WriteParam(NB_CTL_ENGINE,0);
	WriteParam(NB_CTL_LIMIT_SPD,250);
	WriteParam(NB_CTL_REBOOT,1);
//	WriteParam(NB_CTL_ENGINE,1);
}
void LimitSpeed(){
//	WriteParam(NB_CTL_ENGINE,0);
	WriteParam(NB_CTL_LIMIT_SPD,60);
	WriteParam(NB_CTL_REBOOT,1);
//	WriteParam(NB_CTL_ENGINE,1);
}
/********************************************************************************/

void RequestParam(){

	if (device==DRV){
		MasterControlMessage[datInd] = CNB_INF_ERROR;
		MasterControlMessage[DatSeg1]=0xb6;
		MasterControlMessage[targetID]=ESC_ID;
	}
	else if (device==BMS){
		MasterControlMessage[datInd] = BAT_CAPACITY;
		MasterControlMessage[DatSeg1]=0x6e;
		MasterControlMessage[targetID]=Battey_ID;
		}
	else if (device==NB_QUK){
		MasterControlMessage[datInd] = 0xb0;
		MasterControlMessage[DatSeg1]=0x20;
		MasterControlMessage[targetID]=ESC_ID;
	}
	MasterControlMessage[cmdWord]=CMD_CMAP_RD;
//	MasterControlMessage[DatSeg1]=0x02;
	MasterControlMessage[DatSeg2]=0x00;
	MasterControlMessage[frameheader1]= header1;
	addCRC(MasterControlMessage, 11);
	SendFullDublexMessage(MasterControlMessage, 11);}

void RequestCustomParam(){

	MasterControlMessage_CS[cmdWord]=CMD_CMAP_RD;
	MasterControlMessage_CS[DatSeg1]=0xb4;	//0x6e;battery registers
	MasterControlMessage_CS[datInd] = 0x1b;
	MasterControlMessage_CS[DatSeg2]=0x00;
	MasterControlMessage_CS[frameheader1]= header1;
	MasterControlMessage_CS[targetID]= ESC_ID;
	addCRC(MasterControlMessage_CS, 11);
	SendFullDublexMessage(MasterControlMessage_CS, 11);}

void WriteCustomParam (mas_control_memory_reg RegAdd , uint16_t value){
	MasterControlMessage_WRCS[frameheader1]= header1;
	MasterControlMessage_WRCS[targetID]=Battey_ID;
	MasterControlMessage_WRCS[cmdWord]=CMD_CMAP_WR_NR;
	MasterControlMessage_WRCS[datInd]= 0;
	MasterControlMessage_WRCS[packLen]=158;
	for(i=7;i<166;i+=2){
	MasterControlMessage_WRCS[i]=(uint8_t)value;
	MasterControlMessage_WRCS[i+1]=(uint8_t)(value>>8);
	}
	addCRC(MasterControlMessage_WRCS, 167);
	SendFullDublexMessage(MasterControlMessage_WRCS, 167);
}

void WriteParam (mas_control_memory_reg RegAdd , uint16_t value){
//	uint8_t P_read;
	MasterControlMessage_WR[frameheader1]= header1;
	MasterControlMessage_WR[targetID]=ESC_ID;
	MasterControlMessage_WR[cmdWord]=CMD_CMAP_WR_NR;
//	P_read = MasterControlMessage[datInd];
	MasterControlMessage_WR[datInd]= RegAdd;
	MasterControlMessage_WR[DatSeg1]=(uint8_t)value;
	MasterControlMessage_WR[DatSeg2]=(uint8_t)(value>>8);
	addCRC(MasterControlMessage_WR, 11);
	SendFullDublexMessage(MasterControlMessage_WR, 11);
//	 MasterControlMessage[datInd] = P_read;
}

BufStat ReadParam1 () {//BufStat

	uint8_t DatSeg1 = 7;
	uint8_t DatSeg2 = 8;
	if(MCTL_Buffer[sourceID]==ESC_ID){

		if(MCTL_Buffer[datInd]==CNB_INF_ERROR){

			EscooterRegs.CNB_INF_ERROR_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_BOOL - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_BOOL_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_WORKMODE - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_WORKMODE_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_BTC - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_BTC_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_ACTUAL_MIL - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_ACTUAL_MIL_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_PRD_RID_MIL - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_PRD_RID_MIL_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_SPEED - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_SPEED_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RID_MIL_L - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RID_MIL_L_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RID_MIL_H - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RID_MIL_H_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RID_MIL_SIG - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RID_MIL_SIG_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RUN_TIM_L - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RUN_TIM_L_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RUN_TIM_H - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RUN_TIM_H_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RID_TIM_L - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RID_TIM_L_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RID_TIM_H - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RID_TIM_H_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RUN_TIM_SIG - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RUN_TIM_SIG_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_RID_TIM_SIG - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_RID_TIM_SIG_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_BODY_TEMP - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_BODY_TEMP_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_BAT1_TEMP - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_BAT1_TEMP_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_BAT2_TEMP - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_BAT2_TEMP_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_MOS_TEMP - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_MOS_TEMP_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_DRV_VOLT - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_DRV_VOLT_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_MOT11_CURT_P - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_MOT11_CURT_P_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_INF_AVRSPEED - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_INF_AVRSPEED_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_CTL_NOMALSPEED - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_CTL_NOMALSPEED_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_CTL_LITSPEED - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_CTL_LITSPEED_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_CTL_WORKMODE - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_CTL_WORKMODE_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_CTL_LIMIT_SPD - CNB_INF_ERROR;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_CTL_LIMIT_SPD_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);
		}

		else if (MCTL_Buffer[datInd]==0xb0){

			k = NB_QUK_CRT_LIMIT_SPEED - 0xb0;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_QUK_CRT_LIMIT_SPEED_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = NB_QUK_SYS_POWER - 0xb0;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.NB_QUK_SYS_POWER_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);
		}
	}

	else if(MCTL_Buffer[sourceID]==Battey_ID)
		{
			EscooterRegs.BAT_CAPACITY_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_TOTAL_CAPACITY - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_TOTAL_CAPACITY_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_DESIGN_VOLTAGE - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_DESIGN_VOLTAGE_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CYCLE_TIMES - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CYCLE_TIMES_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CHARGE_TIMES - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CHARGE_TIMES_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CHARGE_CAP_L - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CHARGE_CAP_L_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CHARGE_CAP_H - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CHARGE_CAP_H_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_OVER_DISCHARGE_TIMES - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_OVER_DISCHARGE_TIMES_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_FUN_BOOLEAN - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_FUN_BOOLEAN_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_REMAINING_CAP - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_REMAINING_CAP_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_REMAINING_CAP_PERCENT - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_REMAINING_CAP_PERCENT_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CURRENT_CUR - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CURRENT_CUR_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_VOLTAGE_CUR - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_VOLTAGE_CUR_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_TEMP_CUR - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_TEMP_CUR_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_BALANCE_STATU - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_BALANCE_STATU_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_ODIS_STATE - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_OCHG_STATE_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_OCHG_STATE - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_OCHG_STATE_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CAP_COULO - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CAP_COULO_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CAP_VOL - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CAP_VOL_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_HEALTHY - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_HEALTHY_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_1 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_1_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_2 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_2_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_3 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_3_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_4 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_4_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_5 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_5_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_6 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_6_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_7 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_7_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_8 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_8_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_9 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_9_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

			k = BAT_CORE_VOLT_10 - BAT_CAPACITY;
			k*=2;
			DatSeg1 = 7+k;DatSeg2 = 8+k;
			EscooterRegs.BAT_CORE_VOLT_10_REG = MCTL_Buffer[DatSeg1]|(MCTL_Buffer[DatSeg2]<<8);

				}

	if (MCTL_Buffer[frameheader1]==header1)BufferStatus = ok;
	else BufferStatus = error;

	return BufferStatus;
}

/*
 * GPS_ApplicationLayer.c
 *
 *  Created on: Aug 1, 2023
 *      Author: Ibrahim
 */

#include "GPS_ApplicationLayer.h"
#include "MaxG30_DashBoard.h"
#include "MaxG30_Master control.h"
#include "stm32g0xx.h"
#include <string.h>
#include <stdlib.h>

extern UART_HandleTypeDef huart4; //IMU connection
extern UART_HandleTypeDef huart2; //Mosfet1 connection
extern UART_HandleTypeDef huart1; // Mian_Controller Connection

extern TIM_HandleTypeDef htim14;//DashBoard run

#define IMU_UART &huart4
#define Mosfet1_UART &huart2
#define MCTL_UART &huart1

#define DashBoard_TIM &htim14

#define BleBuffer_N 220
#define IMU_Buffer_N 50
#define DRV_Buffer_N 189
#define NB_QUK_Buffer_N 39
#define BMS_Buffer_N 119

DashBoard_Status DashBoard_state=not_activated;
MaxG30_Master_Control_Attributes Escooter1;

uint8_t IMU_BufferCpy[50];
uint8_t IMU_Buffer[50];
uint8_t BLE_BUFFER[220];
uint8_t MCTL_Buffer[200];
uint32_t Tickstart1=0;
uint16_t ref,pre_ref;
uint8_t ESP_MSG;
uint8_t c1=0,c2=0;
float throttle_test;
uint8_t *ptr1;
uint8_t j;
extern uint8_t BrakeFlag;
uint8_t LightFlag=0;
SPDTyp speed_type=LIMIT;
extern device_type device;
extern BufStat BufferStatus;
uint16_t temp_RidMil;
uint16_t temp_RidTim;
uint16_t temp_RunTim;
uint16_t temp;

void UpdateAttr_Handler();
void Update_MCTRL_Attributes_STRCT (device_type target);//uint8_t attrN
void Update_BLE_BUFFER (uint8_t* value,char value_type , char start);
void Process_IMU_Buffer();
float GetXaxis();
float GetYaxis();

void GPS_Init(){
	HAL_UART_Receive_IT (IMU_UART, &ESP_MSG, 1);
	HAL_UART_Receive_DMA(Mosfet1_UART, IMU_Buffer, IMU_Buffer_N);
	HAL_TIM_Base_Start_IT(&htim14);
}

void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim){

	if(htim==DashBoard_TIM){//every 10 mSec

		if(DashBoard_state==activated){
		if(c2==10) {
			device = DRV;
			HAL_UART_DMAStop(MCTL_UART);
			HAL_UART_Receive_DMA(MCTL_UART,MCTL_Buffer, DRV_Buffer_N);
			RequestParam();}

		if(c2==20) {
			if(BLE_BUFFER[0]==0)
			{c2=0;
			goto exit;
			}

			device = NB_QUK;
			HAL_UART_DMAStop(MCTL_UART);
			HAL_UART_Receive_DMA(MCTL_UART,MCTL_Buffer, NB_QUK_Buffer_N);
			RequestParam();}

		if(c2==30) {
			device = BMS;
			HAL_UART_DMAStop(MCTL_UART);
			HAL_UART_Receive_DMA(MCTL_UART,MCTL_Buffer, BMS_Buffer_N);
			RequestParam(); c2=0;}
		c2++;
		}
		exit :if(c2!=10&&c2!=20&&c2!=30)DashBoardRun();
	}
}

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{

	if(huart==MCTL_UART){
		ReadParam1();
		Update_MCTRL_Attributes_STRCT(device);
	}

	if(huart==IMU_UART){
		HAL_UART_Receive_IT (IMU_UART, &ESP_MSG, 1);
		switch(ESP_MSG){//process the ESP message
		case 'a' ://controller is activated
			DashBoard_state=activated;break;//61
		case 'b' ://lock
			Lock();break;//62
		case 'c' ://unlock
			Unlock();break;//63
		case 'd' ://Reboot
			{Reboot();
			Escooter1 = (MaxG30_Master_Control_Attributes) {0};

			break;//64
			}
		case 'e' ://shutdown
			{Shutdown();DashBoard_state=not_activated;break;}//65

		case 'h' ://68 // turn on the front light
		{
			LightFlag=!LightFlag;
			HAL_UART_Transmit(Mosfet1_UART, &LightFlag, 1, 0xffff);break;
		}
		case 'E' :
			ChangeWorkMode(ECO);break;//45
		case 'S' :
			ChangeWorkMode(SPORT);break;//53
		case 'N' :
			ChangeWorkMode(NORMAL);break;//4e
		case 'R' :
			ReleaseSpeed();break;//52
		case 'L' :
			LimitSpeed();break;//4c
		case 'n' :
			speed_type=normal;break;//6e
		case 'm' :
			speed_type=LIMIT;break;//6d
		case 'i' :
			speed_type=LITE;break;//69
		case 'C' :
			RequestCustomParam();break;//43
		default :
			if(ESP_MSG<22)SetSpeedLimit(ESP_MSG,speed_type);

	}
	}
}

void Update_MCTRL_Attributes_STRCT (device_type target)
	{
	if(target == DRV){

			Escooter1.ErrorCode=GetErrorCode();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.ErrorCode,'U','a');

			Escooter1.State=GetState();
			Escooter1.WorkMode=GetWorkMode();
			Escooter1.NormalSpeed=GetNormalSpeed();
			Escooter1.LiteSpeed=GetLiteSpeed();
			Escooter1.LimitSpeed=GetLimitSpeed();

			Escooter1.BatPerce=GetBatPerce();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatPerce,'U','b');

			Escooter1.ActualMil=GetActualMil();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.ActualMil,'U','c');

			Escooter1.PrdMil=GetPrdMil();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.PrdMil,'U','d');

			Escooter1.CurrSpeed=GetCurSpeed();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.CurrSpeed,'F','e');

			Escooter1.TotalRidMil=GetTotalRidMil();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.TotalRidMil,'L','f');

			Escooter1.TotalRunTim=GetTotalRunTim();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.TotalRunTim,'L','g');

			Escooter1.TotalRidTim=GetTotalRidTim();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.TotalRidTim,'L','h');

			Escooter1.BodyTemp=GetScooterTemp();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BodyTemp,'F','i');

			Escooter1.MosTemp=GetMosTemp();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.MosTemp,'F','j');

			Escooter1.DriverVolt=GetDriverVolt();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.DriverVolt,'F','k');

			Escooter1.MotorCurrrent=GetMotorCurrrent();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.MotorCurrrent,'F','l');

			Escooter1.AvrSpeed=GetAvrSpeed();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.AvrSpeed,'F','m');

			Escooter1.LockState=GetLockStatus();
			Update_BLE_BUFFER(&Escooter1.LockState,'u','n');

			Escooter1.SpeedLimit=(float)GetLimitSpeed();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.SpeedLimit,'F', 'o');

			temp = GetRidMil();
			if(Escooter1.RidMil>temp){//there is previous value
				if(temp_RidMil==0)
					{temp=temp_RidMil;//first time
					Escooter1.RidMil+= temp;
					}
				else 				//next times
					{Escooter1.RidMil+= temp - temp_RidMil; //add the difference
					temp_RidMil=temp;//save the current value
					}
			}
			else Escooter1.RidMil=temp;
//			Update_BLE_BUFFER((uint8_t*)&Escooter1.RidMil,'U','r');

			Escooter1.roll=GetXaxis();
//			Update_BLE_BUFFER((uint8_t*)&Escooter1.roll,'F', 's');

			Escooter1.pitch=GetYaxis();
//			Update_BLE_BUFFER((uint8_t*)&Escooter1.pitch,'F', 't');

			temp = GetRidTim();
			if(Escooter1.RidTim>temp){//there is previous value
				if(temp_RidTim==0)
					{temp=temp_RidTim;//first time
					Escooter1.RidTim+= temp;
					}
				else 				//next times
					{Escooter1.RidTim+= temp - temp_RidTim; //add the difference
					temp_RidTim=temp;//save the current value
					}
			}
			else Escooter1.RidTim=temp;
//			Update_BLE_BUFFER((uint8_t*)&Escooter1.RidTim,'U','u');

			temp = GetRunTim();
			if(Escooter1.RunTim>temp){//there is previous value
				if(temp_RunTim==0)
					{temp=temp_RunTim;//first time
					Escooter1.RunTim+= temp;
					}
				else 				//next times
					{Escooter1.RunTim+= temp - temp_RunTim; //add the difference
					temp_RunTim=temp;//save the current value
					}
			}
			else Escooter1.RunTim=temp;
//			Update_BLE_BUFFER((uint8_t*)&Escooter1.RunTim,'U','v');
		}

	else if (target == NB_QUK){

//			if(BLE_BUFFER[0]==0){
//				BLE_BUFFER[0]=1;
//			}

			Escooter1.FullSpeed=GetFullSpeed();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.FullSpeed,'F', 'p');

			Escooter1.ScooterPower=GetScooterPower();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.ScooterPower,'U', 'q');

			Update_BLE_BUFFER((uint8_t*)&Escooter1.RidMil,'U','r');
			Update_BLE_BUFFER((uint8_t*)&Escooter1.roll,'F', 's');
			Update_BLE_BUFFER((uint8_t*)&Escooter1.pitch,'F', 't');
			Update_BLE_BUFFER((uint8_t*)&Escooter1.RidTim,'U','u');
			Update_BLE_BUFFER((uint8_t*)&Escooter1.RunTim,'U','v');

	}

	else if(target == BMS){

			Escooter1.BatteryCapacity=GetBatCapcity();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatteryCapacity,'U', 'w');

			Escooter1.TotalBatteryCapacity=GetBatTotalCapcity();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.TotalBatteryCapacity,'U', 'x');

			Escooter1.BatDesignVoltage=GetBatDesignVoltage();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatDesignVoltage,'F', 'y');

			Escooter1.BatCycleTimes=GetBatCycleTimes();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCycleTimes,'U', 'z');

			Escooter1.BatChargeTimes=GetBatChargeTimes();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatChargeTimes,'U', 'A');

			Escooter1.BatChargeCap=GetBatChargeCap();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatChargeCap,'L', 'B');

			Escooter1.BatOverDisChargeTimes=GetBatOverDisChargeTimes();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatOverDisChargeTimes,'u', 'C');

			Escooter1.BatOverFlowingTimes=GetBatOverFlowingTimes();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatOverFlowingTimes,'u', 'D');

			Escooter1.BatRemainCap=GetBatRemainCap();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatRemainCap,'U', 'E');

			Escooter1.BatRemainCapPerc=GetBatRemainCapPerc();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatRemainCapPerc,'U', 'F');

			Escooter1.BatCurrent=GetBatCurrent();

			if(Escooter1.BatCurrent<0){
				Escooter1.BatVoltage=0;
			}

			if(Tickstart1==0){
				Escooter1.BatCalcDraiCAP= (GetBatCurrent_mA()*HAL_GetTick())/3600000.0;
				Tickstart1 = HAL_GetTick();
			}
			else {
				Escooter1.BatCalcDraiCAP+=((float)GetBatCurrent_mA()*(float)(HAL_GetTick() - Tickstart1))/3600000.0;
				Tickstart1=HAL_GetTick();
			}

			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCurrent,'F', 'G');

			Escooter1.BatVoltage=GetBatVoltage();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatVoltage,'F', 'H');

			Escooter1.BatTemp_S1=GetBatTemp_S1();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatTemp_S1,'F', 'I');

			Escooter1.BatTemp_S2=GetBatTemp_S2();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatTemp_S2,'F', 'J');

			Escooter1.BatCapCulo=GetBatCapCulo();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCapCulo,'U', 'K');

			Escooter1.BatCapVol=GetBatCapVol();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCapVol,'U', 'L');

			Escooter1.BatHealthy=GetBatHealthy();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatHealthy,'U', 'M');

			Escooter1.BatCoreVolt1=GetBatCoreVolt_1();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt1,'F', 'N');

			Escooter1.BatCoreVolt2=GetBatCoreVolt_2();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt2,'F', 'O');

			Escooter1.BatCoreVolt3=GetBatCoreVolt_3();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt3,'F', 'P');

			Escooter1.BatCoreVolt4=GetBatCoreVolt_4();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt4,'F', 'Q');

			Escooter1.BatCoreVolt5=GetBatCoreVolt_5();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt5,'F', 'R');

			Escooter1.BatCoreVolt6=GetBatCoreVolt_6();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt6,'F', 'S');

			Escooter1.BatCoreVolt7=GetBatCoreVolt_7();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt7,'F', 'T');

			Escooter1.BatCoreVolt8=GetBatCoreVolt_8();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt8,'F', 'U');

			Escooter1.BatCoreVolt9=GetBatCoreVolt_9();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt9,'F', 'V');

			Escooter1.BatCoreVolt10=GetBatCoreVolt_10();
			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCoreVolt10,'F', 'W');

			Update_BLE_BUFFER((uint8_t*)&BrakeFlag,'u', 'X');

			Update_BLE_BUFFER((uint8_t*)&Escooter1.WorkMode,'u', 'Y');

			Update_BLE_BUFFER((uint8_t*)&Escooter1.BatCalcDraiCAP,'F', 'Z');

			Update_BLE_BUFFER((uint8_t*)&LightFlag,'u', 91);

			HAL_UART_Transmit(IMU_UART, BLE_BUFFER, BleBuffer_N, 0xffff);

			memset(BLE_BUFFER,0,220);
			DashBoard_state=not_activated;

//			pre_ref=ref;
			ref=0;
		}
	}

void Update_BLE_BUFFER (uint8_t* ptr,char value_type , char start){

	switch(value_type){

	case 'u':{//uint8_t
		BLE_BUFFER[ref]=(uint8_t)start;ref++;
		BLE_BUFFER[ref]=*ptr;ref++;
			}break;

	case 'U':{//uint16_t
		BLE_BUFFER[ref]=(uint8_t)start;ref++;
		BLE_BUFFER[ref]=*ptr;ptr++;ref++;
		BLE_BUFFER[ref]=*ptr;ref++;
			}break;

	case 'F'://float
	case 'L'://uint32_t
	{
		BLE_BUFFER[ref]=(uint8_t)start;ref++;
		BLE_BUFFER[ref]=*ptr;ptr++;ref++;
		BLE_BUFFER[ref]=*ptr;ptr++;ref++;
		BLE_BUFFER[ref]=*ptr;ptr++;ref++;
		BLE_BUFFER[ref]=*ptr;ref++;
			}break;
	}
}

float GetXaxis(){

	float roll=0;

	for(j=0;j<(IMU_Buffer_N);j++)
	{
		IMU_BufferCpy[j]=IMU_Buffer[j];
	}

	//search for roll value
	for(j=0;j<(IMU_Buffer_N-5);j++)
	{
		if(IMU_BufferCpy[j]=='x'&&IMU_BufferCpy[j+5]=='y'){
			ptr1 = (uint8_t*)&roll;
			*ptr1=IMU_BufferCpy[j+1];ptr1++;
			*ptr1=IMU_BufferCpy[j+2];ptr1++;
			*ptr1=IMU_BufferCpy[j+3];ptr1++;
			*ptr1=IMU_BufferCpy[j+4];
			break;
		}
	}
	return roll;
}

float GetYaxis(){

	float pitch=0;

	for(j=0;j<(IMU_Buffer_N);j++)
	{
		IMU_BufferCpy[j]=IMU_Buffer[j];
	}

	//search for roll value
	for(j=0;j<(IMU_Buffer_N-5);j++)
	{
		if(IMU_BufferCpy[j]=='y'&&IMU_BufferCpy[j+5]=='t'){
			ptr1 = (uint8_t*)&pitch;
			*ptr1=IMU_BufferCpy[j+1];ptr1++;
			*ptr1=IMU_BufferCpy[j+2];ptr1++;
			*ptr1=IMU_BufferCpy[j+3];ptr1++;
			*ptr1=IMU_BufferCpy[j+4];
			break;
		}
	}
	return pitch;
}

/*
 * ESP32_ApplicationLayer.c
 *
 *  Created on: Aug 2, 2023
 *      Author: Ibrahim
 */

#include "ESP32_ApplicationLayer.h"
#include "stm32g0xx.h"
#include <string.h>

extern UART_HandleTypeDef huart6;// IMU connection
extern UART_HandleTypeDef huart3;//ESP connection
extern UART_HandleTypeDef huart2;//Mosfet2 connection

extern TIM_HandleTypeDef htim14;


#define IMU_UART &huart6
#define ESP_UART &huart3
#define Mosfet2_UART &huart2

#define DashBoard_Pin GPIO_PIN_9
#define DashBoard_GPIO_Port GPIOA
#define Driver_Trigger_Pin GPIO_PIN_10
#define Driver_Trigger_GPIO_Port GPIOA

#define BleBuffer_N 220
#define IMU_Buffer_N 21

typedef enum{
	ok = 0,
	error = 1,
	empty = 2,
	available = 3,
}BufStat;

void Process_BleBuffer();
void Process_ESP_MSG();


uint8_t IMU_Buffer[21];
uint8_t ESP_MSG;
uint8_t Mosfet2_MSG;
uint8_t BleBuffer[220];
uint8_t ActivateFlag=1;
BufStat BufferStatus = empty;
uint8_t i,c,c1;

void ESP32_Init(){

	HAL_UART_Receive_DMA(ESP_UART, &ESP_MSG, 1);
	HAL_UART_Receive_DMA(IMU_UART, BleBuffer, BleBuffer_N);
	HAL_TIM_Base_Start_IT(&htim14);
}



void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim){

	//call every 0.01 Sec

	if (ActivateFlag){ //if shut down do no thing

	//every 100 counts check if the driver is active
	if(c1==100){

	if(!HAL_GPIO_ReadPin(DashBoard_GPIO_Port, DashBoard_Pin))

		{HAL_GPIO_WritePin(Driver_Trigger_GPIO_Port, Driver_Trigger_Pin, GPIO_PIN_SET );}

	else

		{HAL_GPIO_WritePin(Driver_Trigger_GPIO_Port, Driver_Trigger_Pin, GPIO_PIN_RESET );}
	c1=0;
	}
	c1++;

	//check if there is available data to send and remind the gps module that the driver is ready
	if(BufferStatus == empty)
	{
//	c++;
//	if(c==20){
	ESP_MSG = (uint8_t)'a';
	HAL_UART_Transmit(IMU_UART, &ESP_MSG, 1, 0xffff);//}
	}
	else if (BufferStatus == available)
	{ // send the buffer to the mobile app every 50 counts as parts with space between them 1 counts
//		if (c==50){//&&BleBuffer[3]=='b'
		HAL_UART_Transmit(ESP_UART, &BleBuffer[i], 20, 0xffff);
//		if(i==0)BleBuffer[0]=0;//to recognize the new buffer when it come

		//search for the brake flag
		if(i>200)
		for(int j=0;j<i;j++)
		{
			if(BleBuffer[j]=='X'&&BleBuffer[j+2]=='Y'){
				HAL_UART_Transmit(Mosfet2_UART, &BleBuffer[j+1],1, 0xffff);
				break;
			}
		}

		i+=20;
		if(i>200){i=0;BufferStatus = empty;memset(BleBuffer,0,220);}
	}
	}
//	if(c<50)c++;
	else {c=0;c1=0;BleBuffer[0]=0;}//if shut down reset counters
}


void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart){

	if(huart==IMU_UART){
		BufferStatus = available;
	}

	if(huart==ESP_UART){

	HAL_UART_Receive_IT (ESP_UART, &ESP_MSG, 1);

	switch(ESP_MSG){//process the ESP message
//	case 'a' : // Reserved (the driver is alive message esp to gps )
	//transmit the order
	case 'b' : // lock
	case 'c' : // unlock
	case 'd' : //Reboot
	case 'e' : // shutdown
	default :	//speed limit
		HAL_UART_Transmit(IMU_UART, &ESP_MSG, 1, 0xffff);break;
	}
	switch(ESP_MSG){
//	case 'd':
	case 'e':ActivateFlag=0;break;
	case 'f':ActivateFlag=1;break;

	}
	}
}

/*
 * Mosfet1_ApplicationLayer.c
 *
 *  Created on: Jul 31, 2023
 *      Author: Ibrahim
 */

#include "Mosfet1_ApplicationLayer.h"
#include "stm32g0xx.h"

extern UART_HandleTypeDef huart3;// IMU connection
extern UART_HandleTypeDef huart6;// GPS connection

#define IMU_UART &huart3
#define GPS_UART &huart6

#define IMU_Buffer_N 21


uint8_t IMU_Buffer[30];
uint8_t GPS_Message;

void Mosfet1Init(){
	HAL_UART_Receive_DMA(IMU_UART, IMU_Buffer, IMU_Buffer_N);
	HAL_UART_Receive_IT(GPS_UART, &GPS_Message, 1);
}


void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
    if(huart==IMU_UART){
    	HAL_UART_Transmit(GPS_UART, IMU_Buffer, IMU_Buffer_N, 0xffff);
    }
    if(huart==GPS_UART){
    	HAL_UART_Receive_IT(GPS_UART, &GPS_Message, 1);
    	if(GPS_Message)
    		HAL_GPIO_WritePin(Front_Light_GPIO_Port, Front_Light_Pin, SET);
    	else
    		HAL_GPIO_WritePin(Front_Light_GPIO_Port, Front_Light_Pin, RESET);
    }
}

/*
 * Mosfet2_ApplicationLayer.c
 *
 *  Created on: Aug 6, 2023
 *      Author: Ibrahim
 */

#include "stm32g0xx.h"
#include "Mosfet2_ApplicationLayer.h"

uint8_t ESP_MSG;

extern UART_HandleTypeDef huart6; //ESP connection

#define ESP_UART &huart6

void Mosfet2_Init(){
	HAL_UART_Receive_IT (ESP_UART, &ESP_MSG, 1);
}

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
	if(huart==ESP_UART){
	HAL_UART_Receive_IT (ESP_UART, &ESP_MSG, 1);

    if(ESP_MSG)
    	HAL_GPIO_WritePin(Front_Light_GPIO_Port, Front_Light_Pin, SET);
   	else
   		HAL_GPIO_WritePin(Front_Light_GPIO_Port, Front_Light_Pin, RESET);

	}

}

IoT-Enabled Electric Scooter Using Hexabitz Module

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Introduction:

Steps to implement the project :

1 ) Preparing the E-Scooter Body and the Hardware Parts:

2) Discovering the original E-scooter control system :

3) Building the Alternative Control System with Hexabitz Platform :

4 ) Android Application:

5 ) Web Application:

6 ) Backend Server:

Results:

References:

Code

IMU Module Firmware

MaxG30_DashBoard.c

MaxG30_Master control.c

GPS_ApplicationLayer.c

ESP32_ApplicationLayer.c

Mosfet1_ApplicationLayer.c

Mosfet2_ApplicationLayer.c

Credits

Ibrahim Zaeiter

Mahmoud Mardnly

Abd Alrhman Hammal

Mohammad Khallouf

Nazir Dan

ReemBrimo

Mouhamad Douba

Comments

Embed the widget on your own site

IoT-Enabled Electric Scooter Using Hexabitz Module

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Introduction:

Steps to implement the project :

1 ) Preparing the E-Scooter Body and the Hardware Parts:

2) Discovering the original E-scooter control system :

3) Building the Alternative Control System with Hexabitz Platform :

4 ) Android Application:

5 ) Web Application:

6 ) Backend Server:

Results:

References:

Code

IMU Module Firmware

MaxG30_DashBoard.c

MaxG30_Master control.c

GPS_ApplicationLayer.c

ESP32_ApplicationLayer.c

Mosfet1_ApplicationLayer.c

Mosfet2_ApplicationLayer.c

Credits

Comments

Related channels and tags
