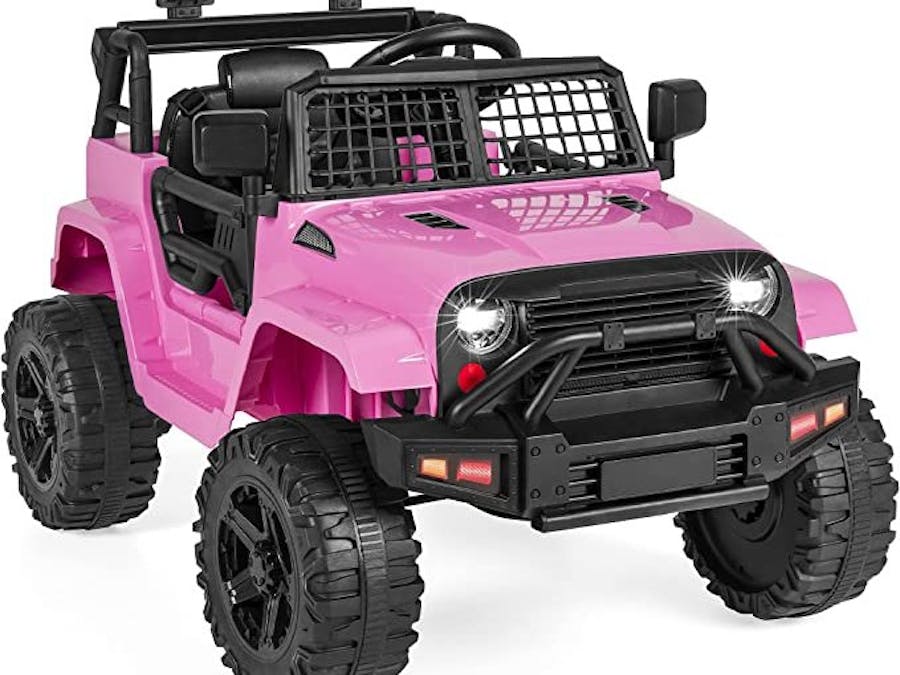

MEGR 3092 - Electric Drivetrains Team 13

// Define analog pins

const int VOLTAGE_PIN = A5;

const int CURRENT_PIN = A4;

const int THROTTLE_PIN = A3;

// Define digital pins

const int ENA_PIN = D5;

const int ENB_PIN = D6;

const int DIR_PIN = D2;

// Define voltage ratio and current calibration values

const float VOLTAGE_RATIO = 2.07;

const float CURRENT_CALIBRATION = -.13;

// Define variables to store raw values

int rawVoltage;

int rawCurrent;

int rawThrottle;

// Define variables to store filtered values

float filteredVoltage;

float filteredCurrent;

// Define the time interval for reading the analog inputs (in microseconds)

const unsigned long READ_INTERVAL = 10000;

// Define the time interval for outputting the filtered values (in milliseconds)

const unsigned long OUTPUT_INTERVAL = 10000;

// Define the filter coefficients for a first-order low-pass filter with a cutoff frequency of 5 Hz

const float FILTER_COEFFICIENT = 0.0183;

// Define the timer for outputting the filtered values

unsigned long outputTimer = 0;

// Define variables to control motor speed and motor direction

int motorSpeed = 0;

int outputSpeed = 180;

int prevSpeed;

bool motorDirection = false;

void setup() {

    // Initialize the serial communication

    Serial.begin(9600);

    pinMode(ENA_PIN, OUTPUT);

    pinMode(ENB_PIN, OUTPUT);

    pinMode(DIR_PIN, INPUT_PULLDOWN);

    }

void loop() {

    // Read the analog inputs

    rawVoltage = analogRead(VOLTAGE_PIN);

    rawCurrent = analogRead(CURRENT_PIN);

    rawThrottle = analogRead(THROTTLE_PIN);

    // Convert the raw values to voltages and current

    float voltage = (rawVoltage - 0) * 6.0 / 4095.0 * VOLTAGE_RATIO;

    float current = (rawCurrent - 2050.0) * 6.0 / 4095.0 / CURRENT_CALIBRATION;

    // Filter the values

    filteredVoltage = FILTER_COEFFICIENT * voltage + (1 - FILTER_COEFFICIENT) * voltage;

    filteredCurrent = FILTER_COEFFICIENT * current + (1 - FILTER_COEFFICIENT) * current;

    // Check if it's time to output the filtered values

    if (millis() - outputTimer >= OUTPUT_INTERVAL) { Serial.print("Filtered voltage: ");

    // Output the filtered values

    Particle.publish("Filtered current", String(filteredCurrent));

    Particle.publish("Filtered voltage", String(filteredVoltage));

    //Particle.publish("Raw Throttle", String(rawThrottle));

    Particle.publish("Reverse Swtich", String(digitalRead(DIR_PIN)));
    //Particle.publish("Prev Speed", String(prevSpeed));
    Particle.publish("Speed", String(outputSpeed));


    // Reset the output timer

    outputTimer = millis();

    }

    // Read toggle switch for forward/backward

    motorDirection = digitalRead(DIR_PIN);

    // Implement slew rate traction control

    // Define the maximum rate of increase in throttle per loop

    #define SLEW_RATE 100

    #define accel_step 1

    // Set motor direction to forward

    if (motorDirection == HIGH) {

        // Map motor speed to throttle position

        motorSpeed = map(rawThrottle, 0, 4095, 210, 100);

        //

        outputSpeed = constrain(outputSpeed, 100, 210);


        if (outputSpeed != motorSpeed) {

            if (outputSpeed < motorSpeed) {

                outputSpeed += accel_step;

                delay(SLEW_RATE);

            }

            else {

                outputSpeed -= accel_step;

                delay(SLEW_RATE);

            }
        }

        // Run motors

        analogWrite(ENA_PIN, outputSpeed);

        analogWrite(ENB_PIN, outputSpeed);

    }

    // Set motor direction to backwards

    else {

        // Map motor speed to throttle position

      motorSpeed = map(rawThrottle, 0, 4095, 160, 255);

        //

        outputSpeed = constrain(outputSpeed, 160, 255);


        if (outputSpeed != motorSpeed) {

            if (outputSpeed < motorSpeed) {

                outputSpeed += accel_step;

                delay(SLEW_RATE);

            }

            else {

                outputSpeed -= accel_step;

                delay(SLEW_RATE);

            }
        }

        // Run motors

        analogWrite(ENA_PIN, outputSpeed);

        analogWrite(ENB_PIN, outputSpeed);


    }

    unsigned long startTime = micros();

    while (micros() - startTime < READ_INTERVAL) {

        // Do nothing

        }

    }
