Wireless Pulse Rate Monitor Featuring 4Duino-24

Project

Usually, doctors and nurses visit each patient to check vital signs, but by using this project, they can monitor the patient’s vital signs without visiting them, and this also allows them to remotely monitor the patient even outside the nurse’s station or outside the hospital.

As an added recommendation, users can also improve this project by adding more sensors such as a body temperature sensor, respiration rate monitor and even dextrose weightier to check the amount of the dextrose left.

How it Works

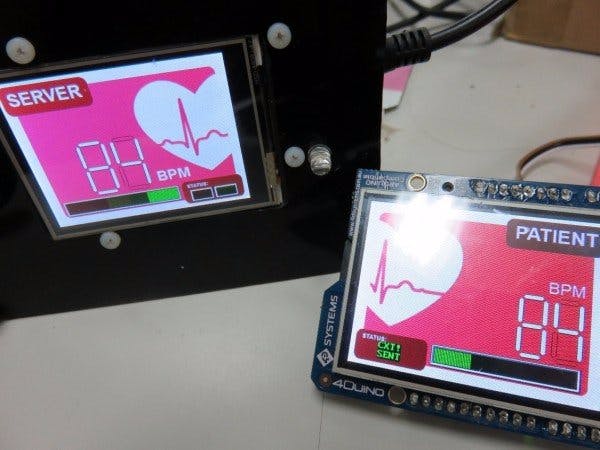

In this project, users can mount the 4duino (Patient – Client) onto a patient’s room, bed or wall, which will display the readings from the pulse-rate sensor. Calculations and added instructions will be handled by the PICASO controller on-board our 4Duino, then finally sent to another 4Duino (Doctor/Nurse – Server) which is in the possession of the nurse or doctor. Doctors or nurses can perform their other duties or attend to other patients rather than staying in the nurse’s station and monitor their vital signs.

Users can further improve this project by projecting the data received into a web browser and record the pulse-rate. Another improvement that can be added to the project is installing other sensing devices that will detect respiration rate, blood pressure or body temperature to ensure the status of the patient’s vital signs.

Step 1: Build

Build the circuit as shown in the following diagram and schematic.

Step 2: Program

Workshop 4 – 4Duino Basic Extended environment is used to program this project. (The same could be implemented in the latest Arduino IDE.)

This project requires the Arduino IDE to be installed as Workshop calls the Arduino IDE for compiling the Arduino sketches. The Arduino IDE, however, is not required to be opened or modified to program the 4Duino-24.

Open these files using Workshop 4.

Note: Download the code here.

Step 3: Comms Port

Connect the 4Duino to the PC using uUSB cable.

Then navigate to the Comms tab and select the Comms port to which the 4Duino connected.

Step 4: Compile and Upload

Finally, go back to “Home” tab and now click on the “Comp’nLoad” button.

Step 5: Insert µSD card

After uploading the program to the 4Duino, it will try to mount the µSD card. If the µSD card is not present it will prints an error message. All you need to do is insert the µSD card you saved the image files into the 4Duino.

Demonstration

After inserting their respective microSD cards to the 4Duino modules, users will see this loading page, this indicates if the Wi-Fi initialization, Server-Client initialization and their links have been successfully executed:
