Slot Machine Game

Slot Machine Game

This project is a recreation of the traditional slot machine games, it uses the gen4-uLCD-70DCT-CLB as a display interface where you can press the buttons to start or stop the game.

Users are also encouraged to improve the project by connecting the project together with other peripheral devices such as coin acceptor modules and crank switches to recreate the whole slot machine experience.

How it works

Components

• gen4-uLCD70DCT-CLB

• gen4-PA or gen4-IB

• FFC cable

• uSD card

• uUSB cable

Step 1: Implementation

• If you are using gen4-IB and μUSB PA-5, connect the display to your computer as shown in the image below.

• If you are using gen4-PA board,connect the display to your computer as shown in the image below.

Step 2: Program

• Download the project file here.

• You can download Workshop 4 IDE and the complete code for this project from our website.

• Open the project using Workshop 4. This project uses the ViSi Environment.

• You can modify the properties of each widget.

Step 3: Compile

• Click on the Compile button.

Note: This step could be skipped. However, compiling is essential for debugging purposes.

Step 4: Comp’n Load

• Connect the display to the PC using μUSB-PA5 and a mini USB cable. Make sure that you are connected to the right port. Red Button indicates that the device is not connected, Blue Button indicates that the device is connected to the right port.

• Now click on the “Comp’nLoad” button.

• Workshop 4 will prompt you to select a drive to copy the image files to a μSD Card. After selecting the correct drive, click OK.

Step 5: Mount μSD Card

• The module will prompt you to insert the μSD card.

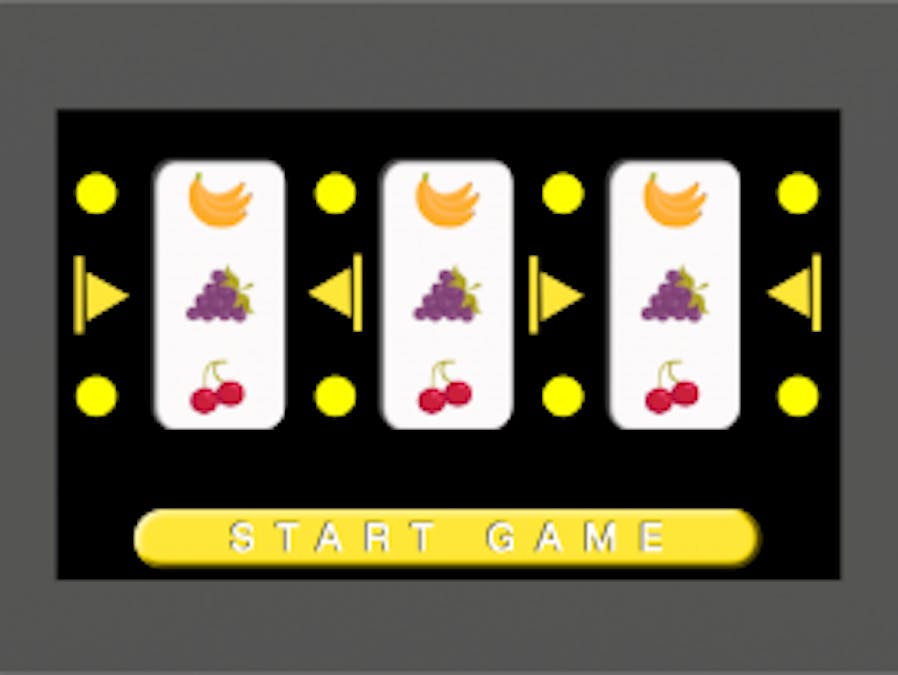

• Properly unmount the μSD Card from the PC and insert it to the μSD Card slot of the display module. The image below must appear on your display after completing the steps above.
