Drum Pad

Drum Pad

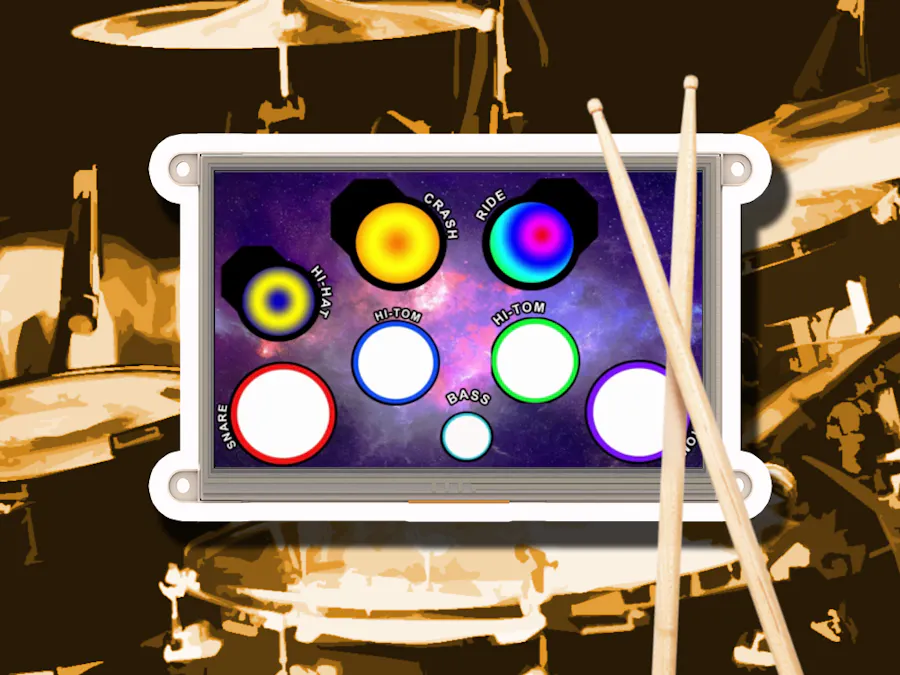

The gen4 uLCD-70DT Drum Pad project is a virtual and complete drum set that are played using the touch functions. As the users press each drum instrument, the gen4 will command the SOMO-II to play each sample drum instrument.

The bass drum is automatically played in a loop and can be set in different tempo or beat signatures.

The snare drum sound sample is on medium tension, the base drum sound sample is muffled with a pillow.

The project is best using a gen4-uLCD-70DT because of the large screen area to play and place the buttons, it also uses the super-fast DIABLO16 processor that makes the drum set receptive to simple or soft touches.

How it works

Components

• gen4-uLCD-70DT

• 2 x SOMO-II

• 2 x 4 Watt Speaker

• gen4-PA

• 30 way FFC Cable

• uSD Card for gen4-uLCD-70DT

• 2 x uSD Card for SOMO-II

• Micro USB Cable

• Connecting Wires

Implementation

Step 1: Build

If you are using gen4-PA board, connect the display to the PC like the image below.

Step 2: Program

Download the project file here.

You can download Workshop 4 IDE and the complete code for this project from our website. Open the project using Workshop 4. This project uses the Visi Environment. You can modify the properties of each widget.

Step 3: Compile

Click on the “Compile” button.

Note: This step could be skipped. However, compiling is essential for debugging purposes.

Step 4: Comp n' Load

Connect the display to the PC using uUSB-PA5 and a mini USB cable. Make sure that you are connected to the right port. Red Button indicates that the device is not connected, Blue Button indicates that the device is connected to the right port.

Now click on the “Comp n' Load” button.

Workshop 4 will prompt you to select a drive to copy the image files to a uSD Card. After selecting the correct drive, click OK.

Step 5: Mount uSD Card

The module will prompt you to insert the uSD card.

Properly unmount the uSD Card from the PC and insert it to the uSD Card slot of the display module. The image below must appear on your display after completing the steps above.

Step 6: Drum Samples for SOMO-II uSD Card

Download and save the drum samples in one uSD Card. Follow the same File name and numbering.

Download and save the bass drum sample in another uSD Card. Follow the File name and numbering.

Insert the usD cards to their respective SOMO-II modules. Wire and connect the SOMO-II with the gen4-uLCD-70DT accordingly.

Demonstration

Flowchart
