IOT Sensor platform (Baby / weather monitor )

Using sensors to collect data such as weather and motion into a dashboard and alert users through text/email when important events occur.

IntermediateFull instructions provided7,764

IOT Sensor platform (Baby / weather monitor )

Things used in this project

Hardware components

TI Launchpad TM4C123GXL Microcontroller

Texas Instruments CC3100BOOST SimpleLink CC3100 Wi-Fi BoosterPack

Esquilo Air

Sharp 2Y0A02 IR Distance sensor

To detect baby escape

Freescale FRDM-STBC-AGM01 Gyro/Accelerometer

SparkFun Weather Shield

Story

Team IOT Baby/Weather Monitor had a vision to create a platform to gather lots of localized home automation data into a central dashboard and alert the users with any important events. Key features of the project include:

1. Monitoring and alerting when the baby escapes his room. This data shows on the dashboard and text alerts are sent through Twilio.

2. Localized weather station - The Esquilo provides a super localized weather station. It alerts the user when the weather changes at the location such as rain. When the IMU detects that the user is getting up in the morning, the weather summary provided by the Esquilo will be automatically sent as a text or shown on the wearable device.

3. Other sensor data can also be sent to the dashboard and used to trigger alerts.

Hardware include TI Launchpad TM4C123GXL microcontrollers paired with CC3100 Booster Pack wifi daughter boards. The Esquilio was paired with a SparkFun Weather shield and a Freescale gyro/accelerometer.

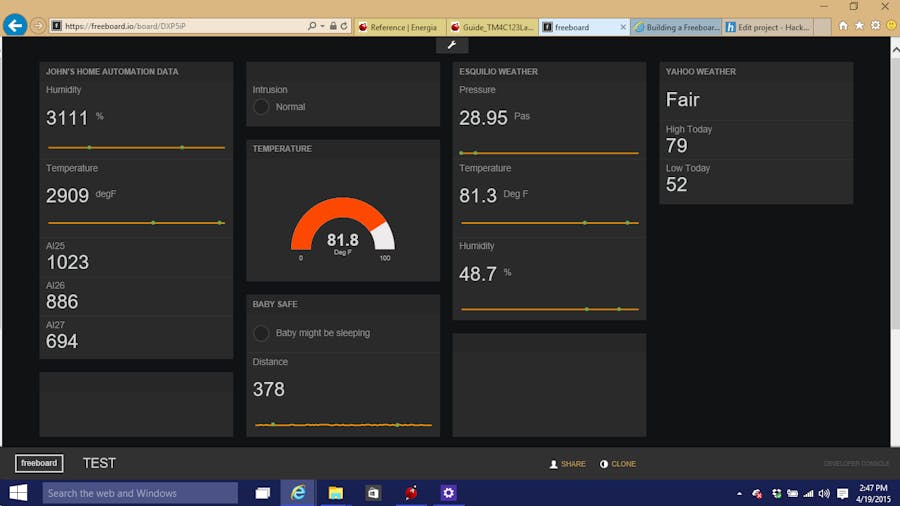

Data was transported in several ways. The sensor data was sent from the controllers to Dweet.IO using REST. Freeboard.IO was used to create the dashboard that consumes the data stream on Dweet.IO.

1 / 2 • Pitch, Roll, Yaw data

1 / 6

// Libraries
#include <SPI.h>
#include <WiFi.h>
#include <WifiIPStack.h>
#include <WiFiClient.h>


// WiFi Client
WiFiClient client;

// Your network name also called SSID
char ssid[] = "211";
// your network password
char password[] = "2getonline";
// your network key Index number (needed only for WEP)
int keyIndex = 0;

// Dweet parameters
char * server_name = "www.dweet.io";
#define thing_name  "jhthing"

void setup() {

  Serial.begin(115200);      // Initialize serial communication

  // attempt to connect to Wifi network:
  Serial.print("Attempting to connect to Network named: ");
  // print the network name (SSID);
  Serial.println(ssid);
  // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
  WiFi.begin(ssid, password);
  while ( WiFi.status() != WL_CONNECTED) {
    // print dots while we wait to connect
    Serial.print(".");
    delay(300);
  }

  // Pin for the PIR sensor
  pinMode(8,INPUT_PULLDOWN);

  Serial.println("\nYou're connected to the network");
  Serial.println("Waiting for an ip address");

  while (WiFi.localIP() == INADDR_NONE) {
    // print dots while we wait for an ip addresss
    Serial.print(".");
    delay(300);
  }

}


void loop() {

  // Measure motion
  int motion = digitalRead(8);
  float temperature = analogRead(23);
  float humidity = analogRead(24);
  float AI25 = analogRead(25);
  float AI26 = analogRead(26);
  float AI27 = analogRead(27);

  Serial.println(motion);

  // Measure temperature & humidity

  //if (dht::readFloatData(10, &temperature, &humidity, false) == 0)
  //{
  //  Serial.print("T: ");
  //  Serial.print(temperature);
  //  Serial.print(" H: ");
  //  Serial.println(humidity);
  //}

  // Send data to server
  if (client.connect(server_name, 80)) {
    Serial.println("Connected");

    Serial.print(F("Sending request... "));

    client.print(F("GET /dweet/for/"));
    client.print(thing_name);
    client.print(F("?temperature="));
    client.print(temperature);
    client.print(F("&humidity="));
    client.print(humidity);
    client.print(F("&motion="));
    client.print(motion);
    client.print(F("&AI25="));
    client.print(AI25);
    client.print(F("&AI26="));
    client.print(AI26);
    client.print(F("&AI27="));
    client.print(AI27);

    client.println(F(" HTTP/1.1"));

    client.println(F("Host: dweet.io"));
    client.println(F("Connection: close"));
    client.println(F(""));

    Serial.println(F("done."));
  }

 // if (client.connect(server_name, 80)) {
 //   Serial.println("Connected");
 //   Serial.print(F("Sending Alert... "));

 //   client.print(F("GET /dweet/for/"));
 //   client.print(thing_name);
 //   client.print(F("?motion="));
 //   client.print(motion);

 //   client.println(F(" HTTP/1.1"));

 //   client.println(F("Host: dweet.io"));
 //   client.println(F("Connection: close"));
 //   client.println(F(""));

 //  Serial.println(F("done."));
 //    https://dweet.io/alert/me@mydohmain.com/when/my_thing/dweet.donut_qty<=0?key=abc123
 // }




  // Read answer
  Serial.println(F("Reading answer..."));
  while (client.connected()) {
    while (client.available()) {
      char c = client.read();
      Serial.print(c);
    }
  }
  Serial.println(F(""));

  // Close connection
  client.stop();
  Serial.println(F("Closing connection"));
  Serial.println(F(""));


 delay (300);
}

#include <SPI.h>
#include <WiFi.h>
#include <WifiIPStack.h>
#include <WiFiClient.h>

#include <Temboo.h>
//#include "TembooAccount.h" // Contains Temboo account information
#define TEMBOO_ACCOUNT ""  // Your Temboo account name
#define TEMBOO_APP_KEY_NAME ""  // Your Temboo app name
#define TEMBOO_APP_KEY ""  // Your Temboo app key

// WiFi Client
WiFiClient client;

// Your network name also called SSID
char ssid[] = "";
// your network password
char password[] = "";
// your network key Index number (needed only for WEP)
int keyIndex = 0;

// Dweet parameters
char * server_name = "www.dweet.io";
#define thing_name  ""

int sensorPin = A0;
int sensorValue = 0;
int sensorReadCount = 0;
int sensorValues[5];

bool textSent = false;

void setup()
{
  // put your setup code here, to run once
  Serial.begin(115200);

  // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
  WiFi.begin(ssid, password);
  while ( WiFi.status() != WL_CONNECTED) {
    // print dots while we wait to connect
    Serial.print(".");
    delay(300);
  }

  while (WiFi.localIP() == INADDR_NONE) {
    // print dots while we wait for an ip addresss
    Serial.print(".");
    delay(300);
  }

  Serial.println("Connected");

  delay(2000);
}

void loop()
{
  // put your main code here, to run repeatedly:
  sensorValue = analogRead(sensorPin);
//  Serial.println(sensorValue);

  sensorValues[sensorReadCount % 5] = sensorValue;

  if (sensorReadCount > 4) {
    float average = (sensorValues[0] + sensorValues[1] + sensorValues[2] + sensorValues[3] + sensorValues[4]) / 5.0f;
    if (sensorValue - average > 200 || sensorValue - average < -200) {
      sendAlert(true, sensorValue);
    }
    else {
      sendAlert(false, sensorValue);
    }
  }

  sensorReadCount++;
  delay(250);
}

void sendAlert(boolean redAlert, int distance) {

  // Send data to server
  if (client.connect(server_name, 80)) {
    Serial.print(".");
    if (redAlert) Serial.println("");

    client.print(F("GET /dweet/for/"));
    client.print(thing_name);
    client.print(F("?redAlert="));
    client.print(redAlert);
    client.print(F("&distance="));
    client.print(distance);
    client.println(F(" HTTP/1.1"));

    client.println(F("Host: dweet.io"));
    client.println(F("Connection: close"));
    client.println(F(""));

    client.stop();

//    Serial.println(F("done."));
  }

  if (redAlert) textAlert();
}

void textAlert() {

  if (!textSent) {
    TembooChoreo SendSMSChoreo(client);

    // Invoke the Temboo client
    SendSMSChoreo.begin();

    // Set Temboo account credentials
    SendSMSChoreo.setAccountName(TEMBOO_ACCOUNT);
    SendSMSChoreo.setAppKeyName(TEMBOO_APP_KEY_NAME);
    SendSMSChoreo.setAppKey(TEMBOO_APP_KEY);

    // Set Choreo inputs
    String AuthTokenValue = "";
    SendSMSChoreo.addInput("AuthToken", AuthTokenValue);
    String BodyValue = "BodyText";
    SendSMSChoreo.addInput("Body", BodyValue);
    String ToValue = "+18008675309";
    SendSMSChoreo.addInput("To", ToValue);
    String AccountSIDValue = "";
    SendSMSChoreo.addInput("AccountSID", AccountSIDValue);
    String FromValue = "+13035559090";
    SendSMSChoreo.addInput("From", FromValue);

    // Identify the Choreo to run
    SendSMSChoreo.setChoreo("/Library/Twilio/SMSMessages/SendSMS");

    // Run the Choreo; when results are available, print them to serial
    SendSMSChoreo.run();

    while(SendSMSChoreo.available()) {
      char c = SendSMSChoreo.read();
      Serial.print(c);
    }
    SendSMSChoreo.close();

    textSent = true;
  }
}
