// If your target is limited in memory remove this macro to save 10K RAM
#define EIDSP_QUANTIZE_FILTERBANK 0
/**
* Define the number of slices per model window. E.g. a model window of 1000 ms
* with slices per model window set to 4. Results in a slice size of 250 ms.
* For more info: https://docs.edgeimpulse.com/docs/continuous-audio-sampling
*/
#define EI_CLASSIFIER_SLICES_PER_MODEL_WINDOW 2
/*
** NOTE: If you run into TFLite arena allocation issue.
**
** This may be due to may dynamic memory fragmentation.
** Try defining "-DEI_CLASSIFIER_ALLOCATION_STATIC" in boards.local.txt (create
** if it doesn't exist) and copy this file to
** `<ARDUINO_CORE_INSTALL_PATH>/arduino/hardware/<mbed_core>/<core_version>/`.
**
** See
** (https://support.arduino.cc/hc/en-us/articles/360012076960-Where-are-the-installed-cores-located-)
** to find where Arduino installs cores on your machine.
**
** If the problem persists then there's not enough memory for this model and application.
*/
/* Includes ---------------------------------------------------------------- */
#include <PDM.h>
#include <RunningSafetyDetection_inferencing.h>
#include <ArduinoBLE.h>
#include <ArduinoJson.h>
#define BLE_UUID_STRING "47ED5A43-E32A-4455-A9B4-9B2DB5F1DF85"
#define BLE_UUID_TEST_SERVICE "769BE000-34F5-4DC8-A55A-30635000776A"
BLEDevice central;
BLEService yourService(BLE_UUID_TEST_SERVICE);
BLEStringCharacteristic yourClass(BLE_UUID_STRING, BLERead | BLENotify, 200);
int detectedClassValue = 0;
int detectedClass = 0;
/** Audio buffers, pointers and selectors */
typedef struct {
signed short *buffers[2];
unsigned char buf_select;
unsigned char buf_ready;
unsigned int buf_count;
unsigned int n_samples;
} inference_t;
static inference_t inference;
static bool record_ready = false;
static signed short *sampleBuffer;
static bool debug_nn = false; // Set this to true to see e.g. features generated from the raw signal
static int print_results = -(EI_CLASSIFIER_SLICES_PER_MODEL_WINDOW);
int prevreading = 0;
int currreading = 0;
int bicyclecounter = 0;
int carcounter = 0;
int emergencycounter = 0;
int permEmergencycounter =0;
int permCarhonkcounter =0;
int permBicyclecounter = 0;
int numreadings = 3;
int counter = 0;
/**
* @brief Arduino setup function
*/
void setup()
{
// put your setup code here, to run once:
Serial.begin(115200);
Serial.println("Edge Impulse Inferencing Demo");
// summary of inferencing settings (from model_metadata.h)
ei_printf("Inferencing settings:\n");
ei_printf("\tInterval: %.2f ms.\n", (float)EI_CLASSIFIER_INTERVAL_MS);
ei_printf("\tFrame size: %d\n", EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);
ei_printf("\tSample length: %d ms.\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT / 16);
ei_printf("\tNo. of classes: %d\n", sizeof(ei_classifier_inferencing_categories) /
sizeof(ei_classifier_inferencing_categories[0]));
run_classifier_init();
if (microphone_inference_start(EI_CLASSIFIER_SLICE_SIZE) == false) {
ei_printf("ERR: Failed to setup audio sampling\r\n");
return;
}
if (!BLE.begin()) {
Serial.println("starting BLE failed!");
while (1);
}
pinMode(LED_BUILTIN, OUTPUT);
pinMode(LEDB, OUTPUT);
pinMode(LEDG, OUTPUT);
pinMode(LEDR, OUTPUT);
BLE.setDeviceName("ArduinoRunningSafety");
BLE.setLocalName("Nano33BLESense");
BLE.setAdvertisedService(yourService);
yourService.addCharacteristic(yourClass);
BLE.addService(yourService);
BLE.advertise();
Serial.println("Bluetooth device active, waiting for connections...");
digitalWrite(LEDB, HIGH);
digitalWrite(LEDG, HIGH);
digitalWrite(LEDR, HIGH);
}
/**
* @brief Arduino main function. Runs the inferencing loop.
*/
void loop()
{
central = BLE.central();
if (central) {
Serial.print("Connected to central: ");
Serial.println(central.address());
digitalWrite(LED_BUILTIN, HIGH);
digitalWrite(LEDB, LOW);
while (central.connected()) {
/* ei_printf("Inferencing starting soon\n");
delay(2500);
ei_printf("Recording...\n");*/
bool m = microphone_inference_record();
if (!m) {
ei_printf("ERR: Failed to record audio...\n");
return;
}
StaticJsonDocument<600> doc;
signal_t signal;
signal.total_length = EI_CLASSIFIER_SLICE_SIZE;
signal.get_data = µphone_audio_signal_get_data;
ei_impulse_result_t result = {0};
EI_IMPULSE_ERROR r = run_classifier_continuous(&signal, &result, debug_nn);
if (r != EI_IMPULSE_OK) {
ei_printf("ERR: Failed to run classifier (%d)\n", r);
return;
}
// if (++print_results >= (EI_CLASSIFIER_SLICES_PER_MODEL_WINDOW)) {
// print the predictions
ei_printf("Predictions ");
ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
result.timing.dsp, result.timing.classification, result.timing.anomaly);
ei_printf(": \n");
for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
ei_printf(" %s: %.5f\n", result.classification[ix].label,
result.classification[ix].value);
currreading = result.classification[0].value*1000;
if (currreading != prevreading || result.classification[3].value*100 > 90 || result.classification[2].value*100 > 90 || result.classification[1].value*100 > 90) {
prevreading = currreading;
bicyclecounter = bicyclecounter + result.classification[1].value*100;
carcounter = carcounter + result.classification[2].value*100;
emergencycounter = emergencycounter + result.classification[3].value*100;
counter++;
if (counter == numreadings) {
if (bicyclecounter > 160) {
ledBicylcebell();
delay(100);
digitalWrite(LEDG, HIGH);
permBicyclecounter++;
doc["sound"] = "bicyclebell";
}
else if (carcounter > 160) {
ledCar();
delay(100);
digitalWrite(LEDB, HIGH);
permCarhonkcounter++;
doc["sound"] = "carhonk";
}
else if (emergencycounter > 160) {
ledEmergency();
delay(100);
digitalWrite(LEDR, HIGH);
permEmergencycounter++;
doc["sound"] = "emergencyvehicle";
}
counter = 0;
bicyclecounter = 0;
carcounter = 0;
emergencycounter =0;
String json;
serializeJson(doc, json);
if (central.connected()) yourClass.writeValue(json);
}
}
}
#if EI_CLASSIFIER_HAS_ANOMALY == 1
ei_printf(" anomaly score: %.3f\n", result.anomaly);
#endif
print_results = 0;
//}
}
digitalWrite(LED_BUILTIN, LOW);
Serial.print("Disconnected from central: ");
Serial.println(central.address());
}
}
/**
* @brief Printf function uses vsnprintf and output using Arduino Serial
*
* @param[in] format Variable argument list
*/
void ei_printf(const char *format, ...) {
static char print_buf[1024] = { 0 };
va_list args;
va_start(args, format);
int r = vsnprintf(print_buf, sizeof(print_buf), format, args);
va_end(args);
if (r > 0) {
Serial.write(print_buf);
}
}
/**
* @brief PDM buffer full callback
* Get data and call audio thread callback
*/
static void pdm_data_ready_inference_callback(void)
{
int bytesAvailable = PDM.available();
// read into the sample buffer
int bytesRead = PDM.read((char *)&sampleBuffer[0], bytesAvailable);
if (record_ready == true) {
for (int i = 0; i<bytesRead>> 1; i++) {
inference.buffers[inference.buf_select][inference.buf_count++] = sampleBuffer[i];
if (inference.buf_count >= inference.n_samples) {
inference.buf_select ^= 1;
inference.buf_count = 0;
inference.buf_ready = 1;
}
}
}
}
/**
* @brief Init inferencing struct and setup/start PDM
*
* @param[in] n_samples The n samples
*
* @return { description_of_the_return_value }
*/
static bool microphone_inference_start(uint32_t n_samples)
{
inference.buffers[0] = (signed short *)malloc(n_samples * sizeof(signed short));
if (inference.buffers[0] == NULL) {
return false;
}
inference.buffers[1] = (signed short *)malloc(n_samples * sizeof(signed short));
if (inference.buffers[1] == NULL) {
free(inference.buffers[0]);
return false;
}
sampleBuffer = (signed short *)malloc((n_samples >> 1) * sizeof(signed short));
if (sampleBuffer == NULL) {
free(inference.buffers[0]);
free(inference.buffers[1]);
return false;
}
inference.buf_select = 0;
inference.buf_count = 0;
inference.n_samples = n_samples;
inference.buf_ready = 0;
// configure the data receive callback
PDM.onReceive(&pdm_data_ready_inference_callback);
PDM.setBufferSize((n_samples >> 1) * sizeof(int16_t));
// initialize PDM with:
// - one channel (mono mode)
// - a 16 kHz sample rate
if (!PDM.begin(1, EI_CLASSIFIER_FREQUENCY)) {
ei_printf("Failed to start PDM!");
}
// set the gain, defaults to 20
PDM.setGain(127);
record_ready = true;
return true;
}
/**
* @brief Wait on new data
*
* @return True when finished
*/
static bool microphone_inference_record(void)
{
bool ret = true;
if (inference.buf_ready == 1) {
ei_printf(
"Error sample buffer overrun. Decrease the number of slices per model window "
"(EI_CLASSIFIER_SLICES_PER_MODEL_WINDOW)\n");
ret = false;
}
while (inference.buf_ready == 0) {
delay(1);
}
inference.buf_ready = 0;
return ret;
}
/**
* Get raw audio signal data
*/
static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr)
{
numpy::int16_to_float(&inference.buffers[inference.buf_select ^ 1][offset], out_ptr, length);
return 0;
}
/**
* @brief Stop PDM and release buffers
*/
static void microphone_inference_end(void)
{
PDM.end();
free(inference.buffers[0]);
free(inference.buffers[1]);
free(sampleBuffer);
}

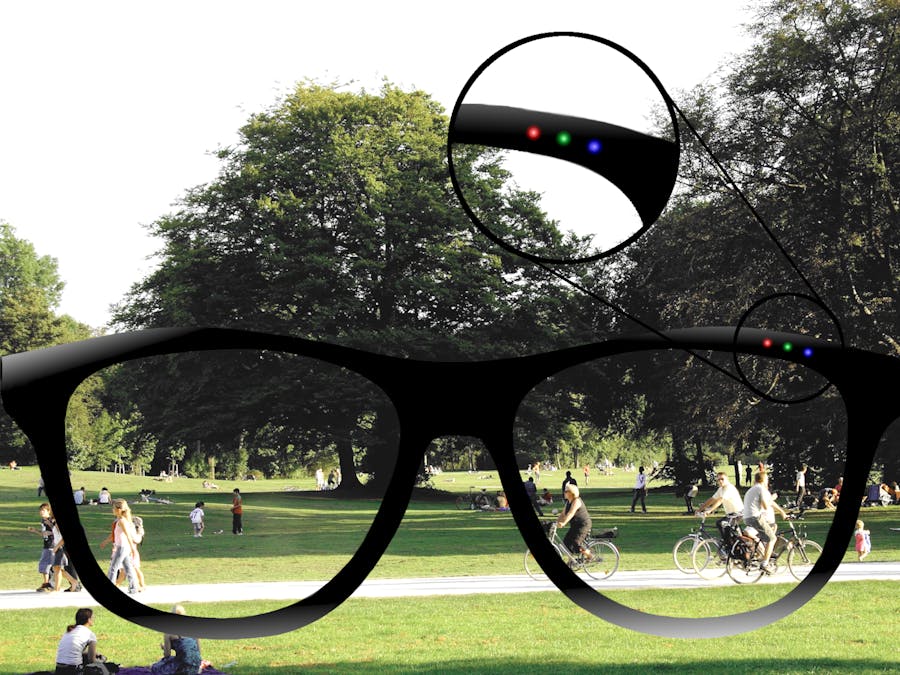

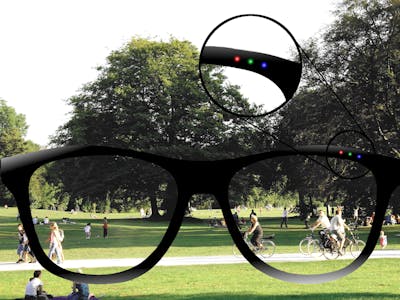

void ledBicylcebell(){
digitalWrite(LEDB, HIGH);
digitalWrite(LEDR, HIGH);
digitalWrite(LEDG, LOW);
}
void ledCar(){
digitalWrite(LEDB, LOW);
digitalWrite(LEDR, HIGH);
digitalWrite(LEDG, HIGH);
}
void ledEmergency(){
digitalWrite(LEDB, HIGH);
digitalWrite(LEDR, LOW);
digitalWrite(LEDG, HIGH);
}
#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid model for current sensor."
#endif
