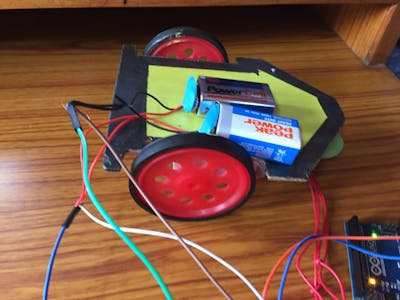

Remote Controlled Car

This project is about making a car and controlling it using Arduino.

IntermediateShowcase (no instructions)3 hours365
Remote Controlled Car

Things used in this project

Story

Read more

Code

car_working_rc_control.ino

C/C++
// Use this code to test your motor with the Arduino board:

// if you need PWM, just use the PWM outputs on the Arduino
// and instead of digitalWrite, you should use the analogWrite command

// --------------------------------------------------------------------------- Motors
int motor_left[] = {2, 3};
int motor_right[] = {7, 8};

// --------------------------------------------------------------------------- Setup
void setup() {
Serial.begin(9600);

// Setup motors
int i;
for(i = 0; i < 2; i++){
pinMode(motor_left[i], OUTPUT);
pinMode(motor_right[i], OUTPUT);
}

}

// --------------------------------------------------------------------------- Loop
void loop() {

drive_forward();
delay(1000);
motor_stop();
Serial.println("1");

drive_backward();
delay(1000);
motor_stop();
Serial.println("2");

turn_left();
delay(1000);
motor_stop();
Serial.println("3");

turn_right();
delay(1000);
motor_stop();
Serial.println("4");

motor_stop();
delay(1000);
motor_stop();
Serial.println("5");
}

// --------------------------------------------------------------------------- Drive

void motor_stop(){
digitalWrite(motor_left[0], LOW);
digitalWrite(motor_left[1], LOW);

digitalWrite(motor_right[0], LOW);
digitalWrite(motor_right[1], LOW);
delay(25);
}

void drive_forward(){
digitalWrite(motor_left[0], HIGH);
digitalWrite(motor_left[1], LOW);

digitalWrite(motor_right[0], HIGH);
digitalWrite(motor_right[1], LOW);
}

void drive_backward(){
digitalWrite(motor_left[0], LOW);
digitalWrite(motor_left[1], HIGH);

digitalWrite(motor_right[0], LOW);
digitalWrite(motor_right[1], HIGH);
}

void turn_left(){
digitalWrite(motor_left[0], LOW);
digitalWrite(motor_left[1], HIGH);

digitalWrite(motor_right[0], HIGH);
digitalWrite(motor_right[1], LOW);
}

void turn_right(){
digitalWrite(motor_left[0], HIGH);
digitalWrite(motor_left[1], LOW);

digitalWrite(motor_right[0], LOW);
digitalWrite(motor_right[1], HIGH);
}
